TP-Link - TL-SG1008D - 8-Port Gigabit Desktop Switch
Part number:
TL-SG1008D
Price:

What This Product Does

The TP-Link 8-Port Gigabit desktop switch TL-SG1008D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. With the innovative energy-efficient technology, the TL-SG1008D can save power consumption, making it an eco-friendly solution for your home or office network.



Gigabit Switch

Featured with 8 10/100/1000Mbps ports, TL-SG1008D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.



Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.



Features:

  • 8 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
  • Green Ethernet technology saves on power consumption
  • IEEE 802.3x flow control provides reliable data transfer
  • Plastic case, desktop or wall-mounting design
  • Plug and play, no configuration required

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i

802.3u

802.3ab

802.3x

Interface

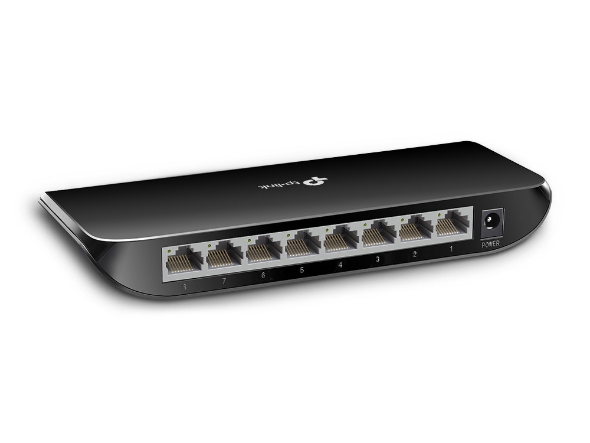

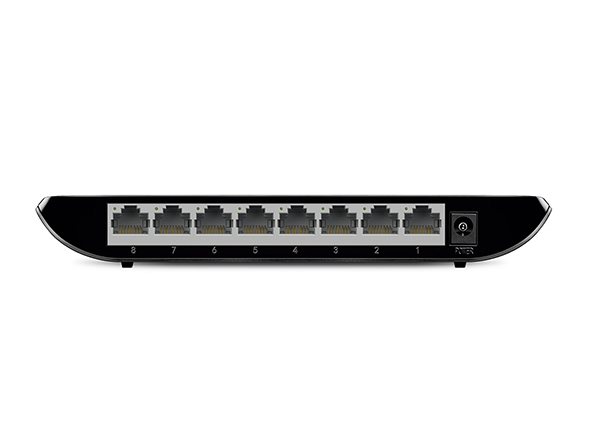

8 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Fan Quantity

Fanless

Physical Security Lock

NO

External Power Supply

External Power Adapter

(Output: 9VDC / 0.6A)

Jumbo Frame

15 KB

Switching Capacity

16 Gbps

Dimensions ( W x D x H )

7.1 × 3.5 × 1.0 in.

(180 × 90 × 26 mm)

Max Power Consumption

4.6W

Max Heat Dissipation

15.8 BTU/h

SOFTWARE FEATURES

Transfer Method

Store and Forward

MAC Address Table

4K

Advanced Functions

Green Technology, saving power up to 80%

802.3x Flow Control, Back Pressure

OTHERS

Certification

FCC, RoHS

Package Contents

8-Port Gigabit Desktop Switch TL-SG1008D

Power Adapter

Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~60℃ (-40℉~140℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Name
Description
Size
Downloads
File
Datasheet
1.3mb
File
Installation Guide
0.5mb
