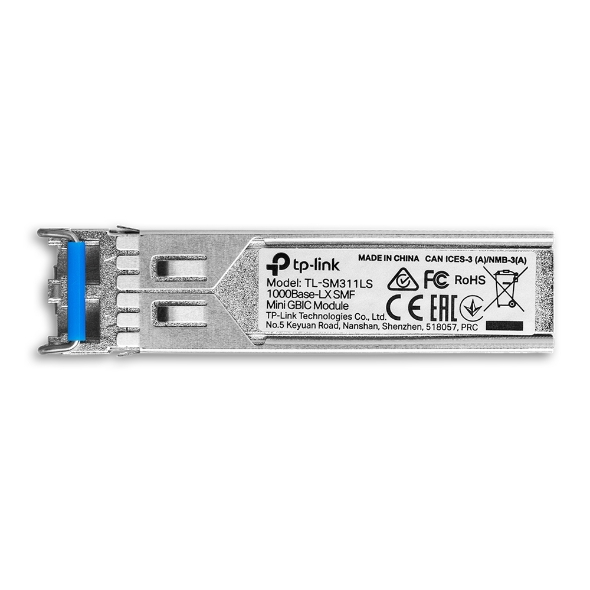

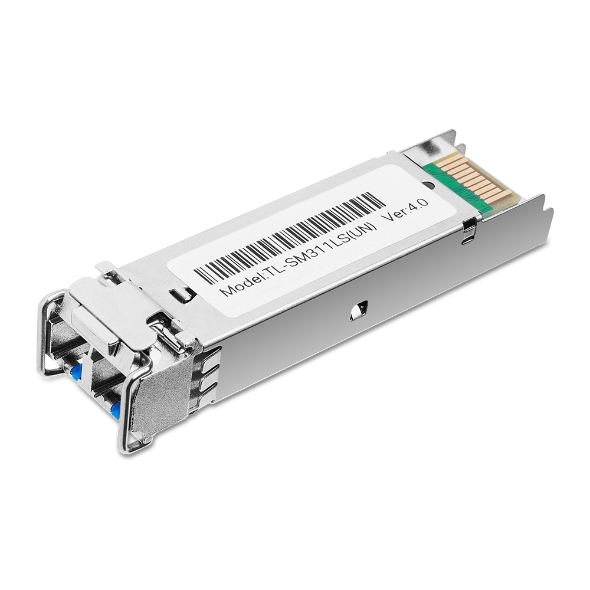

TP-Link - TL-SM311LS - SINGLE MODE LC PERP MINIGBIC 802.3 COMPLIANT TCP/IP
Part number:
TL-SM311LS
Price:
MiniGBIC Module
Features:
- Up to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)

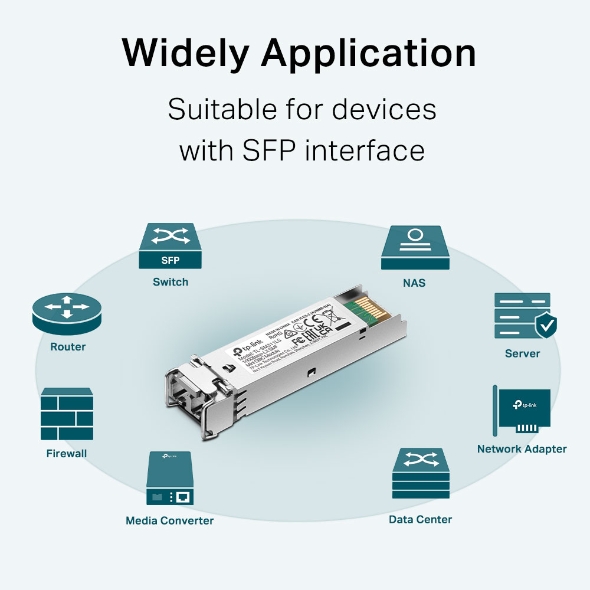

- Compatible with all SFP ports on TP-Link products including JetStream switches, and media converter MC220L.
- Work with MC210CS with a single-mode fiber connection
| HARDWARE FEATURES | |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| MEDIA CONVERTER & MODULE | |
| Standards and Protocols | IEEE 802.3z |
| Wave Length | 1310 nm |
| Power Supply | 3.3 V |
| Safety & Emission | FCC, CE |
| Cabel | Single-Mode Fiber |
| Fiber Type | 9/125 μm Single-Mode |
| Max. Cable Length | 20 KM |
| Data Rate | 1.25 Gbps |
| Port Type | LC Duplex |
| Environment | Operating Temperature: 0–70 °C (32–158 °F) |
| Storage Temperature: -40–85 °C ( -40–185 °F) | |
| Operating Humidity: 10–90% RH, Non-Condensing | |
| Storage Humidity: 5–90% RH, Non-Condensing | |
| Package Contents | • SFP Module TL-SM311LS |
| • Installation Guide |
Name
Description
Size
Downloads
File
Quick Installation Guide
0.8mb
