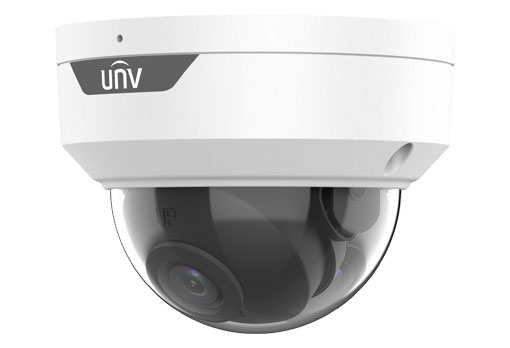

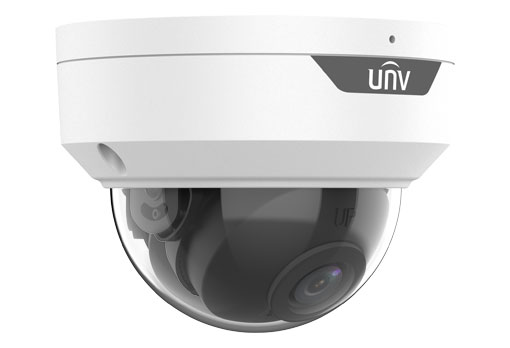

Uniview - IPC322LB-AF28WK-G - UNV WiFi 2MP Fixed Lens Dome 2.8mm
Part number:
IPC322LB-AF28WK-G
Price:
2MP WIFI Fixed Dome Network Camera
Features:
- High quality image with 2MP, 1/2.9" CMOS sensor
- 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Built -in Mic
- Smart IR, up to 30m (98ft) IR distance
- Supports 128G Micro SD card
- IK10 vandal resistant
- IP67 protection
- 3-Axis
| IPC322LB-AF28WK-G | ||||||
| Camera | ||||||
| Sensor | 1/2.9", progressive scan, 2.0 megapixel, CMOS | |||||
| Min. Illumination | Color: 0.01 lux (F2.0, AGC ON) 0 lux with IR | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Shutter | Auto/Manual, 1~1/100000 s | |||||
| Adjustment angle | Pan: 0°~352° | Tilt: 0°~70° | ||||
| S/N | >52dB | |||||
| WDR | DWDR | |||||
| Lens | ||||||
| Lens Type | 2.8mm @F2.0 | |||||
| Iris | Fixed | |||||
| Field of View (H) | 101.1° | |||||
| Field of View (V) | 55.0° | |||||
| Field of View (D) | 111.0° | |||||
| DORI | ||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | ||
| 2.8mm | 45.0 | 18.0 | 9.0 | |||
| Illuminator | ||||||
| IR Range | Up to 30m (98 ft) IR range | |||||
| Wavelength | 850nm | |||||
| IR On/Off Control | Auto/Manual | |||||
| Video | ||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P(1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1(720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | |||||
| Video Bit Rate | 128 Kbps~6 Mbps | |||||
| U-code | Support | |||||
| OSD | Up to 4 OSDs | |||||
| Privacy Mask | Up to 4 areas | |||||
| ROI | Up to 8 areas | |||||
| Video stream | Dual streams | |||||
| Image | ||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| Smart IR | Support | |||||
| Flip | Normal/Vertical/Horizontal/180° | |||||
| Dewarping | N/A | |||||
| HLC | Support | |||||
| BLC | Support | |||||
| Defog | Digital Defog | |||||
| Events | ||||||
| Basic Detection | Human body detection, motion detection, tampering alarm, audio detection | |||||
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication | |||||
| Audio | ||||||
| Audio Compression | G.711U, G.711A | |||||
| Audio Bitrate | 64 Kbps | |||||
| Two-way Audio | N/A | |||||
| Suppression | Support | |||||
| Sampling Rate | 8KHZ | |||||
| Storage | ||||||
| Edge Storage | Micro SD, up to 128GB | |||||
| Network Storage | ANR,NAS(NFS) | |||||
| Network | ||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP | |||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | |||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||
| Client | EZStation EZView EZLive | |||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||
| Wi-Fi | ||||||
| Wireless Standards | IEEE802.11b/g/n | |||||
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | |||||
| Channel Bandwidth | 20 MHz Support | |||||
| Modulation Mode | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT | |||||
| Security | 64/128-bit WEP, WPA-PSK/WPA2-PSK | |||||
| Transmit Power | 802.11b: 17±1.5dBm @11Mbps 802.11g: 14±1.5dBm @54Mbps 802.11n: 12.5±1.5dBm @150Mbps | |||||
| Receive Sensitivity | 802.11b: -90dBm @11Mbps (Typical) 802.11g: -75dBm @54Mbps (Typical) 802.11n: -74dBm @150Mbps(Typical) | |||||
| Transmission Rate | 802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps | |||||
| Interface | ||||||
| Audio I/O | N/A | |||||
| Alarm I/O | N/A | |||||
| RS485 | N/A | |||||
| Built-in Mic | Support | |||||
| Built-in Speaker | N/A | |||||
| WIFI | Support | |||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||
| Video Output | N/A | |||||
| Certification | ||||||
| EMC | FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) | |||||
| RF | FCC ID (FCC CFR 47 part15 C) CE RED (EN 62311:2008, EN 300 328 V2.2.2(2019-07), EN 301489-1 V2.2.3(2019-11), ETSI EN 301 489-17 V3.2.4(2020-09)) | |||||
| Safety | CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) | |||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |||||
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) | |||||
| General | ||||||
| Power | DC 12V±25% | |||||
| Power consumption: Max 4.0W | ||||||
| Power Interface | Ø 5.5mm coaxial power plug | |||||
| Dimensions (Ø x H) | Φ109 x 83 mm (Ø4.29” x 3.3”) | |||||
| Weight | 0.32 kg (0.71 lb) | |||||
| Material | Metal + Plastic | |||||
| Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing) | |||||
| Strorage Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing) | |||||
| Surge Protection | 4KV | |||||
| Reset Button | Support | |||||
