A mini-tower UPS with line interactive topology, the CyberPower AVR Series CP1200AVR provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During longer power outages, the CP1200AVR delivers enough battery backup power to perform a graceful shutdown to protect against the loss of data and damage to electronics. It uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1200AVR comes with a three-year warranty (including coverage of batteries) and a $375,000 Connected Equipment Guarantee.
Features:
General | |
UPS Topology | Line Interactive |
Energy Star Certified | Yes |
Energy Saving | GreenPower UPS™ Bypass |
Input | |
Frequency Range | 60Hz ± 3 Hz |
Input Voltage Range | 88 — 144V |
Plug Type | NEMA 5-15P |
Plug Style | Right Angle, 45° Offset Right |
Cord Length (ft) | 6 |
Output | |
VA | 1200 VA |
Watts | 720 W |
Automatic Voltage Regulation | Yes |
On Battery Voltage | 120 VAC ± 5% |
On Battery Frequency | 60 Hz ± 1% |
On Battery Waveform | Simulated Sine Wave |

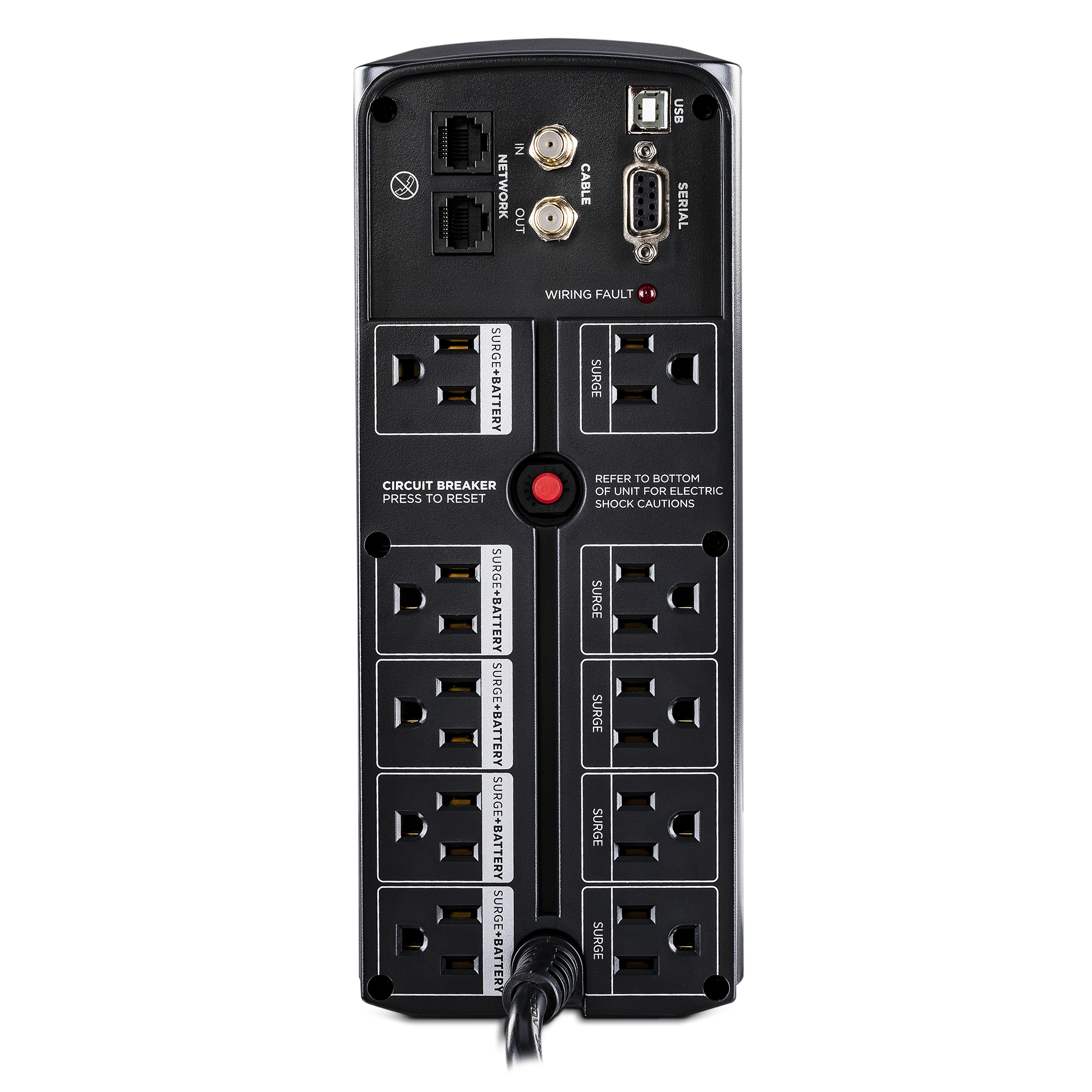

Outlet Type | NEMA 5-15R |
Outlets – Total | 10 |
Outlets - Battery & Surge Protected | 5 |
Outlets – Surge-Only Protected | 5 |
Outlets - Transformer- Spaced | 2 |
Overload Protection | Internal Circuitry Limiting, Circuit Breaker |
Transfer Time | Typical 8ms |
Battery | |
Runtime at Half Load (min) | 12 |
Runtime at Full Load (min) | 3 |
Battery Type | Sealed Lead-Acid |
Battery Size | 12V/7Ah |
Battery Quantity | 2 |
Hot-Swappable | Yes |
User Replaceable | Yes |
Replacement Battery Cartridge | RB1270X2C |
Replacement Battery Cartridge Quantity | 1 |
Typical Recharge Time | 8 hours |
Surge Protection & Filtering | |
Surge Suppression | 1,500 J |
EMI/RFI Filtration | Yes |
Coax Protection | Yes |
Network Protection RJ45 | 1-in, 1-Out (10/100/1000) |
Management & Communications | |

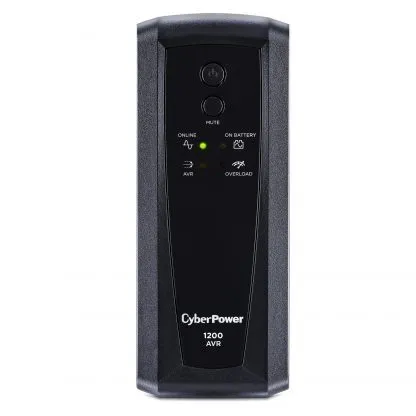

LED Indicators | Power On, Wiring Fault, On Battery, AVR, Overload |
Audible Alarms | On Battery, Low Battery, Overload, Fault |
Communication Cable | USB Cable |
HID Compliant USB Port | Yes |
Serial Port | Yes |
Software | PowerPanel® Personal |
Physical | |
Form Factor | Mini-Tower |
Color | Black |

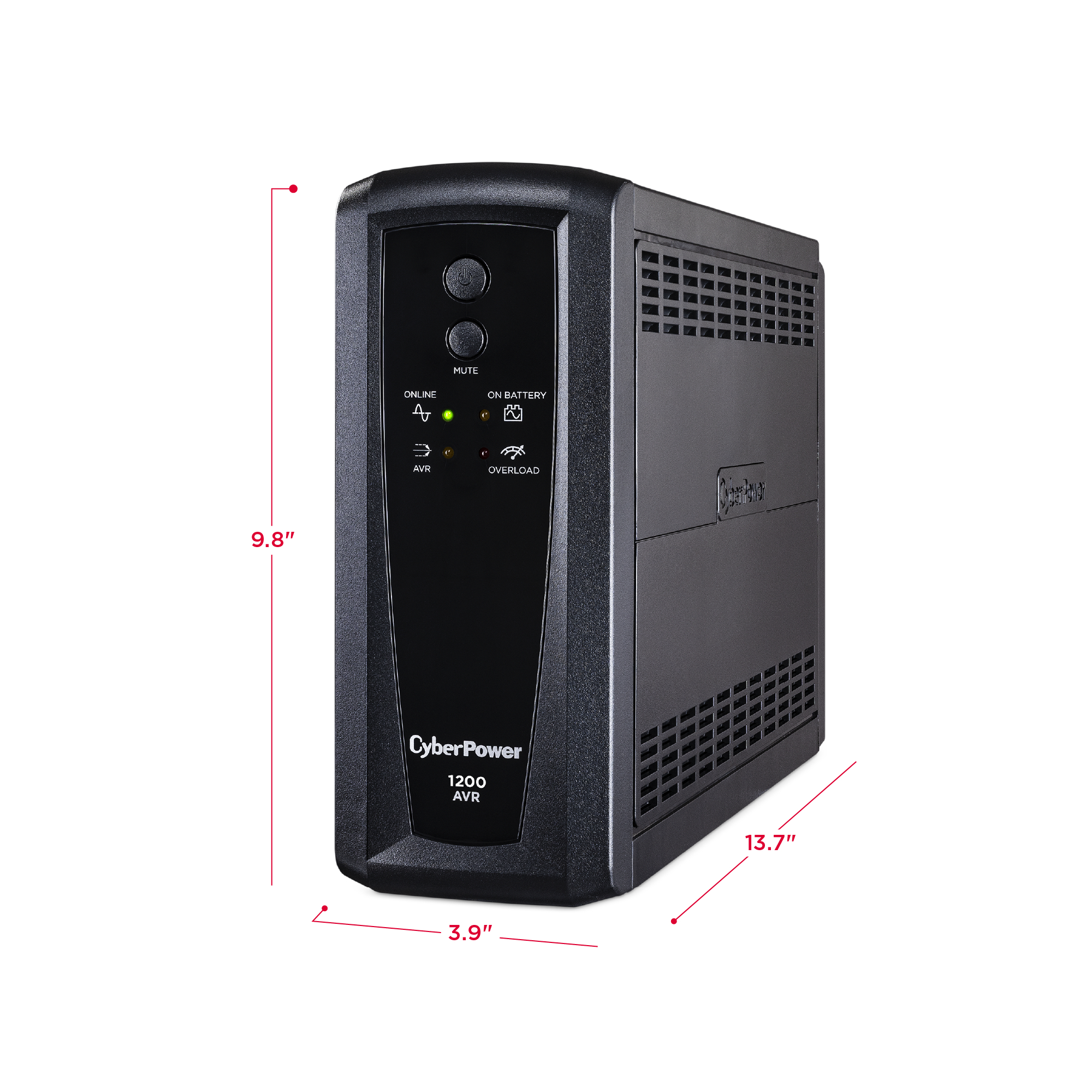

Dimensions - WxHxD (in) | 3.9 x 9.8 x 13.7 |
Weight (lbs) | 21.83 |
Environmental | |
Operating Temperature | 32°F to 104°F (0°C to 40°C) |
Operating Relative Humidity | 0 – 95% (non-condensing) |
Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
Storage Relative Humidity | 0% – 95% (non condensing) |
Maximum Operating Elevation | 10,000 ft (3,000 m) |
Maximum Storage Elevation | 50,000 ft (15,000 m) |
Certifications | |
Safety | UL1778, cUL 107 5th, FCC DOC Class B |
Environmental | RoHS Compliant |
Warranty | |
Product Warranty | 3 Years Limited |
Connected Equipment Guarantee | Lifetime |
CEG Amount | $375,000 |
