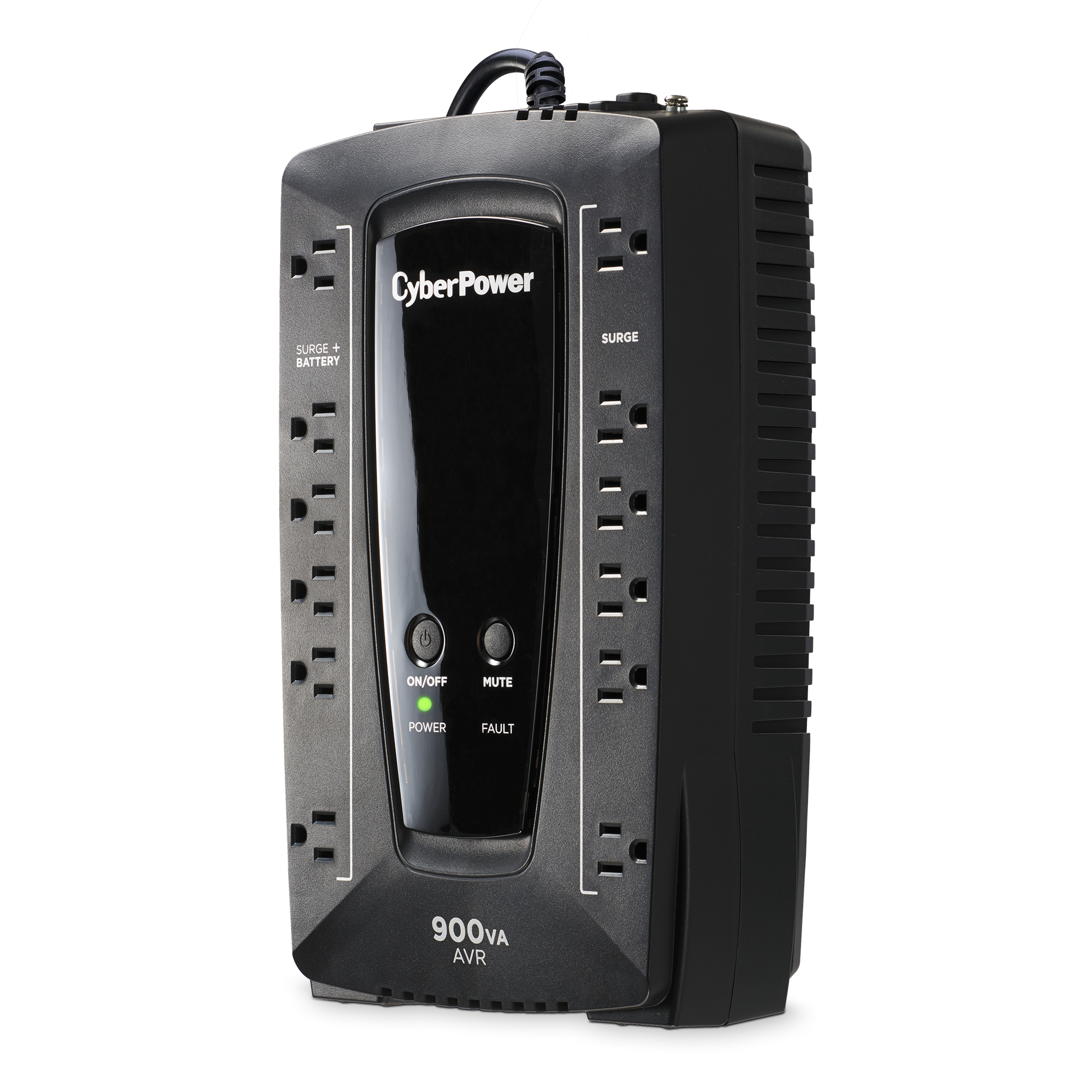

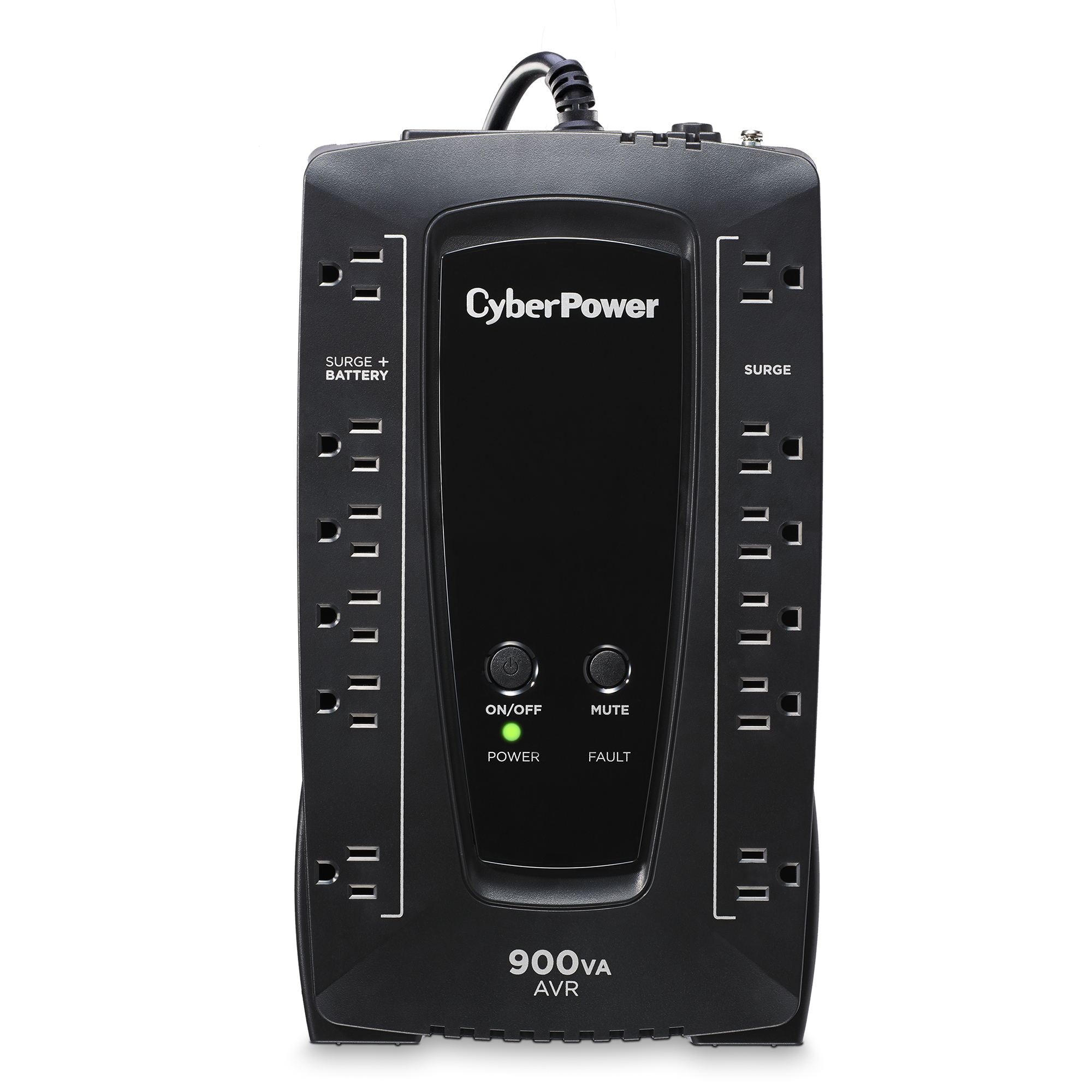

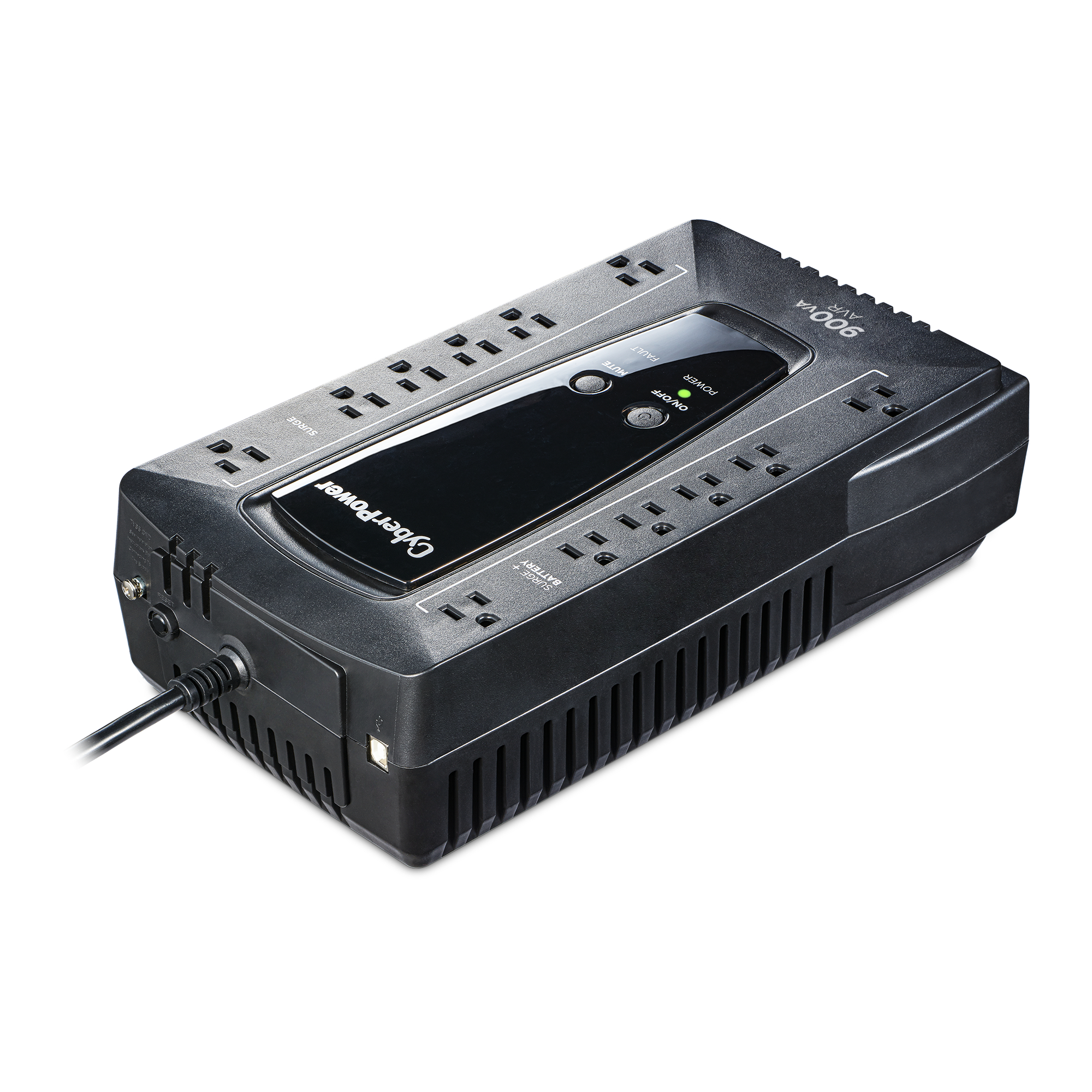

Cyber Power - AVRG900U - UPS SYSTEMS AVR, 900VA/480W, Simulated Sine Wave, NEMA 5-15P, 5 ft cord
Part number:
AVRG900U
Price:

A compact UPS with line interactive topology, the CyberPower AVRG900U provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The AVRG900U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The AVRG900U comes with a three-year warranty (including coverage of batteries) and a $200,000 Connected Equipment Guarantee.



Features:

  • Battery Backup: Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Data Line Protection: Prevents power surges that travel through telephone lines from causing damage to electronics.
  • Line Interactive Topology: Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
  • Automatic Voltage Regulation (AVR): Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
  • Simulated Sine Wave Output: Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • GreenPower UPS Bypass Design: Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
  • Ultra Quiet Design: Minimizes noise during operation for a quieter work environment.
  • PowerPanel Personal Edition Software: Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available. Free software download available here.
  • Three-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee: CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
GENERAL
UPS TopologyLine Interactive
Energy SavingGreenPower UPS™ Bypass Technology
INPUT
VoltageNominal 120V
Frequency60Hz ± 3Hz
Input Voltage Range90Vac – 148Vac
Plug TypeNEMA 5-15P
Plug StyleRight Angle, 45 Degree Offset Right
Cord Length5'
OUTPUT
VA900
Watts480
Automatic Voltage RegulationBoost 1 +10% / Buck -10%
On Battery Voltage120Vac ± 5%
On Battery Frequency60Hz ± 1%
On Battery WaveformSimulated Sine Wave

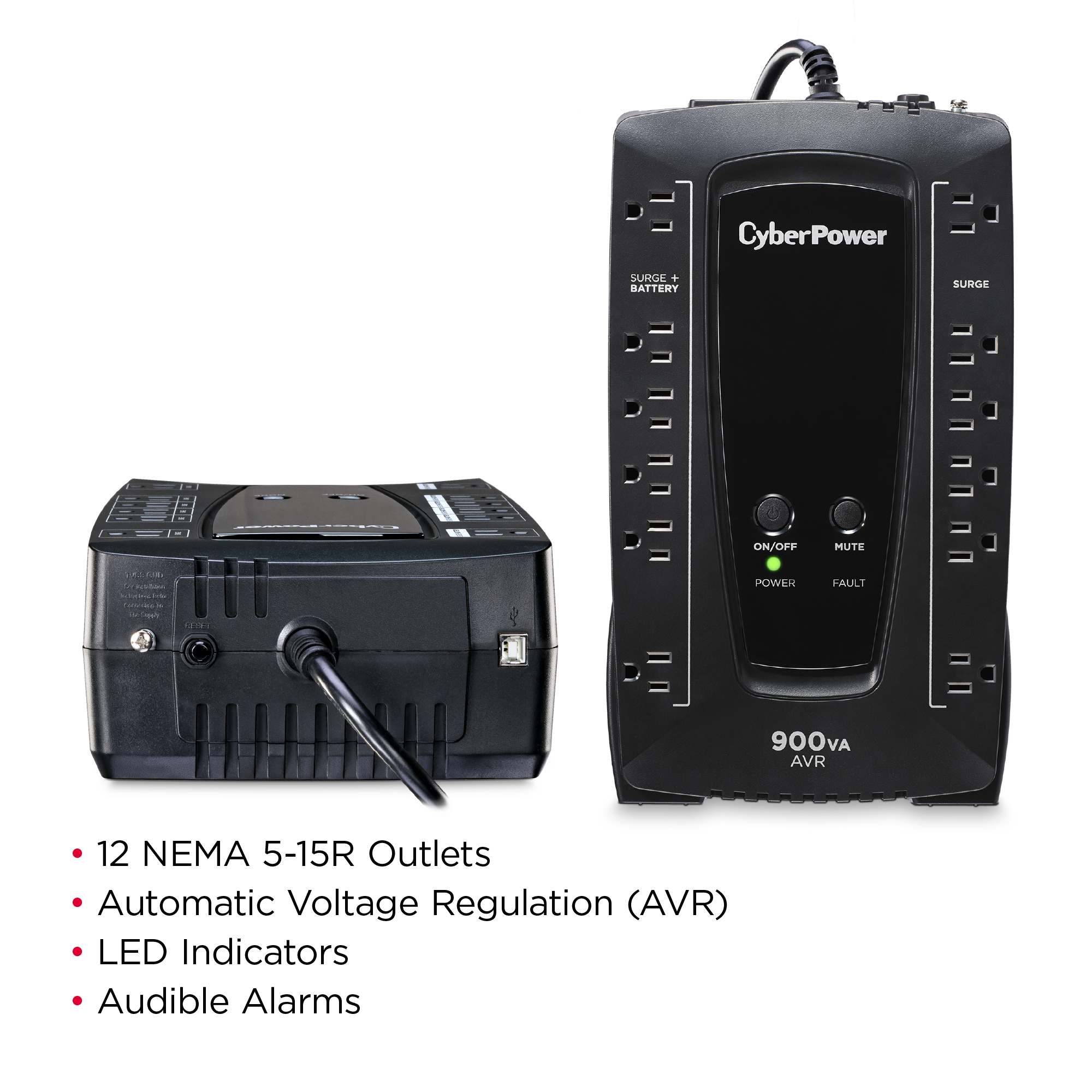

Outlets - Total12
Outlet TypeNEMA 5-15R
Outlets - Battery & Surge Protected6
Outlets - Surge-Only Protected6
Outlets - Widely Spaced4
Overload ProtectionInternal circuitry limiting / circuit breaker
Transfer Time4ms
BATTERY
Runtime at Half Load (min)10
Runtime at Full Load (min)2
Battery TypeSealed Lead-Acid
Battery Size12V/9AH
Hot-SwappableNo
Replacement BatteryRB1290A
Battery Quantity1
User ReplaceableYes
Typical Recharge Time8 Hours
SURGE PROTECTION & FILTERING
Surge Suppression1,030 Joules
EMI/RFI FiltrationYes
Phone RJ111-In, 2-Out
MANAGEMENT & COMMUNICATIONS
HID Compliant USB PortYes
Management CableUSB Cable
LED IndicatorsPower On, Wiring Fault
Audible AlarmsOn Battery, Low Battery, Overload, Fault
SoftwarePowerPanel® Personal Edition
PHYSICAL
Form FactorCompact

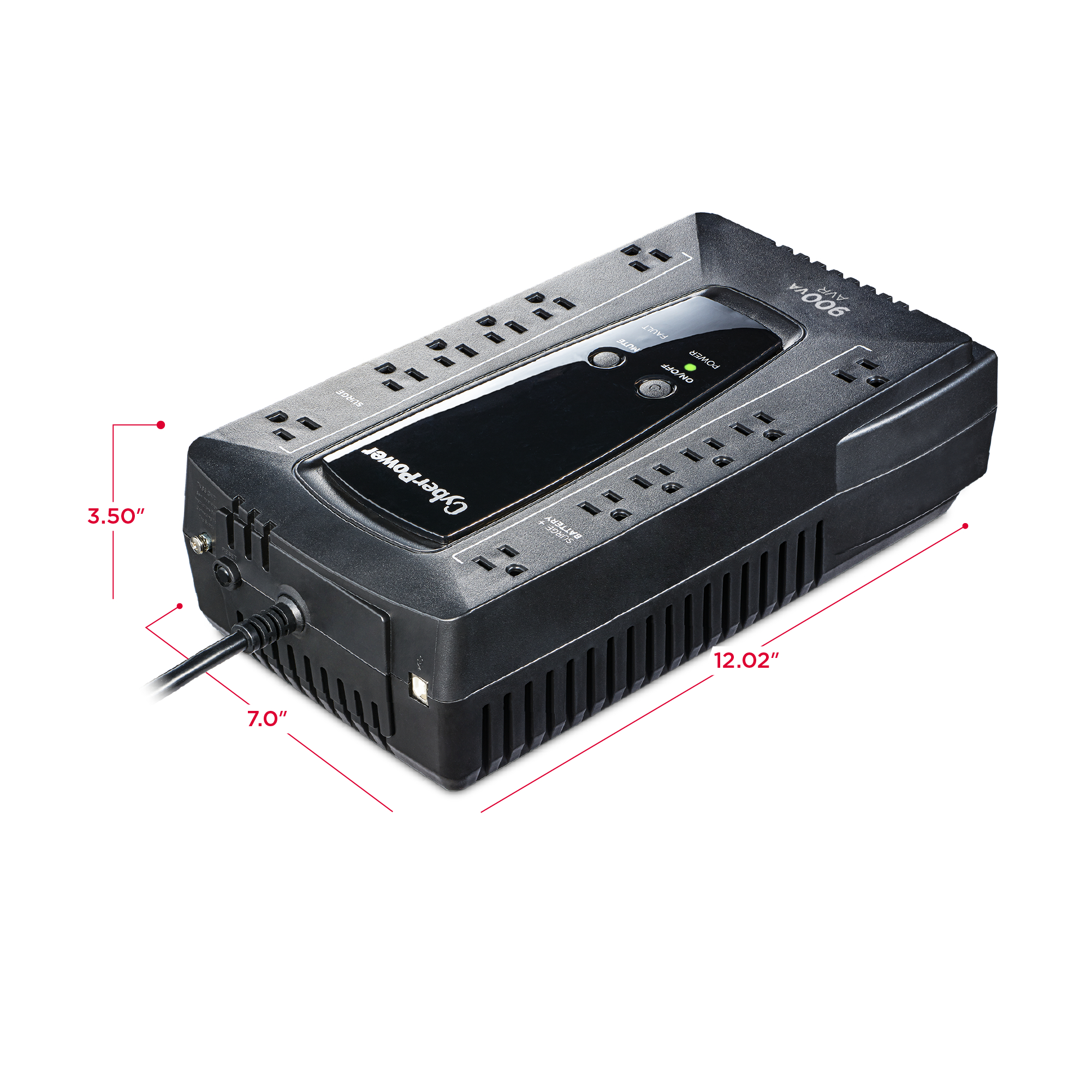

Dimensions (WxHxD) (in.)12.2 x 7 x 3.5
Weight (lbs.)14.04
ENVIRONMENTAL
Operating Temperature32 °F - 104 °F (0 °C - 40 °C)
Operating Relative Humidity0% - 95% non-condensing
Storage Temperature5°F - 113°F (-15°C - 45 °C)
Maximum Operating Elevation10,000 ft (3,000 m)
Maximum Storage Elevation50,000 ft (15,000 m)
CERTIFICATIONS
SafetyUL1778 4th, cUL 107.3-05,
FCC DOC Class B
EnvironmentalRoHS Compliant
WARRANTY
Product Warranty3 Years Limited
Connected Equipment GuaranteeLifetime
CEG Amount$200,000
