Cyber Power - BPL48V75ART2U - UPS SYSTEMS Battery Pack for PR5000LCDRTXL5U, PR6000LCDRTXL5U
Part number:
BPL48V75ART2U
Price:

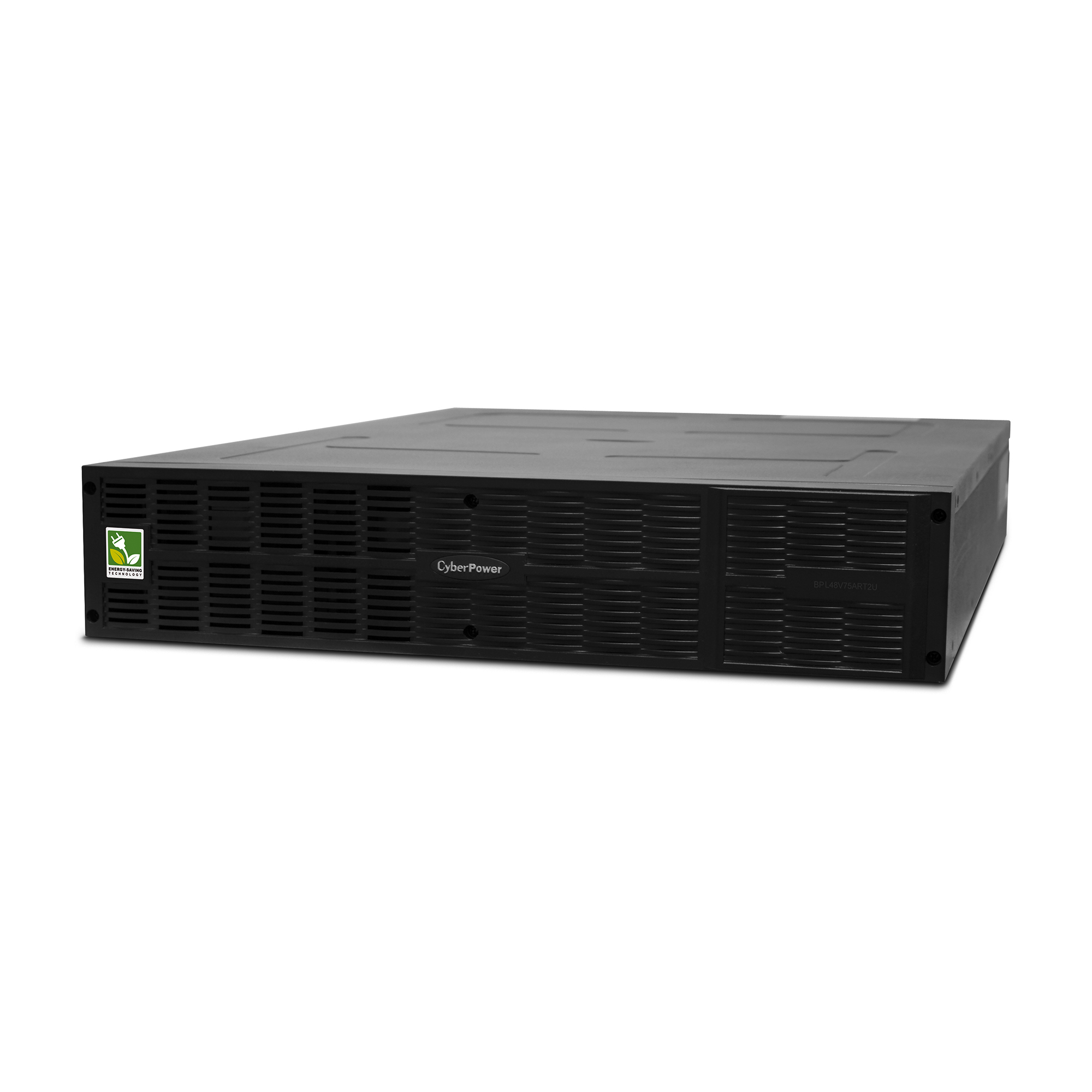

The CyberPower BPL48V75ART2U rack/tower convertible Extended Battery Module (EBM), which extends battery runtimes during power outages, is designed for Smart App Sinewave UPS systems PR3000LCDRTXL2U*, PR5000LCDRTXL5U, and PR6000LCDRTXL5U. This EBM takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. The BPL48V75ART2U typically has a UPS charging time of eight hours. It comes with a three-year warranty.



The BPL48V75ART2U is compatible with the PR3000LCDRTXL2U standard with a blue and white LCD. The current PR3000LCDRTXL2U, standard with a black and white LCD, uses the BP48V75ART2U battery pack.



Features:

  • Extended Battery Module
    Expands runtime and quickly restores full backup power with Fast Charge Technology.
  • Smart Battery Management
    Uses a three-cycle charging mode that improves battery life and reduces generated heat.
  • Hot-Swappable Batteries
    Can be replaced without powering down vital equipment.
  • Rack/Tower Configuration
    Allows for horizontal rack or vertical tower installation.
  • Three-Year Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
GENERAL
Voltage48V
Amperage75A
BATTERY
Battery TypeSealed Lead-Acid
Battery Size12V/9AH
Hot-SwappableYes
Replacement BatteryBB Battery - HR9-12
Battery Quantity12
User ReplaceableYes
Typical Recharge Time8 Hours
InterfacePP75
Built-in ChargerYes
PHYSICAL
Rack Size2U
Dimensions (WxHxD) (in.)17.25 x 3.5 x 23.6
Weight (lbs.)96.0
ENVIRONMENTAL
Operating Temperature32°F to 104°F / 0°C to 40°C
Operating Relative Humidity0% - 95% non-condensing
Storage Temperature5°F to 113°F / -15°C to 45°C
Maximum Operating Elevation10,000 ft / 3,000 m
Maximum Storage Elevation50,000 ft / 15,000 m
CERTIFICATIONS
SafetyUL1778, cUL, FCC DOC Class B
EnvironmentalRoHS Compliant
WARRANTY
Product Warranty3 Years Limited
