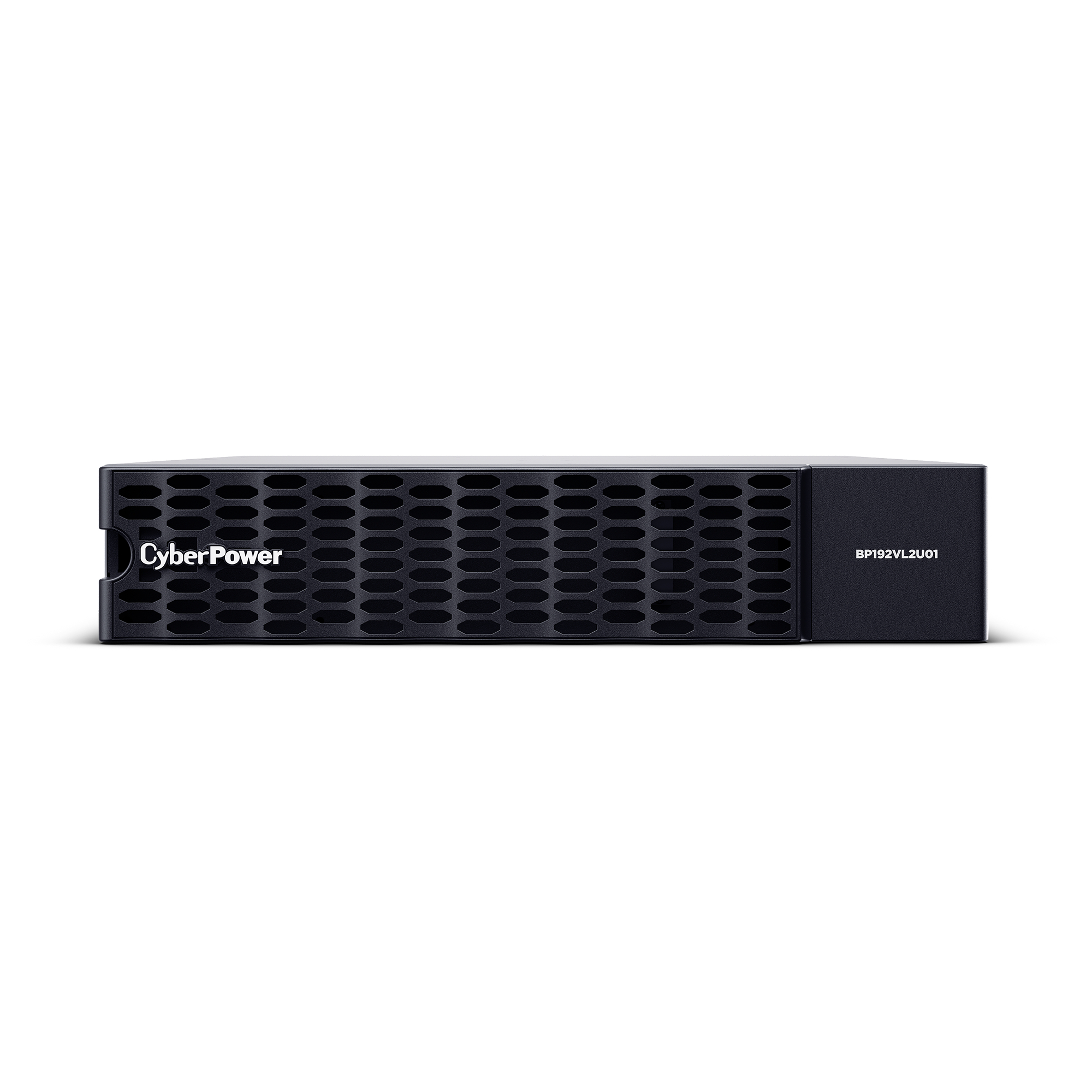

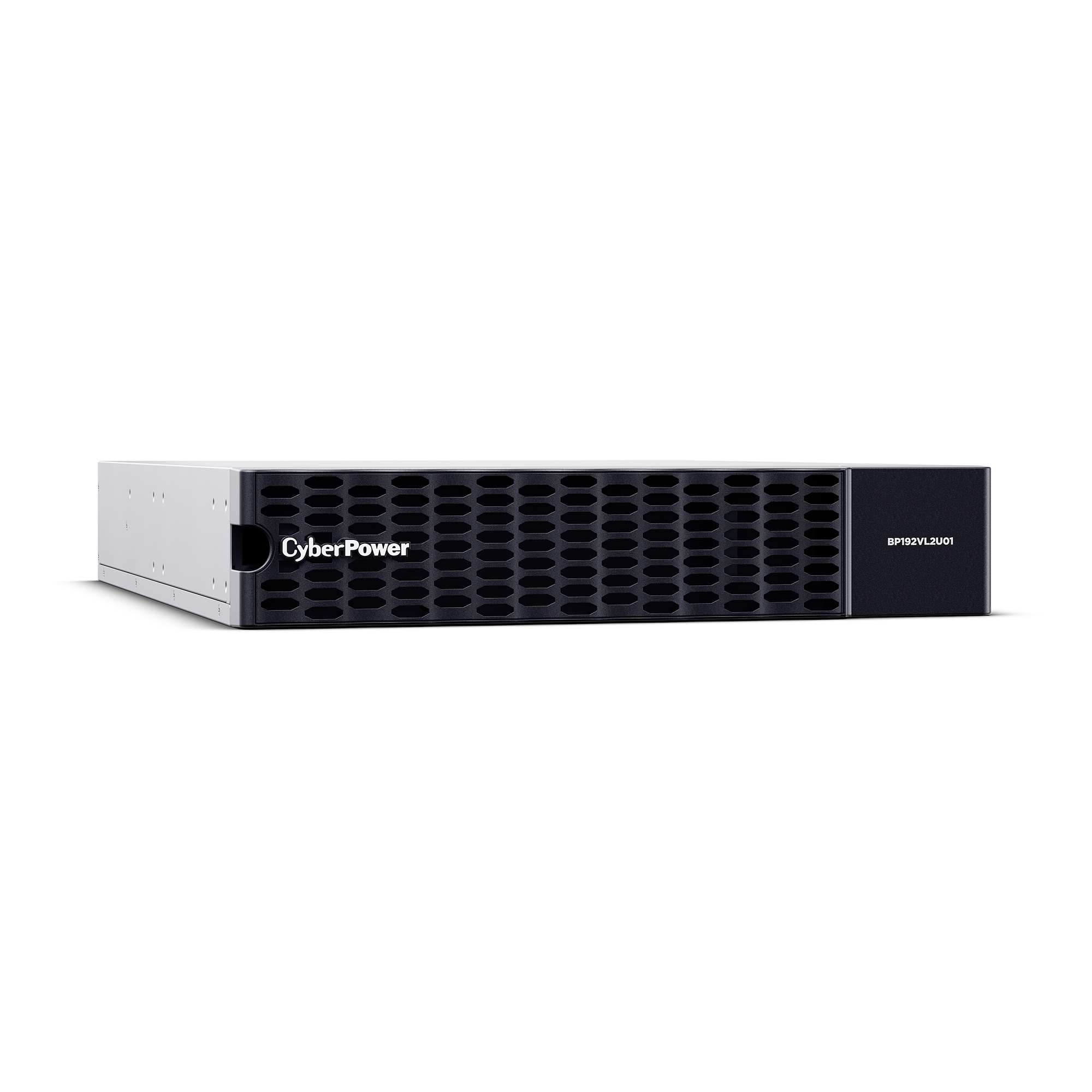

Cyber Power - BP192VL2U01 - UPS SYSTEMS Extended Battery Module for Smart App Online OL8KRTHD and OL10KRTHD
Part number:
BP192VL2U01
Price:

The CyberPower BP192VL2U01 rack/tower convertible Extended Battery Module (EBM) extends battery runtimes during power outages and is designed for CyberPower UPS systems OL8KRTHD and OL10KRTHD.



The BP192VL2U01 takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless front panel removal makes battery replacement easier. This unit comes with a three-year warranty.

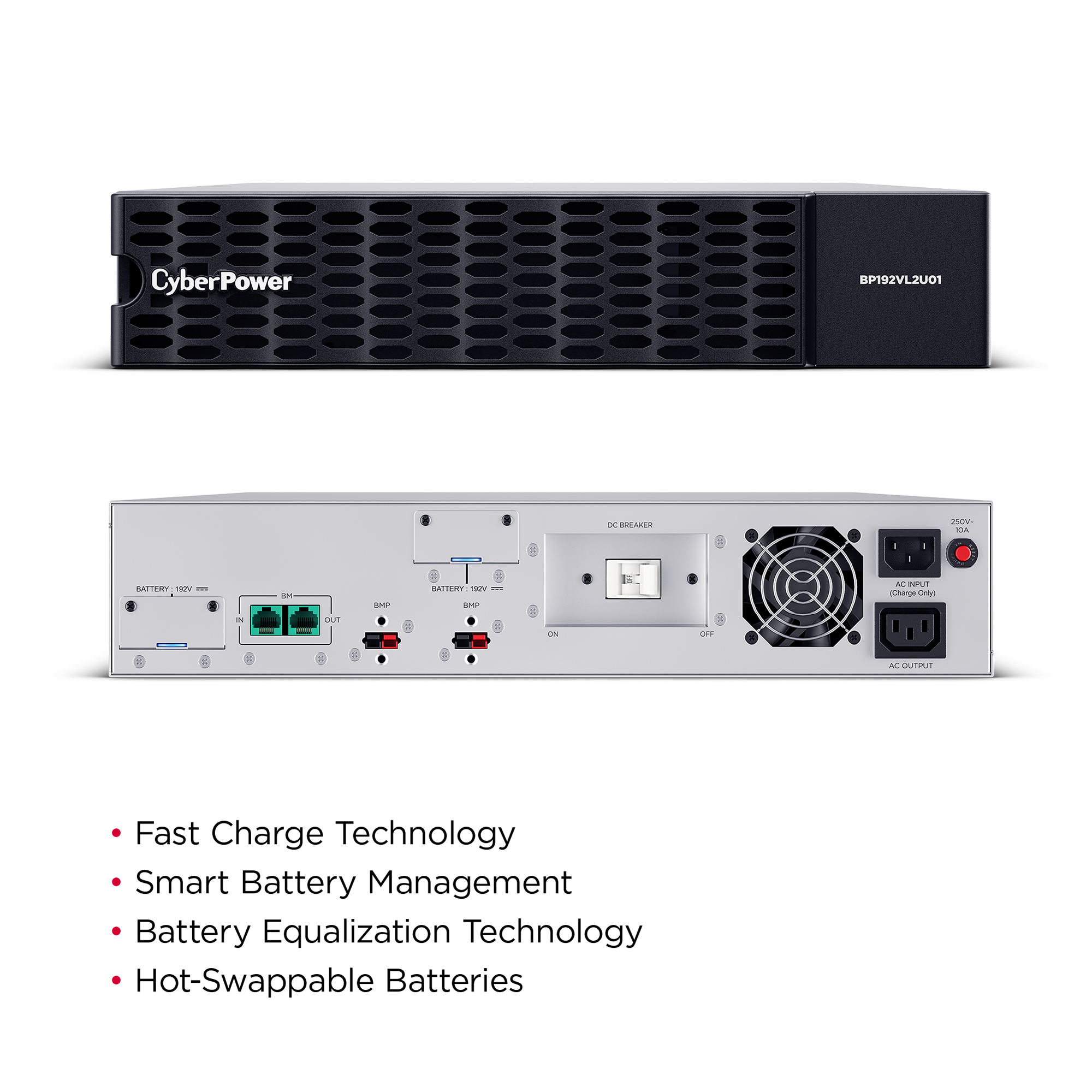

Features:

  • Extended Battery Module (EBM)
    Extends runtime by adding up to 10 EBMs.
  • Battery Equalization Technology
    Battery Equalization is an advanced charging process that maintains the
    voltages of the batteries at the same level to increase battery life.
  • Fast Charge Technology
    Allows UPS batteries to return to full capacity more rapidly by
    utilizing a built-in charger. Restores charge from 0-90% within four
    hours regardless of the number of EBMs.
  • Smart Battery Management
    Improves and extends the functional life of a UPS battery and reduces
    excessive heat during work cycles by using a three-cycle charging
    process.
  • Hot-Swappable Batteries
    Keeps equipment running by eliminating downtime during UPS power
    maintenance.
  • Plug-and-Play DC Connectors
    Allow for daisy-chaining additional EBMs to a UPS system.
  • Replaceable DC Fuses
    Are located behind an easy-access panel.
  • Resettable AC Circuit Breaker
    Resets the UPS swiftly in case of an overload.
  • Rack/Tower Configuration
    Allows for horizontal rack or vertical tower installation.
  • Three-Year Warranty
    Gives you peace of mind knowing we will repair or replace a defective
    UPS system (including batteries) within three years of the purchase
    date. See warranty for details.
GENERAL
Amperage60 A
DC Voltage192 VDC
BATTERY
Battery Quantity16
Battery Size12 V / 6 Ah
Battery TypeSealed Lead-Acid
Built-in ChargerYes
Expansion Ready (Daisy-Chain)Yes
Field-Serviceable BatteryReplaceable by qualified technician
Hot-SwappableYes
Replacement BatteryRB1260X8A (1) (Left) + RB1260X8B (1) (Right)
Typical Recharge Time4 Hours (0% to 90% charged)
PHYSICAL
Image removed.

Chassis Color

Unpainted
Form FactorsRack / Tower
Front Panel ColorBlack
Material of ConstructionMetal
Mounting HardwareYes
ENVIRONMENTAL
Operating Elevation0 to 10,000 ft (0 to 3,048 m)
Operating Relative Humidity0 to 90 % (non-condensing)
Operating Temperature32 to 104 °F (0 to 40 °C)
Storage Elevation0 to 50,000 ft (0 to 15,239 m)
Storage Relative Humidity0 to 95 % (non-condensing)
Storage Temperature-4 to 113 °F (-20 to 45 °C)

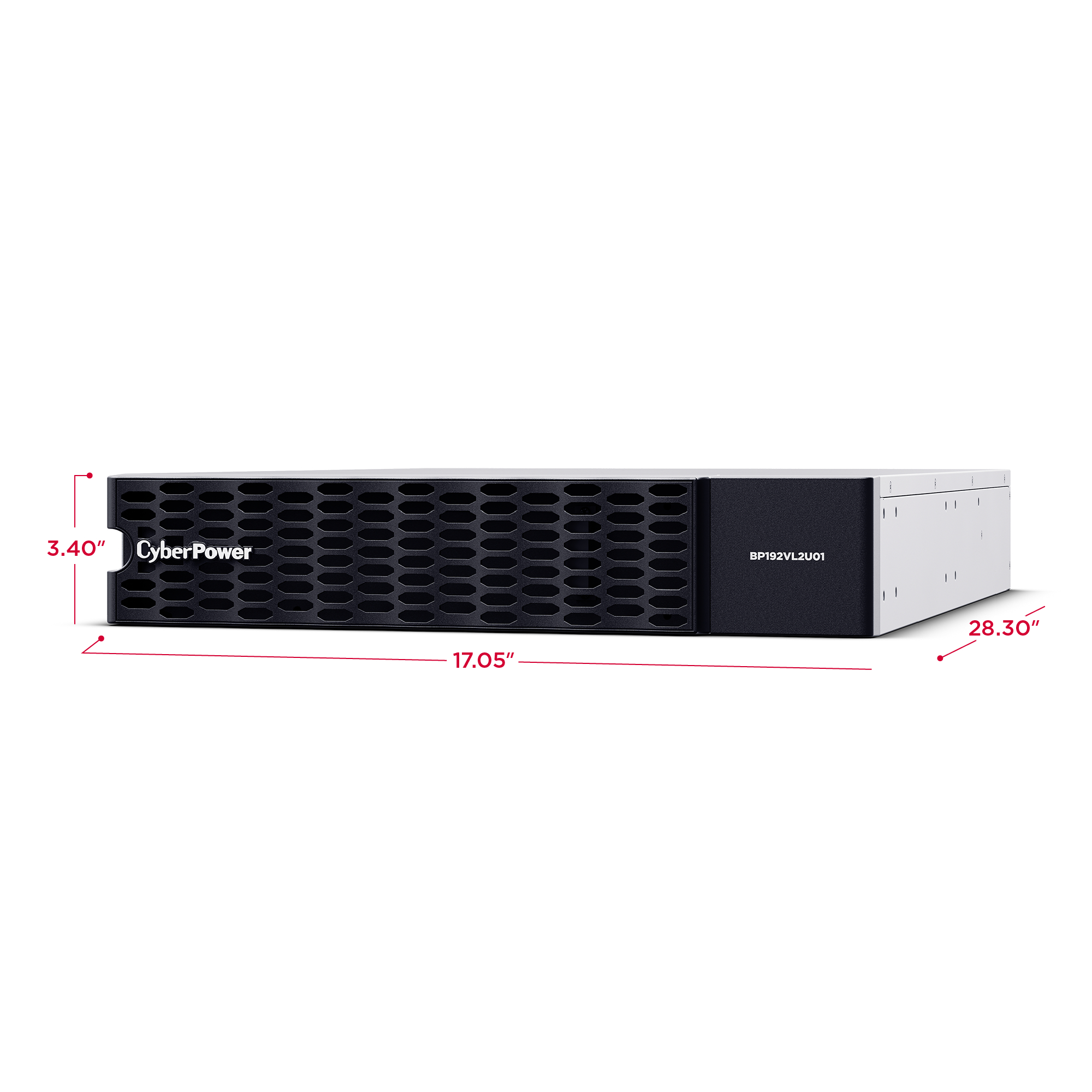

PHYSICAL DIMENSIONS
Physical Dimensions - Width/Height/Depth (cm)43.31 cm, 8.64 cm, 71.88 cm
Physical Dimensions - Width/Height/Depth (mm)433 mm, 86 mm, 719 mm
Physical Dimensions - Width/Height/Depth (in.)17.05 in., 3.4 in., 28.3 in.
Weight (kg)45.99 kg
Weight (lbs.)101.40 lbs.
SHIPPING DIMENSIONS
Shipping Dimensions - Width/Height/Depth (cm)59.79 cm, 21.31 cm, 109.8 cm
Shipping Dimensions - Width/Height/Depth (mm)597.92 mm, 213.11 mm, 1098.04 mm
Shipping Dimensions - Width/Height/Depth (in.)23.54 in., 8.39 in., 42.23 in
Shipping Weight (kg)54.11 kg
Shipping Weight (lbs.)119.30 lbs.
CERTIFICATIONS
EnvironmentalRoHS Compliant
SafetyUL1778
CSA C22.2 No.107.3
FCC Part 15 Class A
WARRANTY
Product WarrantyThree-Year Limited
Name
Description
Size
Downloads
File
Data Sheet
0.4mb
