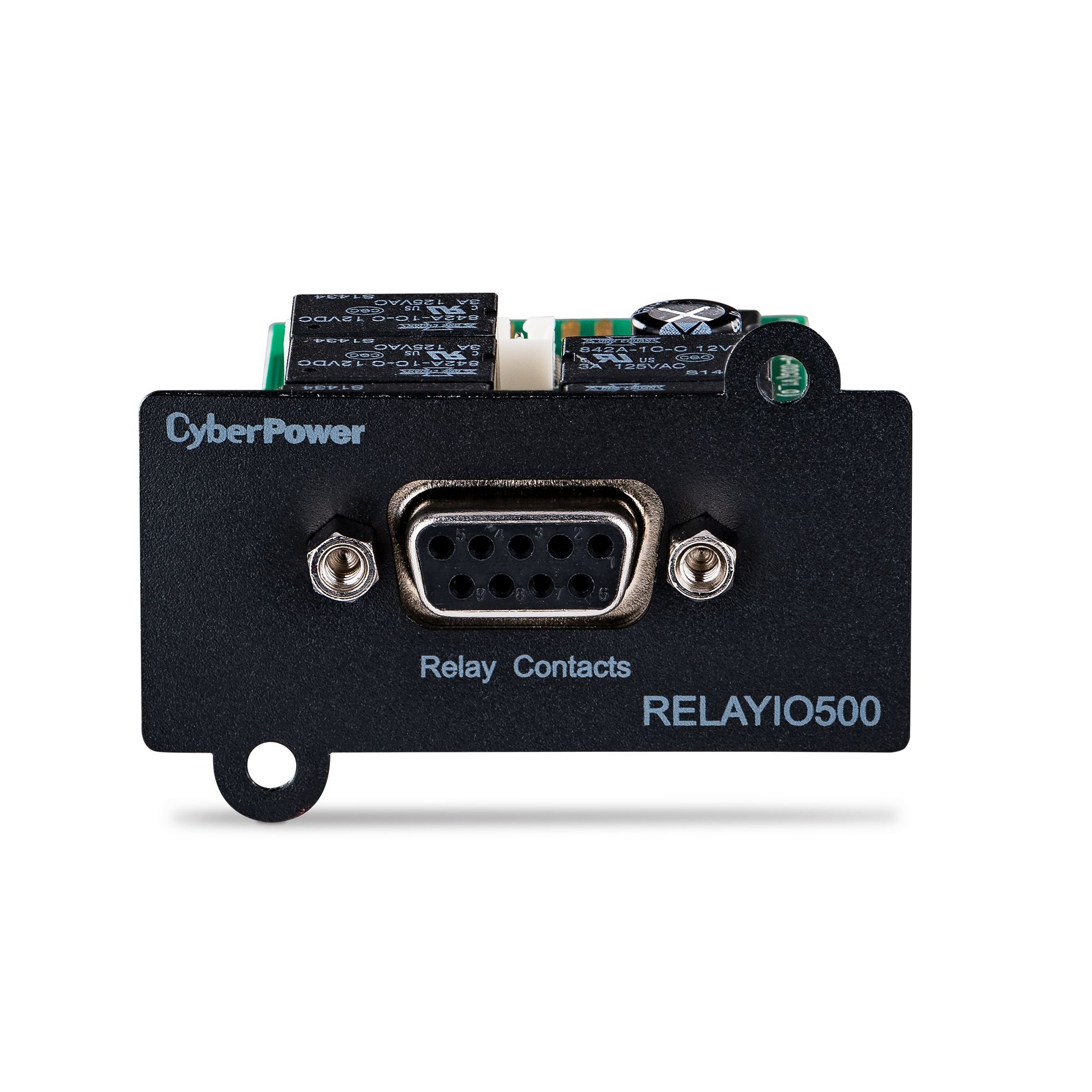

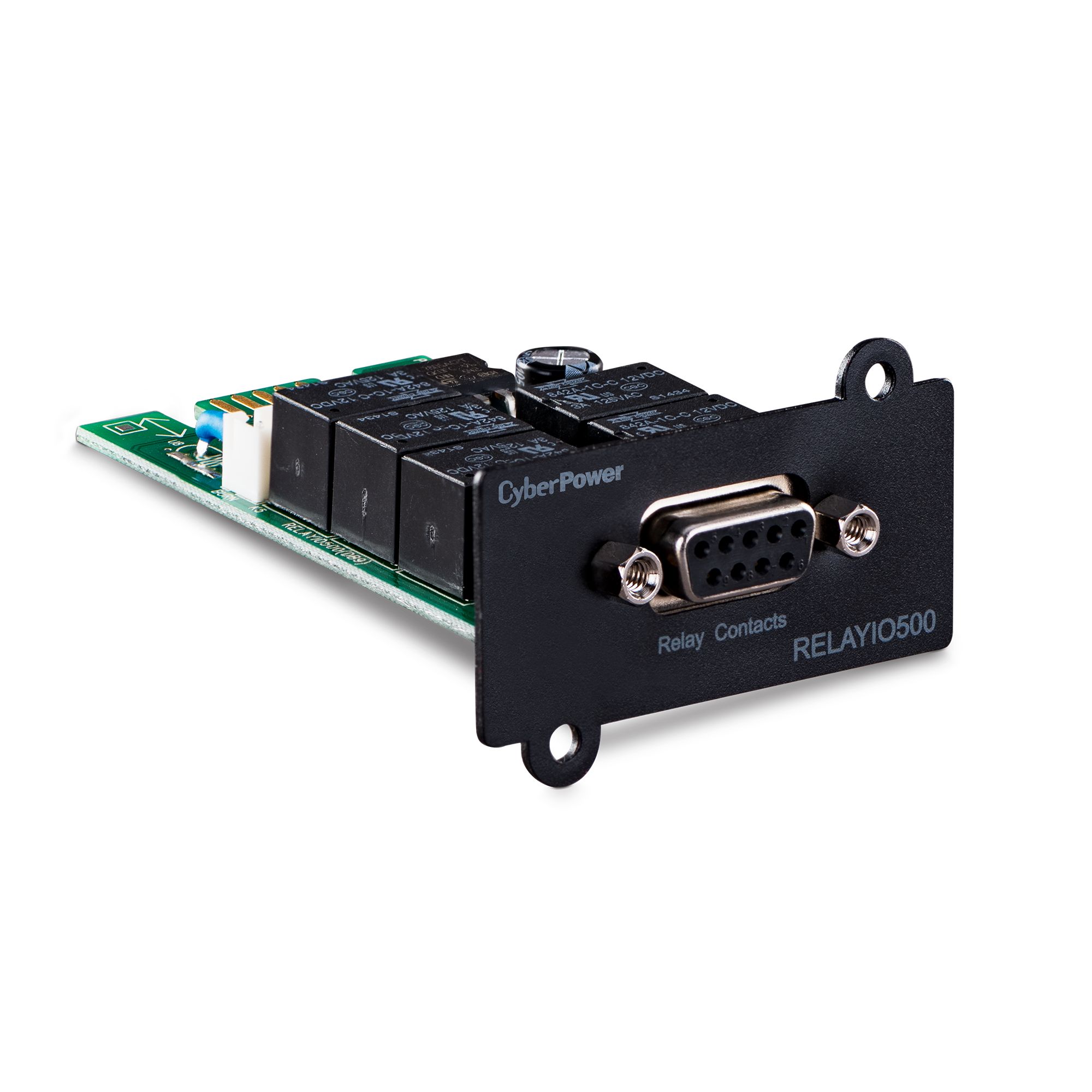

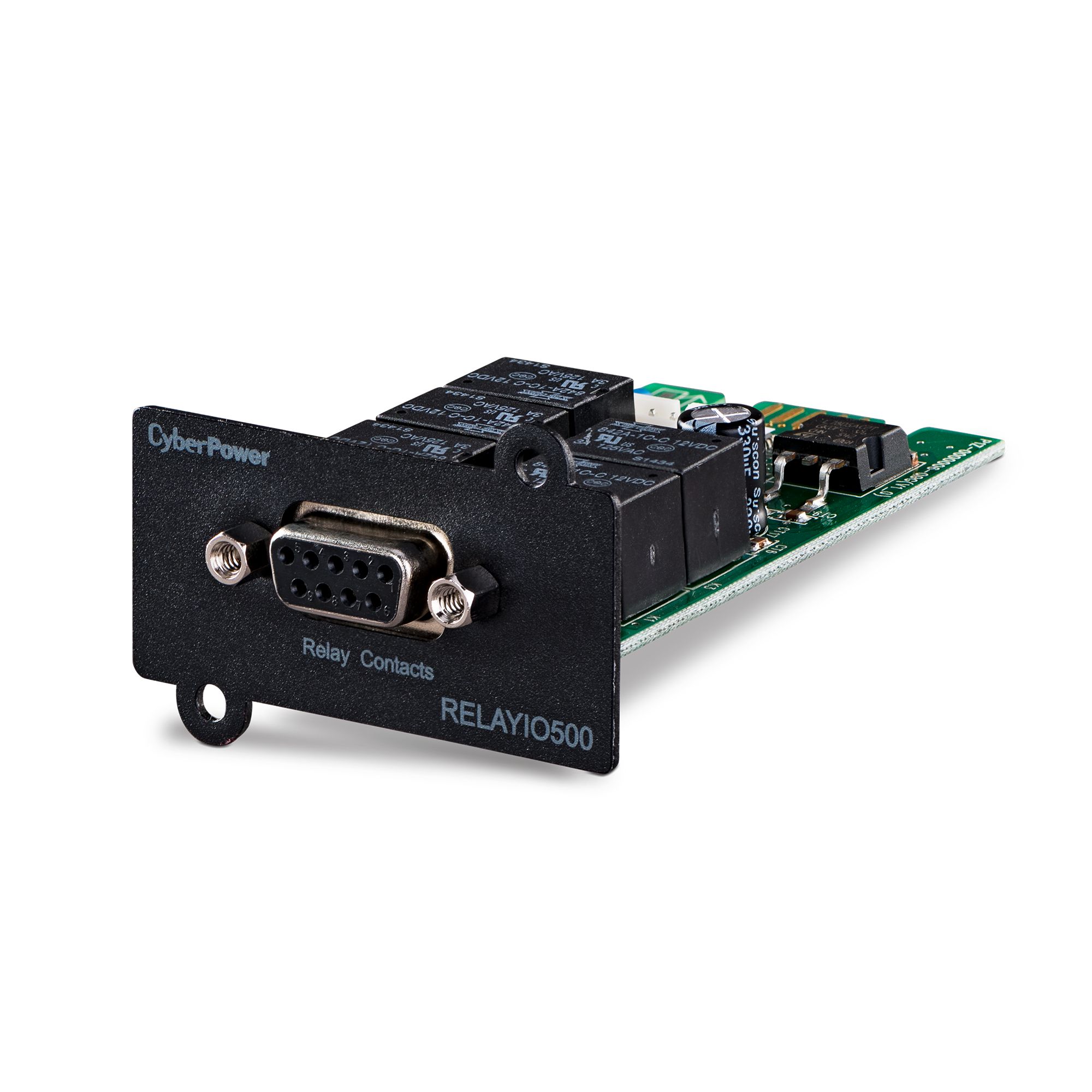

Cyber Power - RELAYIO500 - UPS SYSTEMS Hardware, Provides 5-output and 1-input relay contact closures
Part number:
RELAYIO500
Price:

They CyberPower RELAYIO500 is a local management solution that provides users the ability to monitor UPS status and events via 5 contact closure outputs. Easy to install in any compatible* Smart App UPS with expansion slot.



Input contact closure allows the UPS to be shutdown remotely while on Battery Mode to preserver battery power in the event of a prolonged power outage. The RELAYIO500 comes with a three-year warranty.

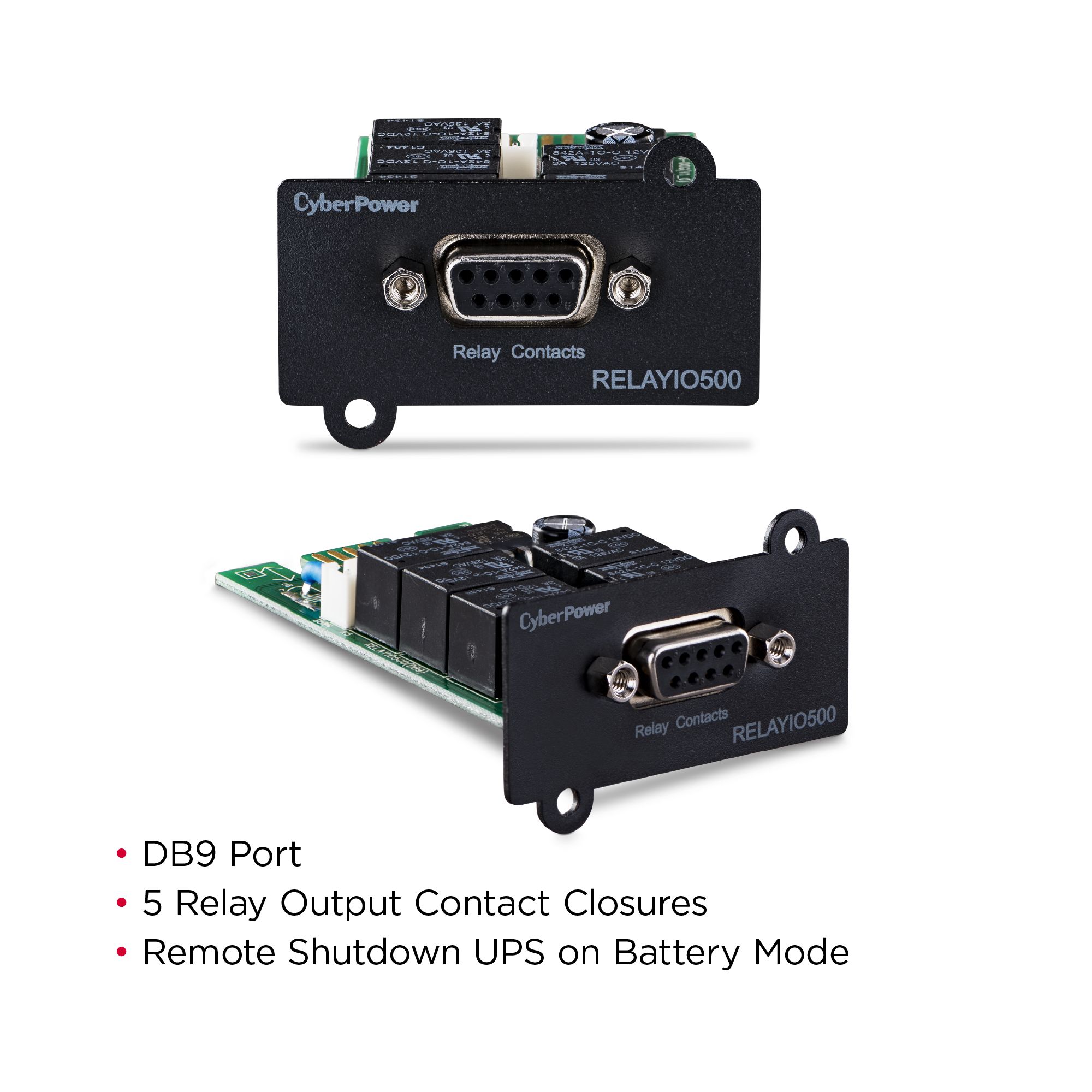

Features:

  • Remote Shutdown in Battery Mode: Preserves battery power in the event of a prolonged power outage.
  • Interfacing with External Alarms: External alarm devices can be interfaced via the DB9 port.
  • Three-Year Warranty: Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
GENERAL
TypeRelay I/O UPS Monitoring Card
Contact Closure Outputs5
Input Signal Contact1 – UPS shutdown in Battery Mode
Output Relay Rating (Max.)30VCD/125VAC, 3A (per relay)
External S/D Voltage7.5V to 12V
PHYSICAL

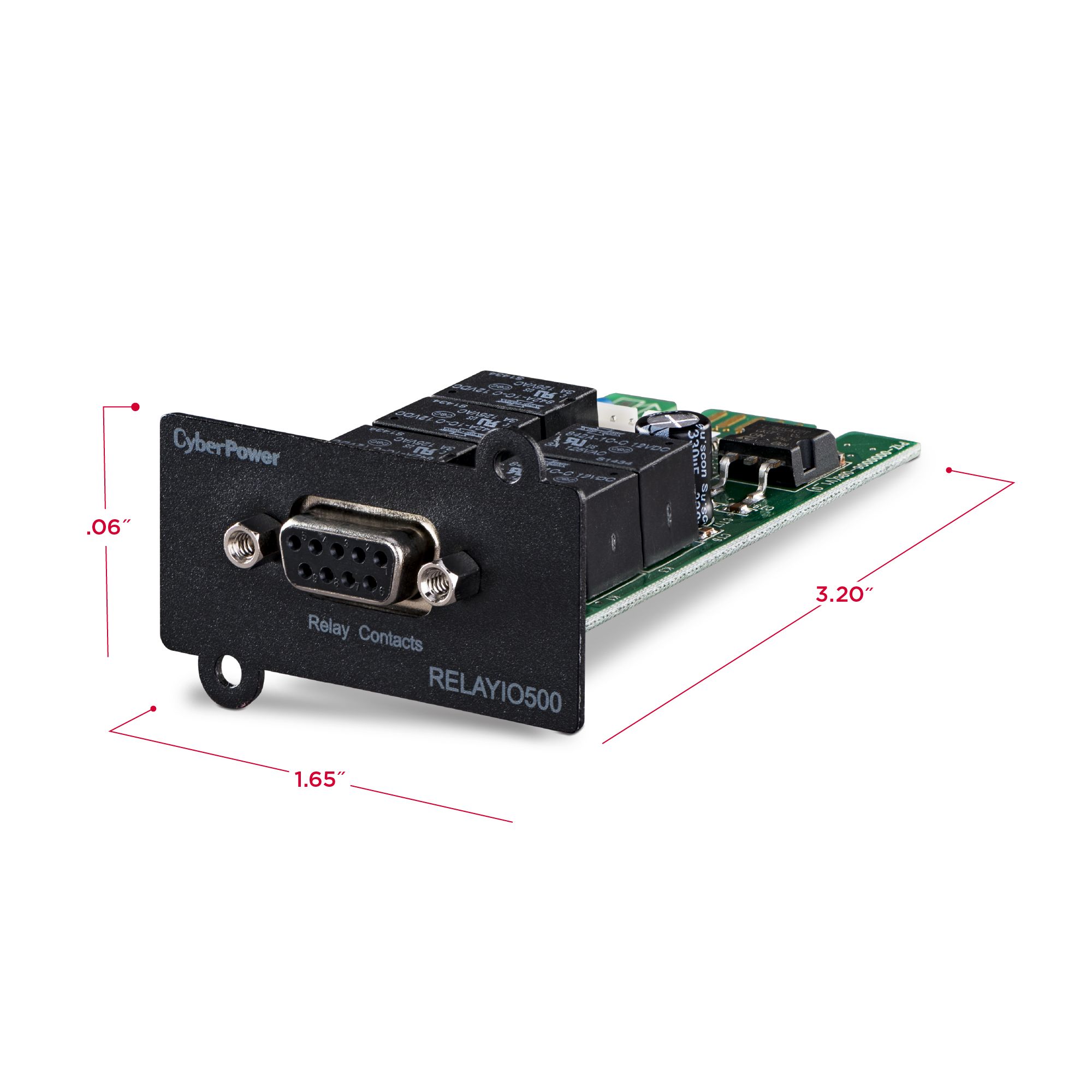

Dimensions (WxHxD) (in.)1.65 x 0.6 x 3.2
Dimensions (WxHxD) (mm.)41.8 x 14.2 x 81
Weight (lbs.)0.11
Weight (kg.)0.052
SHIPPING DIMENSIONS
Dimensions (WXHXD) (in.)6.6 x 2.3 x 6.4
Dimensions (WxHxD) (mm.)168 x 58 x 162
Weight (lbs.)0.35
Weight (lbs.)0.16
ENVIRONMENTAL
Operating Temperature32°F to 104°F / 0°C to 40°C
Operating Humidity0% – 95% non-condensing
Operating Elevation0–10000 feet (0-3000 meters)
Storage Temperature14°F  to 122°F / -10°C to 50°C
Storage Relative Humidity0% – 95% non condensing
Storage Elevation0–50000 feet (0-15000 meters)
COMPATIBILITY
UPS ModelsOR PR series and select OL series models, see compatibility chart for details
CERTIFICATIONS
EnvironmentalRoHS compliant
WARRANTY
Product Warranty3 years limited
Extended WarrantyWEXT5YR-ACC1A
