Cyber Power - 4POSTRAIL - UPS SYSTEMS Hardware, Universal Rack Mount Rail Kit with Adjustable Length 18.5" - 29"
Part number:
4POSTRAIL
Price:

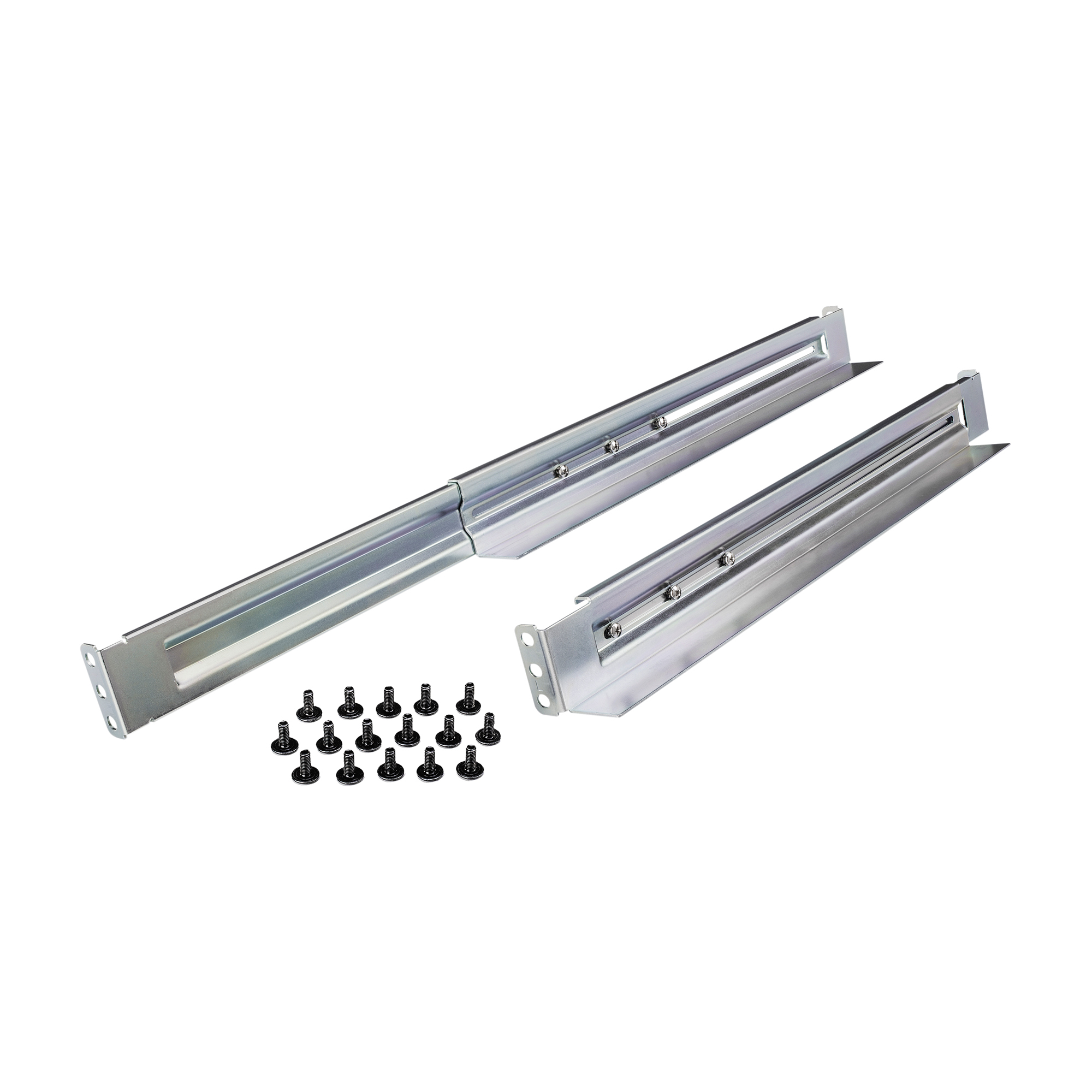

The CyberPower 4POSTRAIL 4-post rackmount rail kit provides a universal mounting solution for 1U, 2U, and 3U equipment weighing up to 231 pounds. The two adjustable rails (right and left) can be expanded from 18.5" to 29" for various sizing requirements. Along with the rails, the 4POSTRAIL kit includes the necessary screws for attachment.



A Five-Year Limited Warranty Covers defects in materials and workmanship in the product under normal use and conditions.



Features:

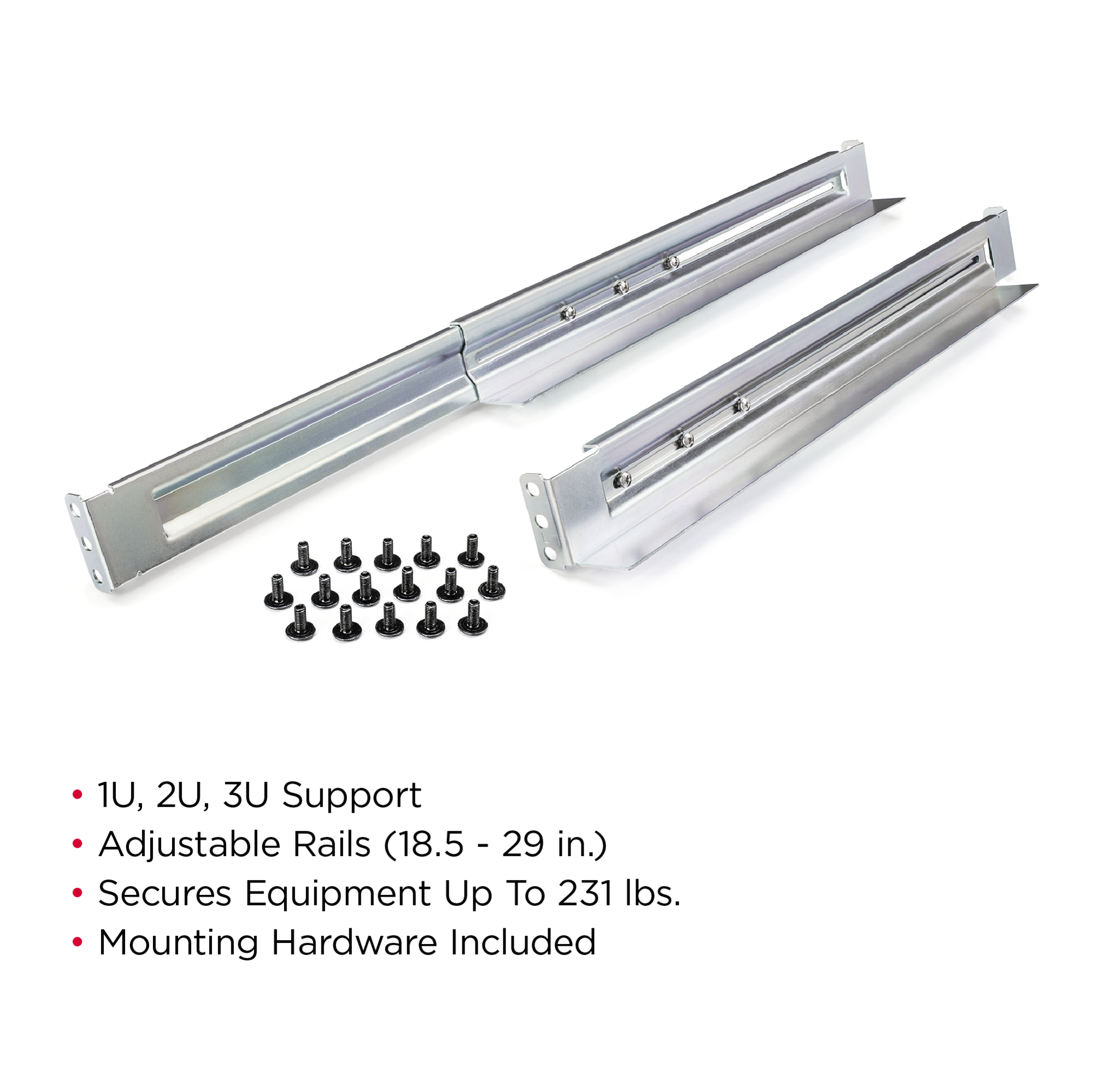

  • 1U, 2U, 3U Support: The universal 4POSTRAIL kit can be used with 1U, 2U, 3U equipment up to 231 pounds.
  • Adjustable Rails: Extend from 18.5” to 29” for proper fit with various sizing requirements.
  • 4-Post Mounting: Secures equipment at both the front and back of the rack.
  • Mounting Hardware: Sixteen (16) M5 x 12 screws are included to secure the rails to each post.
  • Limited 5-Year Warranty: Stringent manufacturing processes and innovative product design allows CyberPower to offer one of the strongest warranties in our industry.
Physical
Installed Rack Height1.75 inches (1U)
Rack Height Compatibility1U, 2U, 3U, and up (weight cannot exceed 231 lbs.)
Capacity (lbs./kg.)231 lbs / 105 kg
Adjustable Length (in.)18.5 to 29 inches
Mounting HardwareIncluded
Enclosure ConstructionSteel
Dimensions (WxHxD) (in.)1.5 x 1.75 x 18.5 to 29 inches
Dimensions (WxHxD) (mm.)38.1 x 44.45 x 469.9 to 736.6 millimeters
Weight (lbs.)3.6 lbs
Weight (kg.)1.63 kg
Warranty
Product Warranty5 Years Limited
Name
Description
Size
Downloads
File
User Manual
0.9mb
