Cyber Power - CP850AVRLCD - UPS SYSTEMS Intelligent LCD 850VA/510W Line-Interactive
Part number:
CP850AVRLCD
Price:

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP850AVRLCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP850AVRLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP850AVRLCD comes with a three-year warranty (including coverage of batteries) and a $250,000 Connected Equipment Guarantee.



Features:

  • Battery Backup: Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Automatic Voltage Regulation (AVR): AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.
  • Multifunction LCD: Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
  • Data Line Protection: Prevents power surges that travel through coaxial and Ethernet lines from causing damage to electronics.
  • Line Interactive Topology: Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
  • Simulated Sine Wave Output: Provides a manufactured waveform output to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • ENERGY STAR: This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
  • GreenPower UPS Bypass Design: A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
  • Ultra Quiet Design: Minimizes noise during operation for a quieter work environment.
  • PowerPanel Personal Software: Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available.
  • Three-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee: CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
GENERAL
UPS TopologyLine Interactive
Energy SavingGreenPower UPS™ Bypass Technology
INPUT
VoltageNominal 120V
Input voltage range90Vac – 142Vac
Frequency60Hz ± 3Hz
Plug TypeNEMA 5-15P
Plug Style45° Offset Right
Cord Length6'
OUTPUT
VA850
Watts510
On Battery Voltage120Vac ± 5%
On Battery Frequency60Hz ± 1%
Automatic Voltage RegulationYes - Single Boost (10%)
On Battery WaveformSimulated Sine Wave
Outlet TypeNEMA 5-15R

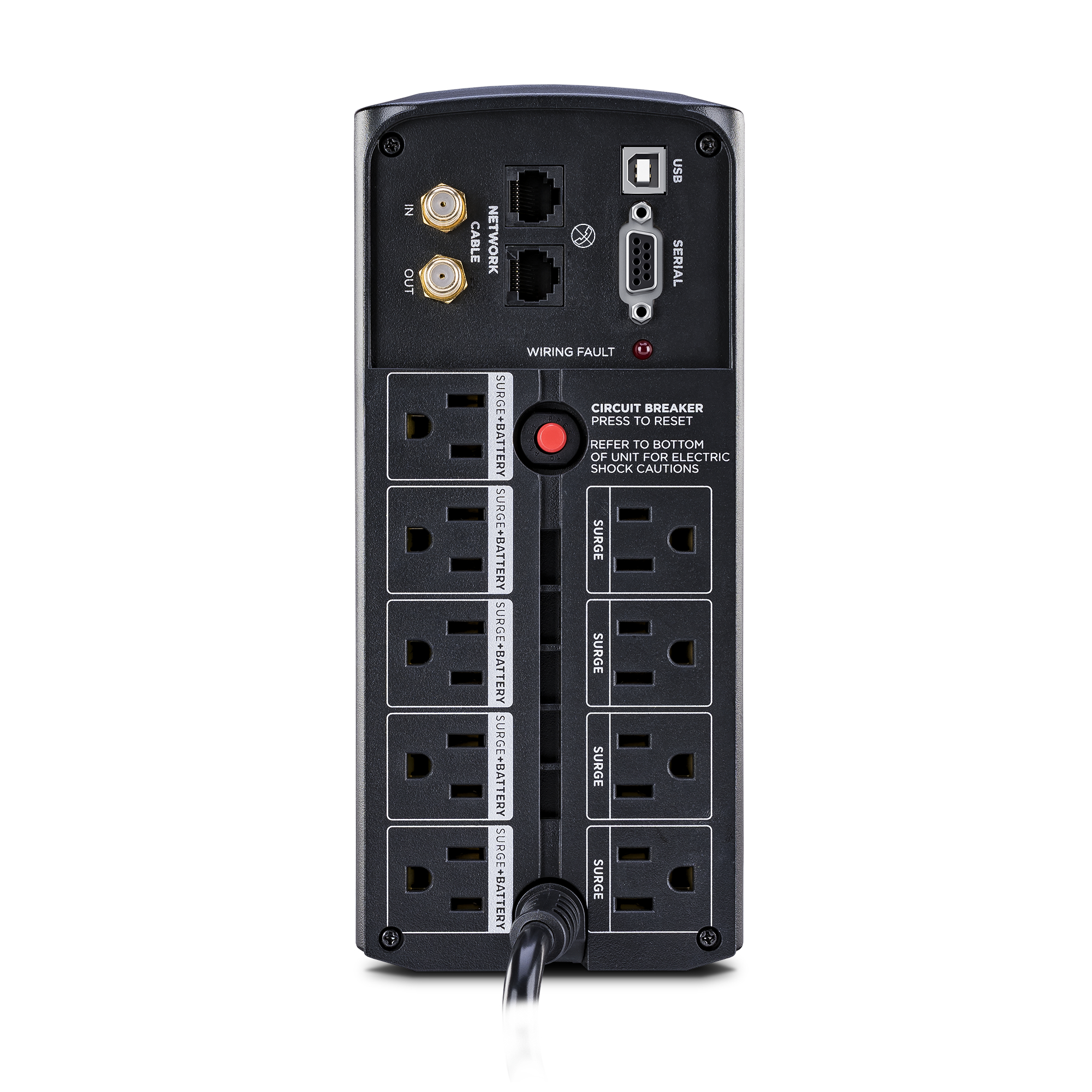

Outlets - Total9
Outlets - Battery & Surge Protected5
Overload ProtectionInternal circuitry limiting / circuit breaker
Transfer Time4ms
BATTERY
Runtime at Half Load (min)11
Runtime at Full Load (min)3
Battery Voltage (V)12V
Battery Capacity9Ah
User ReplaceableYes
Hot SwappableYes
Typical Recharge Time8 Hours
Replacement BatteryRB1290A
Battery Quantity1
PROTECTIONS
Surge Suppression1,080 Joules
EMI/RFI FiltrationYes
Network Protection RJ451-in / 1-out (10/100/1000)
Coax Protection RG61-In, 1-Out
MANAGEMENT & COMMUNICATIONS
LCD BacklightBlack
Intelligent Multifunction LCD InterfaceDisplays: Load Capacity %, Load Capacity Absolute, Battery Charge %, Input / Output Voltage, Input/   Output Frequency, Estimated Runtime, AVR, On Battery, Overload,  Schedule, Silence, Fault
HID Compliant USB PortYes
Serial PortYes (Dry Contact)
Management CableUSB Cable
LED IndicatorsPower On, Wiring Fault
Audible AlarmsOn Battery, Low Battery, Overload, Fault
Software (free download)PowerPanel® Personal
SNMP/HTTP Remote MonitoringNo
PHYSICAL

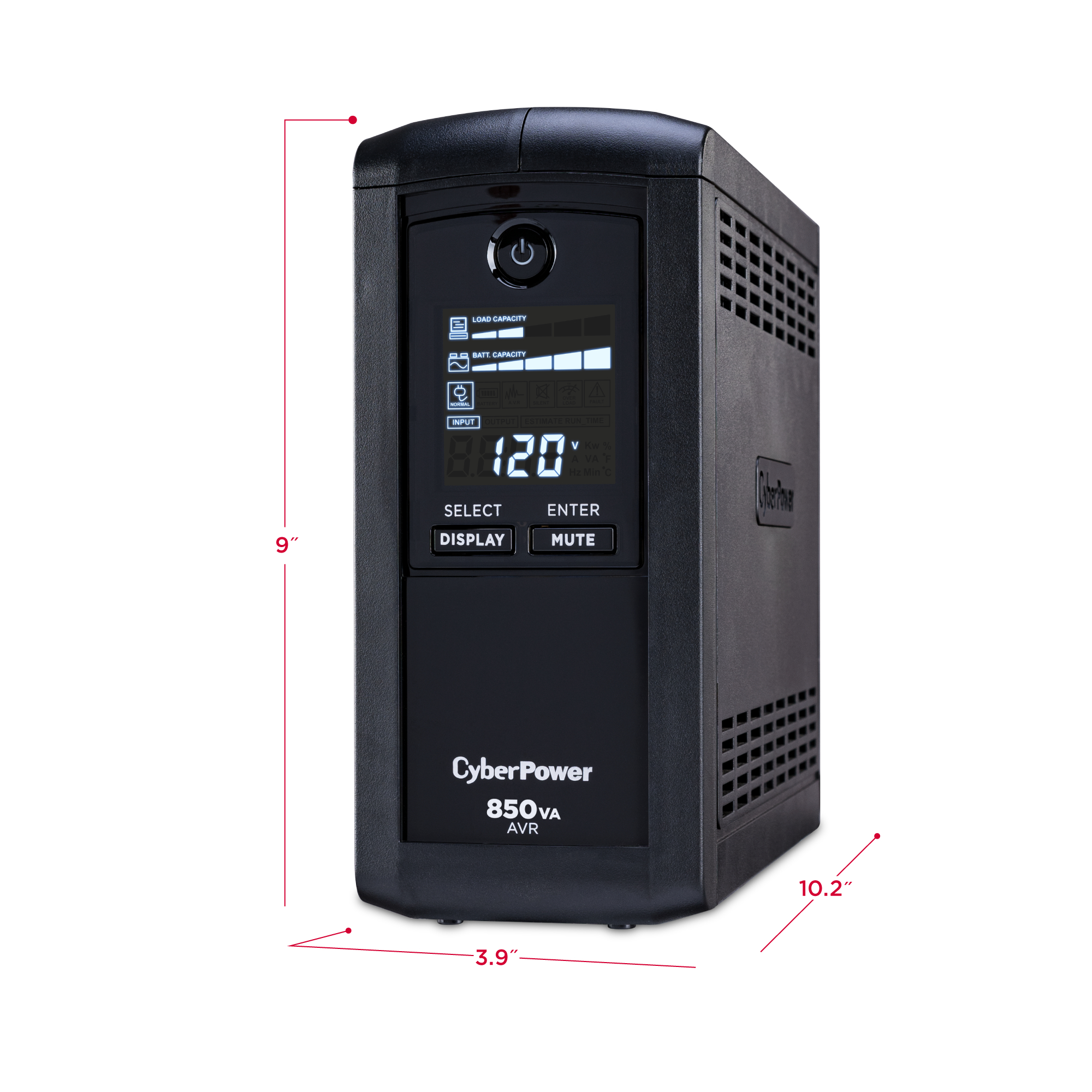

Dimensions (WxHxD) (in.)3.9 x 9.0 x 10.2
Weight (lbs.)15.0
Form FactorMini-Tower
ENVIRONMENTAL
Operating Temperature32°F to 104°F / 0°C to 40°C
Operating Relative Humidity0% - 90% (non-condensing)
Operating Elevation10,000 ft / 3,000 m
Storage Temperature5°F to 113 °F (-15°C to 45 °C)
Storage Relative Humidity0% - 95% (non-condensing)
Storage Elevation50,000 ft / 15,000 m
CERTIFICATIONS
SafetyUL1778, cUL 107 5th, FCC Class B
WARRANTY
Product Warranty3 Years Limited
Connected Equipment GuaranteeLifetime
CEG Amount$250,000
Name
Description
Size
Downloads
File
Data Sheet
1.2mb
File
User Manual
1mb
File
Functional Guide
0.3mb
