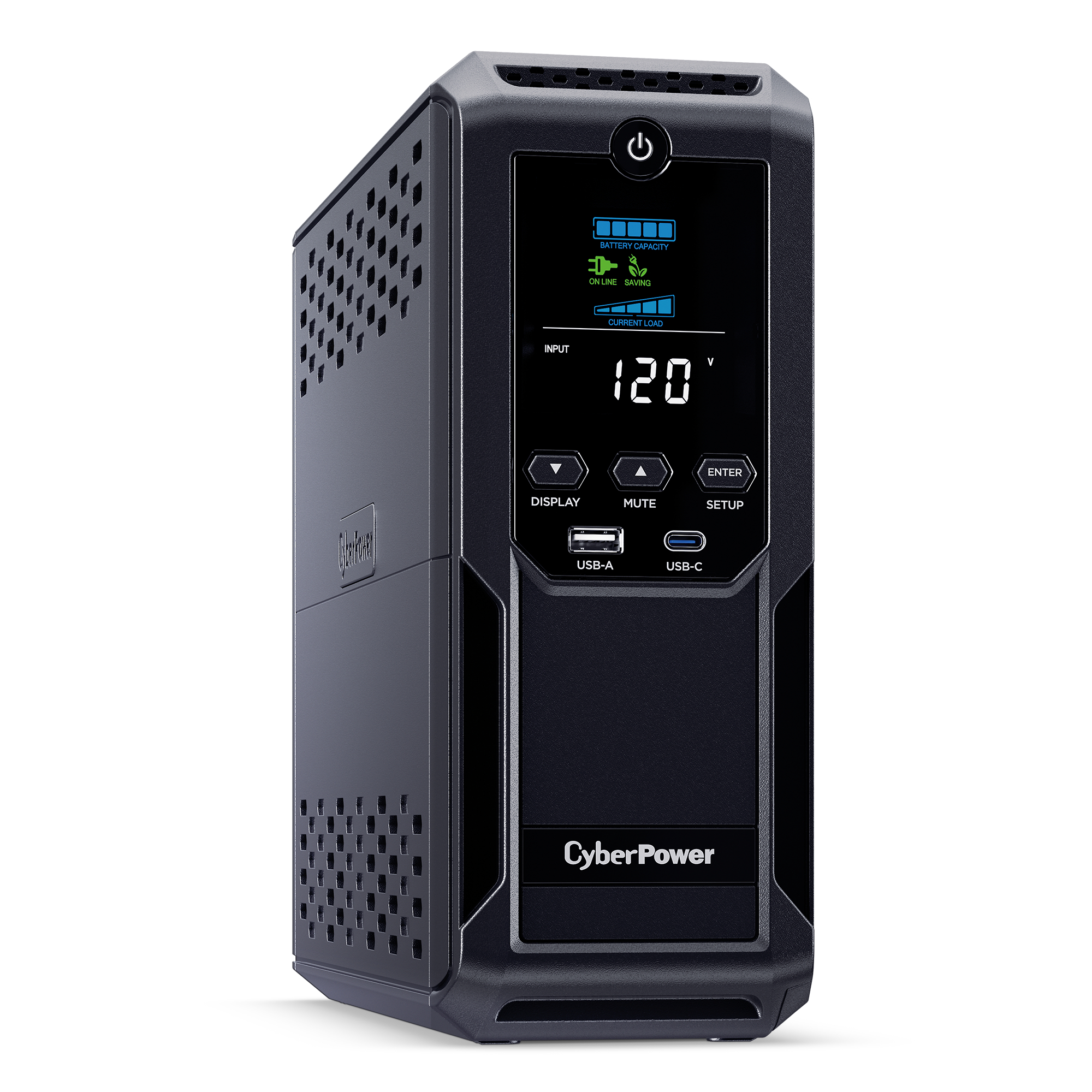

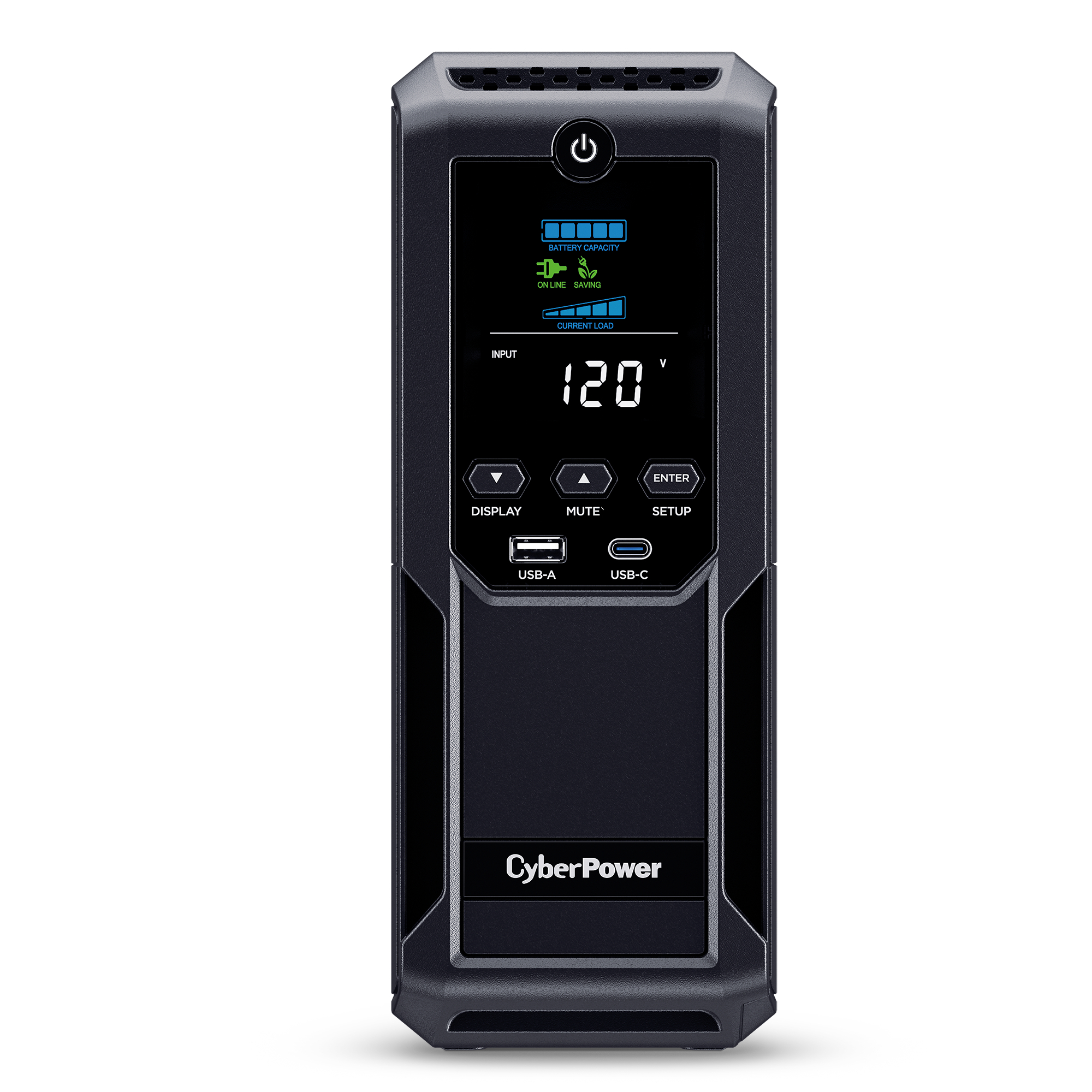

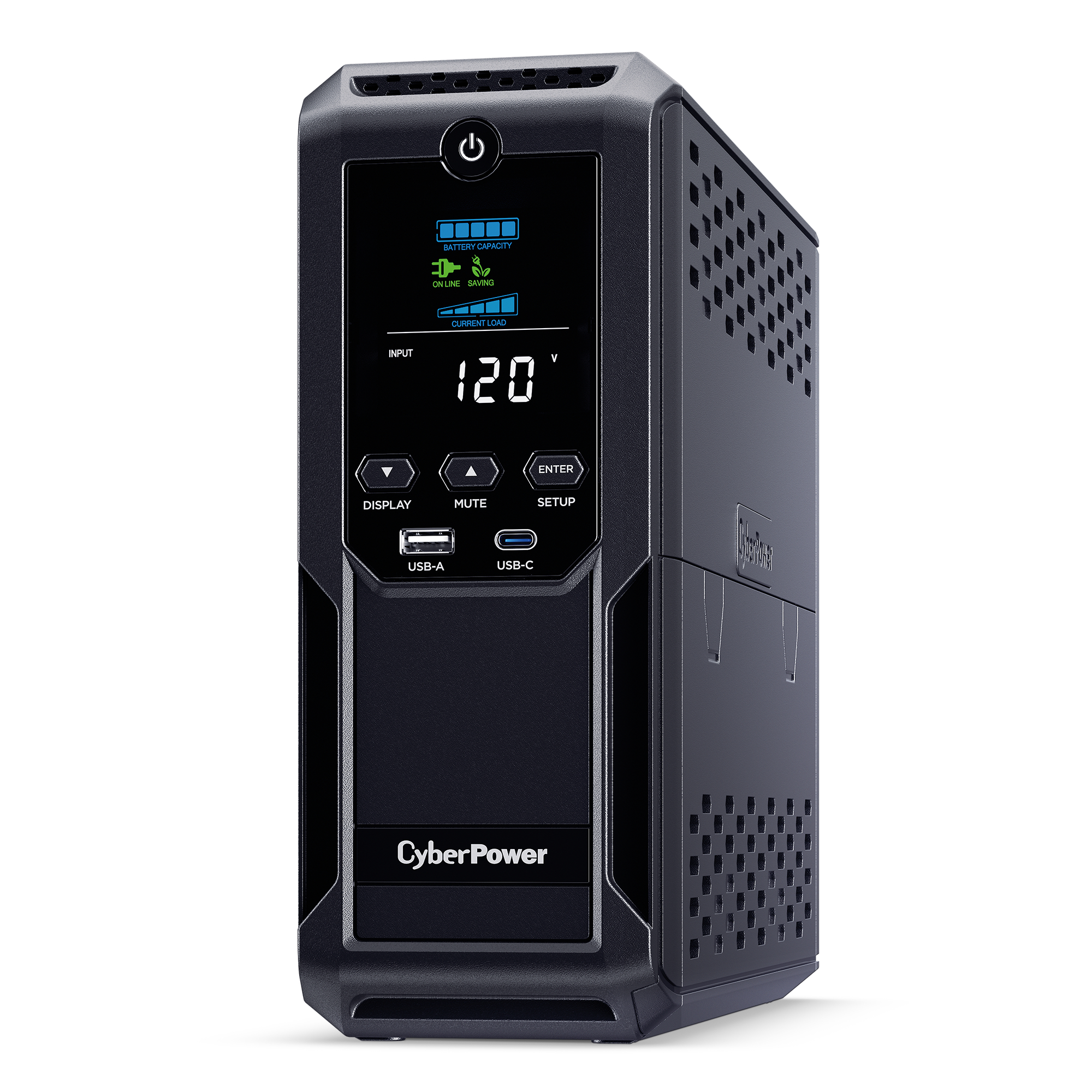

Cyber Power - CP1500AVRLCD3 - UPS SYSTEMS Intelligent LCD, 1500VA/900W Line Interactive UPS, Mini-tower, 12 Outlets
Part number:
CP1500AVRLCD3
Price:

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1500AVRLCD3 provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1500AVRLCD3 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500AVRLCD3 comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.



Features:

  • Battery Backup: Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Automatic Voltage Regulation (AVR): AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.
  • Multifunction, Color LCD: Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
  • Data Line Protection: Prevents power surges that travel through coaxial and ethernet lines from causing damage to electronics.
  • Line Interactive Topology: Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
  • Simulated Sine Wave Output: Provides a manufactured waveform output to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • ENERGY STAR: This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
  • GreenPower UPS Bypass Design: A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
  • Ultra Quiet Design: Minimizes noise during operation for a quieter work environment.
  • PowerPanel Personal Software: Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available.
  • Three-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee: CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
GENERAL
Energy SavingGreenPower UPS™ Bypass
Energy Star CertifiedYes
UPS TopologyLine Interactive
BATTERY
Battery Quantity2
Battery Size12 V / 9 Ah
Battery TypeSealed Lead-Acid Battery
Replacement Battery CartridgeRB1290X2E
Replacement Battery Cartridge Quantity1
Runtime at Full Load3 min
Runtime at Half Load12 min
Typical Recharge Time8 Hours
User-Replaceable BatteryYes
INPUT
Circuit Breaker15 A
Cord Length6 ft (1.8 m)
Input Frequency Range57 Hz - 63 Hz
Input Plug TypeNEMA 5-15P
Nominal Input Voltage120 VAC
Plug StyleRight Angle, 45° Offset Right
OUTPUT
Automatic Voltage RegulationSingle Boost
On AC WaveformSine Wave
On Battery Frequency60Hz ± 1%
On Battery Voltage120 VAC ± 5%
On Battery WaveformSimulated Sine Wave

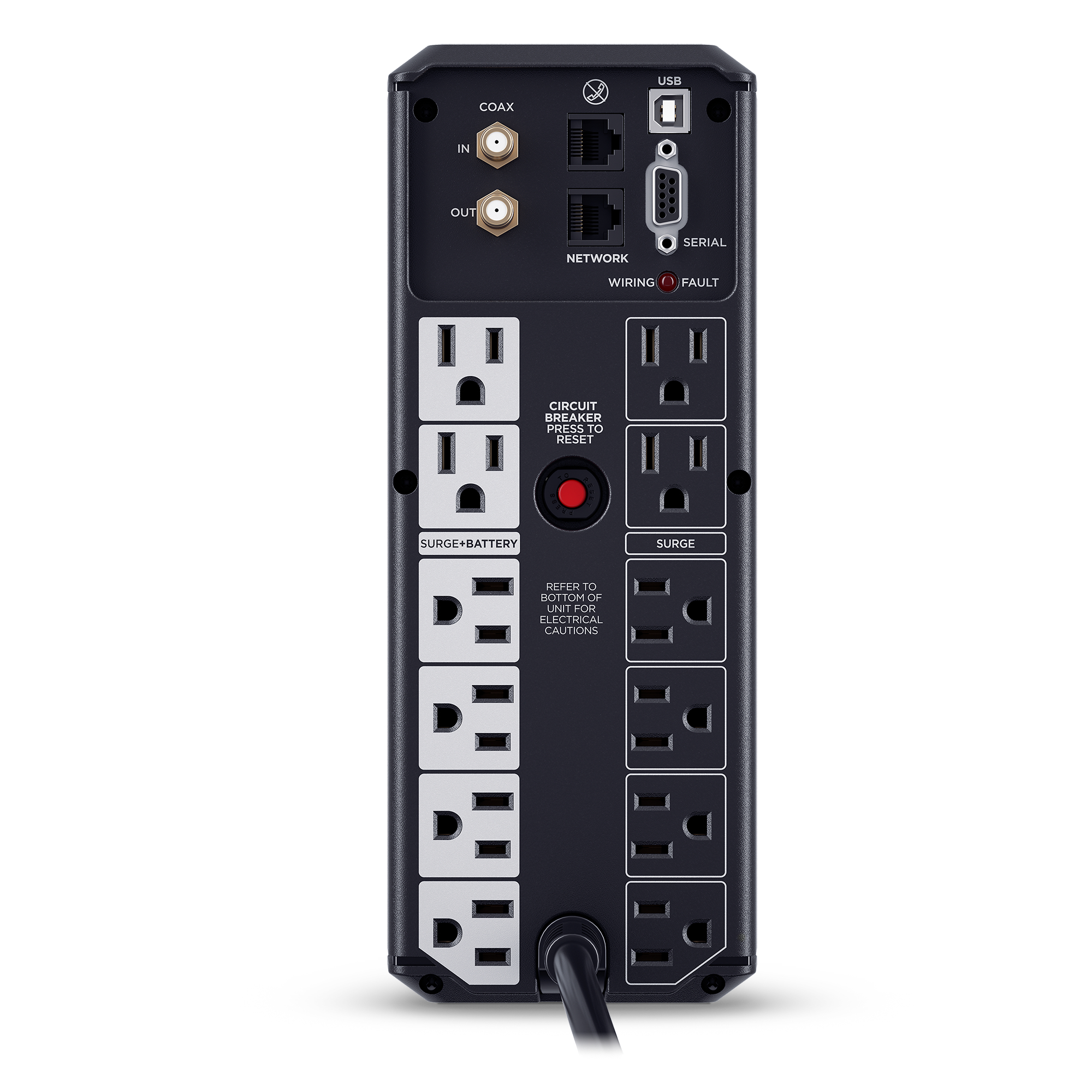

Outlet Type12 - NEMA 5-15R
Outlets - Battery and Surge Protected6
Outlets - Surge Only Protected6
Outlets - Total12
Output Power Factor0.6
Overload ProtectionInternal Circuitry Limiting Circuit Breaker Protected
OUTPUT - CONT.
Typical Transfer Time4 ms
USB Charge Port Type1 Type A
1 Type C
USB Charge Port Voltage5 VDC
USB Charge Port Watts20 Watts
VA1500 VA
Watts900 W
SURGE PROTECTION & FILTERING
Coax Protection RG61 in
1 out
EMI/RFI FilteringYes
Network Protection RJ451-in / 1-Out (10/100/1000)
Surge Suppression1500 J
MANAGEMENT & COMMUNICATIONS
Audible AlarmsBattery Mode Low Battery Overload Fault
HID Compliant USB PortYes
LCDMultifunction LCD
LED IndicatorsPower On Wiring Fault
Management CableUSB Cable
PHYSICAL
ColorBlack
Form FactorMini Tower
Material of ConstructionPlastic
DIMENSIONS

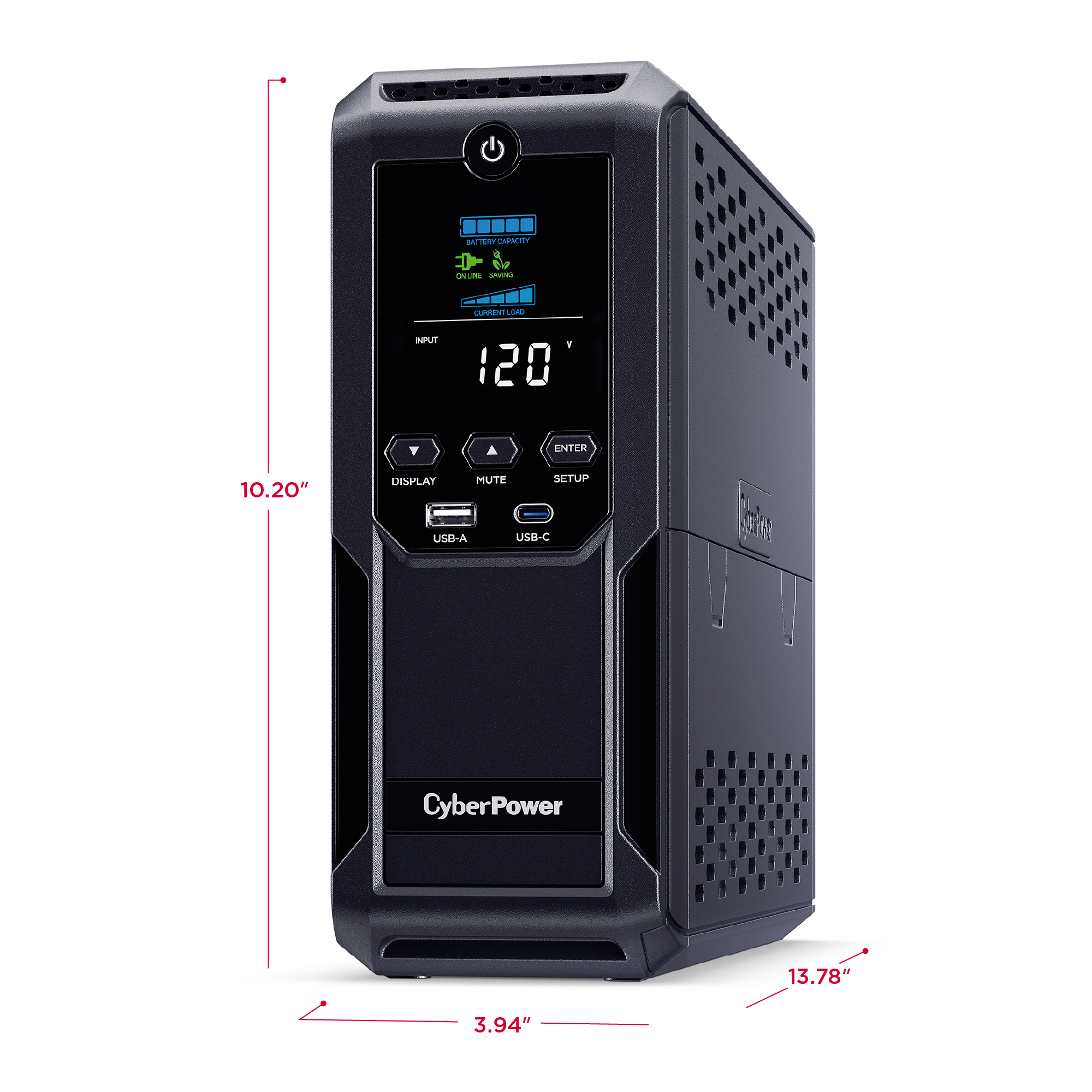

Physical Dimensions - WxHxD (cm)10.01 x 25.91 x 35.0 cm
Physical Dimensions - WxHxD (mm)100 x 259 x 350 mm
Physical Dimensions - WxHxD (in.)3.94 x 10.2 x 13.78 in.
Physical Weight (kg)10.80 kg
Physical Weight (lb)23.80 lbs.
SHIPPING DIMENSIONS
Shipping Dimensions - WxHxD (cm)19.0 x 36.8 x 45.01 cm
Shipping Dimensions - WxHxD (mm)189.99 x 368.05 x 450.09 mm
Shipping Dimensions - WxHxD (in)7.48 x 14.49 x 17.72 in.
Shipping Weight (kg)11.50 kg
Shipping Weight (lbs.)25.35 lbs.
ENVIRONMENTAL
Operating Elevation0 - 10,000 ft (0 - 3,048 m)
Operating Relative Humidity0 - 95 % (non-condensing)
Operating Temperature32 - 104 °F (0 - 40 °C)
Storage Elevation0 - 50,000 ft (0 - 15,239 m)
Storage Relative Humidity0 - 95 % (non-condensing)
Storage Temperature5 - 113 °F (-15 - 45 °C)
CERTIFICATIONS
EnvironmentalRoHS Compliant
SafetyUL1778
cUL 107 5th
FCC DOC Class B
WARRANTY
CEG Amount$500,000
Connected Equipment GuaranteeLifetime
Extended Warranty OptionWEXT5YR-U2A
Product WarrantyThree-Year Limited
