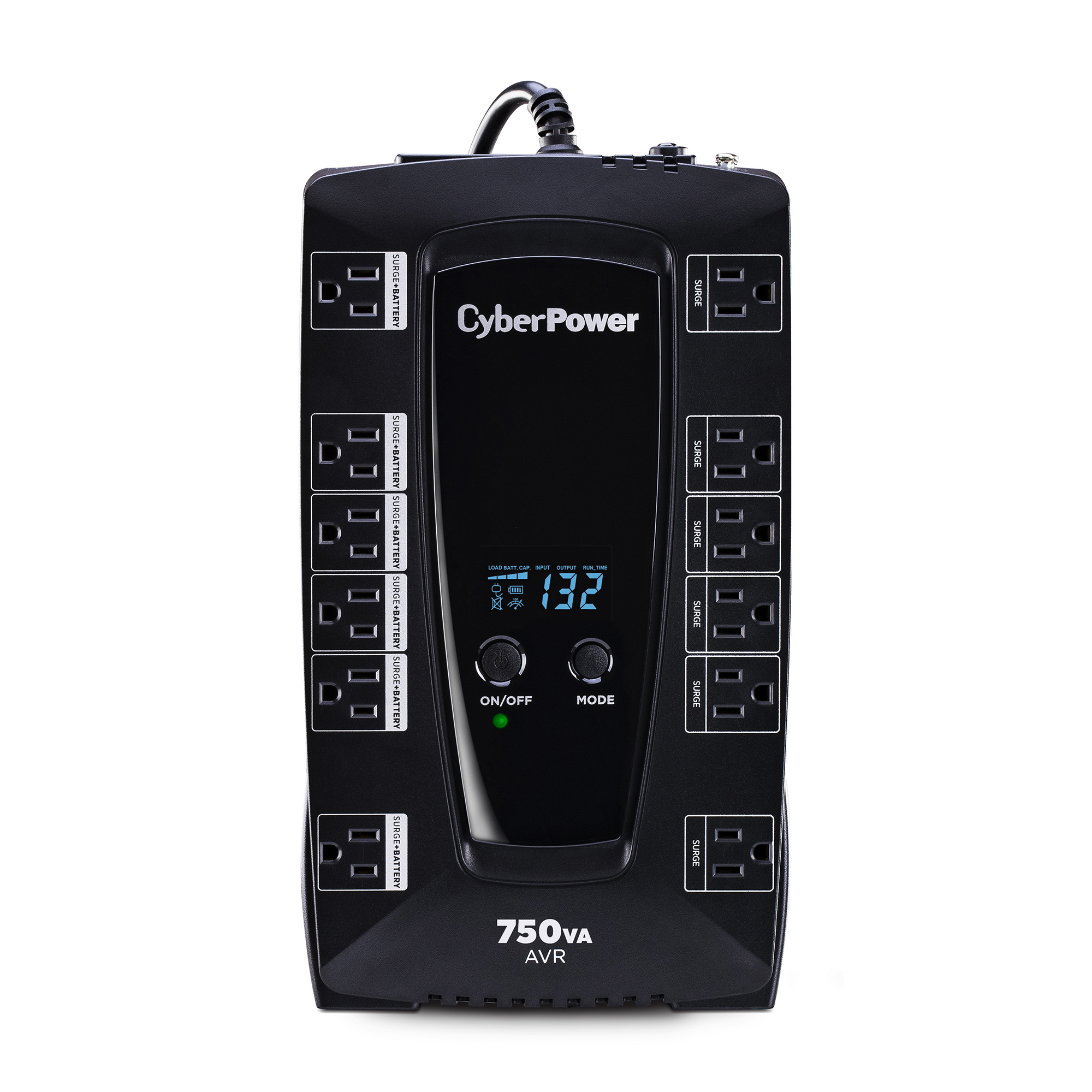

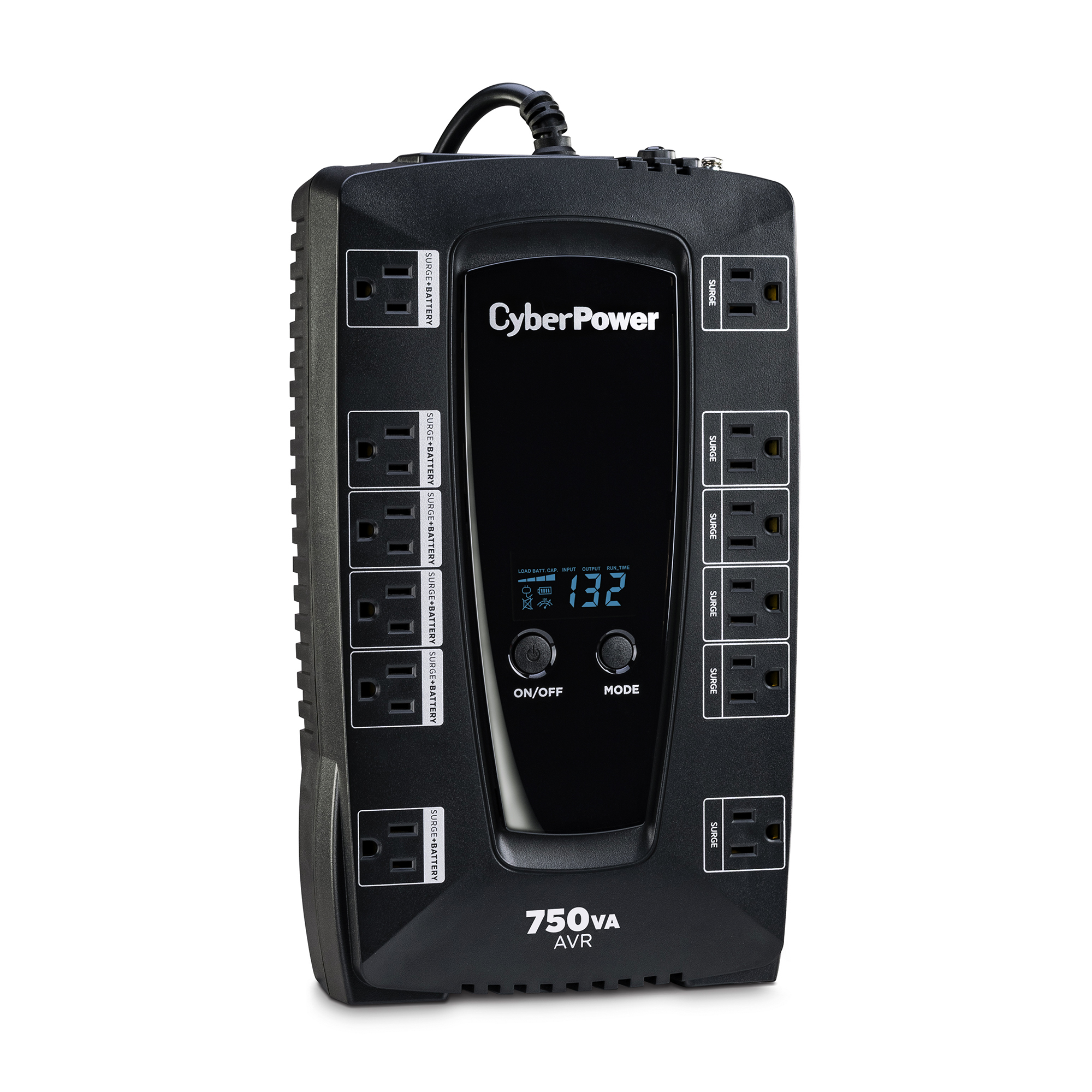

Cyber Power - AVRG750LCD - UPS SYSTEMS Intelligent LCD, 750VA/450W, Simulated Sine Wave, NEMA 5-15P, 5 ft cord
Part number:
AVRG750LCD
Price:

A compact UPS with line interactive topology, the CyberPower AVRG750LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The AVRG750LCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The AVRG750LCD comes with a three-year warranty (including coverage of batteries) and a $150,000 Connected Equipment Guarantee.



Features:

  • Battery Backup: Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Data Line Protection: Prevents power surges that travel through telephone lines from causing damage to electronics.
  • Line Interactive Topology: Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
  • Automatic Voltage Regulation (AVR): Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
  • Simulated Sine Wave Output: Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • GreenPower UPS Bypass Design: Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
  • Multifunction LCD Panel: Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
  • Ultra Quiet Design: Minimizes noise during operation for a quieter work environment.
  • PowerPanel Personal Software: Provides a user-friendly dashboard interface for controlling and monitoring the UPS.
  • Three-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee: CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
GENERAL
UPS TopologyLine Interactive
Energy SavingGreenPower UPS™ Bypass Technology
INPUT
VoltageNominal 120V
Frequency60Hz ± 3Hz
Input Voltage Range90Vac – 148Vac
Plug TypeNEMA 5-15P
Plug StyleRight Angle, 45° Offset Right
Cord Length5'
OUTPUT
VA750
Watts450
Automatic Voltage RegulationBoost 1 +10% / Buck -10%
On Battery Voltage120Vac ± 5%
On Battery Frequency60Hz ± 1%
On Battery WaveformSimulated Sine Wave
Outlets - Total12
Outlet TypeNEMA 5-15R
Outlets - Battery & Surge Protected6
Outlets - Surge-Only Protected6
Rated Power Factor0.6
Overload ProtectionInternal circuitry limiting / circuit breaker
Transfer Time4ms
BATTERY
Runtime at Half Load (min)7.6
Runtime at Full Load (min)2.5
Battery TypeSealed Lead-Acid
Battery Size12V/7AH
Hot-SwappableNo
Replacement BatteryRB1270B
Battery Quantity1
User ReplaceableYes
Typical Recharge Time8 Hours
SURGE PROTECTION & FILTERING
Surge Suppression1,030 Joules
Phone RJ11 / Ethernet RJ451-In, 2-Out (RJ11)
EMI/RFI FiltrationYes
MANAGEMENT & COMMUNICATIONS
HID Compliant USB PortYes
Management CableUSB Cable
LED IndicatorsPower On, Wiring Fault
Audible AlarmsOn Battery, Low Battery, Overload, Fault
LCD IndicatorsVoltage, Frequency, Runtime, % Load,
% Battery, Online, Muted
SoftwarePowerPanel® Personal Edition
PHYSICAL
Form FactorCompact
Dimensions (WxHxD) (in.)12.2 x 7 x 3.5
Weight (lbs.)12.4
Shipping Dimensions (WxHxD) (in.)14.8 x 9.6 x 5.1
Shipping Weight (lbs.)13.2
ENVIRONMENTAL
Operating Temperature32°F to 104°F / 0°C to 40°C
Operating Humidity0% - 90% non-condensing
Storage Temperature5°F to 113°F / -15°C to 45°C
Maximum Operating Elevation6,562 ft / 2,000 m
Maximum Storage Elevation50,000 ft / 15,000 m
CERTIFICATIONS
SafetyUL1778 4th, cUL 107.3-05,
FCC DOC Class B
EnvironmentalRoHS Compliant
WARRANTY
Product Warranty3 Years Limited
Connected Equipment GuaranteeLifetime
CEG Amount$150,000
