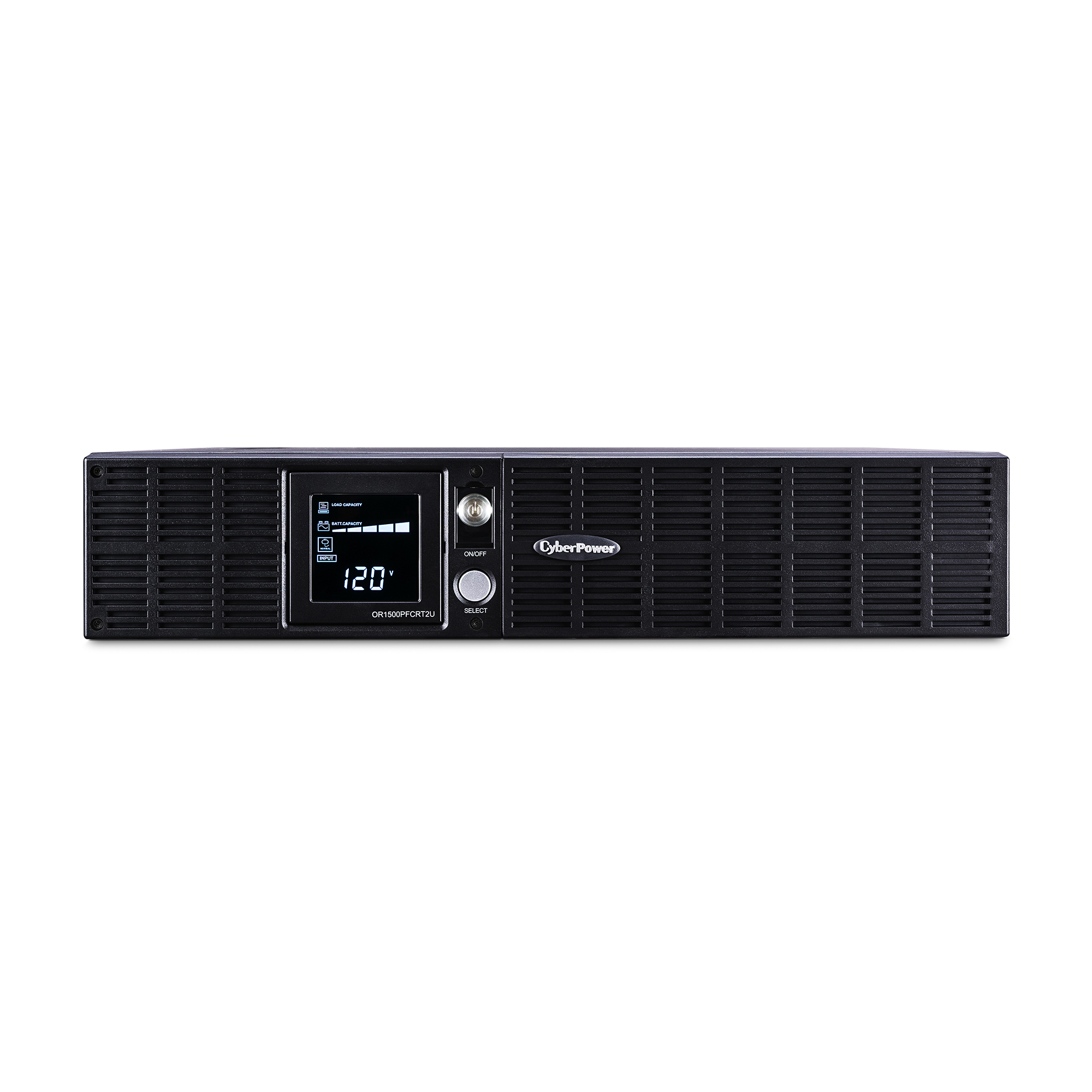

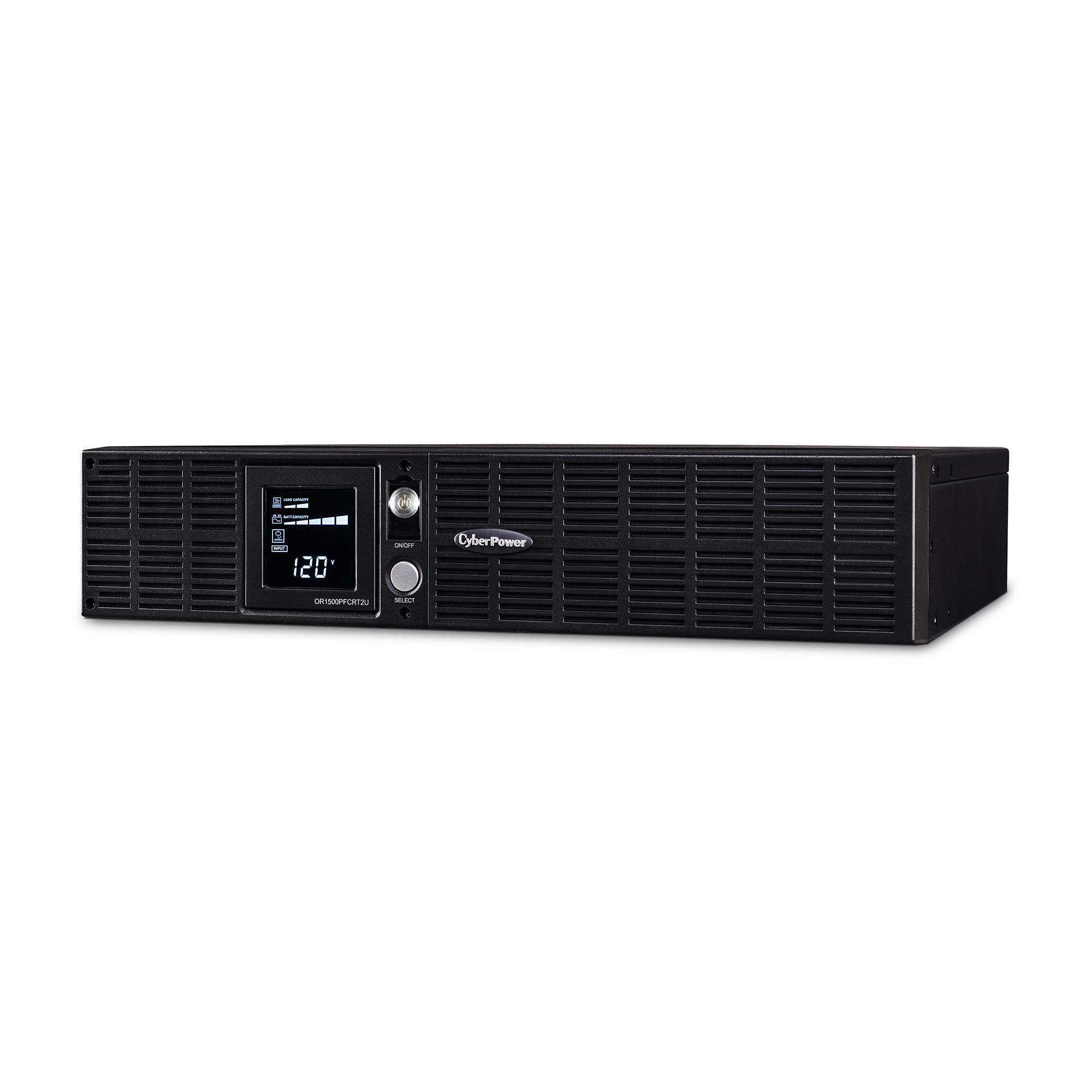

Cyber Power - OR1500PFCRT2U - UPS SYSTEMS PFC Sinewave 1500VA/1050W Rack/Tower UPS with 8 outlet
Part number:
OR1500PFCRT2U
Price:

A a rack/tower UPS with line interactive topology, the CyberPower PFC Sinewave OR1500PFCRT2U provides power protection (using sine wave output) and surge protection for department servers, workgroup servers, network devices, telecom appliances, and high-end audio/video equipment requiring active PFC power source compatibility. The OR1500PFCRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR1500PFCRT2U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.



Features:

  • Battery Backup: Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Data Line Protection: Prevents power surges that travel through telephone and Ethernet lines from causing damage to electronics.
  • Line Interactive Topology: Exists when a line interactive UPS has an auto-transformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
  • Automatic Voltage Regulation (AVR): Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
  • Sine Wave Output: Provides power protection to ENERGY STAR 6.0 systems with Active PFC power supplies.
  • GreenPower UPS Bypass Design: Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
  • Rotatable Multifunction LCD Panel: Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime. The rotatable panel is easily readable whether the UPS is rack mounted or standing as a tower.
  • Ultra Quiet Design: Minimizes noise during operation for a quieter work environment.
  • PowerPanel Business Edition Software: Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality.
  • Three-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee: CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
GENERAL
UPS TopologyLine-interactive
Energy SavingYes
INPUT
Voltage120Vac
Input Voltage Range88Vac–139Vac
Adjustable Voltage Range86Vac–142Vac
Frequency60Hz ± 3Hz
Plug TypeNEMA 5-15P
Plug StyleRight Angle, 45° Offset Right
Cord Length (FT)8
OUTPUT
VA1500
Watts1050
On Battery Voltage120Vac ± 5%
On Battery Frequency60Hz ± 1%
On Battery WaveformSine Wave
Output Power Factor0.7
Automatic Voltage Regulation (AVR)Yes +14% Max
Outlet TypeNEMA 5-15R
OUTPUT CONT.

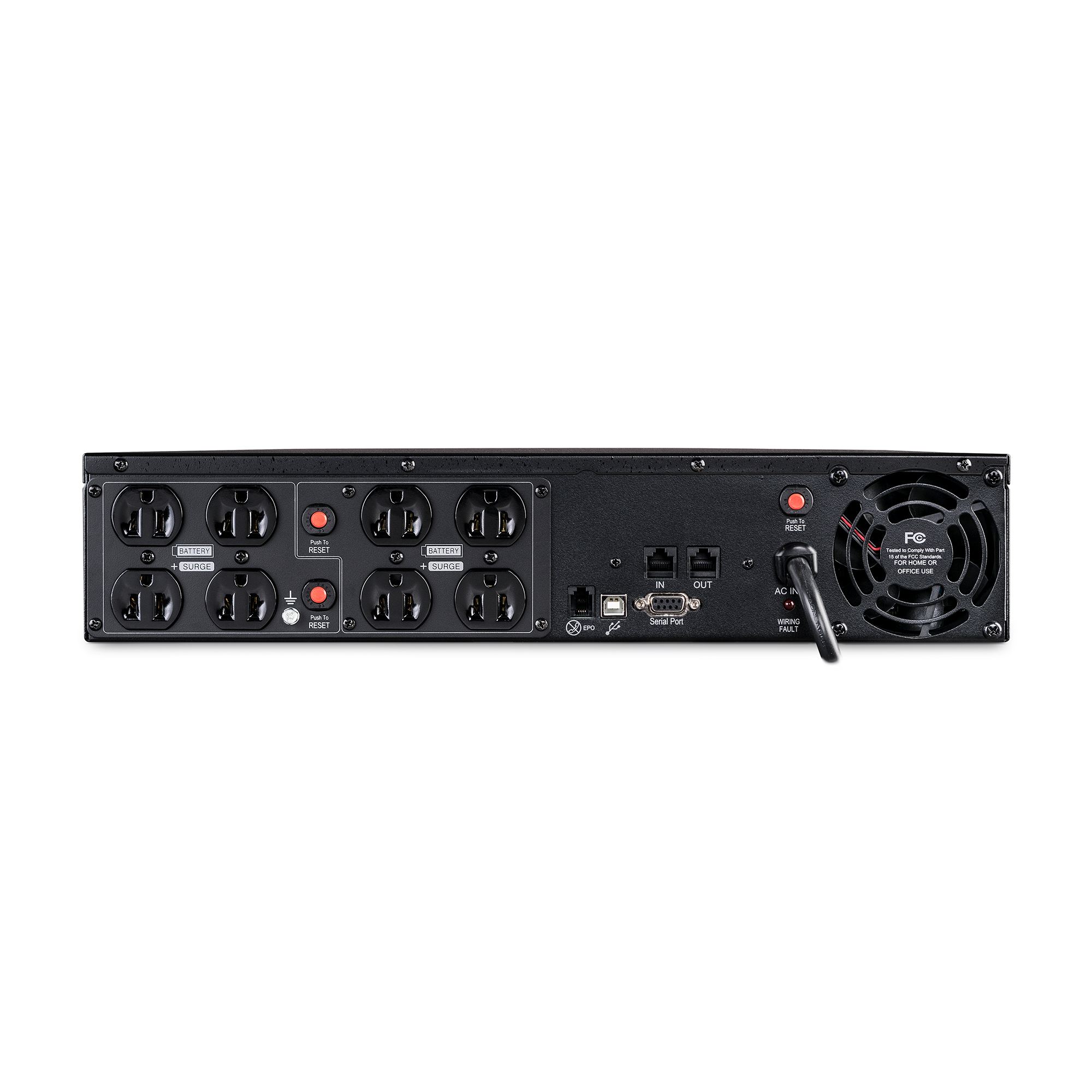

Outlets – Total8
Outlets – Battery & Surge Protected8
Overload ProtectionInternal Circuitry Limiting
Transfer Time4ms
BATTERY
Runtime at Half Load (min)16.5
Runtime at Full Load (min)5.5
Battery TypeSLA
Battery Size12V/7Ah
Battery Quantity4
Battery Voltage24V
User ReplaceableYes
Hot SwappableYes
Typical Recharge Time10 hours
Replacement Battery CartridgeRB1270X4G
Replacement Battery Cartridge Quantity1
SURGE PROTECTION AND FILTERING
Surge Suppression1470 Joules
Phone RJ11/Ethernet RJ451-in/1-out (10/100)
EMI/RFI FiltrationYes
MANAGEMENT & COMMUNICATIONS
HID Complaint USB PortYes
Cables IncludedUSB Cable
Multifunction LCD Diagnostic DisplayYes
MANAGEMENT & COMMUNICATIONS - CONT.
LED IndicatorsPower On, Wiring Fault
Audible AlarmsOn Battery, Low Battery, Overload
SoftwarePowerPanel Business Edition
Remote Management CardNone
PHYSICAL
Form FactorRackmount/Tower
Dimensions (WxHxD)17.01” x 3.5” x 15.32”
Weight50.6 lbs
ENVIRONMENTAL
Operating Temperature32°F to 104°F (0°C to 40°C)
Operating Humidity0%–95% Non-condensing
Maximum Operating Elevation0–10000 feet (0–3000 meters)
Storage Temperature5°F to 113°F (-15°C to 45°C)
Storage Humidity0%–95% Non-condensing
Maximum Storage Elevation0–50000 feet (0–15000 meters)
Audible Noise @1.5m48.7. dBA
On Line Thermal Dissipation95.6 BTU/hr
On Battery Thermal Dissipation647.4 BTU/hr
CERTIFICATIONS
CertificationsUL 5th, cUL, FCC class A
ROHSYes
WARRANTY
Product Warranty3 Years
Connected Equipment GuaranteeLifetime
CEG Amount$300,000
