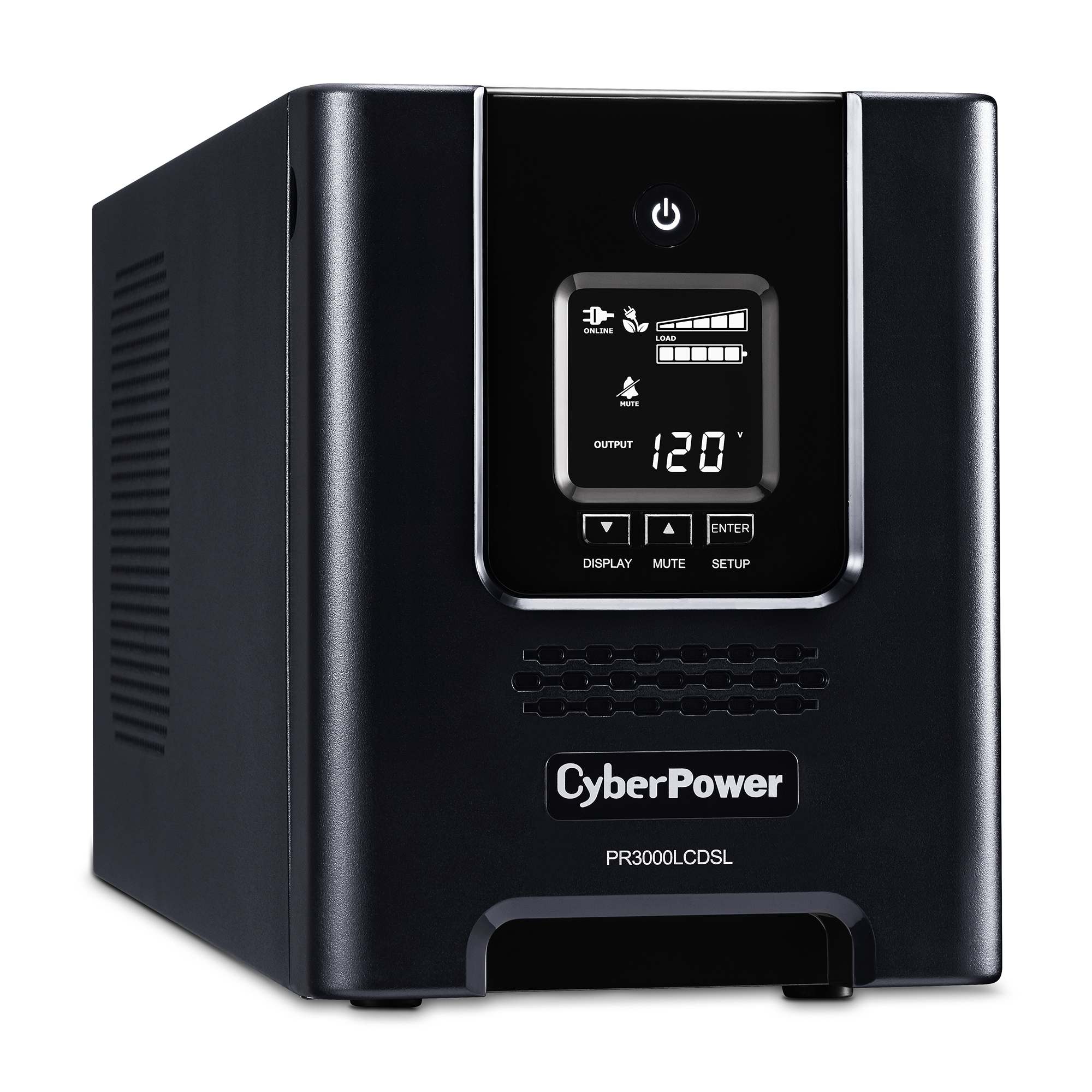

Cyber Power - PR3000LCDSL - UPS SYSTEMS Smart App 3000VA/2700W, Pure Sine Wave, NEMA L5-30P (straight)
Part number:
PR3000LCDSL
Price:

A mini-tower UPS with line interactive topology, the CyberPower Smart App Sinewave PR3000LCDSL provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR3000LCDSL uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR3000LCDSL comes with a three-year warranty, and a $375,000 Connected Equipment Guarantee.



Features:

  • Battery Backup: Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Line Interactive Topology: Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
  • Automatic Voltage Regulation (AVR): Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
  • Sine Wave Output: Provides power protection to ENERGY STAR 6.0 systems with Active PFC power supplies.
  • EMI/RFI Noise Filter: Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.
  • Durable Metal Housing: Protects internal components and resists damage from impact or abrasions within challenging industrial environments. It also extends the life of the product.
  • Multifunction LCD Panel: Displays immediate, detailed information about the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime. Toggle status display includes information about UPS vitals: Input Voltage Level, Output Voltage Level, Automatic Voltage Regulator, Battery Capacity, Energy-Saving Bypass Mode, Runtime Estimate, Load Level, Output Frequency, On Battery, Overload, Fault Condition, Event Logging, and Silent Mode.
  • Audible Alarms: Identify model overloads, low battery, and when the model is running on battery power.
  • Tamper-Proof Power Button: Minimizes the chance the UPS can be accidentally turned off.
  • PowerPanel Business Edition Software: Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality.
  • ENERGY STAR: This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
  • Three-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details. See warranty for details.
  • Connected Equipment Guarantee: CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
GENERAL
UPS TopologyLine Interactive
Energy SavingGreenPower UPS™ Bypass Technology
ENERGY STAR® QualifiedYes
INPUT
Voltage120Vac
Frequency57Hz - 63Hz ± 1%
Input Voltage Range75Vac – 154Vac ± 3Vac
Plug TypeNEMA L5-30P
Plug StyleStraight
Cord Length10'
OUTPUT
VA3,000
Watts2,700
Automatic Voltage RegulationBoost 1 +30%-Boost 2 +14% / Buck -12%
On Battery Voltage120Vac ± 5%
On Battery Frequency60Hz ± 1%
On Battery WaveformSine Wave

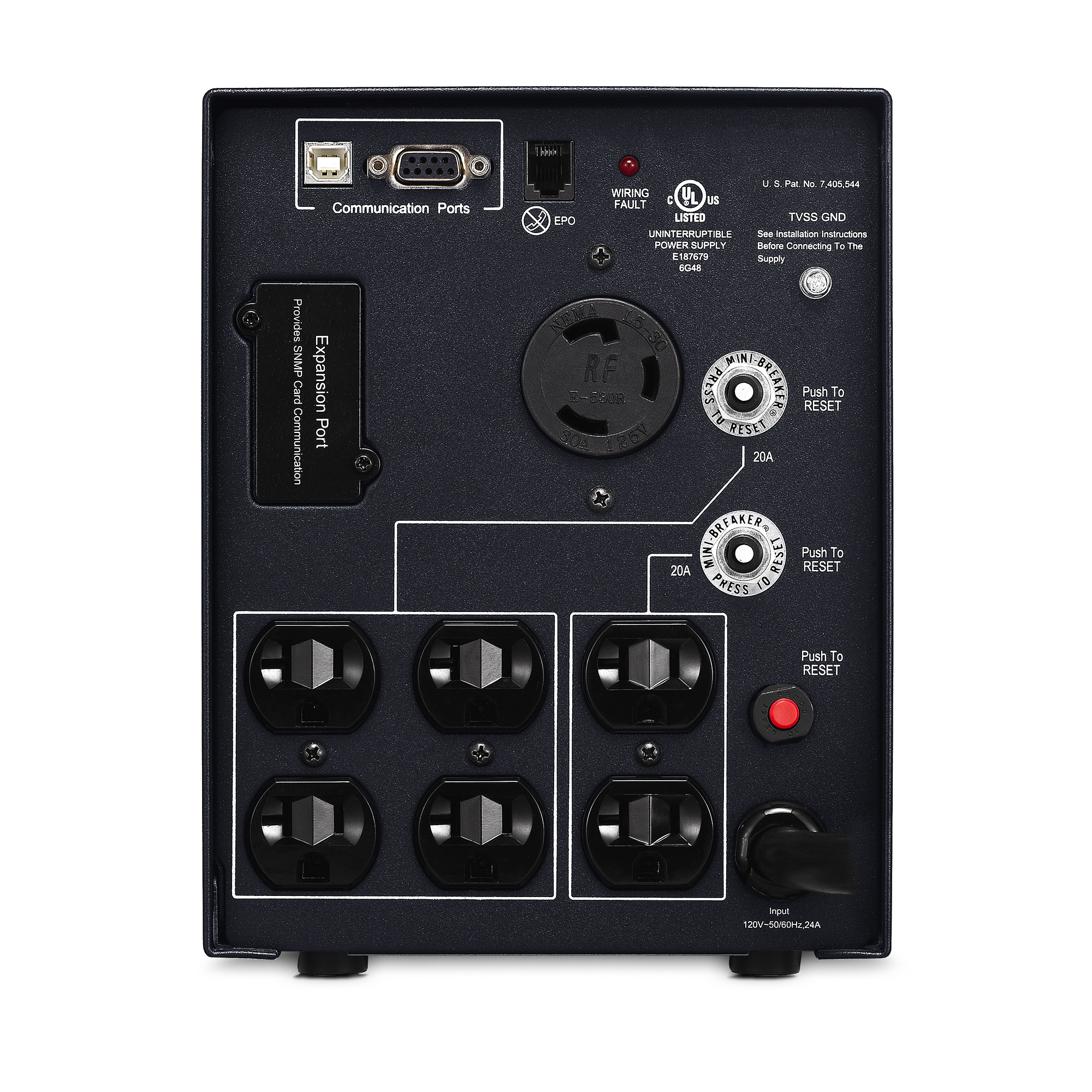

Outlets - Total7
Outlet TypeNEMA L5-30R (1) & NEMA 5-20R (6)
Outlets - Battery & Surge Protected7
Rated Power Factor0.9
Overload ProtectionInternal circuitry limiting / circuit breaker
Transfer Time10ms
BATTERY
Runtime at Half Load (min)7.5
Runtime at Full Load (min)2
Battery TypeSealed Lead-Acid
Battery Size12V/9AH
Hot-SwappableYes
Replacement BatteryRB1290X4F
Battery Quantity4
User ReplaceableYes
Typical Recharge Time8 Hours
SURGE PROTECTION & FILTERING
Surge Suppression1,030 Joules
EMI/RFI FiltrationYes
MANAGEMENT & COMMUNICATIONS
Multifunction LCD PanelDisplays: Current/Load Level, Runtime, Battery Level, AVR In Use, Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Silent Mode
HID Compliant USB PortYes
Serial PortYes
EPO PortYes
Management CableUSB Cable, Serial Cable, EPO Cable
LED IndicatorsPower On
Audible AlarmsOn Battery, Low Battery, Overload, Battery Missing, Fault
SoftwarePowerPanel® Business Edition
SNMP / HTTP Remote MonitoringYes, with optional RMCARD202 or RMCARD203, RMCARD205
PHYSICAL
Form FactorMini-Tower
Dimensions (WxHxD) (in.)6.7 x 8.7 x 17
Weight (lbs.)55.7
ENVIRONMENTAL
Operating Temperature32°F to 104°F / 0°C to 40°C
Operating Relative Humidity0% - 90% non-condensing
CERTIFICATIONS
SafetyUL1778 4th, cUL CSA C22.2 No 107.3-05,
FCC/DOC Class A
EnvironmentalRoHS Compliant
WARRANTY
Product Warranty3 Years Limited
Connected Equipment GuaranteeLifetime
CEG Amount$375,000
Name
Description
Size
Downloads
File
Data Sheet
0.8mb
File
Functional Guide
0.4mb
File
User Manual
0.6mb
