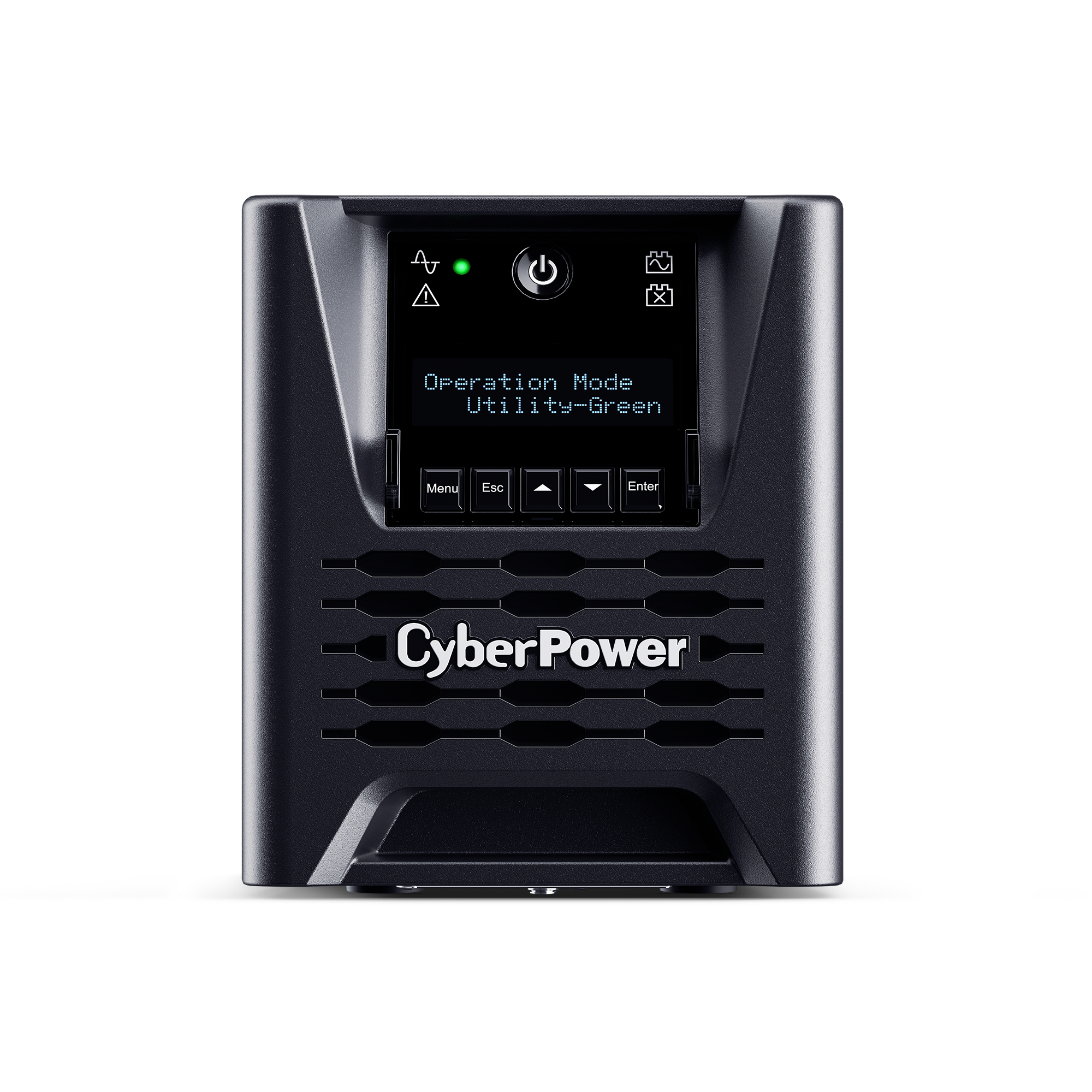

Cyber Power - PR750LCD3C - UPS SYSTEMS Smart App 750VA/750W, Pure Sine Wave, NEMA 5-15P, 5 ft cord
Part number:
PR750LCD3C
Price:

A mini-tower UPS with line interactive topology, the CyberPower Smart App Sinewave PR750LCD3C provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR750LCD3C uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR750LCD3C comes with a three-year warranty (including coverage of batteries) and a $375,000 Connected Equipment Guarantee.



Features:

  • Battery Backup: Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Line Interactive Topology: Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
  • Automatic Voltage Regulation (AVR): Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
  • Sine Wave Output: Provides power protection to ENERGY STAR 6.0 systems with Active PFC power supplies.
  • GreenPower UPS Bypass Design: Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
  • PowerPanel Business Edition Software: Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality.
  • Cisco Compatible: This CyberPower UPS system is a Cisco EnergyWise compliant end device.
  • ENERGY STAR: This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
  • Three-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
GENERAL
Active PFC CompatibleYes
Energy SavingGreenPower UPS™ Bypass Technology
Energy Star CertifiedYes
UPS TopologyLine Interactive
BATTERY
Battery Quantity2
Battery Size12 V / 7 Ah
Battery TypeSealed Lead-Acid Battery
Hot-SwappableYes
BATTERY - CONT.
Replacement Battery CartridgeRB1270X2F
Replacement Battery Cartridge Quantity1
Runtime at Full Load3.3 min
Runtime at Half Load10.7 min
Typical Recharge Time8 Hours
User-Replaceable BatteryYes
INPUT
Circuit Breaker15 A
Cord Length5 ft (1.5 m)
Input Frequency Range57 Hz - 63 Hz
Input Plug TypeNEMA 5-15P
Input Voltage Range78 VAC - 149 VAC
Nominal Input Voltage120 VAC
Plug StyleStraight
OUTPUT
Automatic Voltage RegulationDouble Boost Single Buck
On Battery Frequency50 - 60 Hz ± 1%
On Battery Voltage120 VAC ± 5%
On Battery WaveformSine Wave
Outlet Type6 - NEMA 5-15R
Outlets - Battery and Surge Protected6
Outlets - Total6
Output Power Factor1
Overload ProtectionInternal Circuitry Limiting Circuit Breaker Protected
Typical Transfer Time4 ms
VA750 VA
Watts750 W
SURGE PROTECTION & FILTERING
EMI/RFI FilteringYes
Surge Suppression1350 J
MANAGEMENT & COMMUNICATIONS
Audible AlarmsBattery Mode Low Battery Overload Fault
Replace Battery
Emergency Power Off (EPO) PortYes
HID Compliant USB PortYes
LCDMultifunction LCD
MANAGEMENT & COMMUNICATIONS - CONT.
LED IndicatorsPower On On-Line
Battery Mode Fault
Management CableUSB Cable EPO Cable
Removable LCD Control Panel OptionNo
Serial Port1 Serial
SNMP / HTTP
Remote Monitoring
Yes - with optional RMCARD205
Software (Free Download)PowerPanel® Business
PHYSICAL
ColorBlack
Form FactorTower
Material of ConstructionMetal
DIMENSIONS
Physical Dimensions - WxHxD (cm)13.79 x 16.18 x 35.99 cm
Physical Dimensions - WxHxD (mm)138 x 162 x 360 mm
Physical Dimensions - WxHxD (in.)5.43 x 6.37 x 14.17 in.
Physical Weight (kg)11.80 kg
Physical Weight (lb)26.01 lbs.
SHIPPING DIMENSIONS
Shipping Dimensions - WxHxD (cm)26.42 x 28.45 x 48.26 cm
Shipping Dimensions - WxHxD (mm)264.16 x 284.48 x 482.6 mm
Shipping Dimensions - WxHxD (in)10.4 x 11.2 x 19 in.
Shipping Weight (kg)12.97 kg
Shipping Weight (lbs.)28.6 lbs.
ENVIRONMENTAL
Operating Elevation0 - 10,000 ft (0 - 3,048 m)
Operating Relative Humidity0 - 95 % (non-condensing)
Operating Temperature32 - 104 °F (0 - 40 °C)
Storage Temperature5 - 113 °F (-15 - 45 °C)
CERTIFICATIONS
EnvironmentalRoHS Compliant
SafetyUL1778 cUL 107.3
FCC DOC Class B
WARRANTY
CEG Amount$375,000
Connected Equipment GuaranteeLifetime
Extended Warranty OptionWEXT5YR-U2A
Product WarrantyThree-Year Limited
