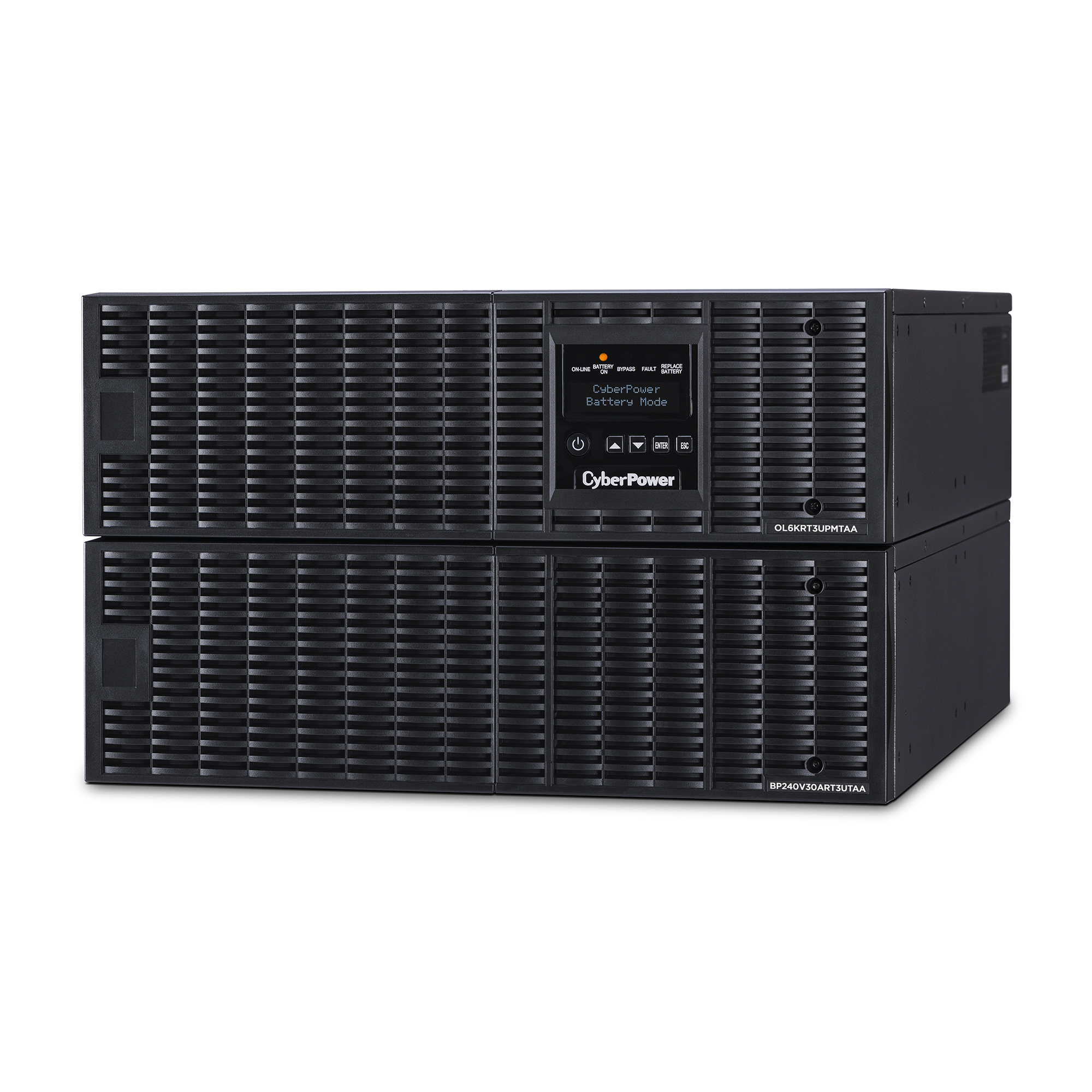

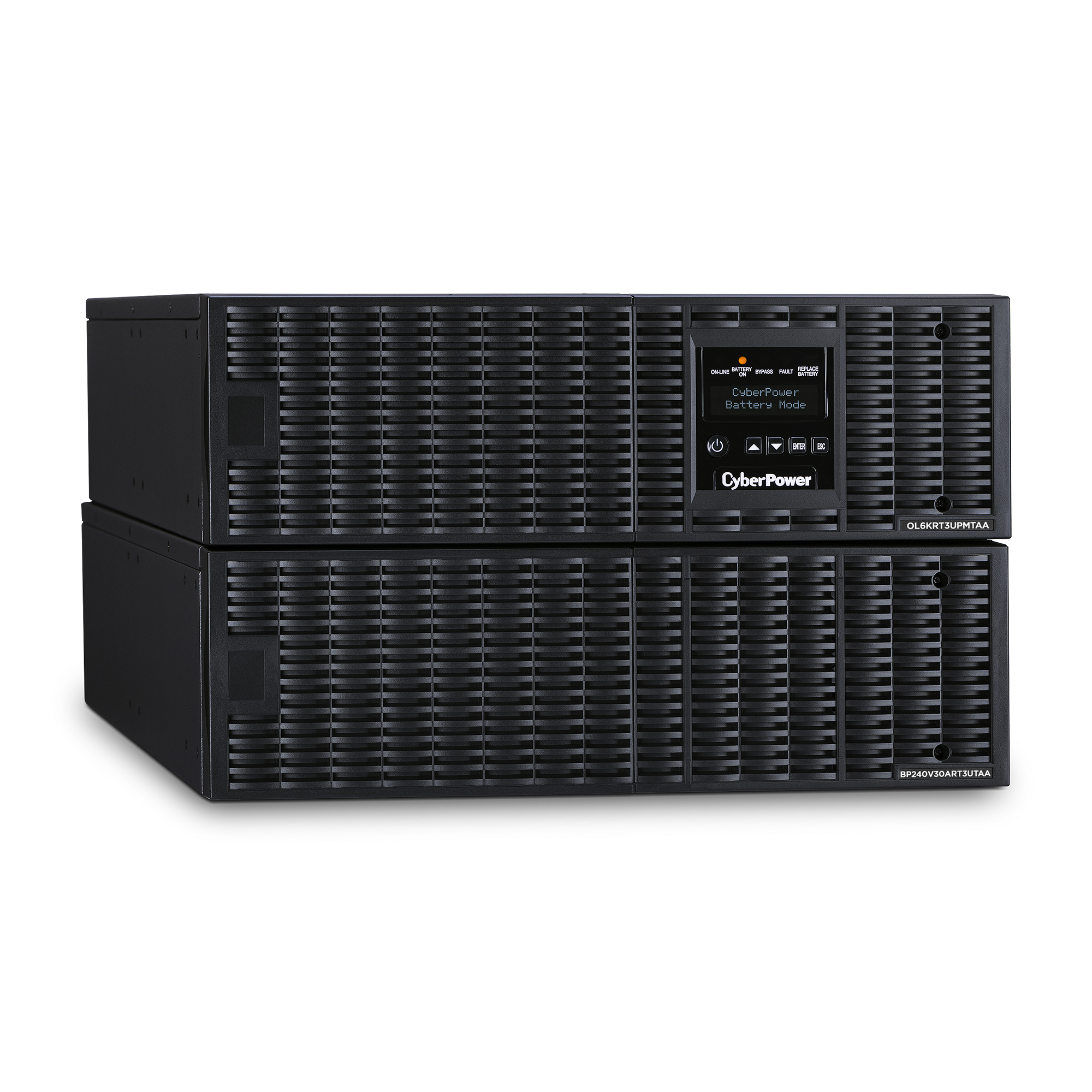

Cyber Power - OL6000RT3UTAA - UPS SYSTEMS TAA Compliant UPS, TAA Compliant 6000VA / 5400W UPS, Pure Sine Wave, 208V
Part number:
OL6000RT3UTAA
Price:

The CyberPower Smart App Online OL6000RT3UTAA UPS has been manufactured to comply with the Federal Trade Agreement Act (TAA). This network-grade UPS protects mission-critical servers, routers and telecom equipment with true sine wave output and double-conversion topology for seamless power protection. The OL6000RT3UTAA also offers generator compatibility and delivers clean AC power with zero transfer time.



Other features include a flexible rack/tower design for easy installation, extendable LCD control panel, Smart Battery Management, Fast Charge Technology, and energy-saving GreenPower UPS™ ECO Mode. The CyberPower OL6000RT3UTAA UPS is protected by a three-year warranty as well as a $300,000 Connected Equipment Guarantee.



Features:

  • Data Line Protection
    Prevents power surges that travel through telephone and Ethernet lines from causing damage to electronics.
  • Double-Conversion Topology
    Provides consistent, clean, and nearly perfect power, regardless of the condition of incoming power. Systems with this technology operate on isolated DC power 100% of the time and have a zero transfer time because they never need to switch to battery. Double-conversion UPS systems are designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.
  • Sine Wave Output
    Provides power protection to ENERGY STAR 6.0 systems with Active PFC power supplies.
  • Extendable LCD Panel
    Displays UPS statuses and customizable operating settings from up to 10 ft. away (with optional cable). The extendable LCD control panel can be configured in English, Spanish, or French for ease of use.
  • Extended Battery Module (EBM)
    Extends runtime by adding EBMs. This UPS allows for up to ten added modules.
  • Fast Charge Technology
    Allows UPS batteries to return to 100% capacity more rapidly by utilizing a built-in charger inside each EBM. Restores a complete charge within 5 hours regardless of the number of EBMs.
  • Smart Battery Management (SBM)
    Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.
  • GreenPower UPS ECO Mode
    Improves UPS efficiency up to 96%; saves on electrical and cooling costs.
  • Hot-Swappable Batteries
    Eliminate downtime related to UPS power maintenance for continuous power availability.
  • Critical & Non-Critical Loads
    The UPS has two banks of outlets which can be configured so that the non-critical loads shut off after a set timeframe to provide additional runtime for the critical load outlet. Users can prioritize their equipment runtimes to maximize the output of the UPS to meet their power requirements.
  • Emergency Power Off (EPO)
    Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.
  • Backfeed Protection
    Prevents the risk of electric shock from any electric current feeding back from the UPS through the input terminals when utility power is lost. Backfeed protection isolates the UPS and allows service personnel to safely work on the utility power.
  • Generator Compatible
    Provides stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.
  • Converter Mode
    Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50Hz or 60Hz output on the LCD control panel.
  • USB & Serial Connectivity
    Enables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port.
  • EMI/RFI Filters
    Prevent electromagnetic and radio frequency interference to ensure clean power for connected equipment.
  • Audible Alarms
    Identify when the model is running on battery power, overloaded, or has a low battery.
  • Resettable Circuit Breaker
    Interrupts an electric current in a circuit when the current becomes too high.
  • LED Status Lights
    Indicate Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery.
  • Rack/Tower Versatility
    Allows for horizontal rack or vertical tower installation.
  • PowerPanel Business Edition Software
    Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab.
  • Cisco Compatible
    This CyberPower UPS system is a Cisco EnergyWise compliant end device.
  • Three-Year Warranty
    CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee
    CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
GENERAL
UPS TopologyDouble Conversion
Energy SavingYes–ECO Mode Efficiency >96%
INPUT
Nominal Input Voltage200-240Vac
Input Frequency Range40Hz–70Hz (auto-sensing)
Plug TypeNEMA L6-30P
Cord Length10’
OUTPUT
VA6,000
Watts5,400
On Battery Voltage200, 208, 220, 230, 240Vac
(Configurable) ±2%
OUTPUT - CONT.
On Battery Frequency50/60Hz (Auto-Sensing or Configurable) ±0.25Hz
On Battery WaveformSine Wave
Outlets - Total4
Outlet TypeNEMA L6-20R (2),
NEMA L6-30R (2)
Rated Power Factor0.9
Crest Factor3:1
Harmonic DistortionTHD < 3% at Linear Load,
< 5% at Non-linear Load
ECO Mode Voltage Regulation±10%, ±15% (Configurable)
BypassInternal Bypass (Automatic and Manual)
Transfer Time0ms
BATTERY
Runtime at Half Load (min)15
Runtime at Full Load (min)5.4
Battery TypeSealed Lead-Acid
User ReplaceableYes
Hot SwappableYes
Typical Recharge Time4 Hours (0-90%)
Smart Battery Management ModeYes
Extendable Battery ModuleBP240V30ART3UTAA
SURGE PROTECTION & FILTERING
Surge Suppression2,430 Joules – IEC 61000-4-5
Level 3
MANAGEMENT & COMMUNICATIONS
LCD Control Panel44 different settings or status options via the UPS Status menu, UPS Setup & Control menus
Extendable LCD Control PanelYes-Requires a separate DB26 Cable
HID Compliant USB PortYes
Serial PortYes
EPO PortYes
Dry ContactsYes
SNMP / HTTP Remote MonitoringYes–Optional RMCARD305TAA
PHYSICAL
Form FactorRack/Tower
Dimensions (WxHxD) (in.)17 x 10.5 x 26
Dimensions (WxHxD) (mm.)433 x 266 x 660
Weight (lbs.)222
Weight (kg.)100
Installed Rack Height6U
ENVIRONMENTAL
Operating Temperature32 °F to 104°F / 0°C to 40°C
Operating Humidity0%–90% non condensing
Operating Elevation0–10,000 feet (0–3,000 meters)
Online Thermal Dissipation1,912 BTU/hr
Audible noise at 1.5M from surface of unit55 dBA
CERTIFICATIONS
SafetyUL1778, CSA C22.2 NO.107.3-05,
FCC DOC Class A
ROHSROHS Compliant
WARRANTY
Product Warranty3 Years Limited
Connected Equipment GuaranteeLifetime
CEG Amount$300,000
