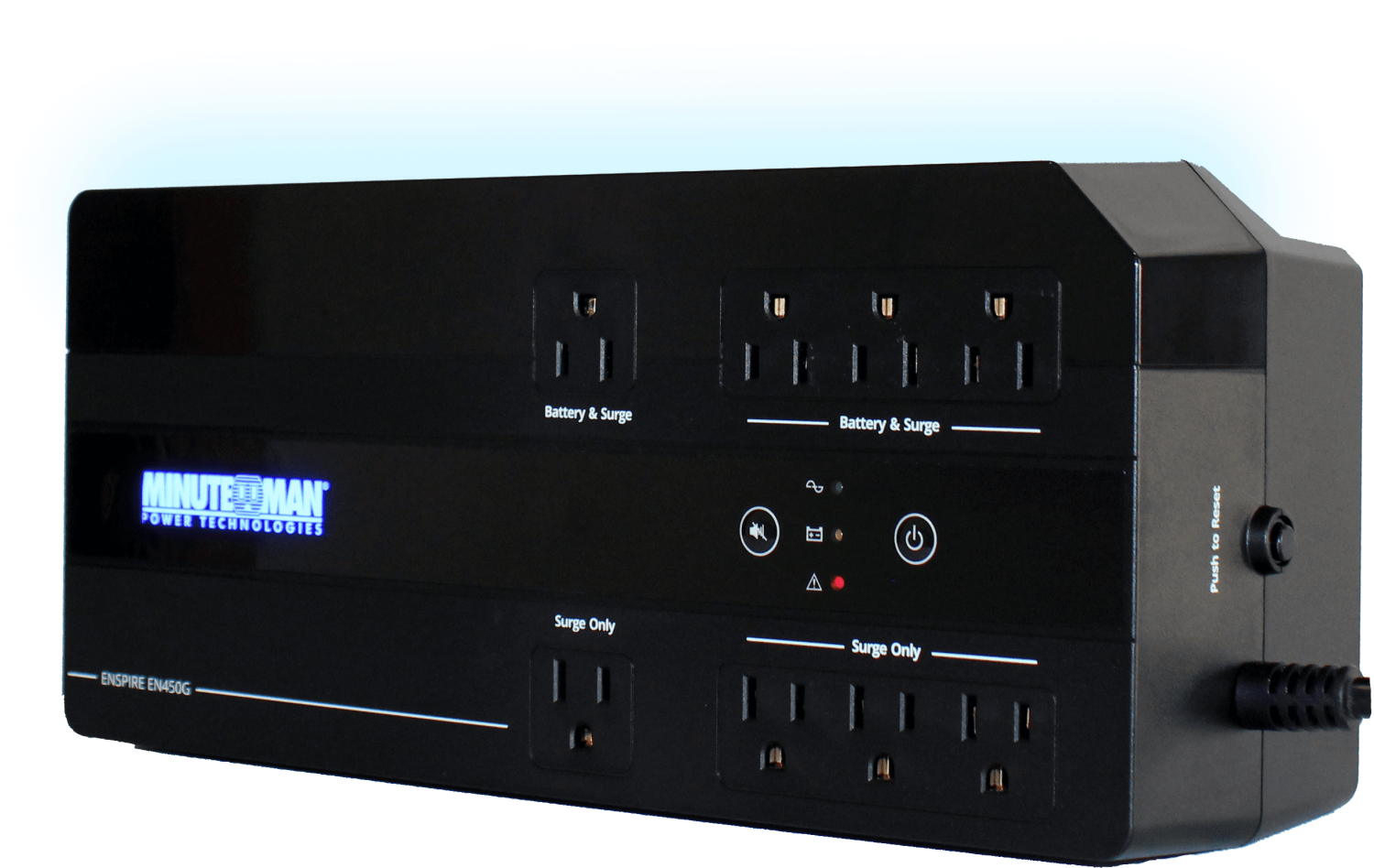

Minuteman - EN450G - UPS450VA USB 4-Bat/4-Surge Outlets
Part number:
EN450G
Price:

The Minuteman Enspire-G Series UPS is a low-cost, high-performance UPS that provides the features needed to protect your valuable equipment. The Enspire-G series will feature battery support, spike and surge protection, and USB charging ports (select models).



Complete Protection for:

  • Gaming Consoles
  • Home Network Routers, Modems, and Peripherals
  • Home Entertainment devices
  • Desktop Computers and Laptops
  • Work Stations
  • Small Security Cameras and DVRs



Enspire-G Key Product Features

  • Versatile Outlet Options
    For 450VA and 600 VA models – Four surge and battery-protected outlets and Four surge-only outlets
    For 750VA and 900VA models – Five surge and battery-protected outlets and Five surge-only outlets
  • Outlet control (900VA model ONLY): allows the UPS to save energy by automatically turning off designated outlets when the connected equipment is turned off or in standby mode
  • Compact, Wall-Mountable Case
  • 5-foot power cord with right-angle plug
  • Input circuit breaker protection
  • Tool-less, Hot-Swappable Battery Replacement
  • USB Communications
    Enspire UPS USB connections are automatically recognized by Microsoft Windows (600/750/900VA models)
  • USB Charging Ports (600 and 900VA models only)
    600VA two Type-A ports
    900VA one Type-A port and one Type-C port
  • Independent Battery Bypass
    Provides surge and spike protection, even when batteries are weak or dead
  • 3-year warranty (electronics) 2-year warranty (batteries)
  • cTUVus certification
    (UL1778 5th Edition), CE, FCC Class B



Other Features:

Protects Against Spikes, Surges, Brownouts, and Blackouts Feature-rich Design

  • Compact case design
  • Sleek LED lighting bar and logo display
  • LCD Front Panel Display (900VA model)
  • LED status indicators
  • USB communications (600/750/900VA models)
  • USB Charging ports (600VA and 900VA models only)
    • 600VA (2) Type A
    • 900VA (1) Type A and (1) Type C
  • Hot-swappable battery
  • Easy battery access
  • Tool-less battery replacement design
  • 3-year warranty (electronics) 2-year warranty (batteries)
  • RoHS 2 compliant
  • Energy Star 2.0 certified
  • Meets Department of Energy efficiency standards
  • High-efficiency Green Mode
  • Transformer-friendly receptacles
  • DC Startup capability
  • Built-in self-diagnostics testing
  • Site-wiring fault indicator
  • Audio & Visual alarms
  • Alarm silence button
UPS Model
EN450G
General Features

Topology
Standby
VA Rating
450
Load Capacity (Watts)
250
Installation Format
Desktop, Floor or Wallmount
USB Charging Ports
None
Input

Voltage Range
95 - 140VAC
Frequency Range
60Hz ±6Hz
Input Plug (6-ft. Cord)
5-15P (right-angle)
Input Protection
Circuit Breaker
Max. Input Current
10 Amps
Surge Joule Rating
1000J
Output

Voltage Range (AC Mode)
95 - 140VAC
Voltage Range (Battery Mode)
120VAC ±5%
Wave Form (Battery Mode)
Step Wave
Output Receptacles

Surge Only
(4) 5-15R
Battery & Surge
(4) 5-15R
Batteries

Replacement Module
BM00xx
Tool-less Battery Replacement
Yes
Est. Runtime (Full/Half Load)
3 min / 11 min
Independent Battery Bypass
Yes
DC Startup
Yes
Hot Swappable Batteries
Yes
Display & Communications

Front Panel Display
LED
Battery Function Alarms
Yes
Alarm Silencer
Yes
Shutdown Software
No
Communication Port
USB (HID compliant)
Communication Cable Included
No
Environmental

Operating Temp. Range
+32°F to +104°F (0°C to +40°C)
Operating Humidity Range
0% to 95% (Non-condensing)
Operating Elevation
0 to +10,000 ft. (0 to +3,000m)
Physical

Unit Dimensions (LxWxH)
12.8" x 5.7" x 4.1"
Shipping Dimensions (LxWxH)
14.8" x 5.7" x 8.9"
Unit Weight lbs.
7.3 lbs.
Shipping Weight lbs.
8.4 lbs.
Warranty & Certifications

Standard Warranty
3 Years
Connected Equipment Guarantee
$50,000
Safety Agency Approvals
cTUVus (UL1778 5th Edition), CE, FCC Class B
Green Compliance
RoHS, Energy Star 2.0, NOM
