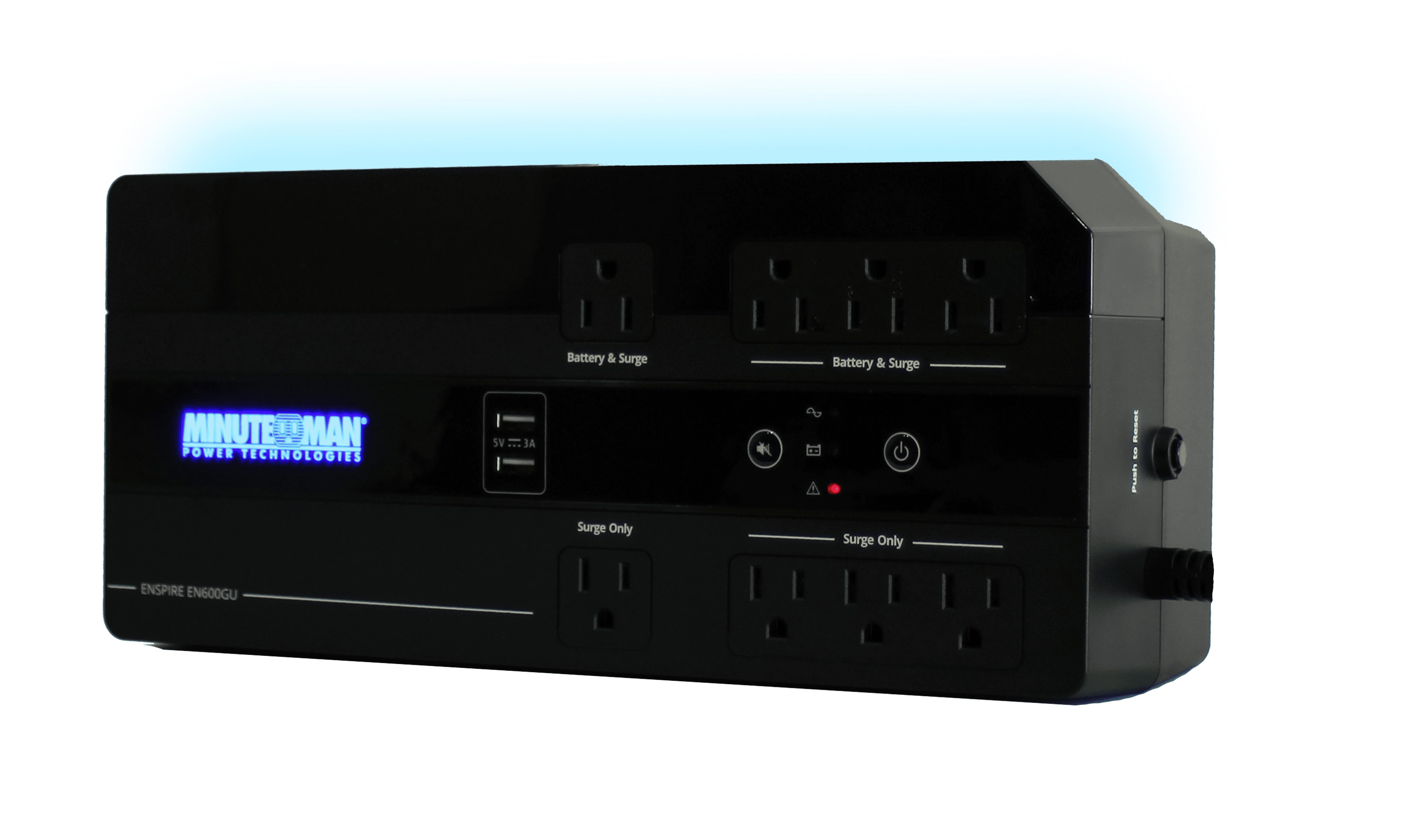

Minuteman - EN600GU - UPS600VA USB 4-Bat/4-Surge Outlets
Part number:
EN600GU
Price:

The Minuteman Enspire-G Series UPS is a low-cost, high-performance UPS that provides the features needed to protect your valuable equipment. The Enspire-G series will feature battery support, spike and surge protection, and USB charging ports (select models).



Complete Protection for:

  • Gaming Consoles
  • Home Network Routers, Modems, and Peripherals
  • Home Entertainment devices
  • Desktop Computers and Laptops
  • Work Stations
  • Small Security Cameras and DVRs



Enspire-G Key Product Features

  • Versatile Outlet Options
    For 450VA and 600 VA models – Four surge and battery-protected outlets and Four surge-only outlets
    For 750VA and 900VA models – Five surge and battery-protected outlets and Five surge-only outlets
  • Outlet control (900VA model ONLY): allows the UPS to save energy by automatically turning off designated outlets when the connected equipment is turned off or in standby mode
  • Compact, Wall-Mountable Case
  • 5-foot power cord with right-angle plug
  • Input circuit breaker protection
  • Tool-less, Hot-Swappable Battery Replacement
  • USB Communications
    Enspire UPS USB connections are automatically recognized by Microsoft Windows (600/750/900VA models)
  • USB Charging Ports (600 and 900VA models only)
    600VA two Type-A ports
    900VA one Type-A port and one Type-C port
  • Independent Battery Bypass
    Provides surge and spike protection, even when batteries are weak or dead
  • 3-year warranty (electronics) 2-year warranty (batteries)
  • cTUVus certification
    (UL1778 5th Edition), CE, FCC Class B



Other Features:

Protects Against Spikes, Surges, Brownouts, and Blackouts Feature-rich Design

  • Compact case design
  • Sleek LED lighting bar and logo display
  • LCD Front Panel Display (900VA model)
  • LED status indicators
  • USB communications (600/750/900VA models)
  • USB Charging ports (600VA and 900VA models only)
    • 600VA (2) Type A
    • 900VA (1) Type A and (1) Type C
  • Hot-swappable battery
  • Easy battery access
  • Tool-less battery replacement design
  • 3-year warranty (electronics) 2-year warranty (batteries)
  • RoHS 2 compliant
  • Energy Star 2.0 certified
  • Meets Department of Energy efficiency standards
  • High-efficiency Green Mode
  • Transformer-friendly receptacles
  • DC Startup capability
  • Built-in self-diagnostics testing
  • Site-wiring fault indicator
  • Audio & Visual alarms
  • Alarm silence button
UPS Model
EN600GU
General Features

Topology
Standby
VA Rating
600
Load Capacity (Watts)
330
Installation Format
Desktop, Floor or Wallmount
USB Charging Ports
(2) Type A
Input

Voltage Range
95 - 140VAC
Frequency Range
60Hz ±6Hz
Input Plug (6-ft. Cord)
5-15P (right-angle)
Input Protection
Circuit Breaker
Max. Input Current
10 Amps
Surge Joule Rating
1000J
Output

Voltage Range (AC Mode)
95 - 140VAC
Voltage Range (Battery Mode)
120VAC ±5%
Wave Form (Battery Mode)
Step Wave
Output Receptacles

Surge Only
(4) 5-15R
Battery & Surge
(4) 5-15R
Batteries

Replacement Module
BM00xx
Tool-less Battery Replacement
Yes
Est. Runtime (Full/Half Load)
2 min / 10 min
Independent Battery Bypass
Yes
DC Startup
Yes
Hot Swappable Batteries
Yes
Display & Communications

Front Panel Display
LED
Battery Function Alarms
Yes
Alarm Silencer
Yes
Shutdown Software
Yes (Free Download)
Communication Port
USB (HID compliant)
Communication Cable Included
Yes
Environmental

Operating Temp. Range
+32°F to +104°F (0°C to +40°C)
Operating Humidity Range
0% to 95% (Non-condensing)
Operating Elevation
0 to +10,000 ft. (0 to +3,000m)
Physical

Unit Dimensions (LxWxH)
12.8" x 5.7" x 4.1"
Shipping Dimensions (LxWxH)
14.8" x 5.7" x 8.9"
Unit Weight lbs.
7.3 lbs.
Shipping Weight lbs.
8.4 lbs.
Warranty & Certifications

Standard Warranty
3 Years
Connected Equipment Guarantee
$50,000
Safety Agency Approvals
cTUVus (UL1778 5th Edition), CE, FCC Class B
Green Compliance
RoHS, Energy Star 2.0, NOM
