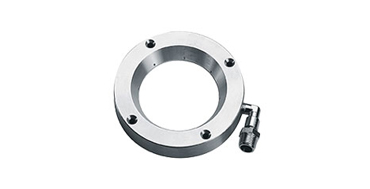

VideoTec - ONXMAIRBIR - Front Flange With Air Barrier And IR-Proof Glasses
Part number:
ONXMAIRBIR
Price:
Anterior flange with air barrier with IR-proof glass included for NXM36
Features:
- Front flange with air barrier and IR-proof glass, for housings in stainless steel.
- Made of AISI 316L electropolished stainless steel
| MECHANICAL | |
| Dimensions (ØxL) | 154x27mm |
| Male input 1/2” GAS | |
| Flange with 8 holes | |
| System pressure | 4bar max |
| Recommended minimum pressure | 2bar |
| Example of application | • Input air pressure 1bar, output air pressure 0.2bar, air flow rate 7m³/h • Input air pressure 2bar, output air pressure 1bar, air flow rate 10m³/h • Input air pressure 3bar, output air pressure 1.25bar, air flow rate 12m³/h • Input air pressure 4bar, output air pressure 1.25bar, air flow rate 14m³/h |
| IR-proof glass window | • Usable diameter: 95mm (3.7in) • Thick: 6.6mm (0.3in) • Operating temperature: 260°C (500°F) max, thermal gradient 108°C (226.4°F) max • Transmitted IR radiation: 21% |
| Unit weight | 2.1kg (4.6lb) |
