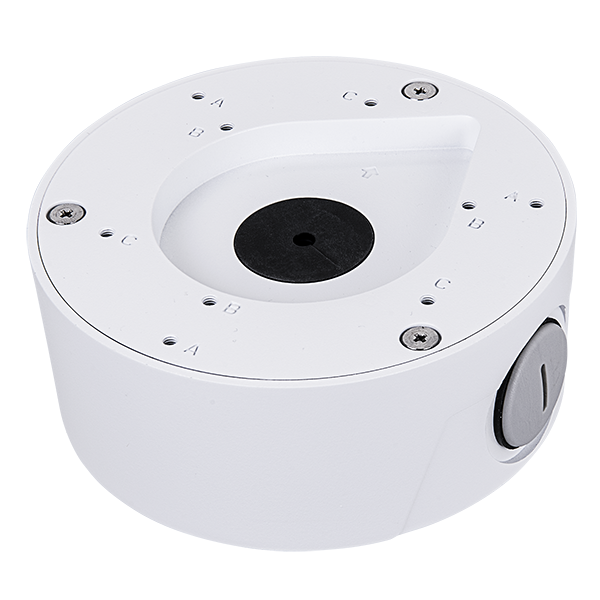

Vivotek - AM-71B_V02 - Conduit Box for FD9360-H & FD9380-H
Part number:
AM-71D
Price:
Outdoor Conduit Box (IP66).
Features:
- Waterproof Conduit Box
| P/N | VIO100220401 (V02) |
| Material | Aluminum Alloy |
| Color | White |
| Pipe Thread | PF 3/4” |
| Casing | IP66 (with supported cameras), IP67 (with FD9389 series) |
| Dimensions | Ø138 x 55 mm |
| Weight | 736g |
| Box Dimension | 217 (L) x 174 (W) x 94 (H) mm (1pc) |
| Box Weight | 930g |
| Carton Dimension | 490 (L) x 367 (W) x 252 (H) mm (10pcs) |
| Carton Weight | 10,330g |
| Supported Models | FD9189-H(T)-V2, FD9360-H, FD9368-HTV, FD9380-H, FD9388-HTV, FD9389-EH(T)V-V2, IT9388-HT, IT9389-H-V2, FD9383-H(T)V, IT9383-H(T)VW, FD9199-H, FD9189-H-V3, FD9399-EHV, FD9399-EHTV, FD9389-EHV-V3, FD9389-EHTV-V3 |
