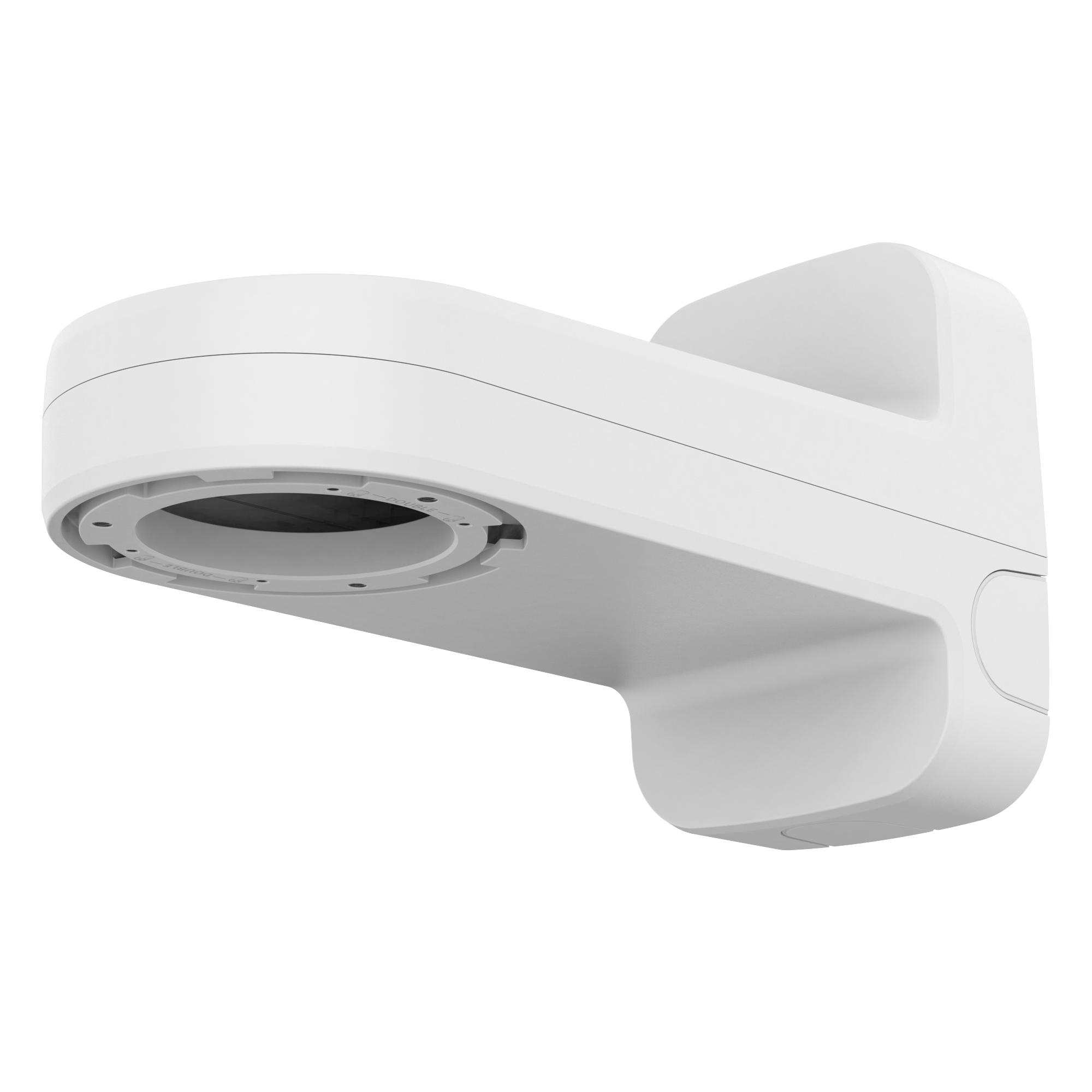

Wall Mount White Compatible with
1. Camera Direct
: QNV-C8083R/C9083R, XND-C6083RV/C7083RV/C8083RV/C9083RV, XNV-C6083R/C7083R/C8083R/C9083R, XND-6083RV/8083RV/9083RV, XNV-6083R/8083R/8093R/9083R, PNV-A9081R/A6081R/A6081R-E1T/A6081R-E2T, XNV-6083RZ/8083RZ/9083RZ, etc.
2. with SBP-115PA
: XNP-6400/8250/9250, XNP-6400R/8250R/9250R, XNP-6400RW/8300RW/9300RW, XNP-C6403/C8253/C9253, XNP-C6403R/C8253R/C9253R, XNP-C6403RW/C8303RW/C9303RW, XNP-C7310R/C9310R, QNP-6250R/6320R
3. Hanging Adaptor with SBP-115PFA
: SBP-099HMW/120HMW/140HMW/160HMW1/180HMW1/200HMW/215HMW/250HMW/315HMW and others
4. Gang Plate
: SBD-110GP1, SBD-090GP
5. with Mounting Hole Cover (SBP-200C/250C/315C)
: PNM-C16013RVQ, PNM-C16083RVQ/C32083RVQ, PNM-9084RQZ/9085RQZ and others
Features:
• Color : White
• Mount screw size : TR30
• Max. load : 20kg
• Conduit hole : M25, 3pcs ※ Wall&Pole adaptor should be prepared for some cases
- PTZ plus : SBP-115PA needed
- Hanging adaptor : SBP-115PFA needed
| Specification | |
| Mechanical | |
| Color | White |
| Material | Aluminum, Polycarbonate(PC) |
| RAL code | RAL9003 |
| Product dimensions / weight | 318.5x137x183mm(12.54x5.39x7.2") / 1,940g (4.27lb) |
| Mount Screw size | TR30 |
| Conduit hole | 19.1mm(3/4")(M25), 3pcs |
| Supported products | Adaptor : SBP-115PFA, SBP-115PA※ For further compatible models, please visit our website or use Toolbox |
