Amazing Next-generation Wireless High-speed Connection

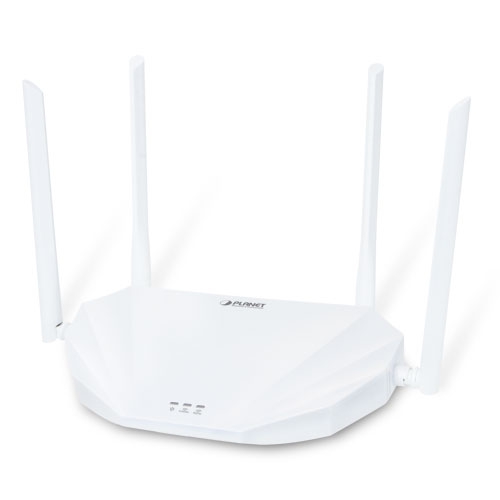

PLANET WDRT-1800AX Dual Band 802.11ax 1800Mbps Wireless Gigabit Router, supporting MU-MIMO, Wave 2.0, OFDMA and EasyMesh technology, provides a maximum wireless speed of 1200Mbps in the 5GHz band and 600Mbps in the 2.4GHz band. The maximum number of client users is up to 64, ensuring more secure and robust connectivity with the adoption of Wi-Fi 6 technology.
Benefits of Wi-Fi 6 technology
As OFDMA, a multi-user version of OFDM, enables the concurrent AP to communicate (uplink and downlink) with multiple clients by assigning subsets of subcarriers called resource units (RUs) to the individual clients. With EasyMesh and Seamless Roaming technologies, it provides a better Wi-Fi user experience, reducing the likelihood of users turning off Wi-Fi and putting more load on the cellular network. These technologies also can solve Wi-Fi congestion issues in open workspaces and conference rooms. The WDRT-1800AX can offer more powerful throughput coverage of up to 64 client users.
Features:
IEEE Compliant Wireless LAN and Wired LAN
- Compliant with the IEEE 802.11a/b/g/n/ac/ax wireless technology
- Equipped with 1 WAN and 4 LANs with 10/100/1000Mbps RJ45 ports, and auto MDI/MDI-X
RF Interface Characteristics
- 802.11ax 2T2R architecture with data rate of up to 1800Mbps (600Mbps in 2.4GHz and 1200Mbps in 5GHz)
- High output power with multiply-adjustable transmit power control
Fixed-network Broadband Router
- Supports WAN connection types: Dynamic, static IP, PPPoE
- Supports Operation Modes: Route, Bridge and Relay mode
- Supports DDNS and DHCP Servers
Multiple Operation Modes and Wireless Features
- Max. Wireless Clients up to 64 (2.4GHz+5GHz)
- Supports MU-MIMO, Wave 2.0, OFDMA, Beamforming and BSS coloring
- Support Terminal Seamless Roaming with 802.11k, 802.11v, and 802.11r
Comprehensive Wireless Advanced Features
- Easy Installation with EasyMesh Function (Expected to be launched in 2021/Q4)
- Supports guest network to allow users to access different SSIDs
- Supports Wireless QoS to enhance the efficiency of multimedia application
- Supports 3-level Transmitting Power Control to adapt various environments
- Self-healing (Schedule Reboot) mechanism for reliable connection
Secure Network Connection
- Supports Wi-Fi Protected Setup (WPS)
- Support WPA/WPA2/WAP3 wireless security encryption
- Supports NAT firewall, IP / URL-based access control and MAC address filtering
Advanced Networking Function for Specific Application
- Supports Bandwidth Control (QoS) based on different local IP addresses
- Supports NTP, Port Forwarding, ALG and DMZ for various networking applications
Easy Installation and Management
- Web-based UI and quick setup wizard for easy configuration
- Support for centralized management (TR069 )
- Remote Management allows configuration from a remote site
- System status monitoring includes DHCP Client List and System Log
| Hardware Specifications | |

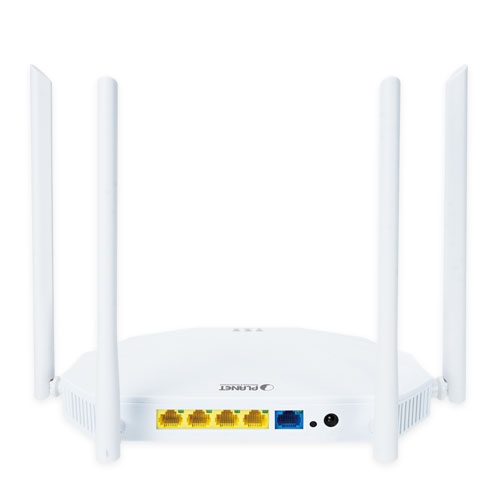

| Interface | WAN Port: 1 x 10/100/1000 Mbps auto MDI/MDI-X RJ45 port LAN Port: 4 x 10/100/1000 Mbps auto MDI/MDI-X RJ45 port (LAN 1~4) |
| Antenna | Four external 7dBi high gain omnidirectional antennas (2.4GHz x 2, 5GHz x 2) |
| Button | 1 x WPS/reset button Press for about 1 second to enable WPS function. Press for over 5 seconds to reset the device to factory default. |
| LED Indicators | PWR x 1 LAN x 4 WAN x 1 WLAN (2.4GHz & 5GHz) x 2 |
| Dimensions (W x D x H) | 234 x 148 x 31mm |
| Weight | 343g |
| Power Requirement | 12V DC, 1A |
| Wireless Interface Specifications | |
| Standard | IEEE 802.11a/n/ac/ax 5GHz IEEE 802.11g/b/n/ax 2.4GHz |
| Frequency Band | Simultaneous 2.4GHz and 5GHz |
| Data Rates | 2.4GHz up to 600Mbps 5GHz up to 1200Mbps |
| Channel | 2.4GHz FCC (America): 2.412~2.462GHz (11 Channels) ETSI (Europe): 2.412~2.472GHz (13 Channels) 5GHz FCC: 5.180~5.240GHz, 5.745~5.825GHz ETSI: 5.180~5.700GHz *The actual channels in application may vary depending on the regulations in different regions and countries. |
| Channel Width | 20MHz, 40MHz, 80MHz |
| Max. RF Power / EIRP | EIRP < 22dBm |
| Receive Sensitivity | 2.4GHz 11b 11Mbps: 22dBm 11g 6Mbps: 21dBm 11g 54Mbps: 20dBm 11n MCS0-HT20: 21dBm 11n MCS7-HT20: 19dBm 11ax MCS11-HE20: 16dBm 11n MCS7-HT40: 19dBm 11ax MCS9-VHT40: 17dBm 11ax MCS11-HESU40: 16dBm 5GHz 11a 6Mbps: 21dBm 11a 54Mbps: 19dBm 11ac MCS8-VHT20: 17dBm 11ax MCS11-HE-SU20: 16dBm 11ac MCS9-VHT40: 17dBm 11ax MCS11-HE-SU40: 16dBm 11ac MCS9-VHT80:17dBm 11ax MCS11-HE-SU80: 16dBm |
| Wireless Output Power | 2.4GHz 11b 1Mbps: -96 dBm 11b 11Mbps: -90 dBm 11g 6Mbps: -91 dBm 11g 54Mbps: -75 dBm 11n MCS0-HT20: -91 dBm 11n MCS7-HT20: -71 dBm 11ax MCS0-HE-HESU20: 91dBm 11ax MCS11-HE-HESU20: 62dBm 11n MCS7-HT40: -70 dBm 11ac MCS9-VHT40: -63 dBm 11ax MCS11-HE-HESU40: 58dBm 5GHz 11a 6Mbps: -91 dBm 11a 54Mbps: -75 dBm 11n MCS0-HT20: -91 dBm 11n MCS7-HT20: -71 dBm 11ax MCS0-HE-HESU20: 91dBm 11ax MCS11-HE-HESU20: 62dBm 11n MCS7-HT40: -70 dBm 11ac MCS9-VHT40: -63 dBm 11ax MCS11-HE-HESU40: 58dBm 11ac MCS9-VHT80: -58 dBm 11ax MCS11-HE-HESU80: 54dBm |
| Transmit Power Control | Low, Medium, High |
| Wireless Management Features | |
| Encryption Security | WPA/WPA2/WPA3 |
| Wireless Security | Wireless MAC address filtering Supports WPS (Wi-Fi Protected Setup ) |
| Wireless Advanced | Supports dual-SSID (2.4GHz and 5GHz) Supports guest network |
| Max. Supported Clients | 2.4GHz wireless: 32 5GHz wireless: 32 |
| Router Features | |
| WAN | Shares data and Internet access with users, supporting the following Internet accesses: Dynamic IP Static IP PPPoE |
| LAN | Built-in DHCP server supporting static IP address distribution Supports IP MAC binding |
| Firewall | NAT firewall, SPI firewall Built-in NAT server which supports port forwarding and DMZ Built-in firewall with URL filtering, and MAC address filtering |
| System Management | Web-based (HTTP) management interface Telnet server Supports UPnP, PLANET DDNS SNTP synchronization System log TR069 |
| Standards Conformance | |
| IEEE Standards | IEEE 802.11ax IEEE 802.11ac IEEE 802.11n IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11i IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x flow control IEEE 802.11k, 802.11v, and 802.11r |
| Modulation Type | 802.3ax: OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM/1024QAM) 802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK) |
| Other Protocols and Standards | TCP/IP, DHCP, NAT, PPPoE, NTP |
| Regulatory | CE, RoHS |
| Environment | |
| Temperature | Operating: 0 ~ 40 degrees C Storage: -40 ~ 70 degrees C |
| Humidity | Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 95% (non-condensing) |
