Name: Wi-Tek - SP3006FM-L2 - 4GE+2*2.5G SFP Fiber Uplink L2 Managed Industrial PoE Switch with 4Port PoE
Brand: Wi-Tek
SKU: SP3006FM-L2

Home — Brands — Wi-Tek — Industrial Switch —

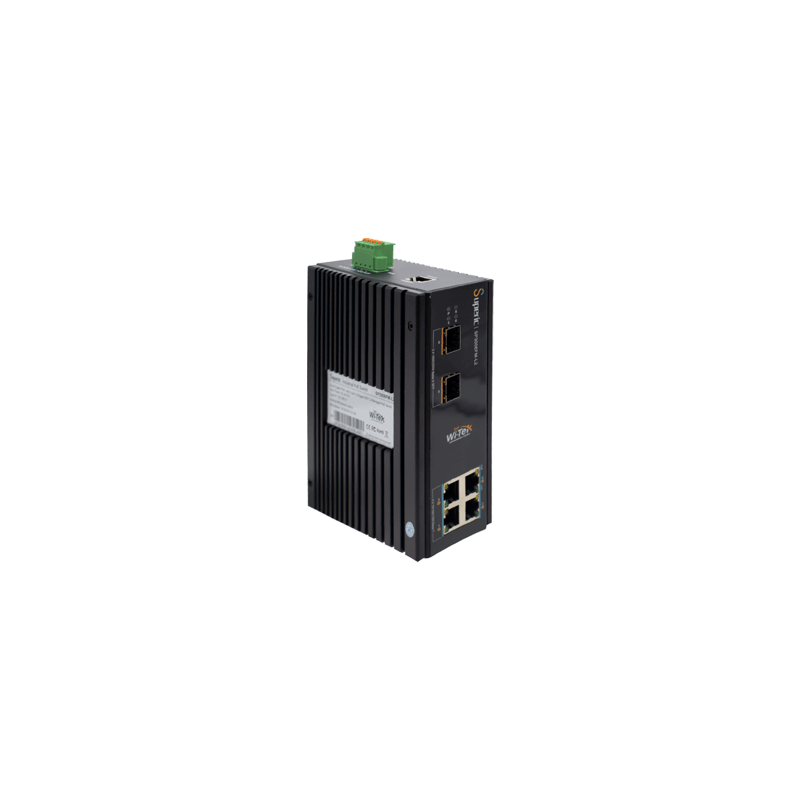

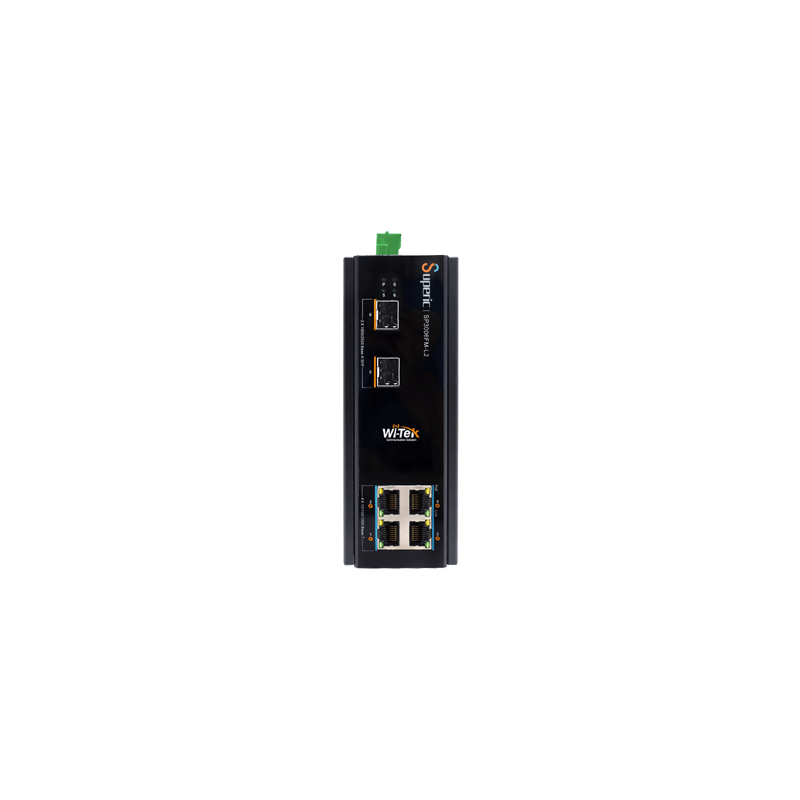

Wi-Tek - SP3006FM-L2 - 4GE+2*2.5G SFP Fiber Uplink L2 Managed Industrial PoE Switch with 4Port PoE

Part number:

SP3006FM-L2

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

Wi-Tek Superic industrial L2 managed PoE switch provide 4/8 Gigabit Ethernet RJ-45 ports and 2 2.5 Gigabit SFP uplink ports. All RJ-45 ports comply with 802.3af/at PoE (PoE+) standard and output up to 30W PoE power per port. This series switch support Layer 2 management functions, such as VLAN, VLAN classification, QinQ, port mirroring, STP, RSTP, MSTP, IGMP, QoS, DHCP, multicast, ACL, dying gasp,LLDP, 802.1X, fiber transceiver DDM, PoE management, G.8032 ERPS protocol, IPV6 management, Web, SNMP, Telnet, TFTP, etc. Professional design providing a flexible, easy to use and reliable industrial network solution. Redundant power design with polarity reverse/over-voltage/over-current protection, guarantee the safe power supply. Solid shell, wide operation temperature from -40°C to 75°C and high-level EMI/EMC capability design, ensure its stale and reliable operation even in harsh environment. It is the best choice for outdoor CCTV project, wireless coverage project and the project of industrial application scenarios such as factory and transportation.

Features:

L2 managed PoE switch
4*10/100/1000 Base-T PoE+ RJ-45 ports and2*1000/2500 Base-X SFP slot
Complies with IEEE 802.3af/at 30W PoE standard
Support robust L2 managed function, such as such as VLAN, VLAN classification, QinQ, port mirroring, STP, RSTP, MSTP, IGMP, QoS, DHCP, multicast, ACL, dying gasp,LLDP, 802.1X, fiber transceiver DDM, PoE management, G.8032 ERPS protocol, IPV6 management
- 40℃~75℃ operating temperature
6kV surge immunity for power and Ethernet ports

Model	SP3006FM-L2
Interfaces
Downlink Ports	4*10/100/1000 Base-T PoE+ RJ-45(Auto-MDI/MDI-X)
Uplink Ports	2*1000/ 2500 Base-X SFP
Management port	1*RJ45 Console
PoE
PoE Standard	IEEE 802.3af/at (PSE)
PoE Power Supply Type	End-span
PoE Pin Assignment	1/2(+)，3/6(-)
PoE Power Output	46~55V DC
PoE Power	30W max for each port, 120W max
Switch Property
Standards	IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet IEEE802.3x Flow Control and Back Pressure IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN ITU-T G.8032 ERPS IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ad LACP IEEE802.3af PoE IEEE802.3at PoE plus
Forwarding Modes	Store and Forward
Packet Buﬀer	2Mbit
MAC Table	16k
Switching Capacity	12Gbps
Packet Forwarding Rate	8.9Mpps
Jumbo Frame	10kB
Power Supply
Input Voltage	Power 1 (Main): 44~57V DC, Power 2 (Backup): 44~57V DC
Power Consumption	Full loading without PoE ≤ 8W PoE power budget ≤ 120W

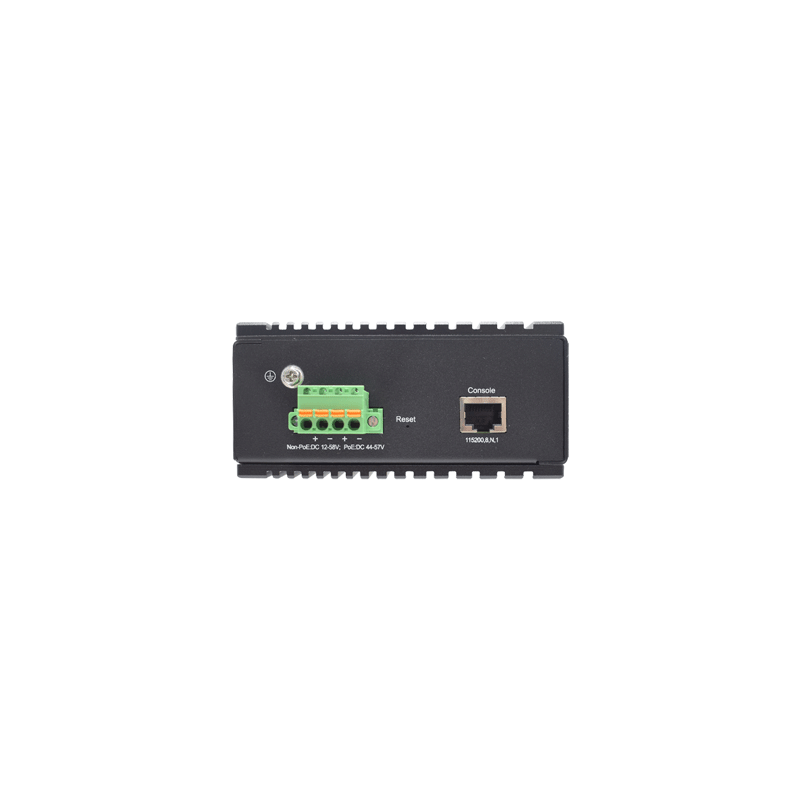

Connector	Removable 4-pin terminal block
Reverse polarity protection	Support
Over-voltage protection	Support
Over-current protection	Support
Environmental Reliability
Industrial Standard	Surge protection of power: IEC 61000-4-5 6kV/4kV（8/20us） Surge protection of Ethernet ports: IEC 61000-4-5 6kV/2kV 10/700us RS: IEC 61000-4-3 80 MHz-1 Ghz: 10 V/m EFT: IEC 61000-4-4 4k/2k CS: IEC 61000-4-6 10V ESD: IEC 61000-4-2 Contact: 8kV; Air: 15kV EMI: FCC Part 15B Class A Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Operating Temperature	-40℃~75℃
Storage Temperature	-40℃~85℃
Operating Humidity	5%~95% (Non-condensation)
LED Indicators
P (Power indicator)	Oﬀ: the device is power oﬀ or failed Green On: the device power on is normal
S (System status indicator)	Blinking: device initialization On: device on and normal operation
Copper ports	1-4 Green indicators Oﬀ: ports link down On: ports link up Blinking: data on TX/RX 1-4 Yellow indicators Oﬀ: PoE not working On: PoE working
Fiber ports	5-6 Fiber ports indicators Oﬀ: ports link down Green On: ports link up Blinking: data on TX/RX
Dimensions (WDH)	54115158mm
Net Weight	1100g

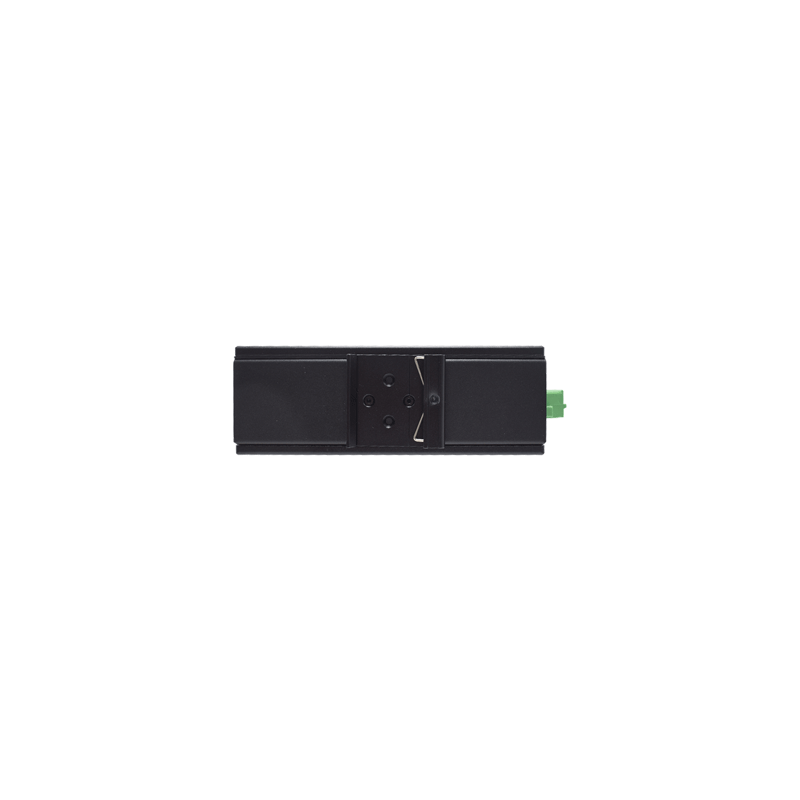

Installation	Desktop/DIN-rail
Certiﬁcations
Certiﬁcations	CE, FCC, RoHS
Port aggregation	Support 1GE port aggregation Support 2.5GE aggregation Support static aggregation Support dynamic aggregation
Software Feature
Port features	Support IEEE802.3x ﬂow control Support port traﬃc statistics Support port isolation Support network storm suppression based on port bandwidth percentage
VLAN	Support access mode Support trunk mode Support hybrid mode
VLAN Classiﬁcation	Mac Based VLAN IP Based VLAN Protocol Based VLAN
QinQ	Port-based QinQ VLAN-based QinQ Flow-based QinQ
Port mirroring	Many to one port mirroring
Ring network protocol	Support STP, RSTP, MSTP Support G.8032 ERPS protocol, single ring, sub Ring and associated sub ring Recovery time ≤20ms
DHCP	Support DHCP Client Support DHCP Snooping
Multicast	IGMP V1, V2, V3 IGMP snooping
ACL	IP Standard ACL MAC extend ACL IP extend ACL
QoS	Support QoS Class, Remarking Support SP, WRR queue scheduling Ingress Port-based Rate-limit Egress Port-based Rate-limit Support Policy-based QoS
Security	Support Dot1x, port authentication, MAC authentication, RADIUS service Support port-security Support IP Source Guard, IP/Port/MAC binding Support ARP-check and ARP packet ﬁltering for illegal users Support port isolation
Management and maintenance	Support LLDP Support user management and login authentication Support SNMPV1/V2C/V3 Support web management, HTTP1.1, HTTPS Support Syslog and alarm grading Support RMON(Remote Monitoring) alarm Support NTP Support temperature monitoring Support Ping, TRACERT Support optical transceiver DDM function Support TFTP Client Support Telnet Server Support SSH Server Support IPv6 Management Support PoE management Support TFTP, web upgrading
