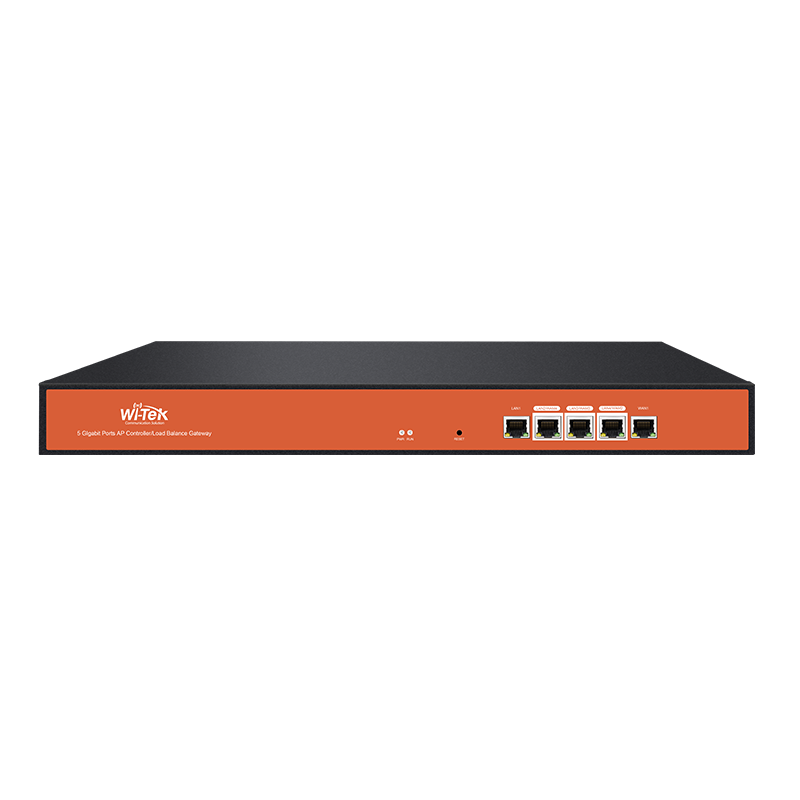

Wi-Tek - WI-AC150 - Wireless AP Controller with 5Gigabit Ethernet Ports
Part number:
WI-AC150
Price:

Wi-Tek's gateway is an intelligent network device that integrates gateway management and AC controller management, supporting Gigabit Ethernet connections on the WAN and LAN ports guarantee high-speed wired connections. In addition, it integrates multiple VPN protocols, high-security, and high-performance VPN features, which enables employees to connect remotely to their main office as securely as in the office. In addition, the gateway also supports cloud management. Users can quickly complete the network-wide device deployment, configuration, remote management, operation, and maintenance, and greatly reduce the equipment cost, labor cost, and time cost of wireless network construction. Wi-Tek Gateway is the ideal partner for hotels and small to medium offices that require a cost-effective and reliable VPN solution.



Features:

  • Wireless AP Controller with  5Gigabit Ethernet Ports
  • Maximum AP managed number up to 150PCS
  • Support end users access 2000
  • Support 1-4 WAN ports for load balance
  • WLAN Radio Spectrum Analysis to ensure work on best channel
  • Unified manage all indoor and outdoor Aps
  • Intra-AC, Inter-AP L2 /L3 roaming time less than 40ms
  • Built-in captive portal server and customerized welcome page
  • Support Cloud Managed
ProductsWI-AC150
Hardware Version
Interface

5*10/100/1000M Base-T Ethernet ports, supporting up to 4 WAN ports

(Default: 1 WAN port, 4 LAN ports)


RAM256MB
Flash16MB
Manage AP150APs
Recommended BandwidthUp to 800M

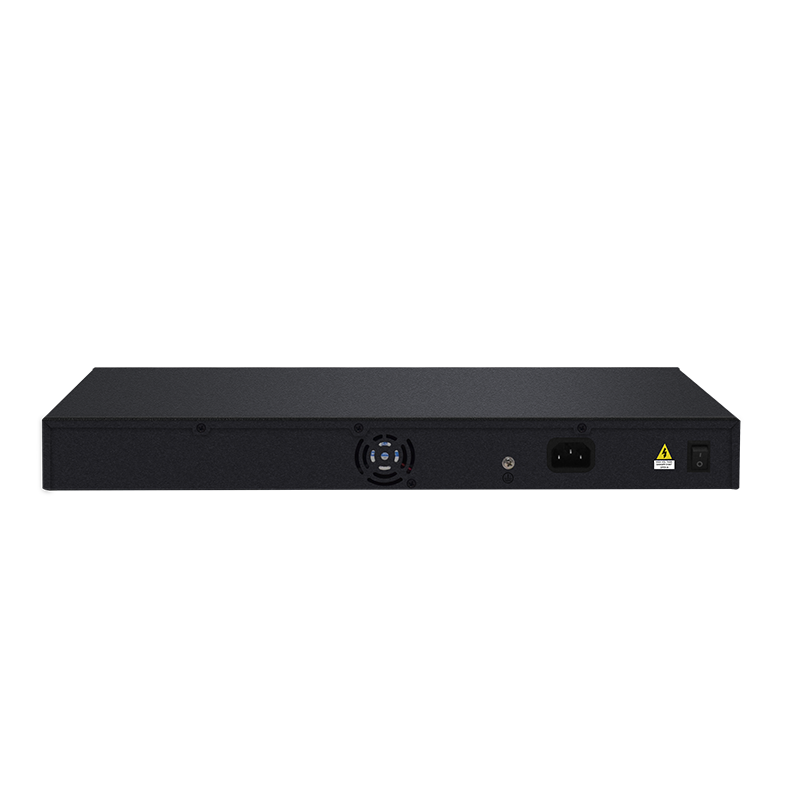

Power SupplyAC:100-240V
Power Consumption<25W         65W (With PoE load)   150W (With PoE load)
Dimensions440mm * 220mm * 45mm
Environment

Temperature: -20℃~+50℃ (working), -40℃~+70℃ (storage)

Humidity (non-condensing): 5% to 90% (working), 5% to 95% (storage)

Software Features
Network AccessPPPoE dial-up, DHCP client, static IP
RoutingStatic routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams
SecurityACL, DHCP static assignment, MAC address filtering dynamic ARP, static ARP binding, NAT, port mapping
Other ProtocolsDHCP Server, DHCP Client, DHCP Option43/138, DNS Server, DDNS
 Support WAN Load Balancing
Application Recognition

Supports the ONVIF protocol Support 802.1Q VLAN TAG

Support SD-LAN

Flow Control

Support custom flow control policies, IP-based automatic bandwidth assignment

Traffic AuditReal-time traffic audit, IP Traffic visualization
 Captive portal: One Key Auth, Pre-Shared Password
AuthenticationLocal User Auth, Voucher, Facebook, SMS Auth, RADIUS Auth, Summary for Captive Portal,
VPNOpen VPN /PPTP/L2TP / IPsec
Behavior ManagementTime-based and IP policy-based access control, website filtering
AP ManagementSupport Auto AP Discovery, RF optimization, Batch configuration, Overview View, Multi-SSID configuration, SSID hiding, channel setting, Tx power setting, AP online upgrade, STA blacklist, and whitelist
Management

Support local management with web

Support remote management with Wi-Tek Cloud platform

Name
Description
Size
Downloads
File
Datasheet
0.7mb
