Wi-Tek - WI-AP217-Lite - 802.11AC 2.4G&5.8G 1200M Indoor Wireless Ceiling AP
Part number:
WI-AP217-Lite
Price:
WI-AP217-Lite is a dual-band Ceiling mount AP, suitable for indoor Wi-Fi coverage scenarios. The device supports 802.3af PoE and 12V DC local power supply. The dual LAN port design facilitates the expansion of other network device and meets the needs of more networking scenarios. The wireless speed can be up to 1200Mbps. Its coverage of over 20 meters makes it an ideal choice for many wireless scenarios, especially office, commercial industry, hotel, service scenarios, etc.
Features:
- 2 x Gigabit Ethernet ports
- 300Mbps at 2.4GHz + 867Mbps at 5GHz
- Support fast roaming technology
- Support Fit/Fat modes
- Support AP controller and cloud management
| Model | WI-AP217-Lite |
| Hardware Specifications | |
| Wireless Standards | 802.11ac Wave2 |
| 802.11n/b/g/a | |
| Operating Bands | 2.4GHz & 5GHz |
| Antenna | 2.4Ghz:4.6dBi, 5GHz: 4dBi |
| Spatial Steams | 2.4GHz：2x2 MIMO 5GHz：2x2 MIMO |
| Signal Rate | Up to 300Mbps at 2.4G |
| Up to 867Mbps at 5G | |
| Receiver Sensitivity | 2.4GHz |
| 802.11b: -85dBm@11Mbps -94dBm@1Mbps | |
| 802.11g: -72dBm@54Mbps -90dBm@6Mbps | |
| 802.11n HT20: -70dBm@MCS7 -88dBm@MCS0 | |
| 802.11n HT40: -68dBmMCS7 -86dBm@MCS0 | |
| 5GHz | |
| 802.11a: -72dBm@54Mbps -90dBm@6Mbps | |
| 802.11n HT20: -70dBm@MCS7 -88dBm@MCS0 | |
| 802.11n HT40: -68dBm@MCS7 -86dBm@MCS0 | |
| 802.11ac HT80: -58dBm@MCS9 -85dBm@MCS0 | |
| Maximum Transmit Power | <24dbm |

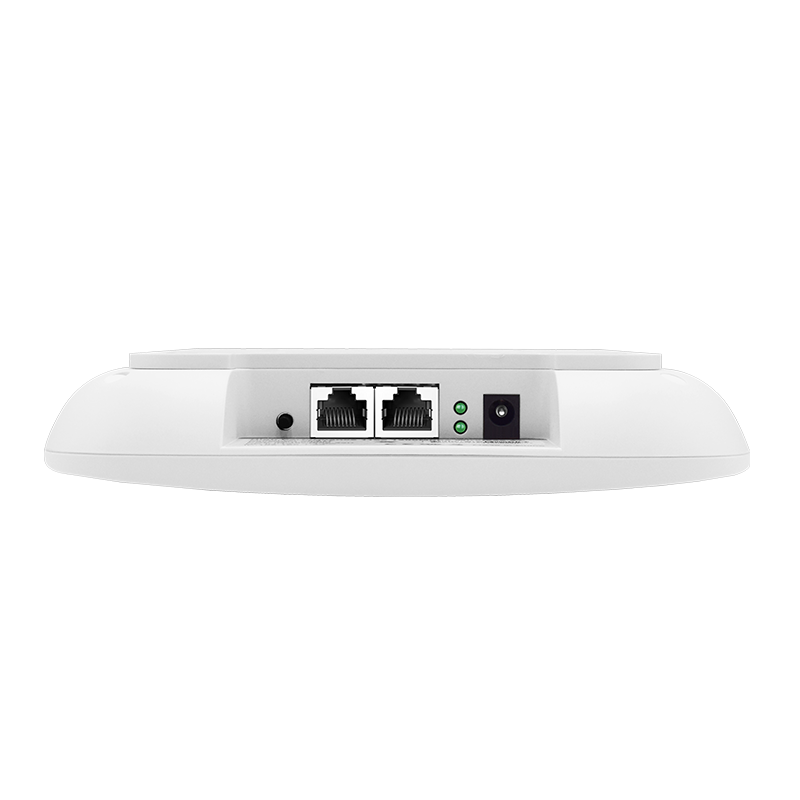

| Interface | (2)10/100/1000M Base-T Ethernet ports |
| Power Supply | DC 12V/1A (Not Included) |
| 802.3af PoE Supported | |
| Power Consumption | < 10W |
| Installation | Wall/Ceiling Mounting |
| External buttons | reset button (long press for 8 seconds to |
| restore the factory default configuration) | |
| Dimensions | 188mm * 188mm * 50mm |
| Environment | Operating Temperature:-20°C ～ 45°C |
| Storage Temperature:-40°C ～ 70°C; | |
| Operating Humidity: 5% ～ 95% (non-condensing) | |
| Storage Humidity: 5% ～ 95% (non-condensing) | |
| Software Features | |
| Operating Mode | Fit AP, Fat AP |
| Wireless Function | Up to 16 SSIDs |
| Support SSID hiding, Enable/Disable Wireless Radio | |
| RF Parameter setting | |
| Roaming | Support Layer 2 roaming |
| Wireless Security | Captive Portal Authentication |
| Static blacklist and whitelist | |
| Wireless Isolation Between Clients | |
| SSID to VLAN Mapping | |
| Support 802.1X | |
| WPA/WPA2/PSK/WPA/WPA2-Enterprise | |
| Routing | Support static IP, DHCP, PPPoE Dial Up |
| Management | Support local management with web |
| Support centralized management with AC | |
| Support remote management with Wi-Tek Cloud platform | |
| Platform management | Automatic RF adjustment via the platform |
| features | Unified configuration via the platform Unified monitoring via the platform |
