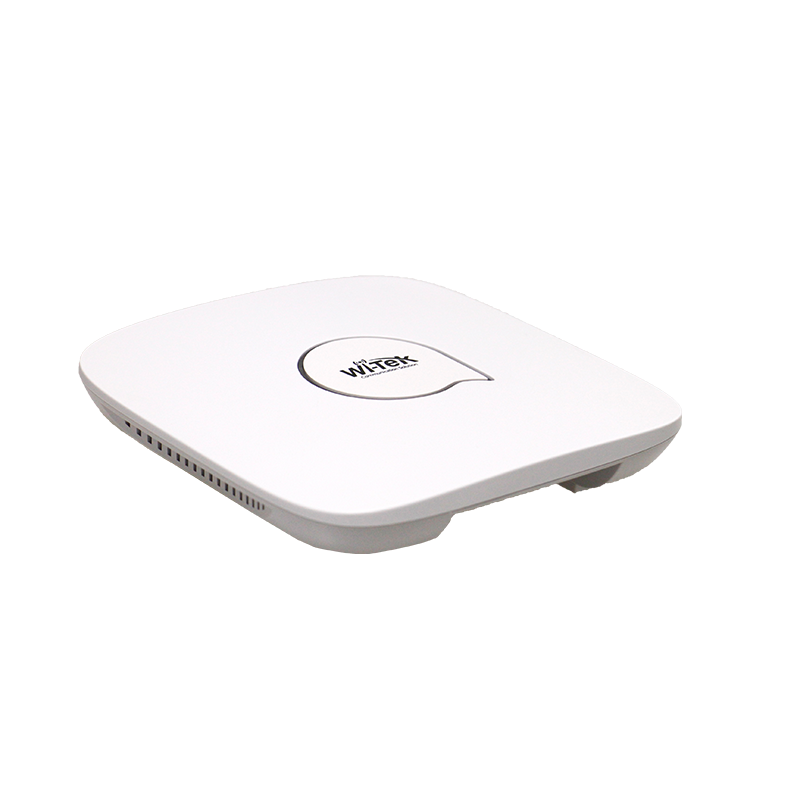

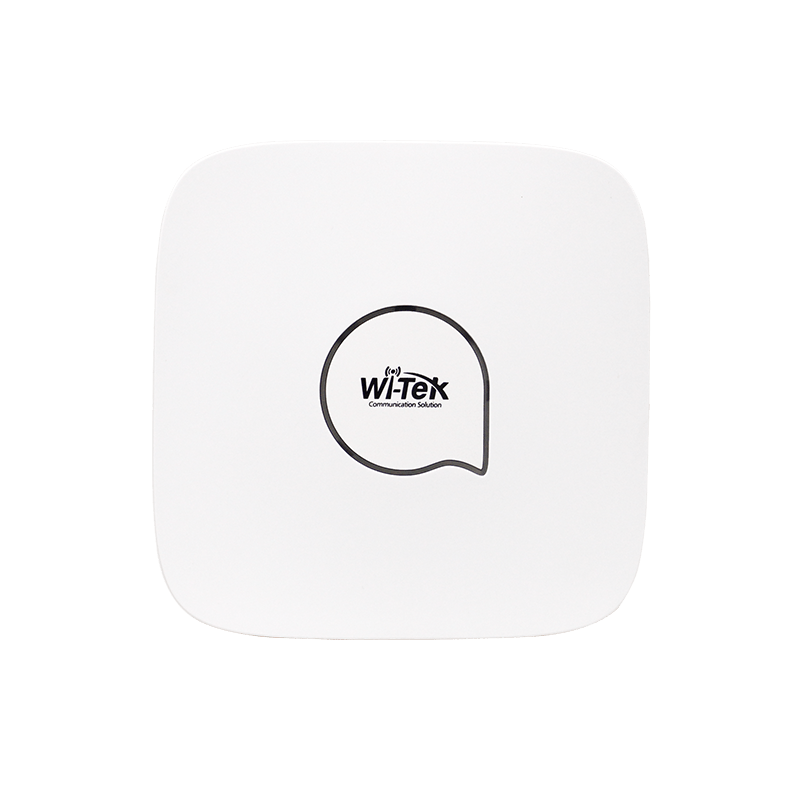

Wi-Tek wireless series ceiling AP is a high-performance ceiling AP suitable for indoor large-area Wi-Fi coverage scena ios. The device supports 802.3af PoE and a 12V DC local power supply. The dual LAN port design facilitates the expansion of third-party devices and meets the needs of more networking scenarios. The coverage of more than 20 meters makes it an ideal choice for many wireless scenarios, especially office, commercial indu try, hotel, service scenarios, etc. In addition, the wireless AP also supports cloud management functions. Users can quickly complete network-wide equipment deployment, configuration, remote management, and operation and maintenance, greatly reducing equipment costs, labor costs, and time costs for wireless network construction.
Features:

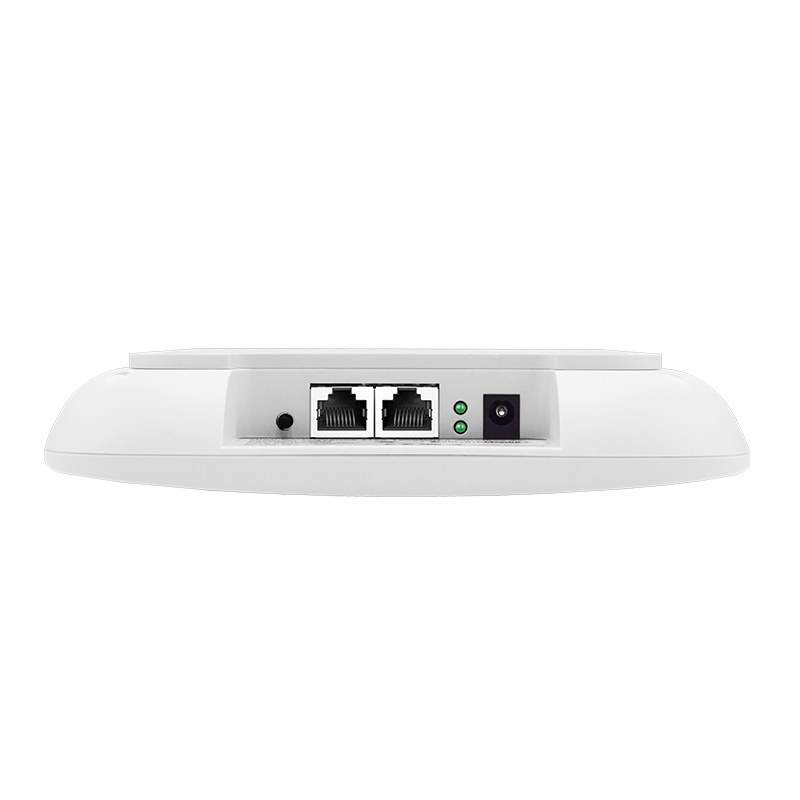

- 2 x Gigabit Ethernet ports
- 300Mbps at 2.4GHz + 867Mbps at 5GHz
- Support fast roaming technology
- Support Fit/Fat/Repeater/WISP modes
- Support AP controller and cloud management
| Products | WI-AP210 | WI-AP215 | WI-AP217 |
| Hardware Version | |||
| Wireless Standards | 802.11n/b/g/a | 802.11ac wave1 802.11n/b/g/a | 802.11ac wave2 802.11n/b/g/a |
| Operating Bands | 2.4GHz | 2.4GHz & 5GHz | 2.4GHz & 5GHz |
| Antenna | 2.4GHz: 3.5dBi | 2.4Ghz:3.5dBi, 5GHz: 4dBi | 2.4Ghz:5dBi, 5GHz: 5dBi |
| Spatial Streams | 2.4GHz: 2x2 MIMO | 2.4GHz: 2x2 MIMO 5GHz: 1x1 MIMO | 2.4GHz：2x2 MIMO 5GHz：2x2 MIMO |
| Signal Rate | Up to 300Mbps at 2.4G | Up to 300Mbps at 2.4G Up to 450Mbps at 5G | Up to 300Mbps at 2.4G Up to 867Mbps at 5G |
| Receiver Sensitivity | 2.4GHz: 802.11n: -70dbm@MCS7 -88dbm@MCS0. 802.11g: -72dbm@54Mbps -90dbm@6Mbps. 802.11b: -85dbm@11Mbps -94dbm@1Mbps. | 2.4GHz 802.11n: -70dBm@MCS7 -88dBm@MCS0. 802.11g: -72dBm@54Mbps -90dBm@6Mbps. 802.11b: -85dBm@11Mbps -94dBm@1Mbps. 5GHz 802.11a: -72dBm@54Mbps -90dBm@6Mbps. 802.11n: -70dBm@MCS7 -88dBm@MCS0. 802.11ac:-60dBm@MCS9 -85dBm@MCS0. | 2.4GHz 802.11b: -85dBm@11Mbps -94dBm@1Mbps 802.11g: -72dBm@54Mbps -90dBm@6Mbps 802.11n Ht20: -70dBm@MCS7 -88dBm@MCS0 802.11n Ht40: -68dBmMCS7 -86dBm@MCS0 5GHz 802.11a: -72dBm@54Mbps -90dBm@6Mbps 802.11n Ht20: -70dBm@MCS7 -88dBm@MCS0 802.11n Ht40: -68dBm@MCS7 -86dBm@MCS0 802.11ac Ht80: -58dBm@MCS9 -80dBm@MCS0 |
| Maximum Transmit Power | <27dbm | <27dbm | <27dbm |
| Interface | (2)10/100M Base-T Ethernet ports | (2)10/100M Base-T Ethernet ports | (2)10/100/1000M Base-T Ethernet ports |
| Power Supply | DC 12V/1A (Not Included) 802.3af PoE Supported | DC 12V/1.5A (Not Included) 802.3af PoE Supported | DC 12V/1A (Not Included) 802.3af PoE Supported |
| Power Consumption | <10W | <12W | <12W |
| Installation | Wall/Ceiling Mounting | ||
| External Buttons | reset button (long press for 8 seconds to restore the factory default configuration) | ||
| Dimensions | 188mm * 188mm * 35mm | 188mm * 188mm * 35mm | 188mm * 188mm * 35mm |
| Environment | Operating Temperature: -40℃~55℃ Storage Temperature: -40°C~70°C Operating Humidity: 5%~95% (non-condensing) Storage Humidity: 5%~95% (non-condensing) | Operating Temperature: -40℃~55℃ Storage Temperature: -40℃~70℃ Operating Humidity: 5%~95% (non-condensing) Storage Humidity: 5%~95% (non-condensing) | Operating Temperature: -30℃~55℃ Storage Temperature: -40℃~70℃ Operating Humidity: 5%~95% (non-condensing) Storage Humidity: 5%~95% (non-condensing) |
| Software Features | |||
| Operating Mode | Fit AP, Fat AP, Repeater, WISP mode | ||
| Wireless Function | Up to 8 SSIDs | Up to 16 SSIDs | Up to 16 SSIDs |
| Support SSID hiding, Enable/Disable Wireless Radio | |||
| RF Parameter setting | |||
| Roaming | Support Layer 2 roaming | ||
