Wi-Tek - WI-AP218AX-Lite - Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574Mbps on 2.4 GHz and 1201Mbps on 5 GHz totals 1775Mbps Wi-Fi speeds
Part number:
WI-AP218AX-Lite
Price:

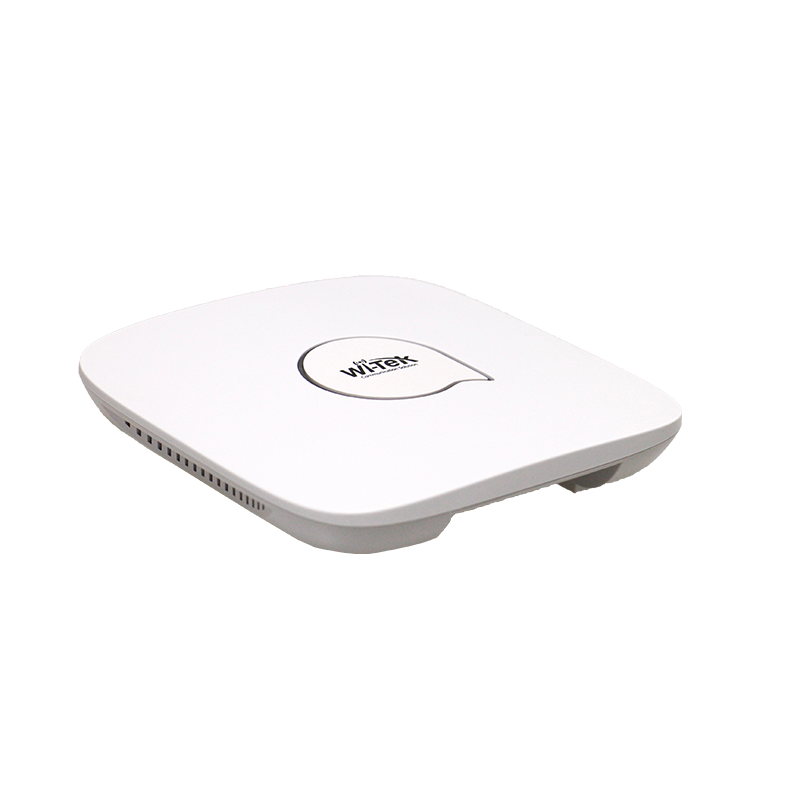

WI-AP218AX-Lite is a high-performance Wi-Fi 6 AP for indoor large-area Wi-Fi coverage scenarios. The device supports 802.3af PoE and a 12V DC local power supply. The dual LAN ports design facilitates the expansion of network devices to meet the needs of more networking scenarios. Compliant with 802.11a/b/g/n/ac/ax Wi-Fi protocol, WI-AP218AX-Lite supports MU-MIMO dual-stream technology and offers built-in omnidirectional antennas. It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 574Mbps at 2.4GHz, 1201Mbps at 5GHz, and up to 1775Mbps per AP. It has long-range coverage, making it ideal for many wireless scenarios,, especially in offices, shopping malls, hotels, service scenarios, etc.



Features:

  • Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574Mbps on 2.4 GHz and 1201Mbps on 5 GHz totals 1775Mbps Wi-Fi speeds
  • OFDMA and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously
  • Atheros chipset 256MB DDR3, 16MB Flash, 200mW High-Power,access 100users
  • 48V PoE Support,2 x Gigabit Port, not include PoE adapter
  • Support QVLAN+SSID, Portal,AC controller Managed and  Cloud Managed
ModelWI-AP218AX-Lite
Hardware Specifications
Wireless StandardsIEEE 802.11ax/ac wave2/wave1/n/b/g/a
Operating Bands2.4GHz & 5GHz
Antenna2.4GHz:4.6dBi, 5GHz: 4dBi
Spatial Steams2.4GHz: 2x2 MIMO  5GHz: 2x2 MIMO
Signal RateUp to 574Mbps at 2.4GHz
Up to 1201Mbps at 5GHz
Receiver Sensitivity2.4GHz
802.11b:  -85dBm@11M  -92dBm@1M
802.11g:  -72dBm@54M  -90dBm@6M
802.11n HT20: -70dBm@MCS7  -88dBm@MCS0
802.11n HT40: -68dBm@MCS7  -86dBm@MCS0
802.11ax HT20:-60dBm@MCS11  -85dBm@MCS0
802.11ax HT40: -56dBm@MCS11 -85dBm@MCS0
5GHz:
802.11a: -72dBm@54M  -92dBm@6M
802.11n HT20: -70dBm@MCS7  -90dBm@MCS0
802.11n HT40: -68dBm@MCS7  -88dBm@MCS0
802.11ac HT20: -70dBm@MCS7  -90dBm@MCS0
802.11ac HT40: -68dBm@MCS7  -88dBm@MCS0
802.11ac HT80: -58dBm@MCS9  -85dBm@MCS0
802.11ax HT20: -62dBm@MCS11  -88dBm@MCS0
802.11ax HT40: -58dBm@MCS11  -86dBm@MCS0
802.11ax HT80: -55dBm@MCS11  -84dBm@MCS0
Maximum Transmit Power≤22dbm
Interface(2)10/100/1000M Base-T Ethernet ports
Power SupplyDC 12V/1.5A (Not Included)
802.3af PoE Supported
Power Consumption< 15W
InstallationWall/Ceiling mounting
External Buttonsreset button (long press for 8 seconds to restore the factory default configuration)
Dimensions188mm * 188mm * 35mm
EnvironmentOperating Temperature: -40°C~55°C
Storage Temperature: -40°C~70°C
Operating Humidity: 5% ~ 95% (non-condensing)
Storage Humidity: 5% ~ 95% (non-condensing)
Software Features
Operating ModeFit AP, Fat AP
Wireless FunctionsUp to 16 SSIDs
Support SSID hiding, enable/disable wireless radio
Manual and automatic channel assignment
Manual and automatic bandwidth assignment
TxPower control
RoamingSupport Layer 2  roaming
Wireless SecurityCaptive portal authentication
Static blacklist and whitelist
Wireless isolation between clients
SSID to VLAN mapping
Support 802.1X
WPA/WPA2/PSK/WPA/WPA2-Enterprise/WPA3
Internet Connection TypeSupport static IP, DHCP, PPPoE Dial Up
ManagementSupport local management with web
Support centralized management with AC
Support remote management with Wi-Tek cloud platform
Platform ManagementAutomatic RF adjustment via the platform
FeaturesUnified configuration via the platform
 Unified monitoring via the platform
