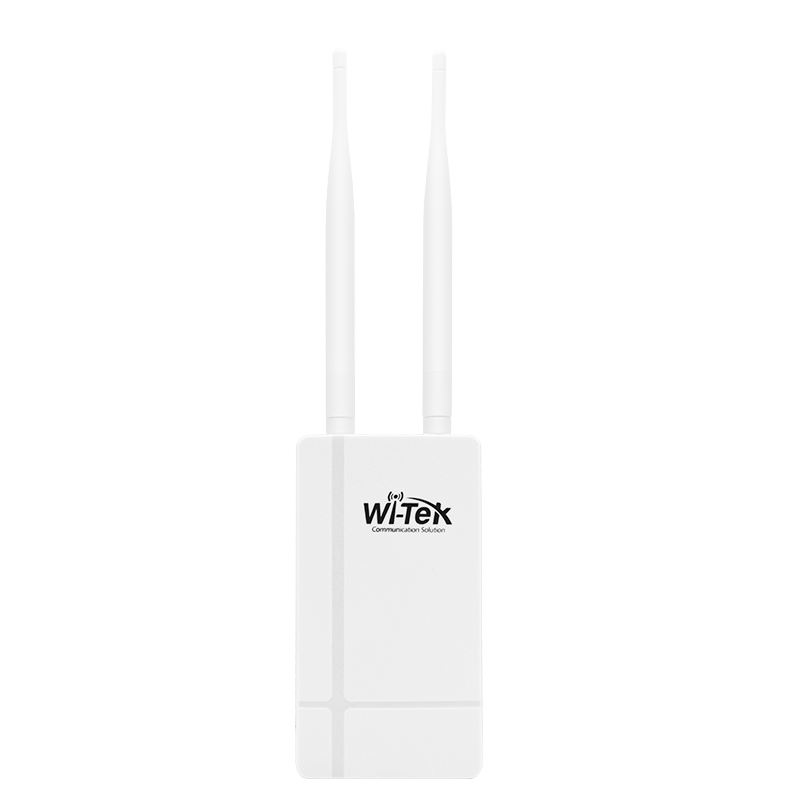

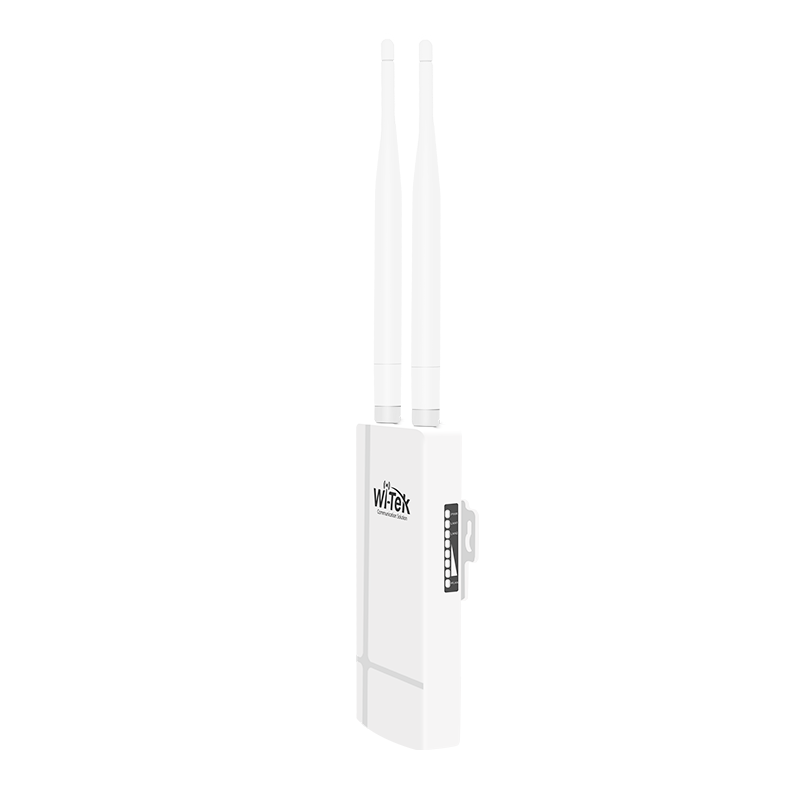

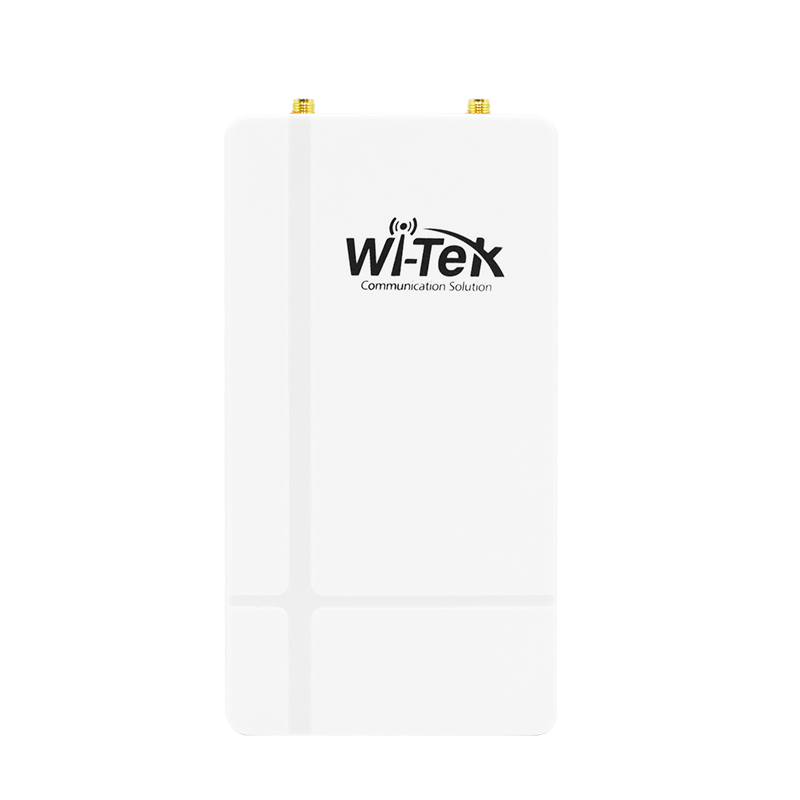

Wi-Tek - WI-AP310-Lite - 802.11N 2.4G 300M Outdoor Wireless AP
Part number:
WI-AP310-Lite
Price:

WI-AP310-Lite is a high-performance outdoor AP product that supports a 2.4GHz frequency band and uses 802.11 b/g/n technology. The wireless processing speed can reach up to 300Mbps. It comes with multiple power supplies, 24V PoE power supply, and 12V DC local power supply. It adopts an outdoor IP65 windproof, rainproof, dustproof, and sun protection grade shell design, so it can easily adapt to various harsh outdoor environments. It is widely used in outdoor cafes, home backyards, outdoor swimming pools, parks, and school playground scenes.



Features:

  • 300Mbps Wireless Outdoor Access Point
  • 2 x 10/100Mbps Ethernet Port
  • 300 Mbps at 2.4GHz
  • Support IP65 Weatherproof
  • Support Fit/Fat working mode
  • Support mesh technology
  • Support AP controller and cloud management

Model

WI-AP310-Lite

Hardware Specifications

Wireless Standards

802.11n/b/g/a

Operating Bands

2.4GHz

Antenna

2.4GHz: 5dBi

Spatial Steams

2.4GHz: 2x2 MIMO

Signal Rate

Up to 300Mbps at 2.4GHz

Receiver Sensitivity

2.4GHz:

802.11n: -69dbm@MCS7 -88dbm@MCS0.

802.11g: -73dbm@54Mbps -90dbm@6Mbps.

802.11b: -85dbm@11Mbps -94dbm@1Mbps.

Maximum Transmit Power

<23dbm

Interface

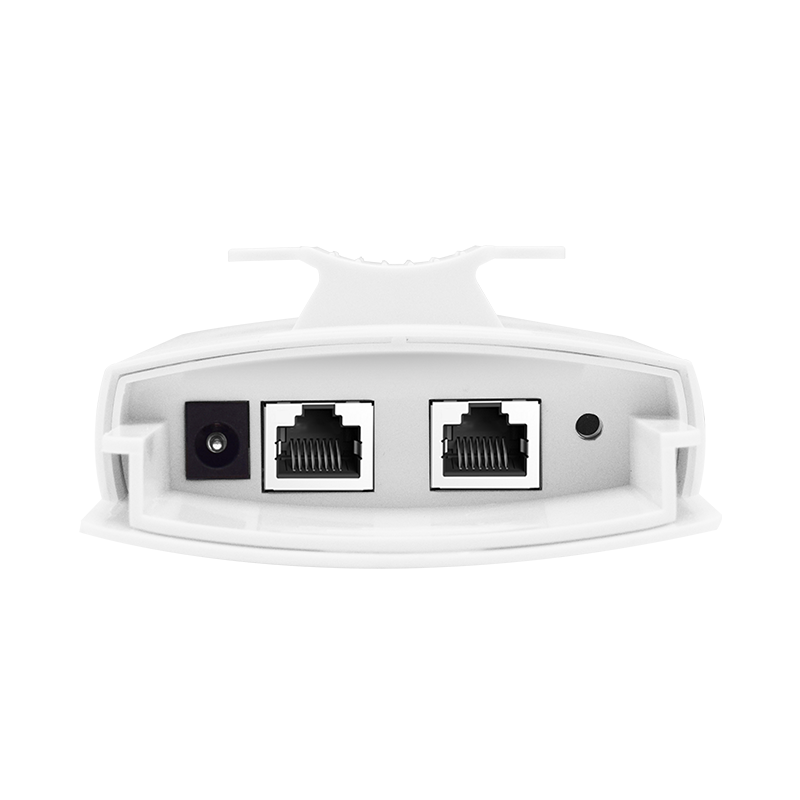

(2)10/100 Base-T Ethernet ports

Power Supply

DC 12V/1A (Not Included)

24V Passive PoE

Power Consumption

< 10W

Installation

Pole/Wall mounting

External Buttons

reset button (long press for 8 seconds to restore the factory default configuration)

Dimensions

340mm * 85mm * 35mm

Environment

Operating Temperature: -40°C~55°C

Storage Temperature: -40°C~70°C

Operating Humidity: 5% ~ 95% (non-condensing)

Storage Humidity: 5% ~ 95% (non-condensing)

Software Features

Operating Mode

Fit AP, Fat AP

Wireless Function

Up to 8 SSIDs

Support SSID hiding, enable/disable wireless radio

Manual and automatic channel assignment

Manual and automatic bandwidth assignment

TxPower control

One-click mesh

Roaming

Support Layer 2 roaming

Wireless Security

Captive portal authentication

Static blacklist and whitelist

Wireless Isolation between clients

SSID to VLAN mapping

Support 802.1X

WPA/WPA2/PSK/WPA/WPA2-Enterprise

Internet Connection Type

Support Static IP, DHCP, PPPoE Dial Up

Management

Support local management with web

Support centralized management with AC

Support remote management with Wi-Tek cloud platform

Platform Management

Features

Automatic RF adjustment via the platform

Unified configuration via the platform

Unified monitoring via the platform

Name
Description
Size
Downloads
File
Quick Guide
0.7mb
File
Data Sheet
1.7mb
