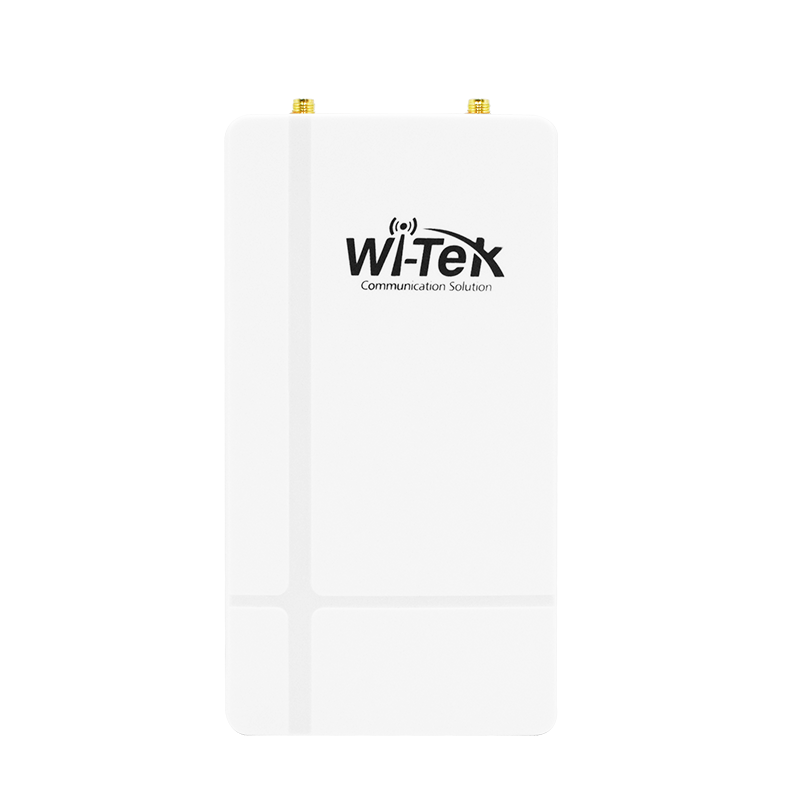

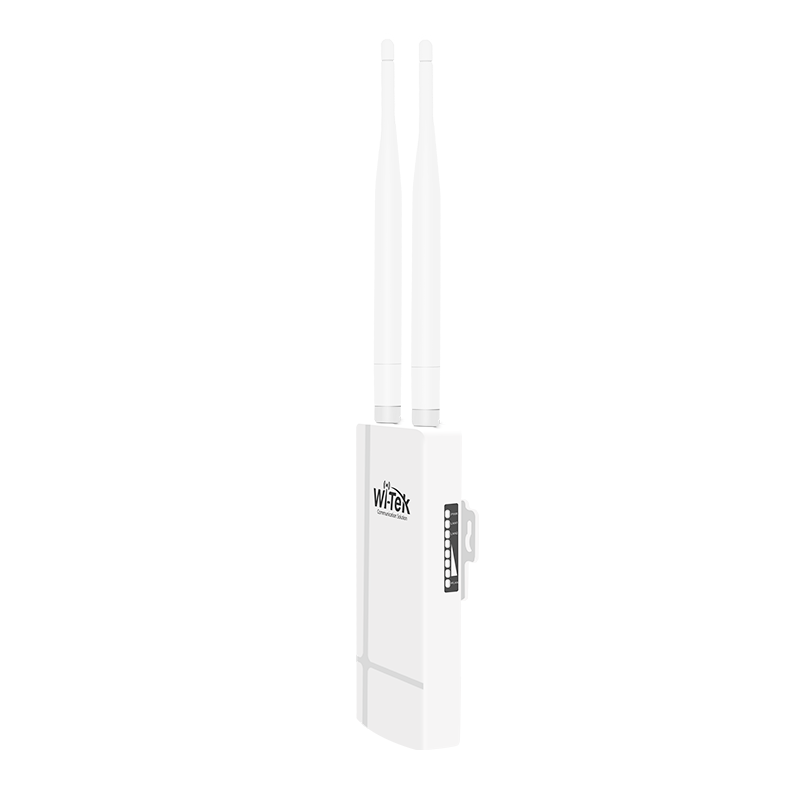

AP316 is a high-performance outdoor AP product using 2.4GHz and 5GHz dual-band design and 802.11a/b/g/n/ac protocol technology. The wireless processing speed can reach up to 1200Mbps. The power supply mode is flexible, supporting 24V POE power supply and 12V 1A DC local power supply. It adopts an outdoor IP65 windproof, rainproof, dustproof, and sun protection grade shell design, which can easily adapt to various harsh outdoor environments. Widely used in outdoor cafes, home backyards, outdoor swimming pools, parks, and school playground scenes.
Features:
- 1200Mbps Wireless Outdoor Access Point
- 2 x 10/100Mbps Ethernet Ports
- 300Mbps at 2.4GHz + 867Mbps at 5GHz
- Support IP65 Weatherproof
- Support Fit/Fat working mode
- Support mesh technology
- Support AP controller and cloud management
| Model | WI-AP316 |
| Hardware Specifications | |
| Wireless Standards | 802.11ac wave2/wave1 |
| 802.11n/b/g/a | |
| Operating Bands | 2.4GHz & 5GHz |
| Antenna | 2.4GHz:5dBi, 5GHz: 5dBi |
| Spatial Steams | 2.4GHz：2x2 MIMO 5GHz：2x2 MIMO |
| Signal Rate | Up to 300Mbps at 2.4GHz |
| Up to 867Mbps at 5GHz | |
| Receiver Sensitivity | 2.4GHz:： |
| 11n: -65dbm@MCS7, -88dbm@MCS0. | |
| 11g: -72dbm@54Mbps, -89.5dbm@6Mbps. | |
| 11b: -92dbm@11Mbps, -94dbm@1Mbps. | |
| 5GHz : | |
| 11a: -72dbm@54Mbps, -88dbm@6Mbps. | |
| 11n@HT20: -65dbm@MCS7, -87.5dbm@MCS0. | |
| 11ac@HT80:-55.5dbm@MCS9, -79dbm@MCS0. | |
| Maximum Transmit Power | <23dbm |

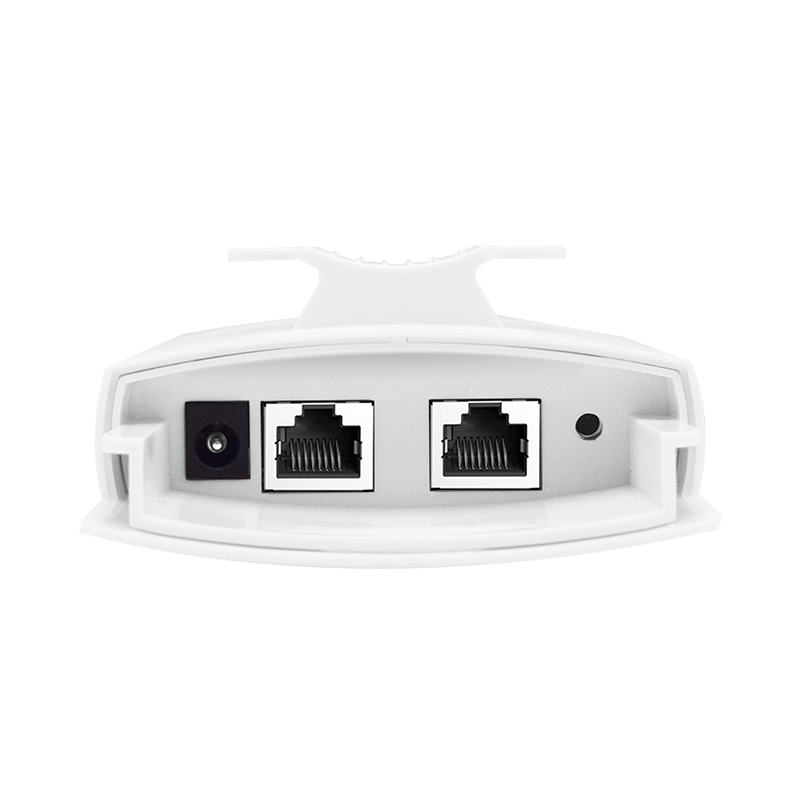

| Interface | (2)10/100 Base-T Ethernet ports |
| Power Supply | DC 12V/1A (Not Included) |
| 24V Passive PoE | |
| Power Consumption | < 10W |
| Installation | Pole/Wall mounting |
| External buttons | reset button (long press for 8 seconds to restore the factory default configuration) |
| Dimensions | 340mm * 85mm * 35mm |
| Environment | Operating Temperature: -40°C～55°C |
| Storage Temperature: -40°C～70°C | |
| Operating Humidity: 5% ～ 95% (non-condensing) | |
| Storage Humidity: 5% ～ 95% (non-condensing) | |
| Software Features | |
| Operating Mode | Fit AP, Fat AP |
| Wireless Function | Up to 16 SSIDs |
| Support SSID hiding, enable/disable wreless radio | |
| Manual and automatic channel assignment | |
| Manual and automatic bandwidth assignment | |
| TxPower control | |
| One-click mesh | |
| Roaming | Support Layer 2 roaming |
| Wireless Security | Captive portal authentication |
| Static blacklist and whitelist | |
| Wireless isolation between clients | |
| SSID to VLAN mapping | |
| Support 802.1X | |
| WPA/WPA2/PSK/WPA/WPA2-Enterprise | |
| Internet Connection Type | Support Static IP, DHCP, PPPoE Dial Up |
| Management | Support local management with web |
| Support centralized management with AC | |
| Support remote management with Wi-Tek cloud platform | |
| Platform Management | Automatic RF adjustment via the platform |
| Features | Unified configuration via the platform Unified monitoring via the platform |
