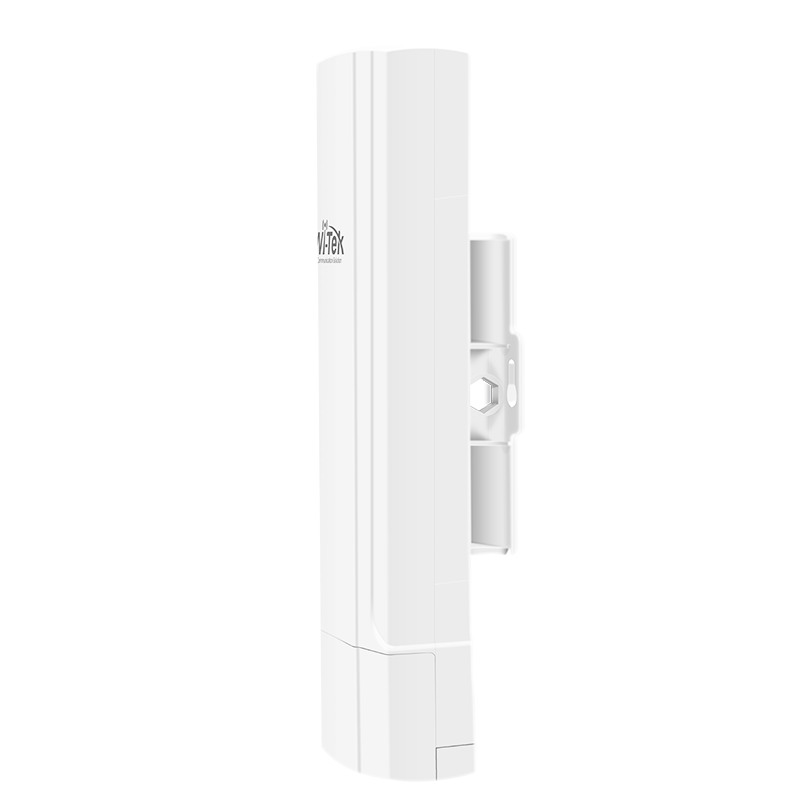

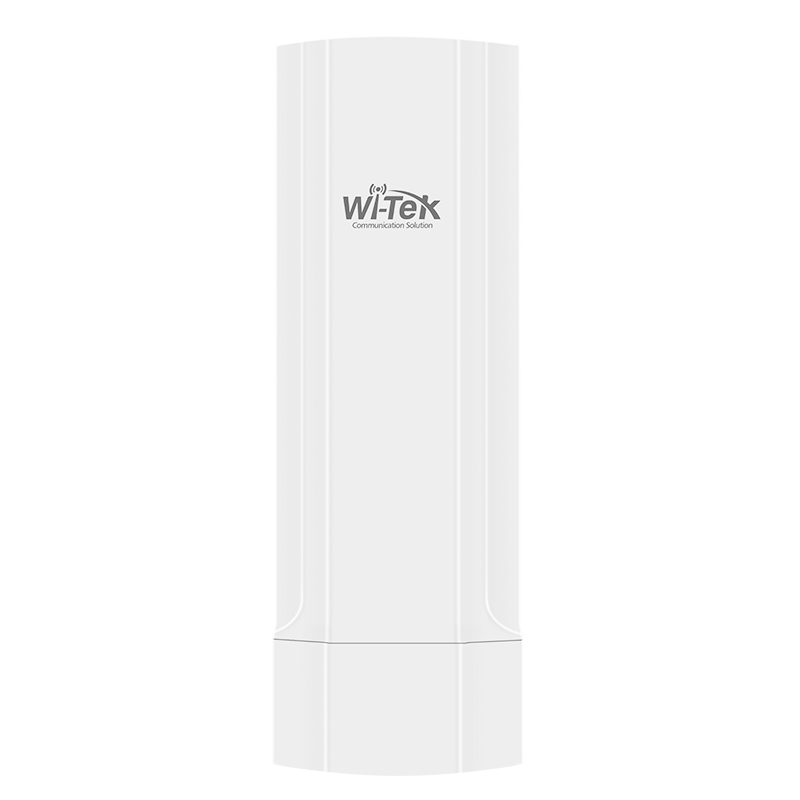

Wi-Tek outdoor wireless AP series is specially designed for outdoor Wi-Fi coverage. The device shell can prevent the intrusion of dust and rain. It is suitable for villages, villas, parks, scenic spots, squares, and other places, and supports Fit AP, Fat AP, Repeat, WISP has multiple working modes, more flexible configuration, and can meet the needs of more application scenarios. In addition, AP supports cloud management function, users can quickly complete network-wide device deployment, configuration, remote management, and operation and maintenance, which greatly reduces the labor cost and time cost in the process of wireless network construction.
Features:
- 2 x 10/100/1000Mbps Ethernet Ports
- 300Mbps at 2.4GHz + 867Mbps at 5GHz
- Support IP65 Weatherproof
- Support Fit/Fat/Repeater/WISP modes
- Support AP controller and cloud management
| Model | WI-AP317 |
| Hardware Specifications | |
| Wireless Standards | 802.11ac wave2/wave1 802.11n/b/g/a |
| Operating Bands | 2.4GHz & 5GHz |
| Antenna | 2.4Ghz:5dBi, 5GHz: 5dBi |
| Spatial Steams | 2.4GHz：2x2 MIMO 5GHz：2x2 MIMO |
| Signal Rate | Up to 300Mbps at 2.4GHz Up to 867Mbps at 5GHz |
| Receiver Sensitivity | 2.4GHz 802.11b: -85dBm@11Mbps -94dBm@1Mbps 802.11g: -72dBm@54Mbps -90dBm@6Mbps 802.11n HT20: -70dBm@MCS7 -88dBm@MCS0 802.11n HT40: -68dBmMCS7 -86dBm@MCS0 5GHz 802.11a: -72dBm@54Mbps -90dBm@6Mbps 802.11n HT20: -70dBm@MCS7 -88dBm@MCS0 802.11n HT40: -68dBm@MCS7 -86dBm@MCS0 802.11ac HT80: -58dBm@MCS9 -80dBm@MCS0 |
| Maximum Transmit Power | <23dbm |
| Interface | (2)10/100/1000Base-T Ethernet ports < |
| Power Supply | DC 12V/1.5A (Not Included) 802.3at PoE Supported |
| Power Consumption | < 20W |
| Installation | Pole/Wall Mounting |
| External Buttons | reset button (long press for 8 seconds to restore the factory default configuration) |
| Dimensions | 315mm*145mm*80mm |
| Environment | Operating Temperature:-30°C ～ 55°C Storage Temperature:-40°C ～ 70°C; Operating Humidity: 5% ～ 95% (non-condensing) Storage Humidity: 5% ～ 95% (non-condensing) |
| Software Features | |
| Operating Mode | Fit AP, Fat AP, Repeater, WISP mode |
| Wireless Function | Up to 16 SSIDs |
| Support SSID hiding, Enable/Disable Wireless Radio | |
| RF Parameter setting | |
| Roaming | Support Layer 2 roaming |
| Wireless Security | Captive Portal Authentication Static blacklist and whitelist Wireless Isolation Between Clients SSID to VLAN Mapping Support 802.1X WPA/WPA2/PSK/WPA/WPA2-Enterprise |
| Internet Connection Type | Support Static IP, DHCP, PPPoE Dial Up |
| Management | Support local management with web Support remote management with Wi-Tek Cloud platform |
Platform Management Features | Automatic RF adjustment via the platform Unified configuration via the platform Unified monitoring via the platform |
