Wi-Tek - WI-AP415 - 802.11AC 2.4G&5.8G 750M Indoor Wireless Inwall AP
Part number:
WI-AP415
Price:

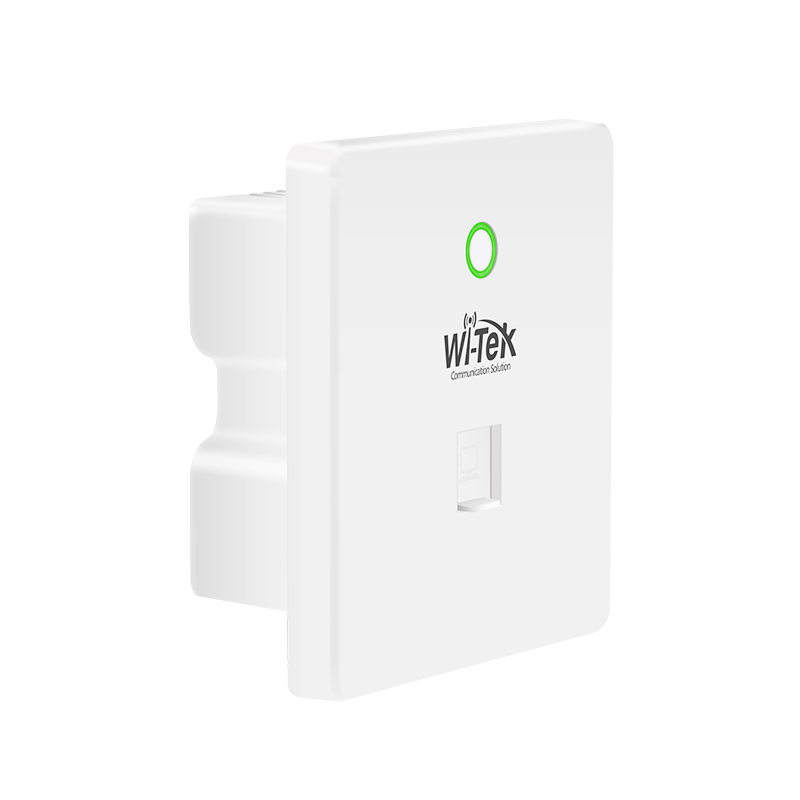

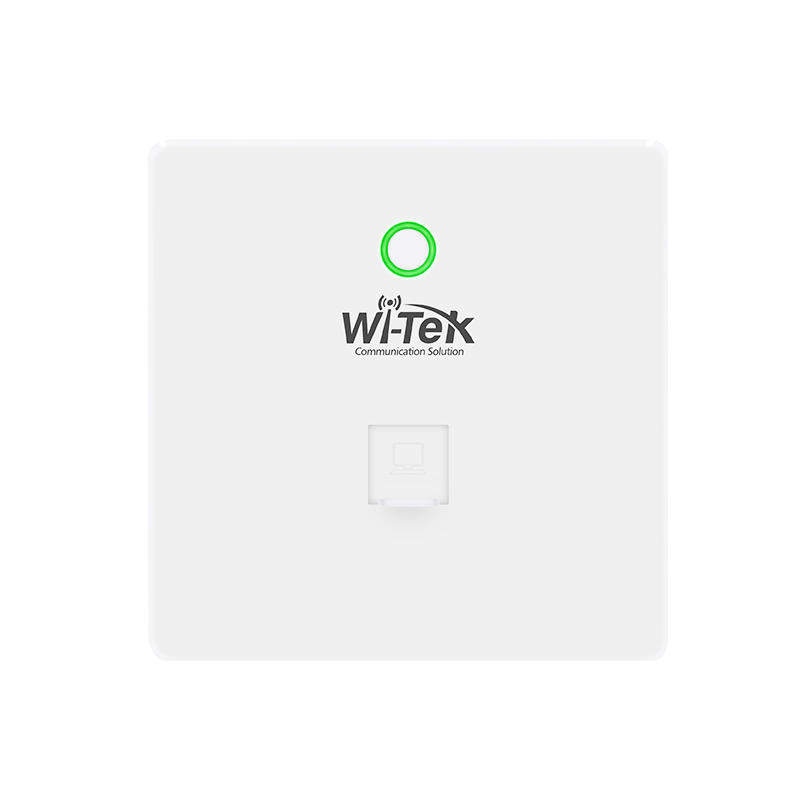

The Wi-Tek Dual-Band In-Wall AP is a wall panel AP. Support 802.3af PoE, AP built-in LAN port, easily expand IP phone, etc., can work at 2.4GHz and 5GHz at the same time, provide 2.4GHz 300Mbps, 5GHz 443Mbps, up to 743Mbps  high-speed  wireless  access  to AP. The  compact  and  sophisticated  86mm  wall  mount  design  can  be easily installed directly into a standard 86mm wall mount junction box, ideal for office, hotel and service scenario deployments. In addition, the wireless in-wall AP also supports cloud management functions. Users can quickly complete   network- wide   device   deployment,   configuration,   remote   management,   and   operation   and maintenance, greatly reducing equipment costs, labor costs, and time costs for wireless network construction.



Features:
  • 2 x 10/100Mbps Ethernet Port
  • 300Mbps at 2.4GHz + 450Mbps at 5GHz
  • Support fast roaming technology
  • Support Fit/Fat/Repeater/WISP modes
  • Support AP controller and cloud management
ProductsWI-AP415
Hardware specifications
Wireless Standards802.11ac wave1 802.11n/b/g/a
Operating Bands2.4GHz & 5GHz
Antenna2.4Ghz:2dBi, 5GHz: 2dBi
Spatial Streams2.4GHz: 2x2 MIMO  5GHz: 1x1 MIMO
Signal RateUp to 300Mbps at 2.4GHz Up to 450Mbps at 5GHz
Receiver Sensitivity2.4GHz
802.11b:               -85dBm@11Mbps            -94dBm@1Mbps 802.11g:               -72dBm@54Mbps            -90dBm@6Mbps 802.11n Ht20:     -70dBm@MCS7               -88dBm@MCS0
802.11n Ht40:      -68dBmMCS7                    -86dBm@MCS0
5GHz
802.11a:               -74dBm@54Mbps             -90dBm@6Mbps 802.11n  HT20:    -72dBm@MCS7                 -88dBm@MCS0
802.11n   HT40:   -68dBm@MCS7                -85dBm@MCS0
802.11ac HT80:   -58dBm@MCS9                 -80dBm@MCS0
Maximum Transmit Power<20dbm

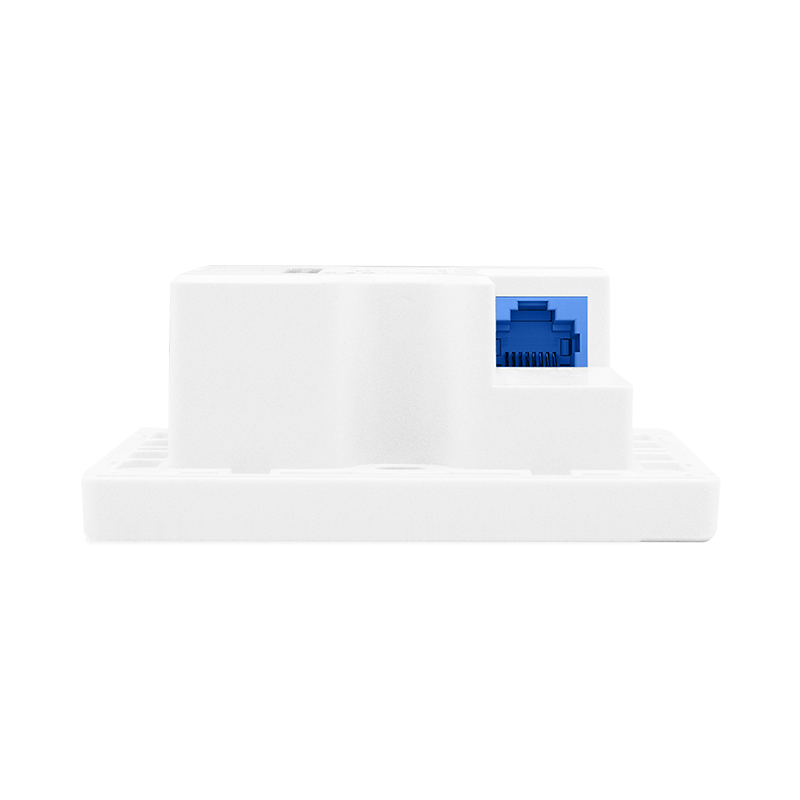

Interface(2)10/100M Base-T Ethernet ports
Power Supply802.3af PoE Supported
Power Consumption< 6W
InstallationWall Mounting
External buttonsreset button (long press for 8 seconds
to restore the factory default configuration)
Dimensions86mm * 86mm * 35mm
EnvironmentOperating Temperature: -20℃~55℃ Storage Temperature: -40℃~70℃
Operating Humidity: 5%~95% (non-condensing)
Storage Humidity: 5%~95% (non-condensing)
Software Features
Operating ModeFit AP, Fat AP, Repeater, WISP mode
Wireless FunctionUp to 16 SSIDs
Support SSID hiding, Enable/Disable Wireless Radio
RF Parameter setting
RoamingSupport Layer 2 roaming
Wireless SecurityCaptive Portal Authentication Static blacklist and whitelist Wireless Isolation Between Clients SSID to VLAN Mapping
Support 802.1X WPA/WPA2/PSK/WPA/WPA2-Enterprise
RoutingSupport static IP, DHCP, PPPoE Dial-Up
ManagementSupport local management with web
Support remote management with Wi-Tek Cloud platform
Platform Management FeaturesAutomatic RF adjustment via the platform Unified configuration via the platform Unified monitoring via the platform
