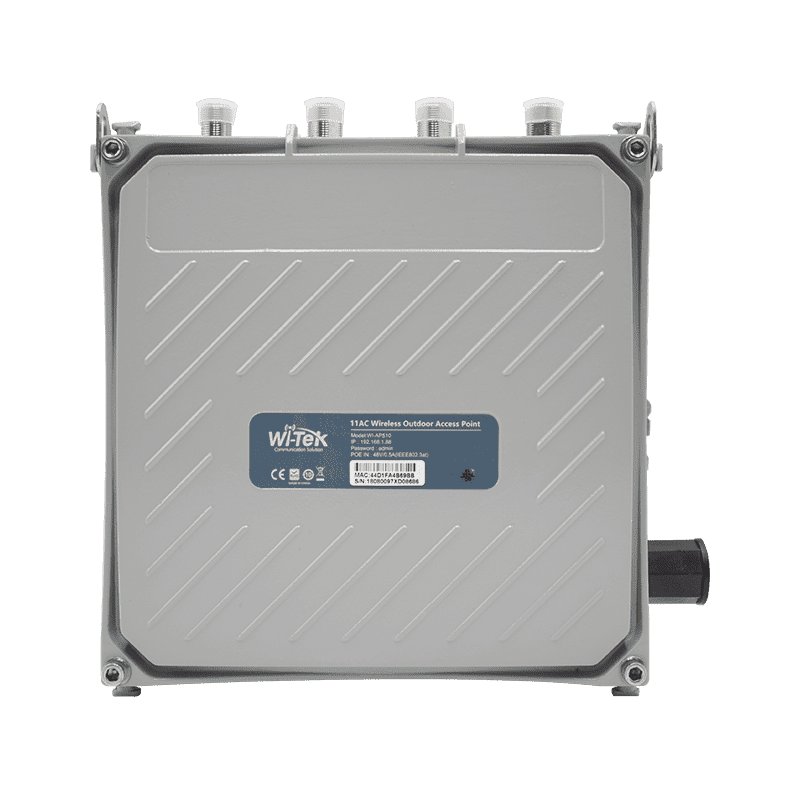

Wi-Tek - WI-AP510 - 802.11AC 2.4G&5G 1200Mbps Outdoor Wireless AP
Wi-Tek - WI-AP510 - 802.11AC 2.4G&5G 1200Mbps Outdoor Wireless AP
Part number:
WI-AP510
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

Wi-Tek  outdoor  wireless  AP  series  is  specially  designed  for  outdoor  Wi-Fi  coverage.  The  device  shell  can prevent the intrusion of dust and rain. It is suitable for villages, villas, parks, scenic spots, squares, and other places, and supports Fit AP, Fat AP, Repeat, WISP has multiple working modes, more flexible configuration, and can meet the needs of more application scenarios. In addition, AP supports cloud management function, users can quickly complete network-wide device deployment, configuration, remote management, and operation and maintenance, which greatly reduces the labor cost and time cost in the process of wireless network construction.



Features:

  • 1 x Gigabit Ethernet Por
  • 300Mbps at 2.4GHz + 867Mbps at 5GH
  • Support IP67 weatherproof
  • Support Fit/Fat/Repeater/WISP mode
  • Support AP controller and cloud management
ProductsWI-AP310WI-AP315WI-AP317WI-AP510
Hardware Version
Wireless Standards802.11n/b/g/a802.11ac wave1 802.11n/b/g/a802.11ac wave2/wave1 802.11n/b/g/a802.11ac wave2/wave1 802.11n/b/g/a
Operating Bands2.4GHz2.4GHz & 5GHz

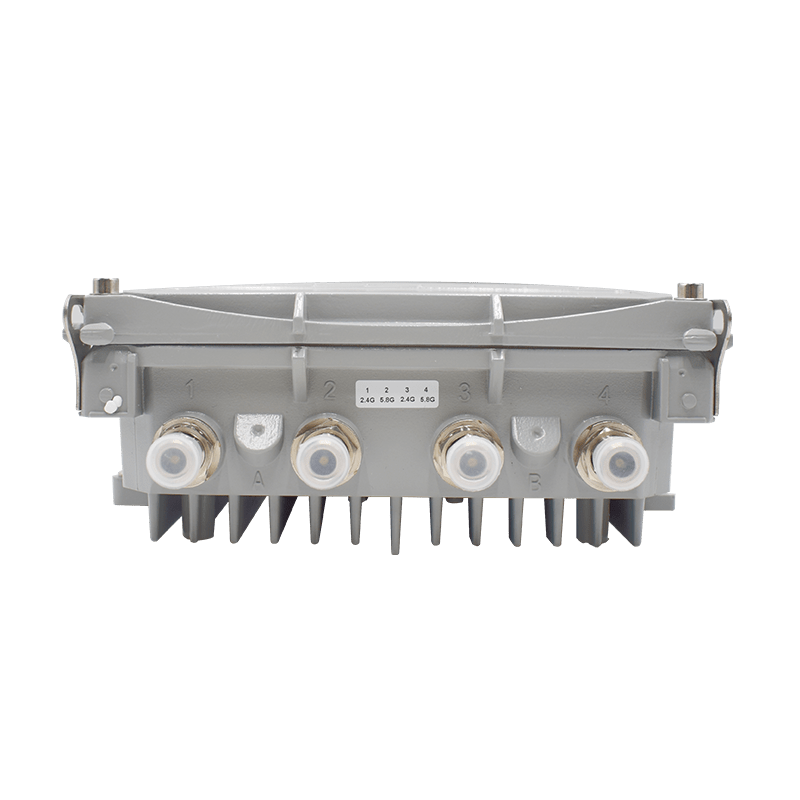

Antenna2.4GHz: 5dBi (External antenna)2.4Ghz:3.5dBi, 5GHz: 4dBi2.4Ghz:5dBi, 5GHz: 5dBi2.4Ghz:8dBi, 5GHz: 12dBi
Spatial Streams2.4GHz: 2x2 MIMO2.4GHz: 2x2 MIMO  5GHz: 1x1 MIMO2.4GHz2x2 MIMO  5GHz2x2 MIMO2.4GHz2x2 MIMO  5GHz2x2 MIMO
Max ThroughputUp to 300Mbps at 2.4GHzUp to 300Mbps at 2.4GHz Up to 450Mbps at 5GHzUp to 300Mbps at 2.4GHz Up to 867Mbps at 5GHzUp to 300Mbps at 2.4GHz Up to 867Mbps at 5GHz
Receiver Sensitivity2.4GHz:
802.11n: -69dbm@MCS7
-88dbm@MCS0.     802.11g: -73dbm@54Mbps
-90dbm@6Mbps.    802.11b: -85dbm@11Mbps
-94dbm@1Mbps.		2.4GHz
802.11n: -70dBm@MCS7
-88dBm@MCS0.
802.11g: -72dBm@54Mbps
-90dBm@6Mbps.    802.11b: -85dBm@11Mbps
-94dBm@1Mbps.
5GHz
802.11a: -72dBm@54Mbps
-90dBm@6Mbps. 802.11n: -70dBm@MCS7
-88dBm@MCS0. 802.11ac:-60dBm@MCS9
-85dBm@MCS0.		2.4GHz
802.11b: -85dBm@11Mbps
-94dBm@1Mbps     802.11g: -72dBm@54Mbps
-90dBm@6Mbps
802.11n Ht20: -70dBm@MCS7
-88dBm@MCS0
802.11n Ht40: -68dBmMCS7
-86dBm@MCS0
5GHz
802.11a: -72dBm@54Mbps
-90dBm@6Mbps
802.11n   Ht20: -70dBm@MCS7
-88dBm@MCS0
802.11n   Ht40: -68dBm@MCS7
-86dBm@MCS0
802.11ac Ht80: -58dBm@MCS9
-80dBm@MCS0		2.4GHz
802.11b: -85dBm@11Mbps
-94dBm@1Mbps     802.11g: -72dBm@54Mbps
-88dBm@6Mbps
802.11n Ht20: -70dBm@MCS7
-88dBm@MCS0
802.11n Ht40: -68dBmMCS7
-86dBm@MCS0
5GHz
802.11a: -72dBm@54Mbps
-90dBm@6Mbps
802.11n   Ht20: -70dBm@MCS7
-88dBm@MCS0
802.11n   Ht40: -68dBm@MCS7
-86dBm@MCS0
802.11ac Ht80: -58dBm@MCS9
-80dBm@MCS0
Maximum Transmit Power≤22dbm≤27dbm≤23dbm≤30dbm

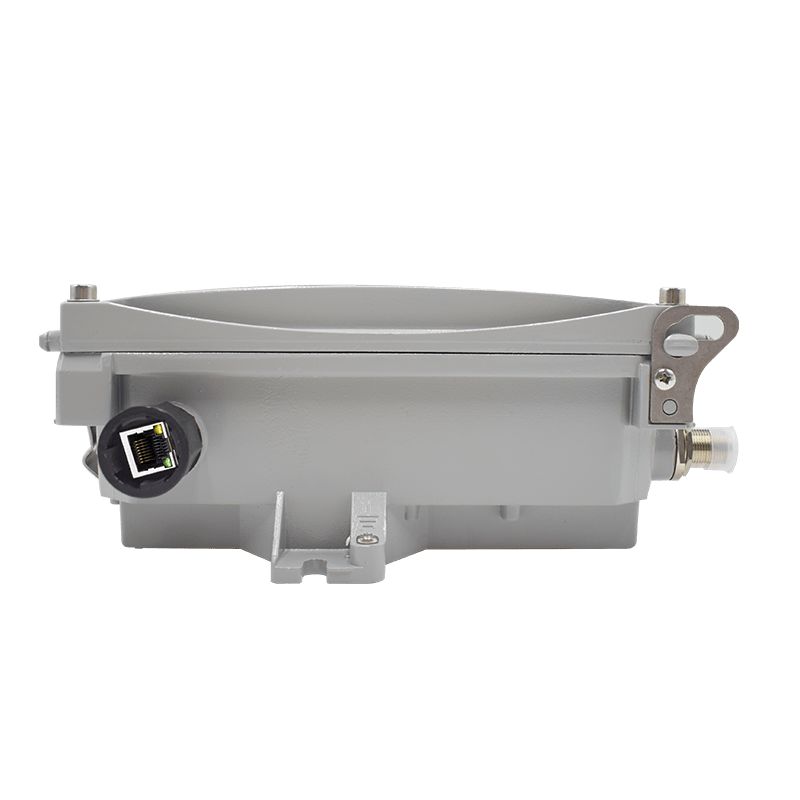

Interface( 2)10/100Base-T Ethernet ports WAN/PoE port supports PoE in( 2)10/100Base-T Ethernet ports WAN/PoE port supports PoE in( 2)10/100/1000Base-T Ethernet ports WAN/PoE port supports PoE in( 1)10/100/1000Base-T Ethernet ports WAN/PoE port supports PoE in
Power SupplyDC 12V/1A (Not Included)
24V Passive PoE (Pairs 4,5+; 7,8 -)		DC 12V/1.5A (Not Included) 802.3af PoE SupportedDC 12V/2A (Not Included) 802.3at PoE Supported802.3at PoE Supported
Power Consumption< 10W< 15W< 20W< 30W
InstallationPole/Wall Mounting
External Buttonsreset button (long press for 8 seconds to restore the factory default configuration)
Dimensions340mm * 85mm * 35mm315mm*145mm*80mm315mm*145mm*80mm250*250*100 mm
 Operating Temperature:Operating Temperature:
-40°C~55°C
Storage Temperature:
-40°C~70°C
Operating Humidity: 5%~95% (non-condensing) Storage Humidity:  5%~95% (non-condensing)		Operating Temperature:
-30°C~55°C
Storage Temperature:
-40°C~70°C;
Operating Humidity: 5%~95% (non-condensing) Storage Humidity:  5%~95% (non-condensing)		Operating Temperature:
-40°C~55°C
Storage Temperature:
-40°C~70°C;
Operating Humidity: 10%~95% (non-condensing) Storage Humidity:    5%~95% (non-condensing)
 -40°C～55°C
 Storage Temperature:
Environment-40°C~70°C
Operating Humidity:
 5%~95% (non-condensing)
 Storage Humidity:
 5%~95% (non-condensing)
Software Features
Operating ModeFit AP, Fat AP, Repeater, WISP Mode
Wireless FunctionUp to 8 SSIDsUp to 16 SSIDsUp to 16 SSIDsUp to 16 SSIDs
Support SSID hiding, enable/disable the wireless radio
RF parameter setting
RoamingSupport Layer 2 roaming
Wireless SecurityCaptive portal authentication Static blacklist and whitelist Wireless isolation between clients SSID to VLAN mapping
Support 802.1X WPA/WPA2/PSK/WPA/WPA2-Enterprise
Internet Connection TypeSupport Static IP, DHCP, PPPoE Dial-Up
Management and MaintenanceSupport local management with web
Support remote management with Wi-Tek cloud platform
Platform Management FeaturesAutomatic RF adjustment via the platform Unified configuration via the platform Unified monitoring via the platform
