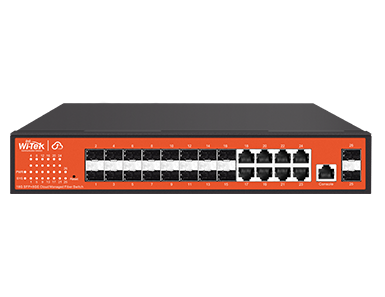

Wi-Tek Cloud Switch Provides a more efficient, simple, secure and easy-to-use remote management method, supports intelligent deployment, automatic configuration of networking, abnormal alarms and other functions, without the need for professional IT operation and maintenance personnel, newbie can easily get started, support flexible 802.1Q VLAN, port aggregation, QoS, bandwidth control and other, easy to manage and maintain. Wi-Tek Cloud Switch is the cost-effective network solution for the ideal small and medium business.
Flexible VLAN Division:
In the enterprise office network, in order to isolate network access between different departments to avoid PCs infected by virus affecting the entire network, it is necessary to divide the interior into different VLANs to isolate the broadcast domain and improve the stability of the network. Wi-Tek Cloud Switch provides a convenient and flexible way to divide VLANs, allowing you to assign the ports to different VLANs as needed. Users in different VLANs do not affect each other, creating a more stable network for the users
Features:
- 8 Gigabit ports and 18 Gigabit SFP Slots
- Support cloud management, easy to maintain and manage
- Support IGMP Snooping, Link Aggregation, and Loop Prevention
- QoS and IGMP snooping function optimize voice, video applications
- Support Web, CLI(Console Port, Telnet, SSH), SNMP and RMON bring powerful management capabilities
| Hardware Specifications | |
| Hardware Version | V1 |
| Interface | 18x1000Mbps SFP Slots 1xConsole Port 8x10/100/1000Mbps RJ45 Ports |
| Port Standard | IEEE 802.3i:10BASE-T Ethernet; IEEE 802.3u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z:1000BASE-X Gigabit Ethernet(Optical fiber) |
| Power Supply | 100-240 V AC~50/60 Hz |
| Switching Capacity | 52Gbps |
| Packet Forwarding Rate | 38.69Mpps |
| Jumbo Frame | 10KB |
| MAC Address Table | 8K |
| Dimensions ( W x D x H ) | 280*180*44mm |
| Fan Quantity | 1 Fan |
| Protection Level | Common Mode ± 4KV, Differential Mode ± 2KV |
| Electrostatic Standard | Contact 6KV, Air 8KV |
| Transmission Mode | Store— Forward |
| Installation | Rack- Mounted |
| Software Features | ||
| Spanning Tree | IEEE 802.1D - STP | |
| IEEE 802.1w - RSTP | ||
| IEEE 802.1s - MSTP | ||
| BPDU Guard | ||
| STP Root Guard | ||
| Loop Detection | ||
| VLAN | Management VLAN | |
| Private VLAN | ||
| Voice VLAN | ||
| Monitor VLAN | ||
| Q- in-Q | ||
| Protocol- Based VLAN | ||
| MAC- Based VLAN | ||
| Port | LACP | |
| Static | ||
| EEE | ||
| Jumbo Frame | ||
| Error- Disable | ||
| Port mirroring( One-to-One Many-to-One Tx/Rx/Both) | ||
| Link Aggregation( Up to 8 aggregation groups and up to 8 ports per group) | ||
| Security | Port Isolation | |
| IEEE802.1x AAA | ||
| ACL support L2+/L3/ L4 IPv6 ACL | ||
| Dynamic ARP Protection | ||
| Broadcast Storm | ||
| RADIUS/TACACS+ | ||
| RADIUS Authentication ( RFC2138) | ||
| SSH v1.5/v2 .0 | ||
| Anti- DDoS Attack | ||
| DHCP Snooping | ||
| QOS | Ipv4 QoS (QCEs) | |
| Ipv6 QoS (QCEs) | ||
| Priority Algorithm(WRR ,Absolute Priority, DSCP & CS) | ||
| Class of Service(Port- Based ,802.1p CoS DSCP IP Priority, TCP/ UDP IPv4/ IPv6 ) | ||
| Bandwidth(Input /Output) | ||
| L2 M ulticast | IGMP Snooping v1/v2/v3 | |
| MLDS nooping v1/v2 | ||
| MVR | ||
| IPV6 | Ipv6/IPv4 | |
| Ipv6 Web/SSL | ||
| Ipv6 SNTP | ||
| Ipv6 Telnet/SSH | ||
| Ipv6 Ping/Traceroute | ||
| Ipv6 TFTP | ||
| Ipv6 RADIUS/TACACS+ | ||
| Ipv6 SNMP | ||
| Management | SNMP (v1 , v2c , v3 ) | |
| RMON ( 1 , 2 , 3 & 9 ) | ||
| Firmware Upgrade | ||
| Configuration Export/import | ||
| DHCP (Option 82, Option 66, Option 67) | ||
| System Log Supports Event/Error Log | ||
| Manage Access Control( Console Port , SNMP, HTTP/ HTTPS , Telnet) | ||
| LLDP ( IEEE802.1AB) | ||
| LLDP- MED | ||
| UDLD | ||
| DNS Client | ||
| Traceroute | ||
| Ping | ||
| DDMI | ||
| NTP/ SNTP ( RFC2030) | ||
| Advanced Features | ONVIF (ONVIF Detection , ONVIF Server(NLM) ) | |
| Batch Firmware Upgrading | ||
| Intelligent Network Monitoring | ||
| Abnormal Event Warnings | ||
| Automatic Device Discovery | ||
| Support Cloud Management | ||
| Support Remote Management | ||
| Support Cloud VLAN Configuration | ||
| Support Topology Display | ||
| Support Cloud Control Port Configuration | ||
