Features:

● Adjustable transmission power from 0 to 20dBm
● Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
● Support open frequency from 5150-5825MHz
● Long range wireless transmission up to 5km
● Wireless A/N speed up to 300Mbps
● Antenna Angle 60° degree
● Repeater/Basic Station/CPE/WISP operation modes
● Centralized Management System–Wi-Tek Cloud Platform
● 48V PoE Adapter supports up to 100 meter

HARDWAREFEATURES	WI-CPE513P-KIT
Hardware Version	V3

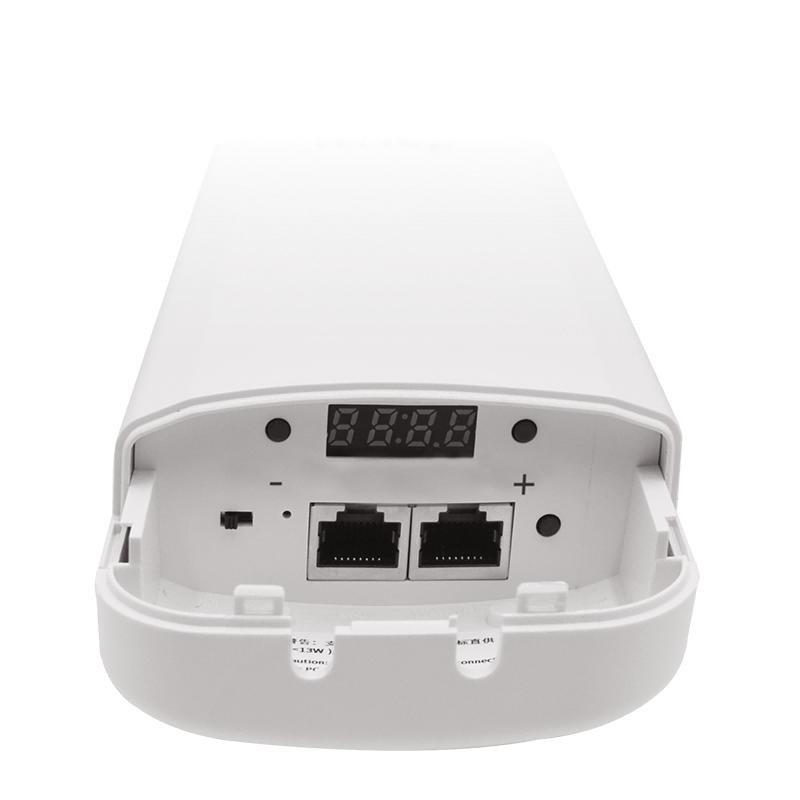

Interface	2 10/100BASE-TX Ethernet Interface
Power Supply	48V 802.3af/at PoE PoE Adapterincluded
Power Consumption	8W
Package Dimension	340×220×95 mm
CPE Dimension	90×260×30 mm
Gross Weight	1.6kg
Net Weight	0.8kg
Antenna Type H (Horizontal) V (Vertical)	Built-in 13dBi Dual-pol Antenna Beam Width: 60°(H-Pol)/15°(V-Pol)
Protection	6kV ESD Protection 10kV Lightning Protection
Enclosure	Outdoor UV Stabilized Plastic IP65 Waterproof Design
WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/n
Wireless Mode	Repeater/Basic Station/CPE/WISP
Wireless Speeds	Up to 300Mbps
Channel Width	20/40/80 MHz
Frequency	5150-5825MHz
Transmission Power	27dBm(500mW)
Recommend Distance	5km
SOFTWARE FEATURES
Security	WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
Services	Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
Utilities	Automatic ChannelSelection Transmission Power Control
Distance Adjustment	Distance/ACK Timeout Setting
WEB management	Yes
Cloud Management	Yes
System-level Optimizations	Optimized IGMP Snooping/Proxy for multicast applications, Hardware watchdog
OTHERS
Certification	CE

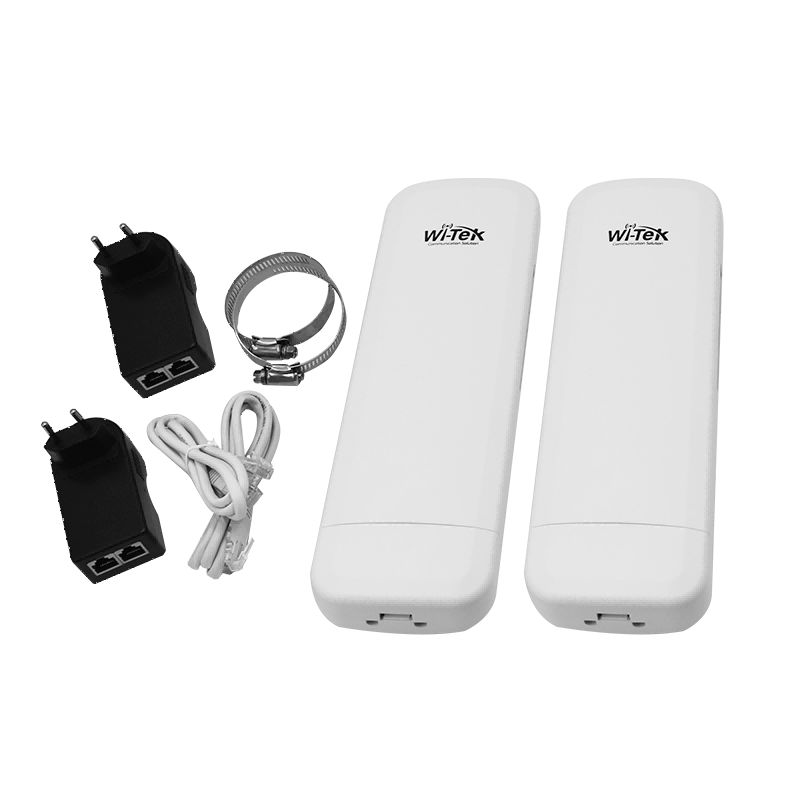

Package Contents	2×CPES 2×PoE Adapters 2×Pole Mounting Kits 1×Quick Installation Guide
Environment	Working Temp: -40 ~ 70°C Storage Temp: -40 ~85°C Working Humidity: 10%~95% Non-condensing
