Wi-Tek - WI-CPE521 - 500mW High power output, coverage up to 2KM for PTP and PTMP application
Part number:
WI-CPE521
Price:
Wireless Transmitter is equivalent to a network cable, transmitting network signals via wireless way. It uses wireless communication technology to transmit network data using air as a medium to carry out long-distance point-to-point or point to multi-point interconnection. Wi-Tek Wireless Transmitter is specialized designed for rural Internet access, long distance wireless data transmission, wireless coverage extension and other industrial wireless solutions. It is widely used in various fields of communication.
Features:
- Adjustable transmission power from 0 to 27dBm
- Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
- Support open frequency from 4920-6100MHz
- Long range wireless transmission up to 2km
- Wireless B/G/N speed up to 300Mbps
- Antenna Angle 360° degree
- AP/Client operation modes
- Passive 24V PoE Adapter supports up to 100 meter
| HARDWAREFEATURES | WI-CPE521 |
| Hardware Version | V1 |

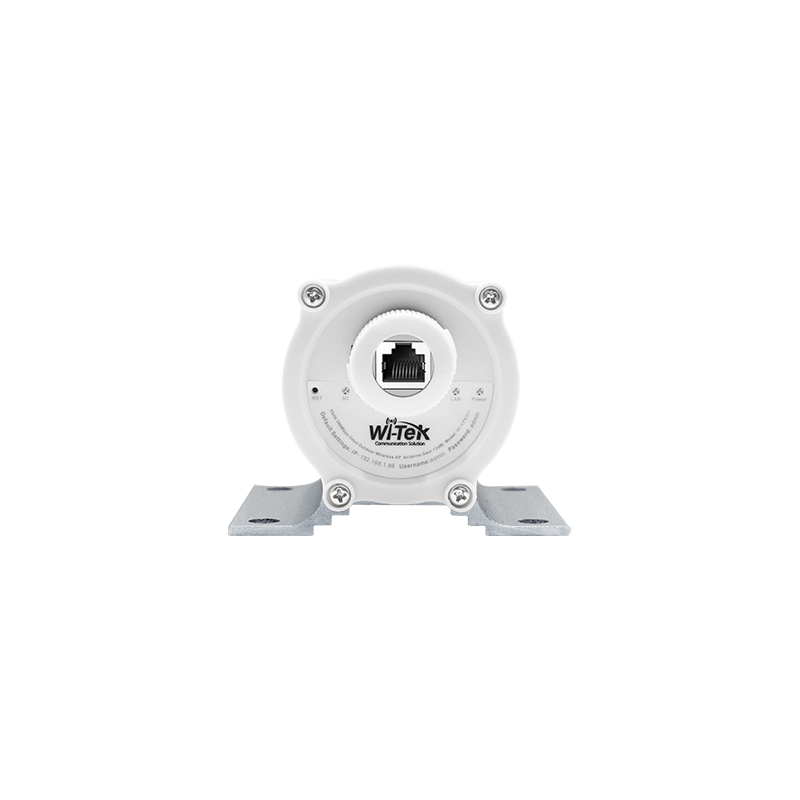

| Interface | 1 10/100BASE-TXEthernet Interface |
| Power Supply | 24V Passive PoE |
| PoE Adapterincluded | |
| Power Consumption | 8W |
| Package Dimension | 645×105×85 mm |

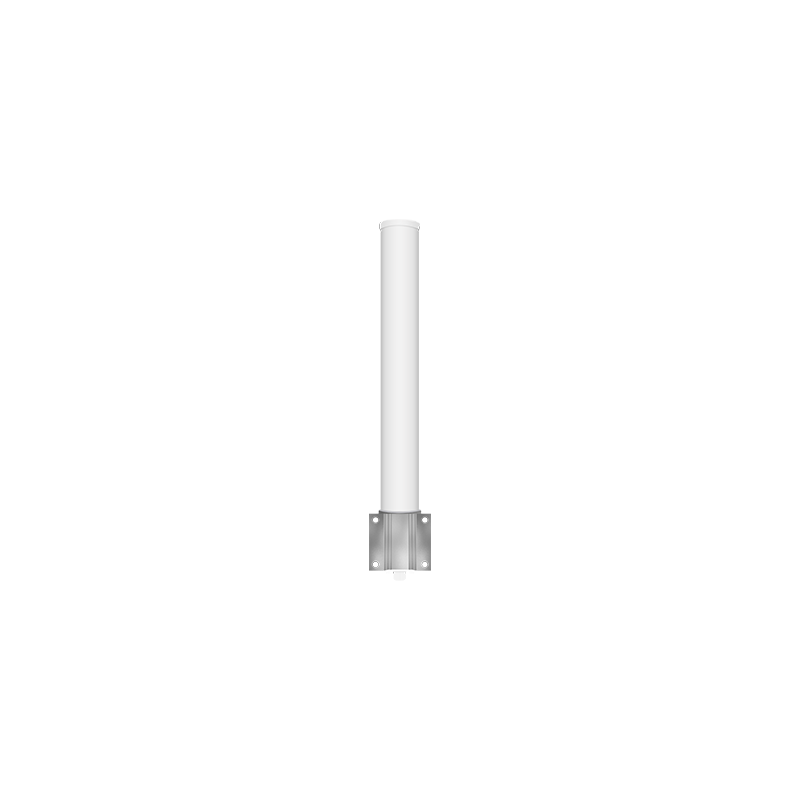

| CPE Dimension | 555×75 mm |
| Gross Weight | 1.55kg |
| Net Weight | 0.75kg |
| Antenna Type | Built-in 12dBi Dual-pol |
| H (Horizontal) | 360degree OMNI Antenna |
| V (Vertical) | Beam Width: 360°(H-Pol)/11°(V-Pol) |
| Protection | 6kV ESD Protection |
| 10kV Lightning Protection | |
| Enclosure | Outdoor UV Stabilized Plastic IP65 Waterproof Design |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/n |
| Wireless Mode | AP, Client |
| Wireless Speeds | Up to 300Mbps |
| Channel Width | 20/40/80 MHz |
| Frequency | 4920-6100MHz |
| Transmission Power | 27dBm(500mW) |
| Recommend Distance | 2km |
| SOFTWARE FEATURES | |
| Security | WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption |
| Services | Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing |
| Utilities | Transmission Power ControlDynamic Frequency Selection (DFS) WDS Enable/Disable |
| Distance Adjustment | Distance/ACK Timeout Setting |
| WEB management | Yes |
| Cloud Management | No |
| System-level Optimizations | Optimized IGMP Snooping/Proxy for multicast applications, Hardware watchdog |
| OTHERS | |
| Certification | CE |

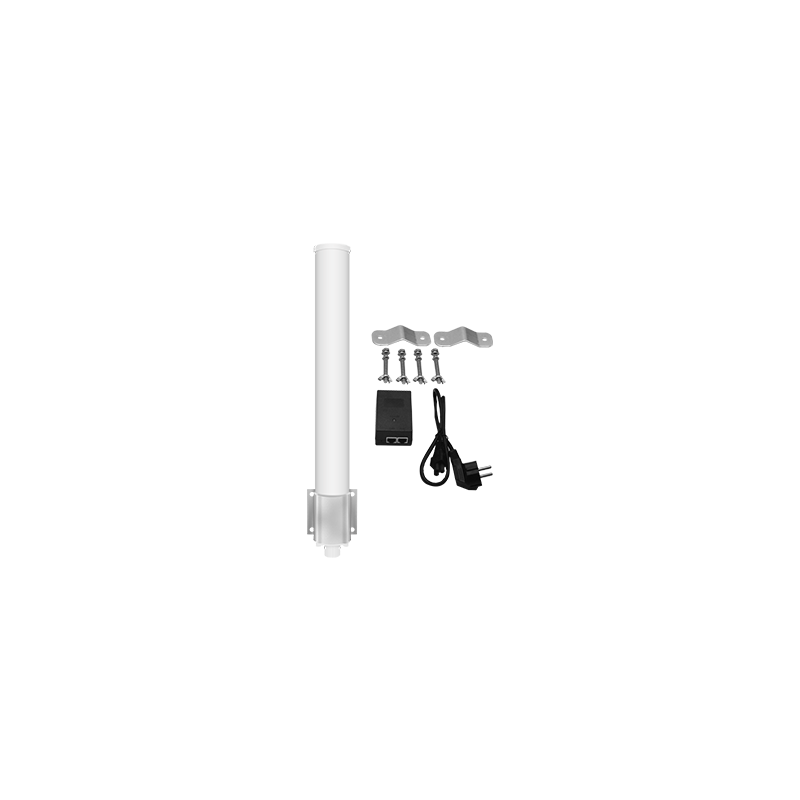

| Package Contents | 1×CPE |
| 1×PoE Adapter | |
| 1×Pole Mounting Kit | |
| 1×Quick Installation Guide | |
| Environment | Working Temp: -40 ~ 70°C |
| Storage Temp: -40 ~85°C | |
| Working Humidity: 10%~95% | |
| Non-condensing | |
