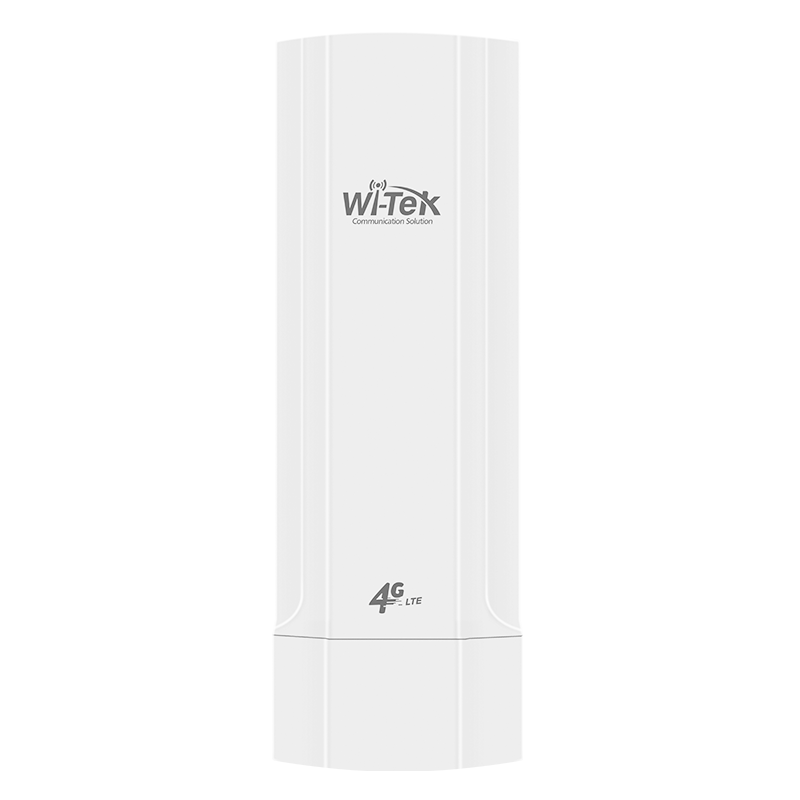

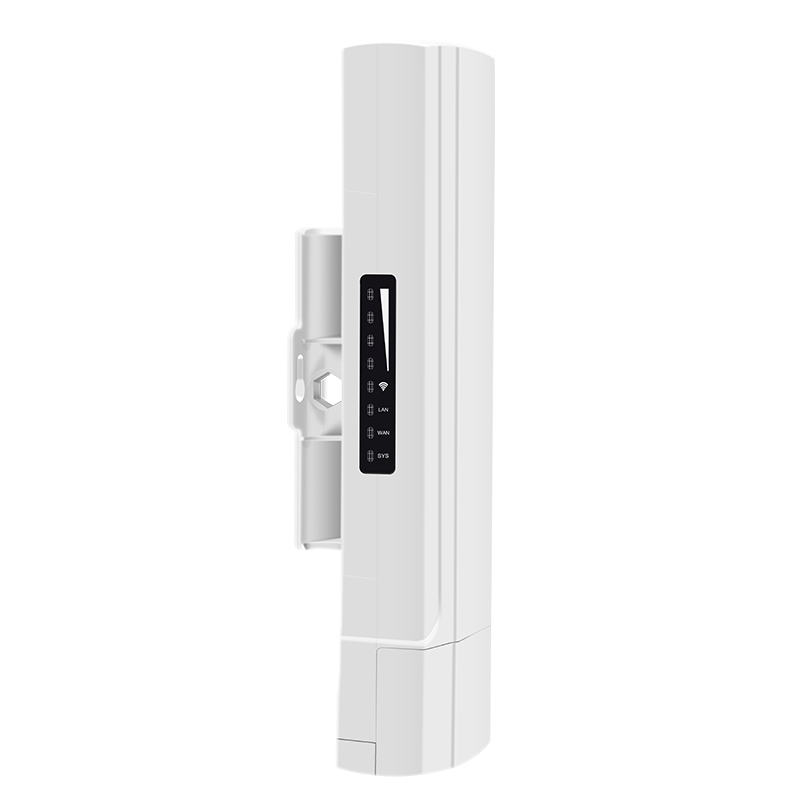

Wi-Tek - WI-LTE110-O V2 - CAT4 4G transform to Wi-Fi(2.4G 300Mbps) and wired network (Ready Now)
Part number:
WI-LTE110-O V2
Price:

WI-LTE110-O is an outdoor 4G LTE wireless router, plug-in card is automatically connected to the network, and can be monitored anytime and anywhere. It is suitable for monitoring scenarios such as rural areas, ranches, and scenic spots that are inconvenient to handle broadband. Support IP65 dustproof and waterproof, deal with various weather conditions, built-in 2*100Mbps interfaces, convenient for IPC access.



Features:

  • CAT4 4G transform to Wi-Fi(2.4G 300Mbps) and wired network
  • Build in 3G/4G SIM card slot, support LTE-TDD/LTE-FDD, WCDMA/CDMA and GSM networking. Then band adjustable, can comply with all operator in the world.
  • High RF power design, with omni 2.4G/4G antenna, more wireless coverage, better signal strength and more stable performance.
  • Support Power over Ethernet, 24V passive PoE
  • Support Cloud Managed and SD-LAN function
  • Support 4K HD video transmit
  • 10KV Lightning Protection and  IP65 waterproof
ModelWI-LTE110-O

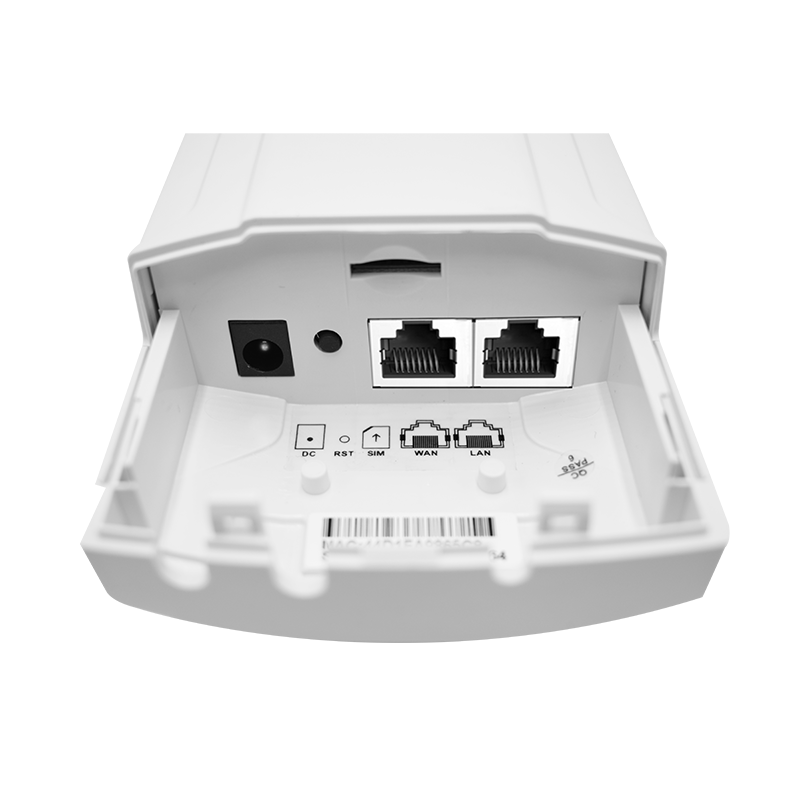

Interface(1)10/100M Base-T LAN Ethernet port
(1)10/100M Base-T WAN Ethernet port
Signal Rate300 Mbps at 2.4 GHz
Wi-Fi Antenna2dBi
Power SupplyDC 12V/1A or 24V Passive PoE
Power Consumption< 11W
External buttonsreset button (long press for 8 seconds
to restore the factory default configuration)
Transmit Power22dBm
LTE/3G/2G BandsEU:
LTE FDD: B1/B3/B5/B7/B8/B20/
LTE TDD: B40
WCDMA: B1/B5/B8
GSM: B3/B8
CN:
LTE FDD:B1/B3/B5/B8
LTE TDD: B34/B38/B39/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
LTE TDD: B34/B38/B39/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
LA:
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
LTE TDD: B40
WCDMA: B1/B2/B4/B5/B8
GSM: B2/B3/B5/B8
LTE CategoryCate 4
4G/ETH FailoverYes
Weatherproof EnclosureIP65
Dimensions260mm x 100mm x 37mm
EnvironmentWorking Temp: -30 ~ 55°C
Storage Temp: -40 ~70°C
Working Humidity: 10%~90%
non-condensing
Software Features3G/4G Router, Wireless Router, Eth-First Router, 4G-First Router
DHCP Server, Client
NAT Rules, Port Forwards
Static Routes
DDNS
OpenVPN
SD-LAN
Cloud management
