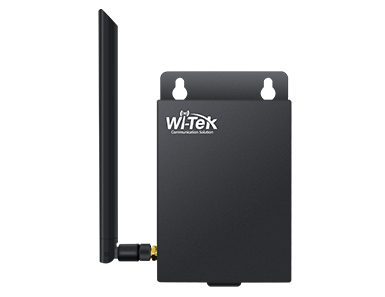

Wi-Tek - WI-LTE115-O - 4G transform to Wi-Fi(2.4G 300Mbps) and wired network
Part number:
WI-LTE115-O
Price:

WI-LTE115-O is an outdoor 4G LTE wireless router, which can automatically connect to the Internet when plugged in and can be monitored anytime, anywhere. Suitable for rural, ranch, and attractions that don't handle broadband. Support IP65 dustproof and waterproof various weather conditions. With 12V DC Output, convenient for IPC power access, external LTE antenna, 4G signal is stronger.



Features:

  • 4G Cat4 150/50 Mbps
  • 1 x 10/100Mbps Ethernet Ports
  • 1 x 12V/1A DC Out Port
  • 300Mbps at 2.4GHz

Model

WI-LTE115-O

Hardware Version

v1

Interface

(1)10/100M Base-T Ethernet Ports

Signal Rate

300 Mbps at 2.4 GHz

Wi-Fi Antenna

5dBi

Power Interface

1 x DC 12V 1.5A Input

1 x DC 12V 1A Output

Power Consumption

< 5W

External buttons

Reset button (long press for 8 seconds

to restore the factory default configuration)

Transmit Power

20dBm

Supported Bands

EU



LTE FDD: B1/B3/B5/B7/B8/B20/B28

LTE TDD: B38/ B40/B41

WCDMA: B1/B5/B8

GSM: B3/B8



CN



LTE FDD:B1/B3/B5/B8

LTE TDD: B34/B38/B39/B40/B41

WCDMA: B1/B5/B8

GSM: B3/B8



LA



LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66

LTE TDD: B40

WCDMA: B1/ B2/ B4/B5/B8

GSM: B2/B3/ B5/B8



LTE Category

Cat4

Enclosure

Outdoor UV Stabilized Plastic

IP65 waterproof Certification

Software Features

4G Mode, Router Mode, AP Mode

DHCP Server

Black List

IP/MAC binding

PPPoE Client

Flow Assistant

APN Settings

Dimensions

115mm * 70mm * 33mm

Gross Weight

0.46kg

Net Weight

0.15kg

Environment

Working Temp: -40~ 70°C

Storage Temp: -40 ~85°C

Working Humidity: 10%~95%

non-condensing

Name
Description
Size
Downloads
File
Data Sheet
0.7mb
