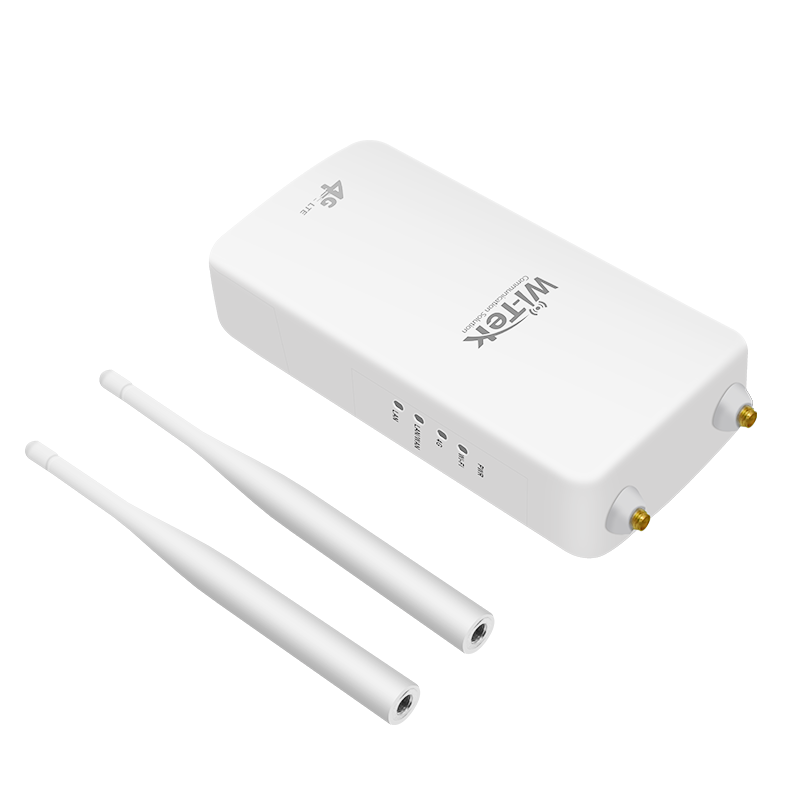

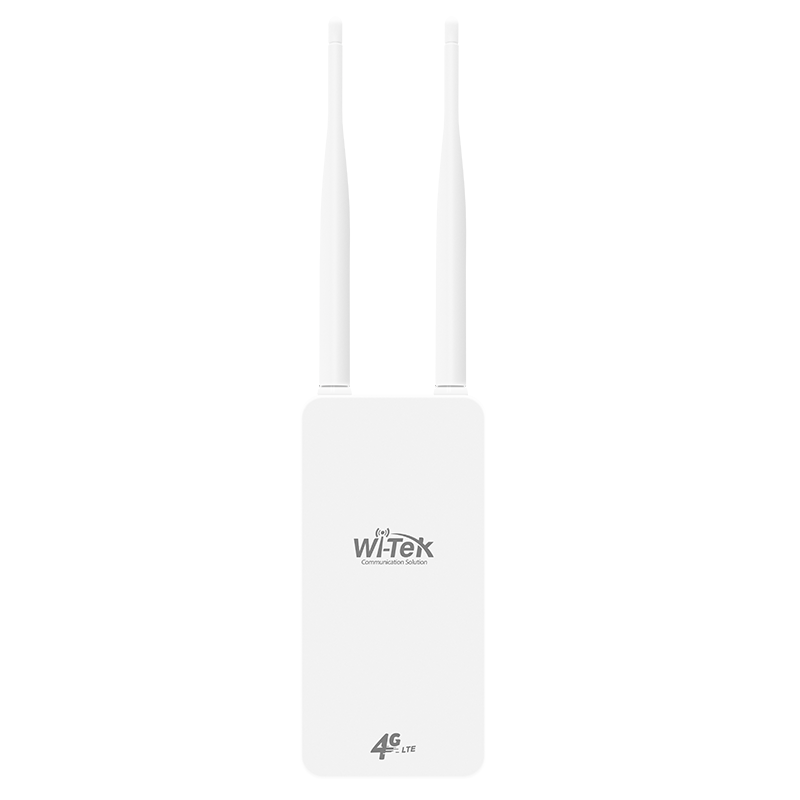

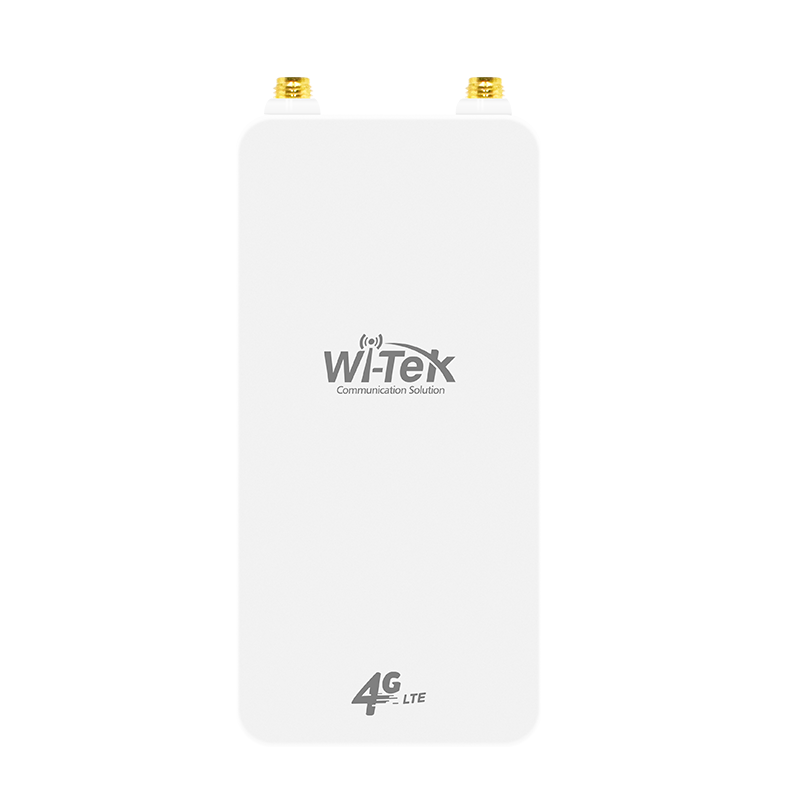

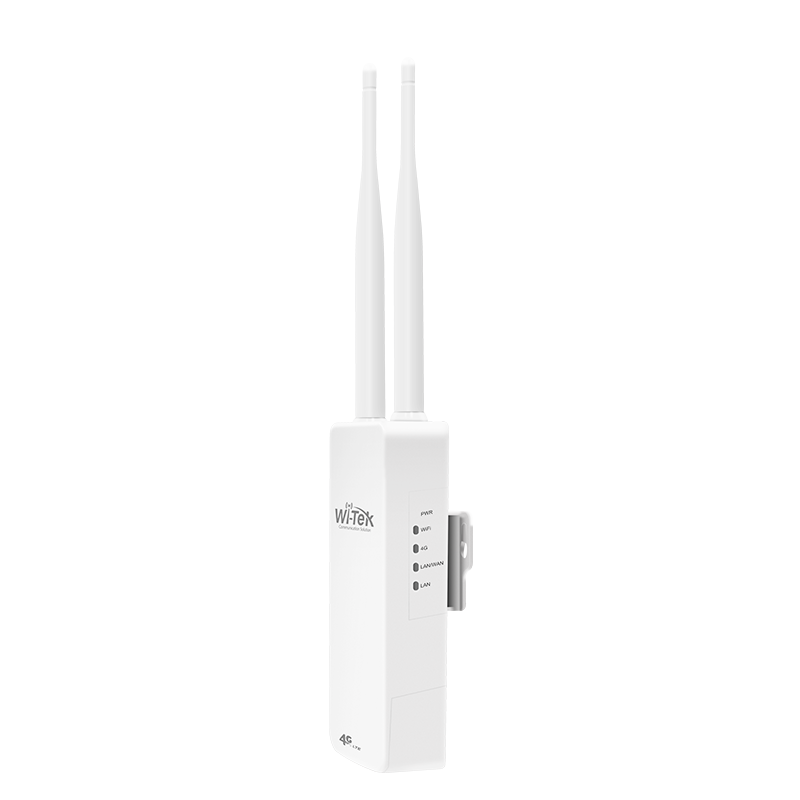

WI-LTE117-O is an outdoor 4G LTE wireless router with PoE Out, plug-in card automatic networking, monitoring anytime and anywhere, and is suitable for monitoring scenarios such as rural areas, ranches, and scenic spots that are inconvenient to handle broadband. Support IP65 dustproof and waterproof, deal with various weather conditions, built-in 2*100Mbps PoE interfaces, convenient for IPC access, external LTE dual antenna, 4G signal is stronger.
Features:
- 4G Cat4 150/50 Mbps
- 2 x 10/100Mbps Ethernet Ports
- Up to 2 PoE Out
- 300Mbps at 2.4GHz
- Support SD-LAN technology
- Support cloud and Web management
Model
WI-LTE117-O
Hardware version
v1

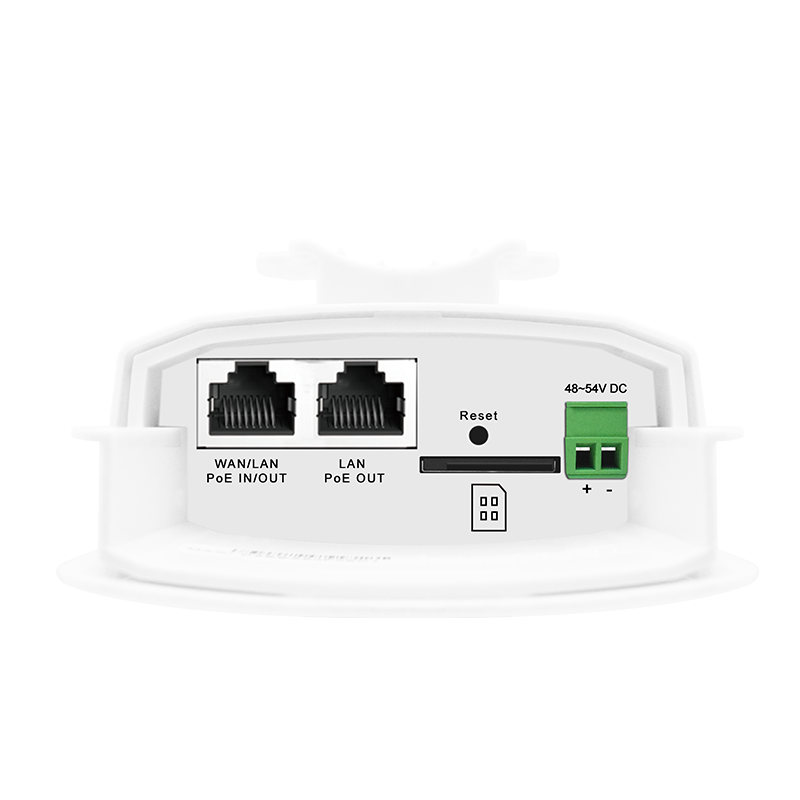

Interface
(2)10/100M Base-T Ethernet Ports
Signal Rate
300 Mbps at 2.4 GHz
Wi-Fi Antenna
5dBi
Power Supply
48V PoE IN or DC 48-54V / 2A Max
PoE Port
Up to 2 * PoE OUT
Power Consumption
< 5W
External buttons
reset button (long press for 8 seconds
to restore the factory default configuration)
Transmit Power
20dBm
Supported bands
EU
LTE FDD: B1/B3/B5/B7/B8/B20/B28
LTE TDD: B38/ B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
CN
LTE FDD：B1/B3/B5/B8
LTE TDD: B34/B38/B39/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
LA
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
LTE TDD: B40
WCDMA: B1/ B2/ B4/B5/B8
GSM: B2/B3/ B5/B8
LTE Category
Cat4
4G/ETH Failover
Yes
Weatherproof Enclosure
IP65
Software Features
3G/4G Router, Wireless Router, Eth-First Router, 4G-First Router
DHCP Server, Client
NAT Rules
Port Forwards
Static Routes
DDNS
OpenVPN
SD-LAN
Cloud management
Dimensions
152mm x 78mm x 35mm
Environment
Working Temp: -40 ~ 70°C
Storage Temp: -40 ~85°C
Working Humidity: 10%~95% (non-condensing)
