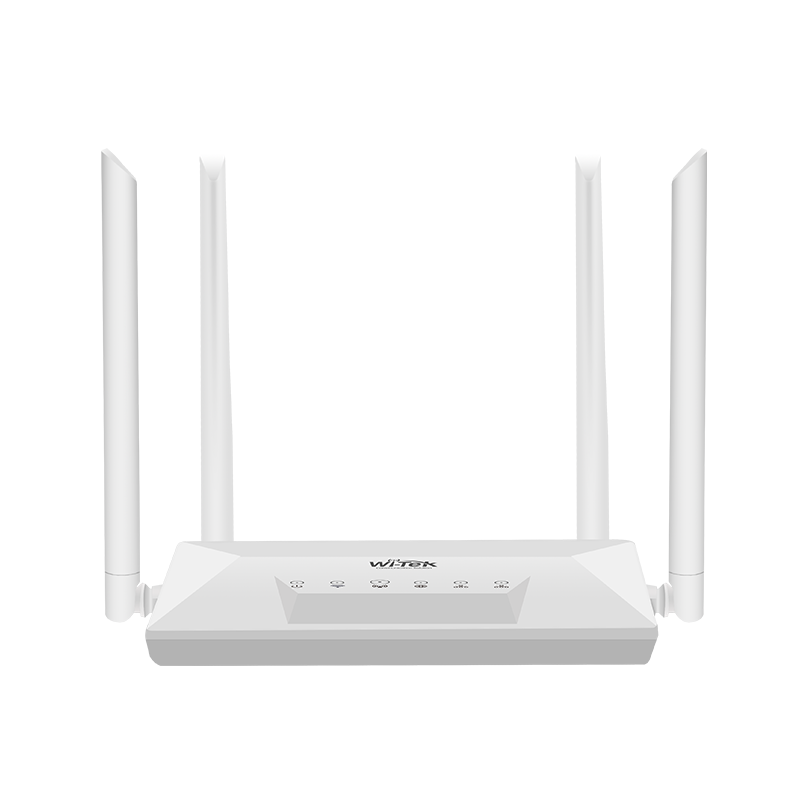

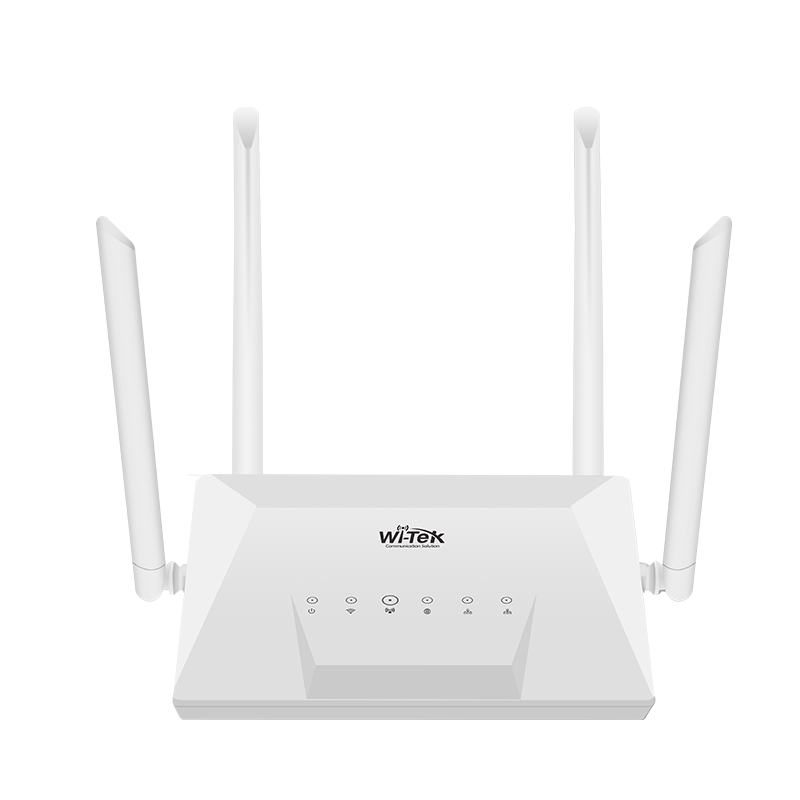

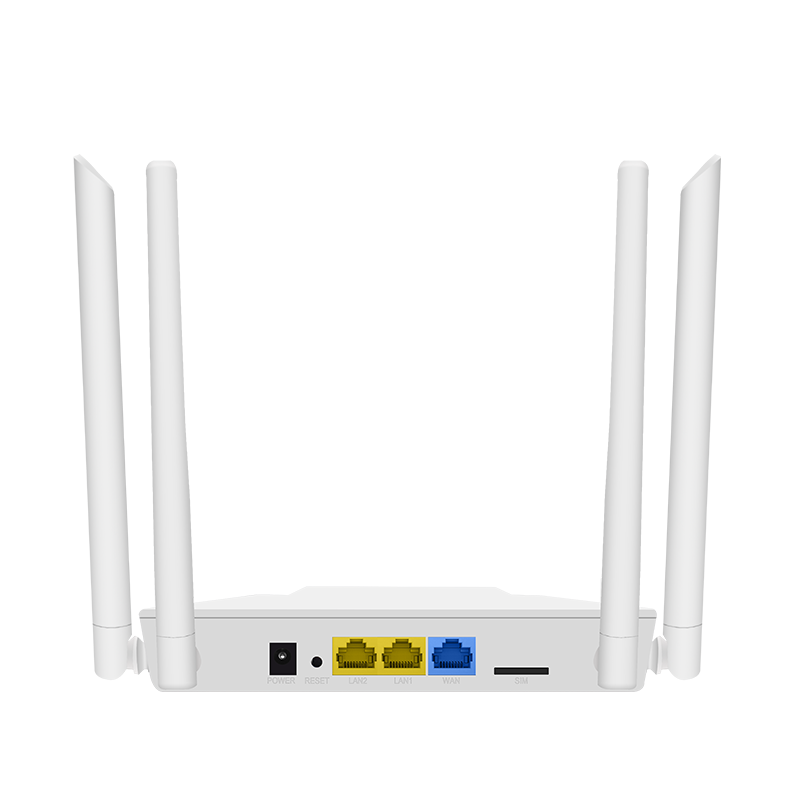

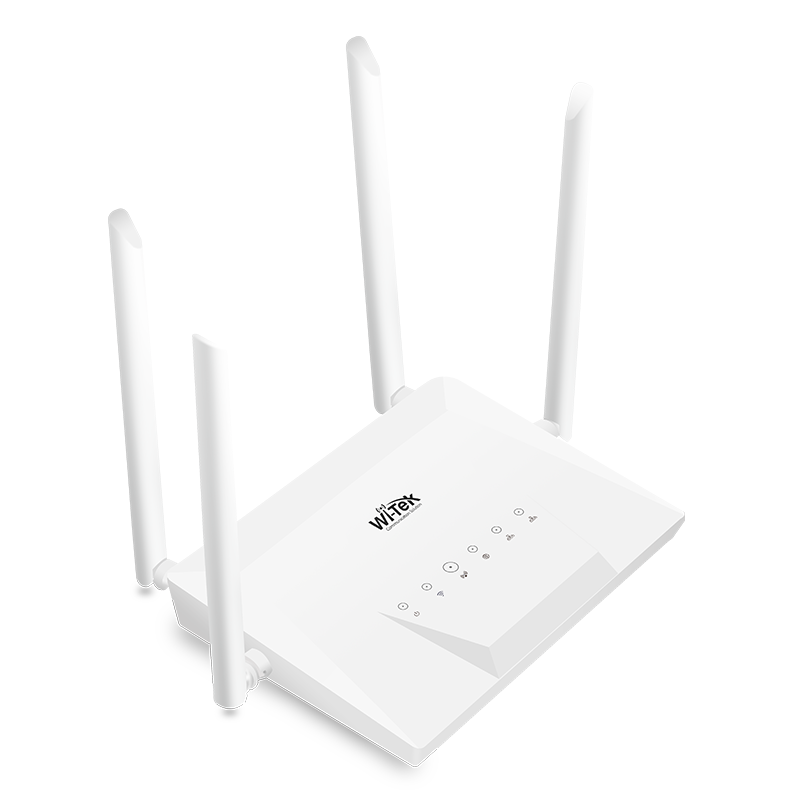

Wi-Tek - WI-LTE300 - 4G transform to Wi-Fi (2.4G 300Mbps) and wired network
Part number:
WI-LTE300
Price:

WI-LTE300 is an indoor 4G LTE wireless router, the card is automatically connected to the Internet, and the Internet can be accessed anytime, anywhere. Suitable for the small office, homes, As well as temporary offices where it is inconvenient to install broadband. Support cloud platform management, convenient for remote management of equipment, 3G/4G, and WAN fail-over backup strategy ensures WI-LTE300 provides a sustained internet connection.



Features:

  • 4G Cat4 150/50 Mbps
  • 3 x 10/100Mbps Ethernet Ports
  • 300Mbps at 2.4GHz
  • Support SD-LAN Technology
  • Support Cloud and Web Management

Model

WI-LTE300

Hardware Version

v2

Interface

(3)10/100M Base-T Ethernet Ports

Signal Rate

300 Mbps at 2.4 GHz

Wi-Fi Antenna

5dBi

Power Supply

12V/1A DC

Power Consumption

< 10W

External buttons

reset button (long press for 8 seconds

to restore the factory default configuration)

Transmit Power

20dBm

Supported Bands

EU:

LTE FDD: B1/B3/B5/B7/B8/B20/B28 LTE TDD: B38/ B40/B41

WCDMA: B1/B5/B8 GSM: B3/B8

GN:

LTE FDD: B1/B3/B5/B8 LTE TDD: B34/B38/B39/B40/B41

WCDMA: B1/B5/B8 GSM: B3/B8

LA:

LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE TDD: B40

WCDMA: B1/ B2/ B4/B5/B8 GSM: B2/B3/ B5/B8

LTE Category

Cat4

4G/ETH Failover

Yes

Software Features

3G/4G Router, Wireless Router, Eth-First Router, 4G-First Router

DHCP Server, Client

NAT Rules

Port Forwards

Static Routes

DDNS

OpenVPN

SD-LAN

Cloud management

Dimensions

185mm * 145mm * 28mm

Gross Weight

0.58kg

Net Weight

0.25kg

Environment

Working Temp: 10~ 40°C

Storage Temp: -40 ~70°C

Working Humidity: 5%~95%

non-condensing

Name
Description
Size
Downloads
File
Data Sheet
0.8mb
