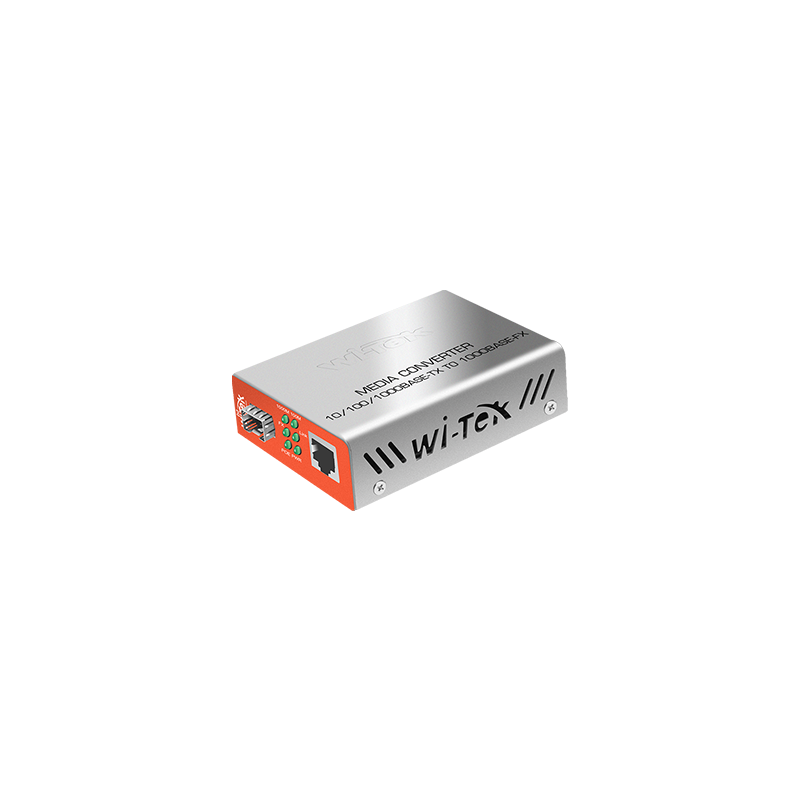

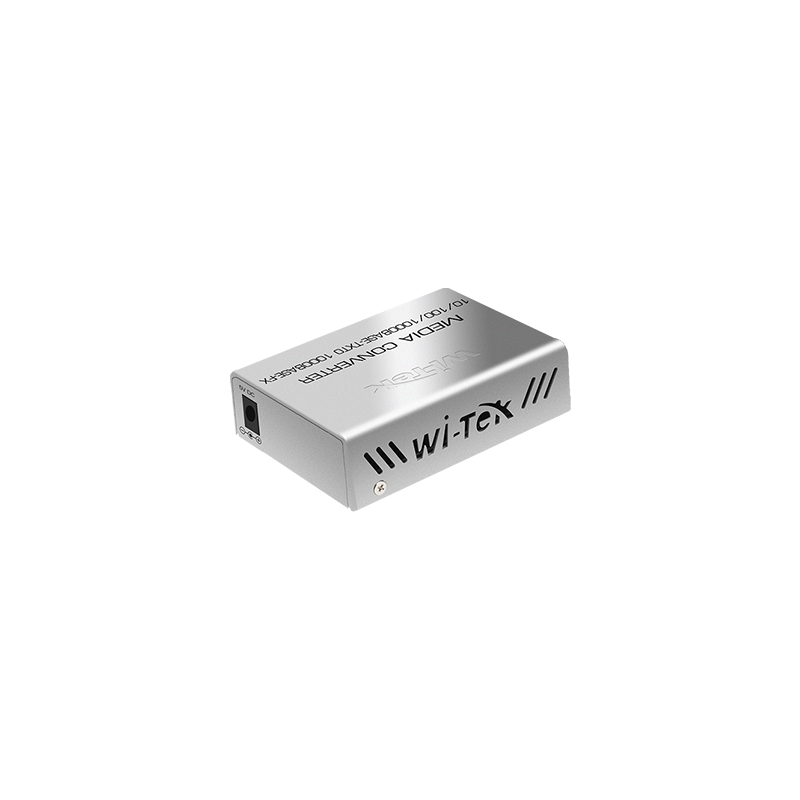

Wi-Tek - WI-MC111GP - Gigabit PoE SFP Media Converter (Sell in pcs)
Part number:
WI-MC111GP
Price:
Gigabit PoE SFP Media Converter
Features:
- Gigabit PoE SFP Media Converter
- 1 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Connector: UTP: RJ-45,100/1000Mbps; Fiber: SFP,1000Mbps
- RJ45 Port support 802.3af/at PoE output 30W
- Complies with IEEE 802.3ab,IEEE 802.3af/at and IEEE 802.3z
- Supports up to 9k byte JUMBO frame
- FX port supports hot-swappable
- Maximum transmission distance depends on the inserting SFP
| Model | WI-MC111GP |
| Interface | 1*1000Mbps SFP Port |
| 1*1000Mbps RJ-45 PoE Out Port with 802.3af/at | |
| Wave Length | 850nm/1310nm/1550nm |
| Media | Single-mode FiberMulti-mode Fiber |
| Transmit Range | Depend on the inserting SFP |
| Power Supply | 48-52V/1A |
| Dimensions | 94*73*27 mm |
| Application | Indoor |
| OTHERS | |
| Certification | CE, FCC, RoHS |

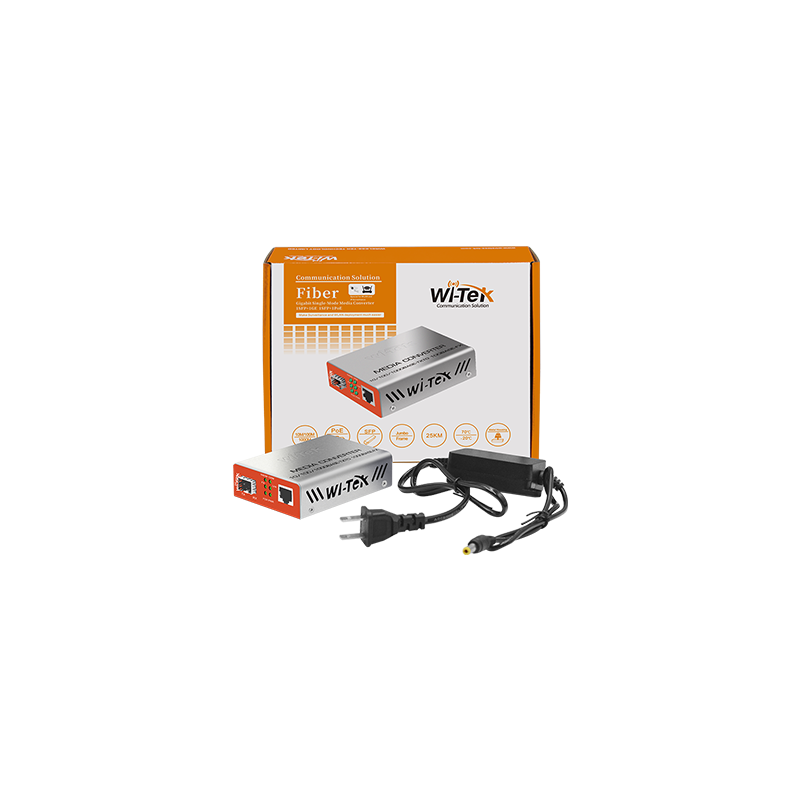

| Package Contents | 1 x Media Converter |
| 1 x Power Adapter | |
| 1 x Warranty Card | |
| Environment | Operating Temperature: 0℃~40℃ (32~104) |
| Storage Temperature: -40℃~70℃ (-40~158) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
Name
Description
Size
Downloads
File
Quick Installation Guide
1.3mb
