HARDWARE FEATURES

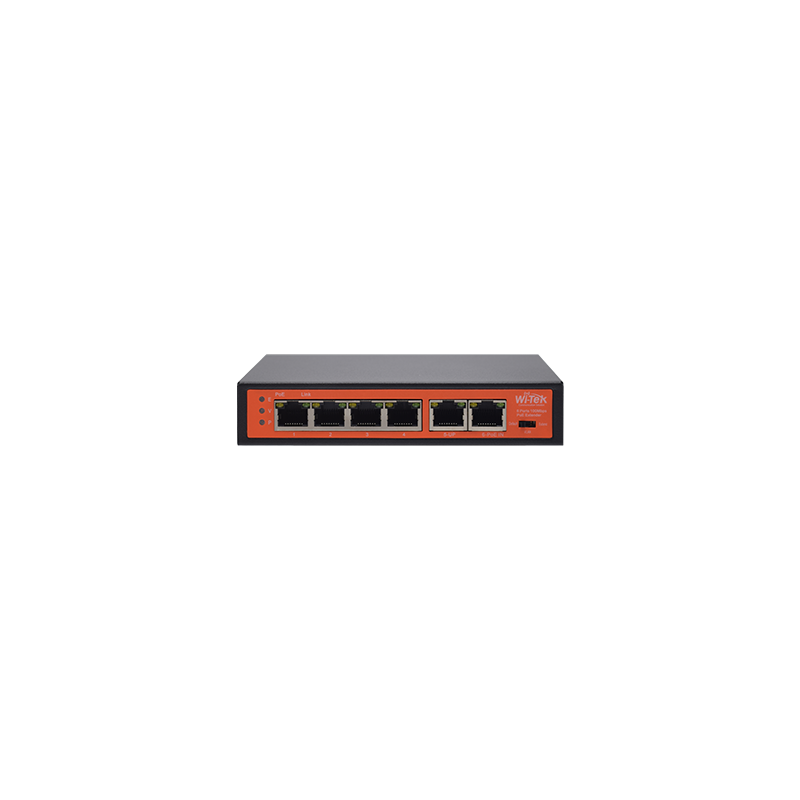

WI-PE51E

Interface

PoE in port：

1 x 100Mbps PoE port with 802.3bt 60W

DC in port: 48-55V

PoE out port:

4 x 100Mbps PoE port with 802.3af/at 30W

1 x 100Mbps PoE port

Network Media

10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

100BASE-TX: UTP category 5, 5e cable (Max 100m)EIA/TIA-568 100Ω STP (Max 100m)

Fan Quantity

Fanless

PoE PIN

PoE IN: 4/5(+) 7/8(-)or 1/2(+) 3/6(-)

PoE OUT: 4/5(+) 7/8(-)or 1/2(+)3/6(-)

LED Indicator

PWR, Link

DIP Switch

Default/Extend/VLAN

250m Long Distance

Default/Extend/VLAN

Transmission Method

Store-And-Forward

Advanced Functions

Mac Address Auto-Learning And Auto-Aging

Store and forward

IEEE 802.3x flow control for

Full-duplex Mode Backpressure for Half-duplex Mode

OTHERS

Certification

CE, FCC, RoHS

Package Dimension

190×93×34mm

Switch Dimension

142×82×28mm

Gross Weight

0.32kg

Net Weight

0.28kg

Operating Temperature

-10°C~55°C

Package Contents

1 x PoE Extender

1*Installation Guide
