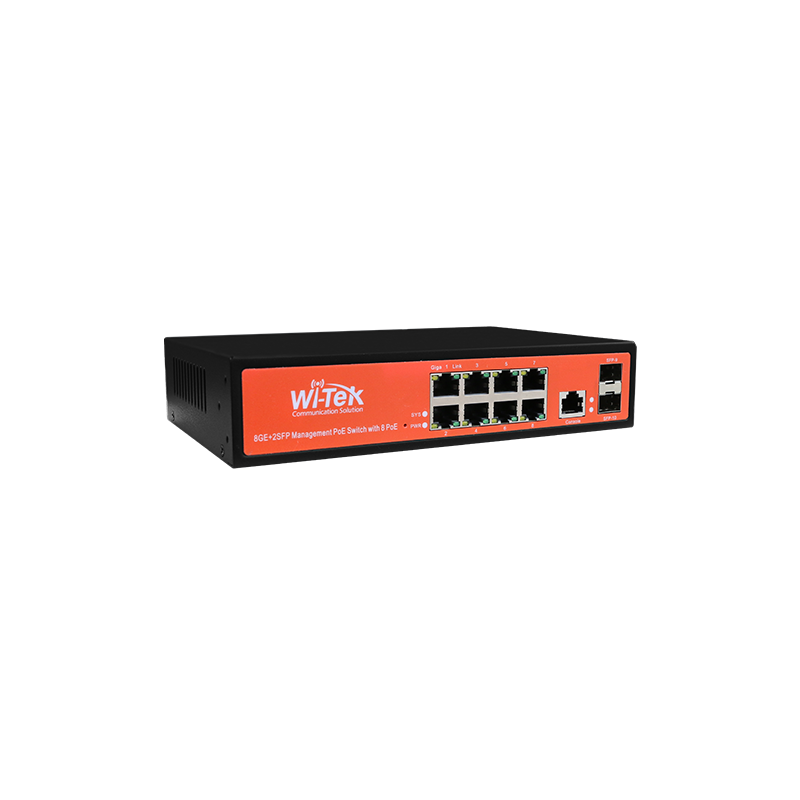

Wi-Tek - WI-PMS310GF-Alien - 8GE+2SFP managed 24V-48V Auto-detect PoE Switch
Part number:
WI-PMS310GF-Alien
Price:
The Alien PoE Switch Series was designed specifically for the WISP with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need a switch.
Features:
- 8GE+2SFP managed 24V-48V Auto-detect PoE Switch
- Wi-Tek Smart PoE Tech support 24-48v PoE output via auto-detect and select in software
- Support overcurrent protection/short-circuit protection
- Support 48v 802.3af/at and 24v Passive PoE both
- Internl 150W power,dual PoE（24V/48V） voltage output design
- Support QVLAN,QoS and IGMP snooping optimize voice and video application
- WEB/CLI,SNMP managed modes
| HARDWARE FEATURES | WI-PMS310GF-Alien |
| Hardware Version | V1 |
| L2 Managed | Yes |
| Interface | 8 10/100/1000Mbps RJ45 Ports |
| 2 1000Mbps SFP Slots | |
| 1 Console Port | |
| PoE Port | Port 1- 8: 802.3af/at and 24V Passive |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
| 1000BASE-X: MMF, SMF 1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) | |
| Fan Quantity | Fanless |
| Power Consumption | 150W (max. with PoE device connected) |

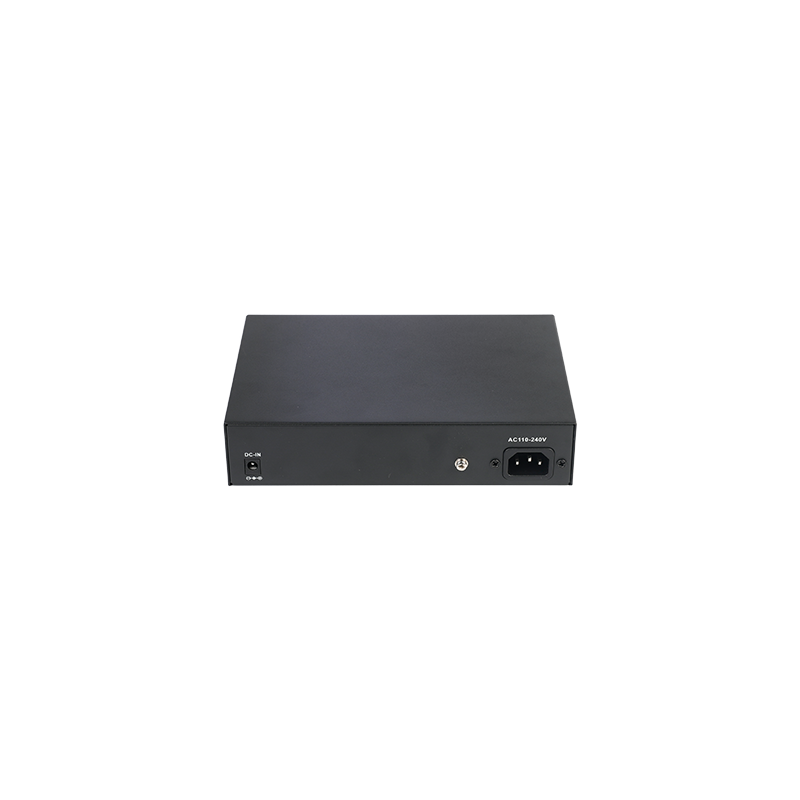

| External Power Supply | DC 48-55V 5A Max |
| AC 110~240V 50/60HZ | |
| Exchange Capacity | 20Gbps |
| Packet Forwarding Rate | 14.9Mpps |
| Mac Address Table | 8K |
| Packet Buffer Memory | 1.5Mb |
| Jumbo Frame | 10240 Bytes |
| Protection Level | 6kV Lightning protection |
| 6kV ESD Contact discharge | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Priority Function |
| Mac Address Auto-Learning And Auto-Aging | |
| Store and forward | |
| IEEE 802.3x flow control for | |
| Full-duplex Mode | |
| Backpressure for Half-duplex Mode | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Dimension | 270×256×65 mm |
| Switch Dimension | 210×140×45 mm |
| Gross Weight | 1.37kg |
| Net Weight | 0.91kg |
| Package Contents | 1× PoE Switch |
| 1× Power Cord | |
| 1× Installation Guide | |
| Working Environment | Working Temperature：-10℃～55℃ |
| Storage temperature ：-40℃～70℃ | |
| Working Humidity ：10%～90% RH non-condensing | |
| Storage Humidity：5%～90% RH non-condensing | |
| SOFTWARE FEATURES | |
| Advanced Functions | Support 802.1p CoS/DSCP priority |
| Support 4 priority queues | |
| Queue scheduling: SP, WRR, SP+WRR | |
| Port/Flow- based Rate Limiting | |
| L2 Features | IGMP Snooping V1/V2/V3 |
| 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) | |
| Spanning Tree STP/RSTP/MSTP | |
| Port isolation | |
| BPDU filtering/guard | |
| TC/Root protect | |
| Loop back detection | |
| 802.3x Flow Control | |
| VLAN | Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) |
| Port/ MAC/Protocol-based VLAN | |
| Management VLAN configuration | |
| Access Control List | L2～L4 package filtering based on source and destination MAC address, IP address, |
| TCP/UDP ports, 802.1p, DSCP, protocol and VLAN IDTime Range Based | |
| Security | IP-MAC-Port-VID Binding |
| IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN | |
| DoS Defence | |
| Dynamic ARP inspection (DAI) | |
| SSH v1/v2 | |
| SSL v2/v3/TLSv1 | |
| Port Security | |
| Broadcast/Multicast/Unknown-unicast Storm Control | |
| Management | Web-based GUI and CLI management |
| SNMP v1/v2c/v3,compatible with public MIBs DHCP/BOOTP Client,DHCP Snooping,DHCP Option82 | |
| CPU Monitoring | |
| Port Mirroring | |
| Time Setting: SNTP | |
| Integrated NDP/NTDP feature | |
| Firmware Upgrade: TFTP & Web | |
| System Diagnose: VCT | |
| SYSLOG & Public MIBS | |
