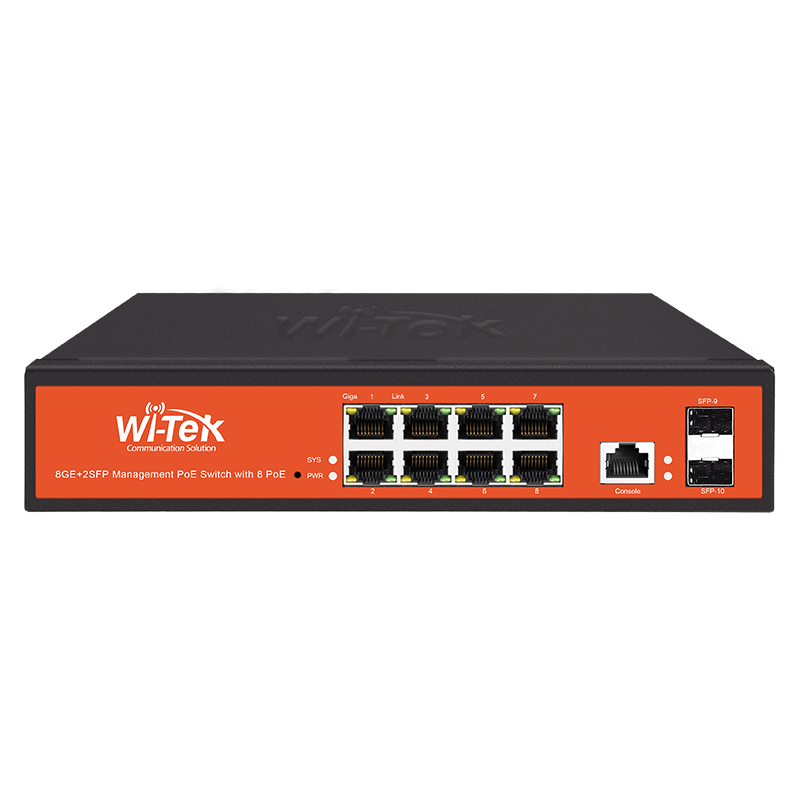

Wi-Tek - WI-PMS310GF - 8GE+2SFP Full Giga 802.3af/at Managed PoE Switch with 8Port PoE
Part number:
WI-PMS310GF
Price:
Wi-Tek L2 Management PoE Gigabit Ethernet Switch Provide flexible and high-cost performance full-gigabit access and uplink ports, support complete security protection mechanism, perfect ACL/QoS policies and flexible VLAN functions, easy to manage and maintain, and meet users' needs for network equipment that is easy to manage, high security, low cost Cost networking requirements, is the preferred networking equipment for small and medium-sized enterprises.
Features:
- 8 Gigabit PoE ports and 2 Gigabit SFP Slots
- 8 802.3af/at PoE ports with a total power supply of 150W
- Support IGMP Snooping, Link Aggregation, and Loop Prevention
- QoS and IGMP snooping function optimize voice, video applications
- Support Web, CLI(Console Port, Telnet, SSH), SNMP and RMON bring powerful management capabilities
| Hardware Specifications | |||
| Interface | 8x10/100/1000Mbps RJ45 Ports 2x1000Mbps SFP Slots 1xConsole Port | ||
| Port Standard | IEEE 802.3 i:10BASE-T Ethernet; IEEE 802.3 u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z:1000BASE-X Gigabit Ethernet(Optical fiber) | ||
| PoE | PoE Standard | 802.3af/at | |
| PoE Ports | 8 up to 30W | ||
| PoE Power Budget | 150W | ||
| Power Supply | AC 110~240V 50/60HZ DC 48-55V Input | ||
| Switching Capacity | 20Gbps | ||
| Packet Forwarding Rate | 14.9Mpps | ||
| Jumbo Frame | 16KB | ||
| MAC Address Table | 8K | ||
| Dimensions ( W x D x H ) | 210mm*140mm*45mm | ||
| Fan Quantity | Fanless | ||
| Protection Level | Common Mode ± 6KV, Differential Mode ± 4KV | ||
| Electrostatic Standard | Contact 6KV Air 8KV | ||
| Transmission Mode | Store— Forward | ||
| Installation | Desktop | ||
| Software Features | |||
| Spanning Tree | IEEE 802.1D - STP | ||
| IEEE 802.1w - RSTP | |||
| IEEE 802.1s - MSTP | |||
| Port Loop Detection | |||
| EAPS | |||
| Reliability | ERPS | ||
| LLDP/LLDP-MED | |||
| UDLD | |||
| VLAN | Max 4K VLAN Groups | ||
| 802.1q Tagged VLAN | |||
| MAC-Based VLAN | |||
| IP-Based VLAN | |||
| QinQ | |||
| Protocol- Based VLAN | |||
| Voice VLAN | |||
| Port | LACP | ||
| Port Shutdown | |||
| Jumbo Frame | |||
| Port mirroring( One-to-One Many-to-One Tx/Rx/Both) | |||
| Link Aggregation( Up to 8 aggregation groups and up to 8 ports per group) | |||
| Security | IP-MAC-Port Binding | ||
| IEEE802.1x AAA | |||
| Support Static and Dynamic ARP | |||
| RADIUS/TACACS+ | |||
| RADIUS | |||
| Port Isolation | |||
| Port Based Authentication | |||
| Secure Command Line Interface (CLI) Management With SSHv1/SSHv2 | |||
| Broadcast/Multicast/Uni-cast Storm Control | |||
| Port MAC Address Filtering | |||
| DHCP Snooping | |||
| Access Control List | Standard IP-Based ACL | ||
| Extended IP Based ACL | |||
| MAC IP-Based ACL | |||
| MAC ARP-Based ACL | |||
| IPv6-Based ACL | |||
| ACL Port Filtering | |||
| Time-Based ACL | |||
| QOS | Port-Based (uplink and downlink traffic of a single port can be restricted) | ||
| 802.1p-Based Classification | |||
| Support WRR, SP, WFQ | |||
| DISC-Based Classification | |||
| ACL-Based Classification | |||
| L2 M ulticast | IGMP Snooping v1/v2/v3 | ||
| MLDS nooping | |||
| MVR | |||
| IPV6 | IPv4/IPv6 Dual Protocol Stack | ||
| IPv6 Neighbor Discovery | |||
| Support manual address configuration, stateless address auto-configuration and tasteful address configuration obtained through DHCPv6 client | |||
| IPv6 TFTP | |||
| IPv6 SNMP | |||
| ICMPv6 | |||
| IPv6 Path MTU Discovery | |||
| IPv6 SSH | |||
| Management | Web-Based GUI | ||
| Command Line Interface (CLI) through console port, telnet and SSH | |||
| SNMPv1/v2c/v3 Trap/Inform RMON (1, 2, 3, 9) groups | |||
| Password Recovery | |||
| SNTP | |||
| System Log | |||
| Traceroute | |||
| Ping | |||
| CPU Monitoring | |||
| Firmware Upgrade | |||
| Configuration Export/Import | |||
| Support SNTP Based IPv4 and IPv6 | |||
| DHCP/BOOTP Client | |||
| Others | |||
| Certfication | CE , FCC , RoHS | ||
| Package Contents | Gigabit Switch | ||
| Power Cord | |||
| Guide Book/Warranty Card | |||
| Environment | Operating Temperature: 0–40 ℃ Storage Temperature: -40– 70 ℃ Operating Humidity: 10– 90% RH non-condensing Storage Humidity: 5– 90% RH non-condensing | ||
