Wi-Tek - WI-PMS312GF-I V2 - 8GE+4SFP Fiber Uplink Managed Industrial PoE Switch with 8Port PoE
Part number:
WI-PMS312GF-I V2
Price:
Wi-Tek's 24V/48V mixed industrial PoE switch is designed to provide network transport solution for WISP and CCTV markets. Products are designed to automatically identify different PoE-powered requirements, compatible with 24V and 48V PoE-powered devices, provide high compatibility PoE solutions for various application scenarios, and one-time investments to meet various business requirements. It supports flexible and multiple installation methods, such as wall mounting and DIN-rail mounting methods. Industrial-grade CPU and redundant power supply design, guarantee its stable and reliable operation even in harsh environments. And the abundant management functions design makes it an ideal choice for complex network projects.
Features:

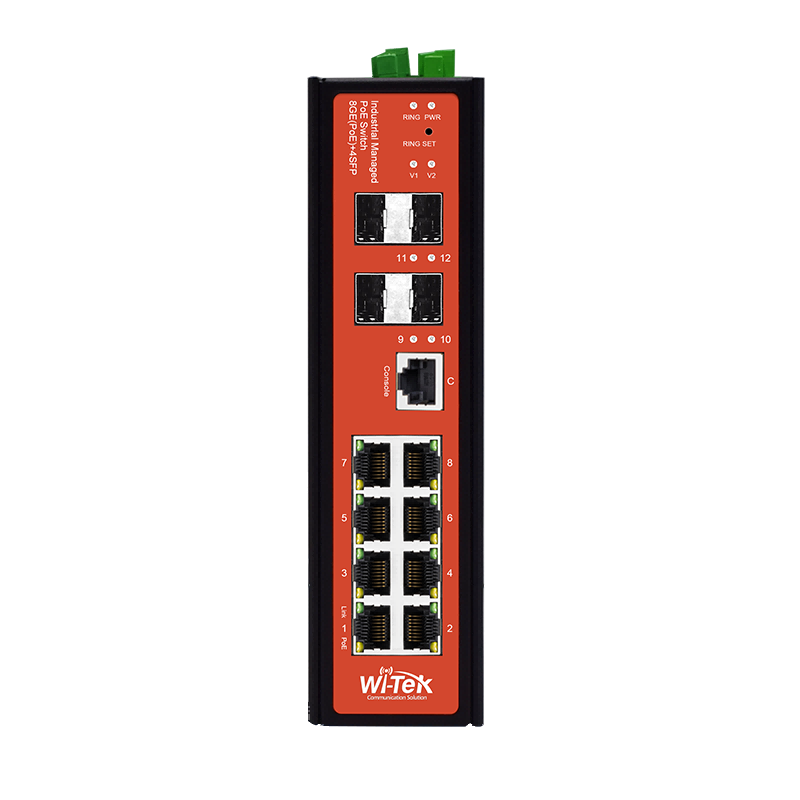

- 8GE+4SFP Fiber Uplink Managed Industrial PoE Switch with 8Port PoE
- Supports smart watchdog function to monitor compliant PD
- Support Alarm Input and Alarm Output
- Port 1-2 Support 24V/48V PoE by auto detect,Port 3-4 Support 802.3BT 60W
- Support Web-based network management, support VLAN, QoS, RSTP, SNMP etc. network function
- Support fast ring ,support 30 pcs switches Max. in a cascade system ,Self-healing in 20ms Min
- Industrial Level 4 protection(ESD,RS,EFT,CS); -40℃～80℃ working temperature;
DC Input 37-57V
| Products | WI-PMS312GF-I |
| Hardware Version | V1 |
| Ethernet Ports | |
| Downlink Ports | 8*10/100/1000 Base-T PoE RJ-45 |
| (Auto-MDI/MDI-X) | |
| Uplink Ports | 4*1000 Base-X SFP |
| Console Port | 1*RJ-45 to RS-232 console port (115200,8,N,1) |
| Alarm In/Out Interface | Yes |
| TMS Ports | 1*TMS |
| PoE | |
| PoE Standard | Ports 1-2: 24V Passive/ 48V 802.3 af/at PoE |
| Ports 3-4: 802.3 af/at/bt 60W | |
| Ports 5-8: 802.3 af/at PoE | |
| PoE Power Supply Type | 802.3af/at: End-span |
| 24 Passive: Mid-span | |
| 802.3 af/at/bt: Mid-span and End-span | |
| PoE Budget | 300W |
| Switch Property | |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1x |
| Forwarding Modes | Store and forward |
| Packet Buffer | 4.1Mbit |
| MAC Table | 8K |
| Switching Capacity | 24Gbps / non-blocking |
| Packet Forwarding Rate | 17.86Mpps |
| Jumbo Frame | 10kB |
| Power Supply | |
| Input Voltage | PoE Switch: |
| Power 1 (Main): 37~57V DC | |
| Power 2 (Backup): 37~57V DC | |
| Non- PoE Switch: | |
| Power 1 (Main): 12~57V DC | |
| Power 2 (Backup): 12~57V DC | |
| Reliability | |
| Surge Immunity | 6KV, Standard: IEC6000-4-5 |
| ESD Protection | 8kV Contact Discharge, 15kV Air Discharge, Standard: IEC61000-4-2 |
| MTBF | about 30Wh |
| MTBF Standards | Telcordia SR-332，25℃ |
| Operating Temperature | -40℃~80℃ |
| Storage Temperature | -40℃~85℃ |
| Operating Humidity | 5%~95% (Non-condensation) |
| Physical Parameter | |
| Led Indicators | 2* power supply indicators |
| 1* system working indicator | |
| 1* Ring indicator | |
| 4* SFP indicator | |
| 8* RJ45 PoE indicators | |
| 8* RJ45 Link indicators | |
| Dimensions (W*D*H) | 200*140*50mm |
| Net Weight | 1.4kg |
| Material | Metal shell |

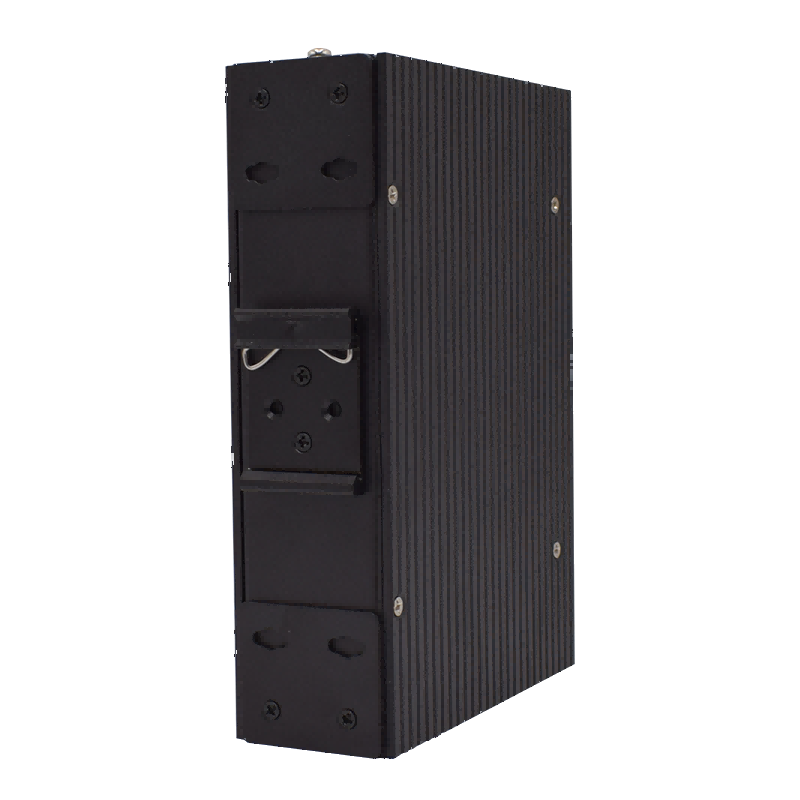

| Installation | DIN-rail/wall mounting |
| Certifications | |
| Certifications | CE, FCC |
| Software Features | |
| Switch Monitoring | Temperature sensor, alarm input and output |
| Spanning Tree | IEEE 802.1D -STP |
| IEEE 802.1w -RSTP | |
| IEEE 802.1s -MSTP | |
| Reliability | Port Loop Detection |
| EAPS | |
| ERPS | |
| LLDP/LLDP-MED | |
| UDLD | |
| VLAN | Max 4K VLAN Groups |
| 802.1Q Tagged VLAN | |
| MAC-Based VLAN | |
| IP-Based VLAN | |
| Protocol-Based VLAN | |
| QinQ | |
| 802.1q-Based VLAN | |
| Voice VLAN | |
| Port | LACP |
| Jumbo Frame | |
| Port Shutdown | |
| Link Aggregation (Up to 8 aggregation groups and up to 8 ports per group) | |
| Port Mirroring (One-to-One Many-to-One Tx/Rx/Both) | |
| Security | IP-MAC-Port Binding |
| Support Static and Dynamic ARP | |
| DHCP Snooping | |
| IEEE802.1x AAA | |
| RADIUS/TACACS+ | |
| RADIUS | |
| Port Isolation | |
| Port Based Authentication | |
| Secure Command Line Interface (CLI) Management With SSHv1/SSHv2 | |
| Broadcast/Multicast/Uni-cast Storm Control | |
| Port MAC Address Filtering | |
| Access Control List | Standard IP-Based ACL |
| Extended IP Based ACL | |
| MAC IP-Based ACL | |
| MAC ARP-Based ACL | |
| IPv6-Based ACL | |
| ACL Port Filtering | |
| Time-Based ACL | |
| QOS | Port-Based (uplink and downlink traffic of a single port can be restricted) |
| 802.1p-Based Classification | |
| Support WRR, SP, WFQ | |
| DISC-Based Classification | |
| CAL-Based Classification | |
| L2 Multicast | IGMP Snooping V1/V2/V3 |
| MLD Snooping | |
| MVR | |
| IPv6 | IPv4/ IPv6 Dual Protocol Stack |
| IPv6 Neighbor Discovery | |
| Support manual address configuration, stateless address auto-configuration and tasteful address configuration obtained through DHCPv6 client | |
| IPv6 TFTP | |
| IPv6 SNMP | |
| ICMPv6 | |
| IPv6 Path MTU Discovery | |
| IPv6 SSH | |
| Tracert6 | |
| Management | Web-Based GUI |
| Command Line Interface (CLI) through console port, telnet and SSH | |
| SNMPv1/v2c/v3 Trap/Inform RMON (1, 2, 3, 9) groups | |
| Password Recovery | |
| SNTP | |
| System Log | |
| Traceroute | |
| Ping | |
| CPU Monitoring | |
| Firmware Upgrade | |
| Configuration Export/Import | |
| Support SNTP Based IPv4 and IPv6 | |
| DHCP/BOOTP Client | |
