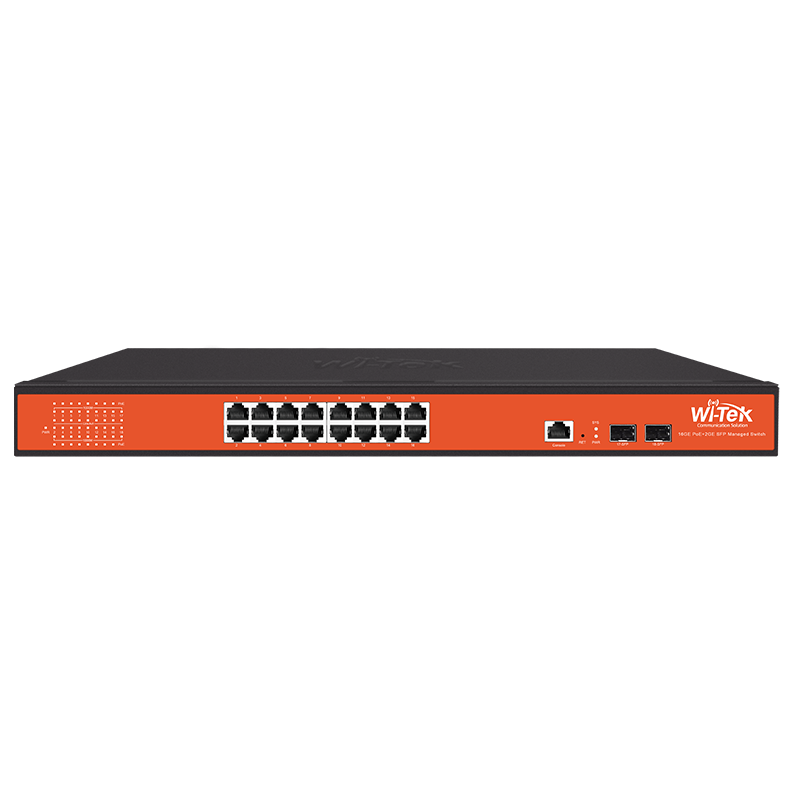

Wi-Tek - WI-PMS318GFR - 16GE+2SFP uplink Full Giga SNMP managed 24V Reverse PoE Switch
Part number:
WI-PMS318GFR
Price:
16GE+2SFP uplink Full Giga SNMP managed 24V Reverse PoE Switch
Features:
- 16GE+2SFP uplink Full Giga SNMP managed 24V Reverse PoE Switch
- Port1-15 for PoE In, Port16 for PoE Out
- Supports PoE 24V Passive PoE compliant PDs
- PoE Output 24V 1A，2SFP Fiber Uplink
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
- Support QVLAN,QoS and IGMP snooping optimize voice and video application
| Hardware Specifications | ||
| Interface | 16x10/100/1000Mbps RJ45 Ports 2x1000Mbps SFP Slots 1xConsole Port | |
| Port Standard | IEEE 802.3 i:10BASE-T Ethernet; IEEE 802.3 u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z:1000BASE-X Gigabit Ethernet(Optical fiber) | |
| PoE | PoE Standard | 802.3af/at |
| PoE Ports | 16 up to 30W | |
| PoE Power Budget | 350W | |
| Power Supply | AC 110~240V 50/60HZ | |
| Switching Capacity | 36Gbps | |
| Packet Forwarding Rate | 26.8Mpps | |
| Jumbo Frame | 16KB | |
| MAC Address Table | 8K | |
| Dimensions ( W x D x H ) | 440mm*200mm*45mm | |
| Fan Quantity | 2 Fan | |
| Protection Level | Common Mode ± 6KV, Differential Mode ± 4KV | |
| Electrostatic Standard | Contact 6KV Air 8KV | |
| Transmission Mode | Store— Forward | |
| Installation | Rack-Mounted | |
| Software Features | ||
| Spanning Tree | IEEE 802.1D - STP | |
| IEEE 802.1w - RSTP | ||
| IEEE 802.1s - MSTP | ||
| Port Loop Detection | ||
| EAPS | ||
| Reliability | ERPS | |
| LLDP/LLDP-MED | ||
| UDLD | ||
| VLAN | Max 4K VLAN Groups | |
| 802.1q Tagged VLAN | ||
| MAC-Based VLAN | ||
| IP-Based VLAN | ||
| QinQ | ||
| Protocol- Based VLAN | ||
| Voice VLAN | ||
| Port | LACP | |
| Port Shutdown | ||
| Jumbo Frame | ||
| Port mirroring( One-to-One Many-to-One Tx/Rx/Both) | ||
| Link Aggregation( Up to 8 aggregation groups and up to 8 ports per group) | ||
| Security | IP-MAC-Port Binding | |
| IEEE802.1x AAA | ||
| Support Static and Dynamic ARP | ||
| RADIUS/TACACS+ | ||
| RADIUS | ||
| Port Isolation | ||
| Port Based Authentication | ||
| Secure Command Line Interface (CLI) Management With SSHv1/SSHv2 | ||
| Broadcast/Multicast/Uni-cast Storm Control | ||
| Port MAC Address Filtering | ||
| DHCP Snooping | ||
| Access Control List | Standard IP-Based ACL | |
| Extended IP Based ACL | ||
| MAC IP-Based ACL | ||
| MAC ARP-Based ACL | ||
| IPv6-Based ACL | ||
| ACL Port Filtering | ||
| Time-Based ACL | ||
| QOS | Port-Based (uplink and downlink traffic of a single port can be restricted) | |
| 802.1p-Based Classification | ||
| Support WRR, SP, WFQ | ||
| DISC-Based Classification | ||
| ACL-Based Classification | ||
| L2 M ulticast | IGMP Snooping v1/v2/v3 | |
| MLDS nooping | ||
| MVR | ||
| IPV6 | IPv4/IPv6 Dual Protocol Stack | |
| IPv6 Neighbor Discovery | ||
| Support manual address configuration, stateless address auto-configuration and tasteful address configuration obtained through DHCPv6 client | ||
| IPv6 TFTP | ||
| IPv6 SNMP | ||
| ICMPv6 | ||
| IPv6 Path MTU Discovery | ||
| IPv6 SSH | ||
| Management | Web-Based GUI | |
| Command Line Interface (CLI) through console port, telnet and SSH | ||
| SNMPv1/v2c/v3 Trap/Inform RMON (1, 2, 3, 9) groups | ||
| Password Recovery | ||
| SNTP | ||
| System Log | ||
| Traceroute | ||
| Ping | ||
| CPU Monitoring | ||
| Firmware Upgrade | ||
| Configuration Export/Import | ||
| Support SNTP Based IPv4 and IPv6 | ||
| DHCP/BOOTP Client | ||
