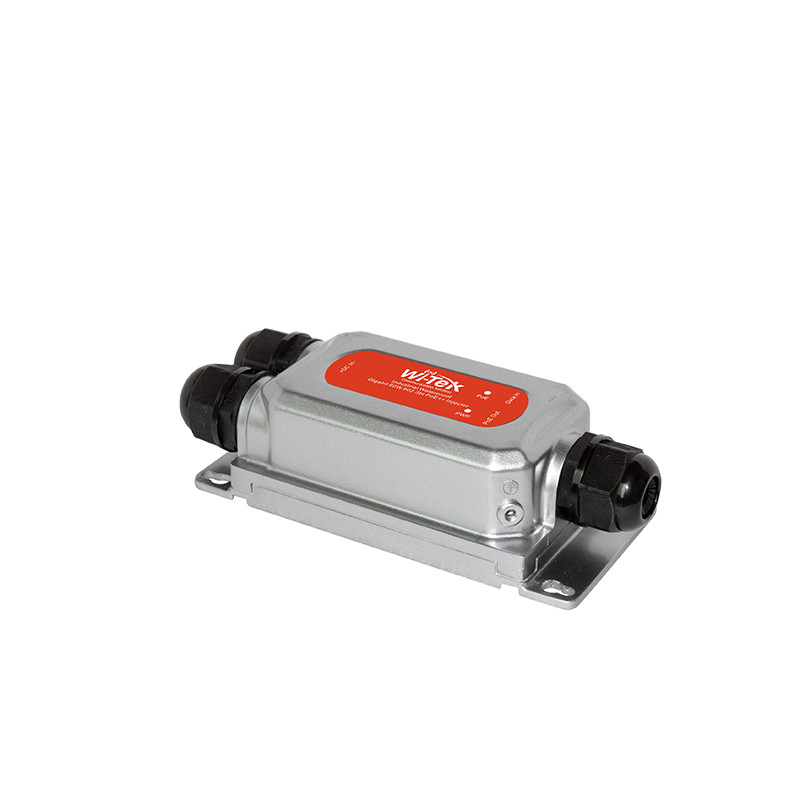

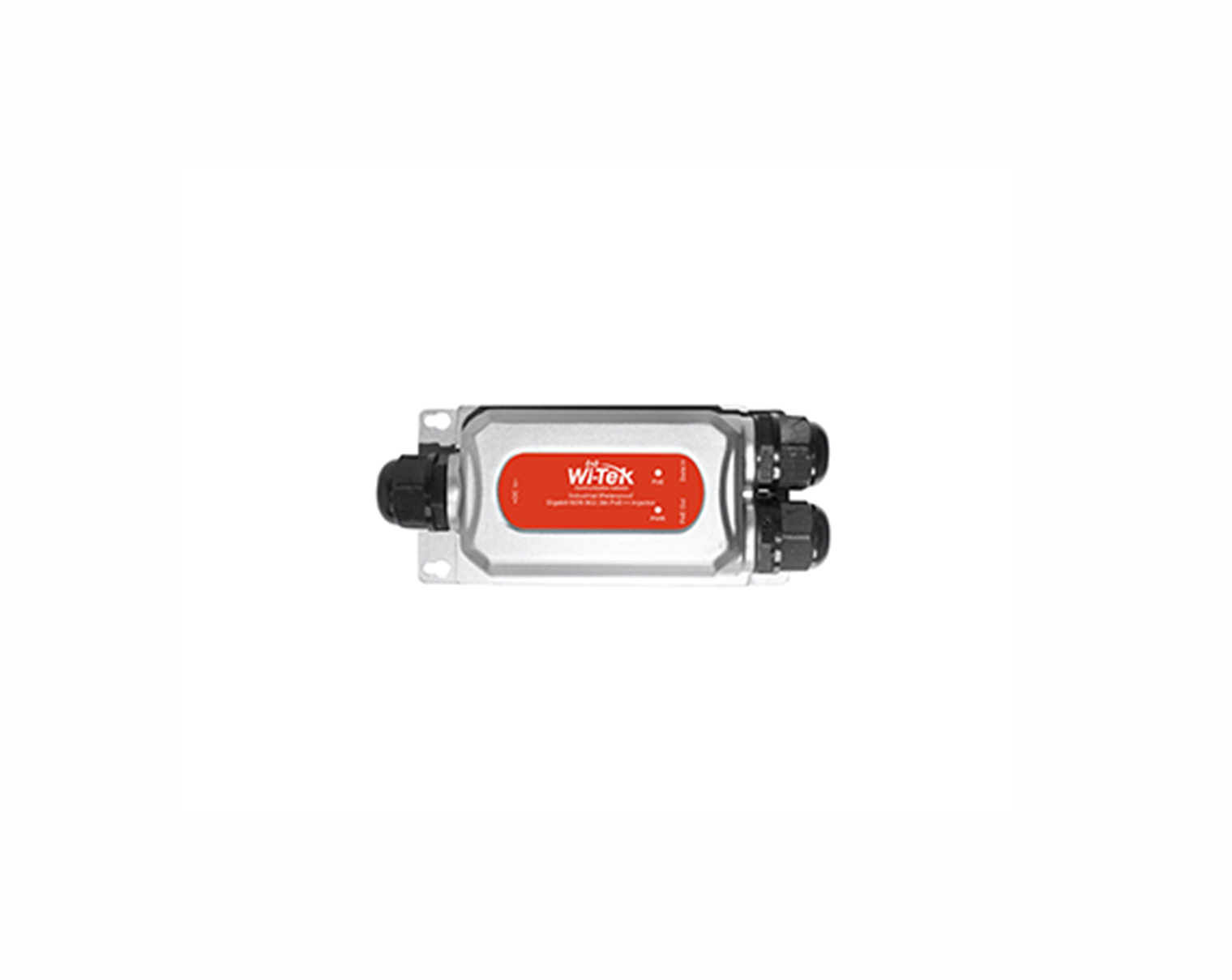

Wi-Tek - WI-POE22E-O - *2GE PoE Output(1*802.3af/at 30W+1*802.3af/at 60W)+1GE PoE Input(802.3bt 90W) PoE Extender
Part number:
WI-POE22E-O
Price:
Wi-Tek industrial accessories including PoE Extender, PoE Injector, and PoE Splitter, provide a simple solution for adding PoE ports without running more cabling and achieving more flexible network applications without requiring an external power adapter. All the them comes with IP68 Waterproof make it can work in harsh outdoor environment
Features:
- 2GE PoE Output(1*802.3af/at 30W+1*802.3af/at 60W)+1GE PoE Input(802.3bt 90W) PoE Extender
- PoE Output Support 100meter long-Range PoE transmit
- All ports support wire speed switch, jumbo frame transmission.
- Outdoor IP68 Waterproof design
- Industrial Level 4 protection(ESD,RS,EFT,CS); -40℃～80℃ working temperature;
- Plug and play, self-adaption.
| Model | WI-POE22E-O |
| Product | PoE Extender |
| Interface | PoE in port： |
| 1 x 1000Mbps PoE port with 802.3bt 90W | |
| PoE output port: | |
| 1 x 1000Mbps PoE port with 802.3af/at 30W | |
| 1 x 1000Mbps PoE port with 802.3af/at 60W | |
| Pin | PoE in: 1/2/4/5(+), 3/6/7/8(-) |
| PoE output: 1/2(+)3/6(-) or 4//5(+) 7/ 8(-) | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Priority Function Mac Address Auto-Learning And Auto-Aging Store |
| and forward IEEE 802.3x flow control for Full-duplex Mode | |
| Backpressure for Half-duplex Mode | |
| Waterproof | IP68 |
| LED Indicator | LAN |
| Certification | CE, FCC, RoHS |
| Dimensions ( W x D x H ) | 150*73*44mm |
| Package Contents | 1 x PoE Extender |
| 1 x Waterproof Kit | |
| 1 x Installation Guide | |
| Environment | Operating Temperature: -40°C~80°C |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
