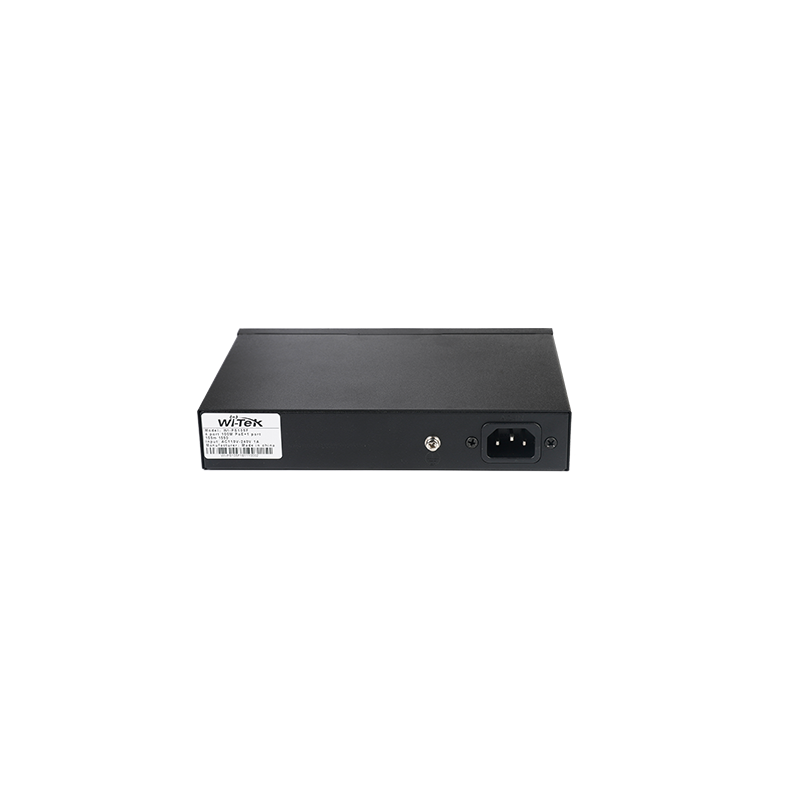

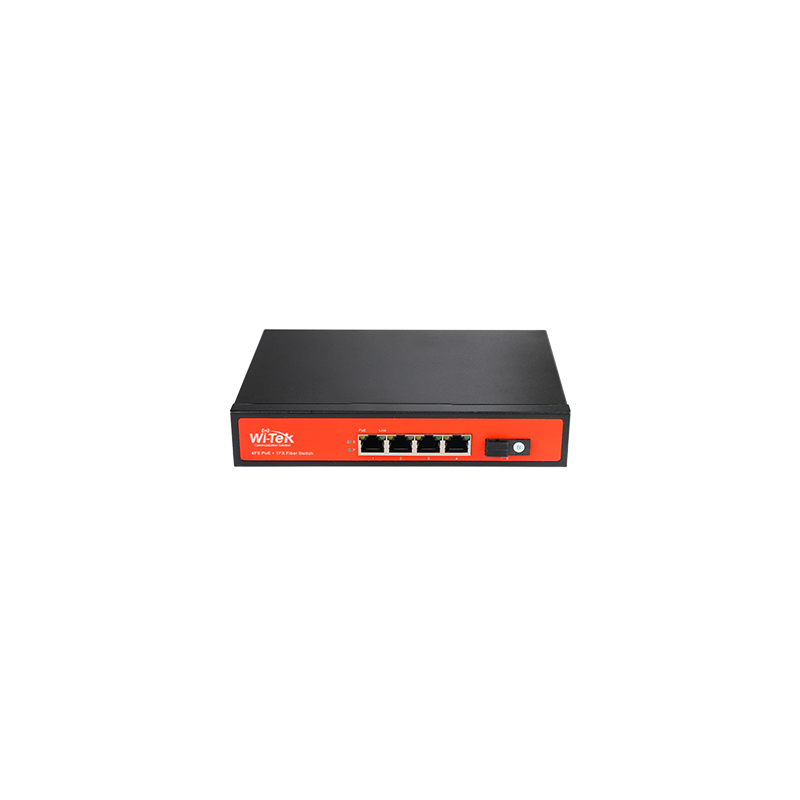

Wi-Tek - WI-PS105F - 4FE+1SC Fiber 802.3af/at PoE Switch with 4Port PoE
Part number:
WI-PS105F
Price:

Wi-Tek 48V 802.3af/at fiber PoE switches are unmanaged switches which are play and play and easy to use for CCTV surveillance. They are ideal for deployment in environments that require uninterrupted running of network applications and a high level of performance. In addition, these switches offer Power over Ethernet (PoE) solutions to provide both electrical power and network connectivity to PoE-capable devices, such as IP phones and wireless APs.



Features:

  • 4 100Mbps RJ45 PoE+ Ports
  • 1 1000Mbps SC Fiber
  • Power Budget: 65W
  • Plug and play, zero configuration

HARDWARE FEATURES

WI-PS105F

Hardware Version

V1

Interface

4 100Mbps RJ45 PoE+ Ports

1 1000Mbps SC Fiber

Fan Quantity

Fanless

Power Budget

65W

Power Supply

AC110~240V 50/60HZ

PoE Standard

802.3af/at

DIP Switch

No

Switching Capacity

4.8Gbps

Mac Address Table

2k

Packet Forwarding Rate

4.17Mbps

Buffer

768Kb

Jumbo Frame

10240Bytes

Protection Level

 6kV Lightning protection 6kV ESD Contact discharge

SOFTWARE FEATURES

Transmission Method

Store-And-Forward

Advanced Functions

Priority Function Mac Address

Auto-Learning And Auto-Aging

Store and forward IEEE

802.3x flow control for Full-duplex Mode

Backpressure for Half-duplex Mode

OTHERS

Certification

CE, FCC, RoHS

Package Dimension

190mm*130mm*35mm

Package Contents

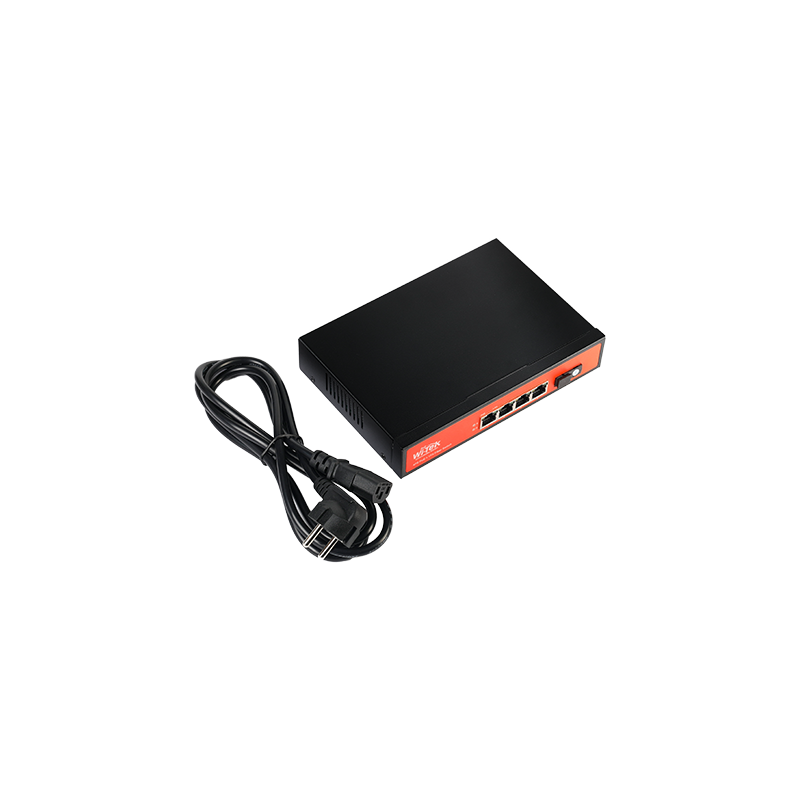

1 × PoE Switch

1 × Power cord

1 × Wall Mount Kit

1 × Installation Guide

Working Temperature

Operating Temperature: -10℃-55℃

Storage Temperature: -40℃-70℃

Operating Humidity: 10-90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing

Name
Description
Size
Downloads
File
Data Sheet
1.1mb
