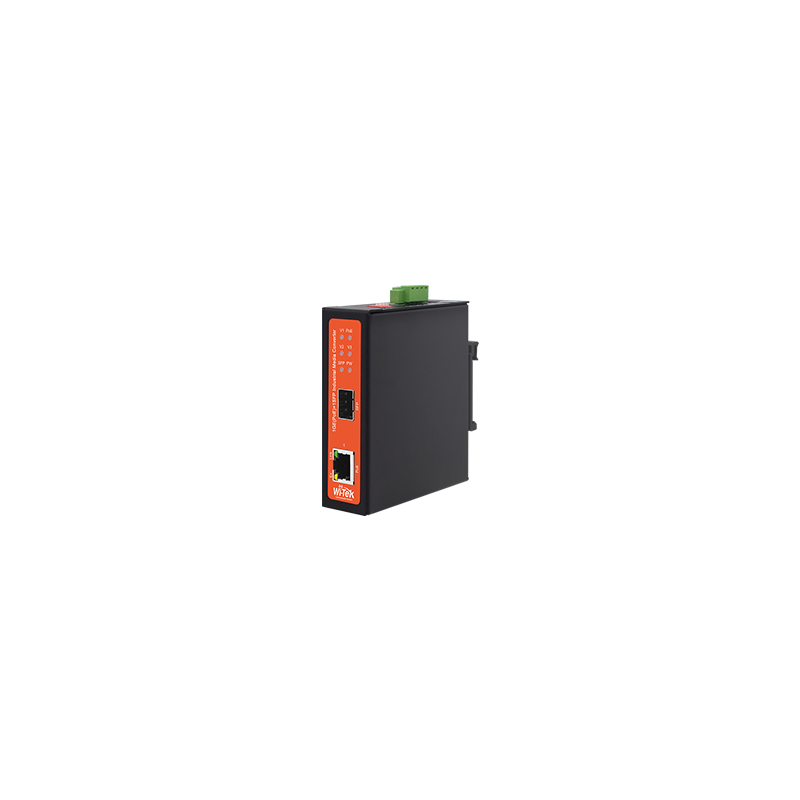

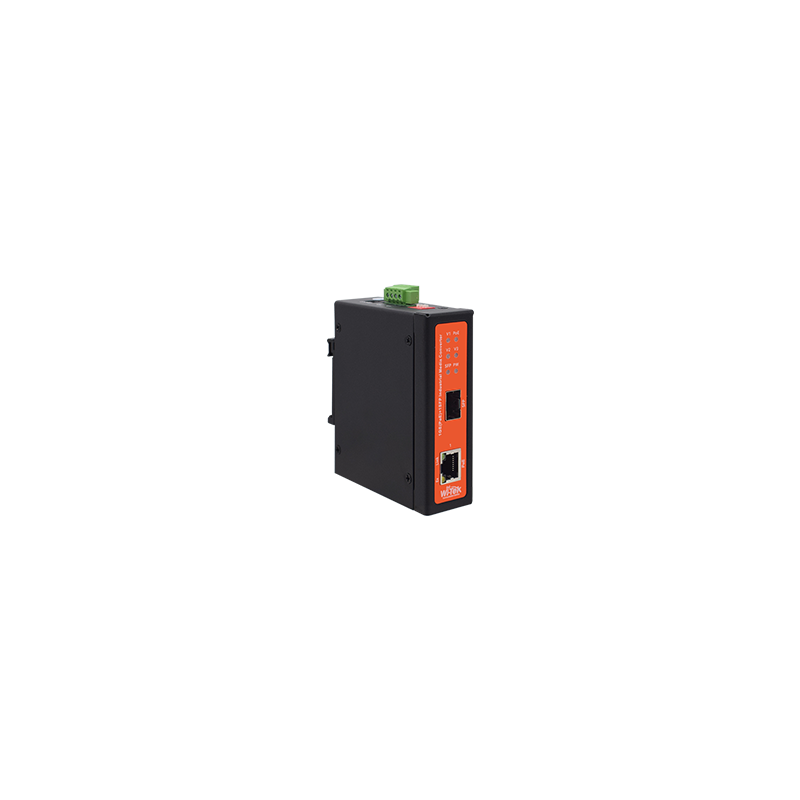

Wi-Tek industrial media converter provide 1 Gigabit Ethernet RJ-45 port and 1 Gigabit SFP slot. It combines Ethernet media conversion with 802.3af/at/bt PoE (PoE++) power to deliver up to 60 watts (60W Mode) of power output and high data transmission speed to PDs (powered devices) which installed in a remote area and the sufficient and reliable power input is required. Gigabit SFP slot provides long distance, high speed data transmission to a remote core network. Professional design providing a flexible, easy to use and reliable industrial network solution. Redundant power design guarantee the stable power supply. Solid shell, wide operation temperature from -40°C to 80°C design, ensure its reliable operation even in harsh environment. It is the best choice for outdoor CCTV project, wireless coverage project and the project of industrial application scenarios
Long Distance Transmission Solution:
It provides 100 meters maximum PoE power and data transmission and integrated with fiber interface for further data transmission distance applications. (SFP slots support 100BASE-FX/1000BASE-X multi/single mode SFP module and transmission distance up to 120km depending on SFP module)
High Level Protection Design:
6kV surge immunity for power and Ethernet ports, 15kV air discharge and 8kV contact discharge ESD protection, makes it an ideal choice for outdoor application scenario
Features:
- 1GE+1SFP Fiber Uplink Industrial PoE Switch with 1Port PoE
- Buffer reaches 4Mbit, Support 4K high-definition video transmission
- Supports smart watchdog function to monitor compliant PD
- Support 250meters Long-Range PoE
- Support fast ring ,support 30 pcs switches Max. in a cascade system ,Self-healing in 20ms Min
- Industrial Level 4 protection(ESD,RS,EFT,CS);
- -40℃～80℃ working temperature
- IEEE802.3af (15.4W) and IEEE802.3at (30W)
- DC Input 37-57V
| Model | WI-PS302GF-I |
| Hardware Specification | |
| Interfaces | |
| Ethernet Port | 1*10/100/1000 Base-T PoE+ +RJ-45(Auto-MDI/MDI-X) |
| Fiber Port | 1*1000 Base-X SFP slot |

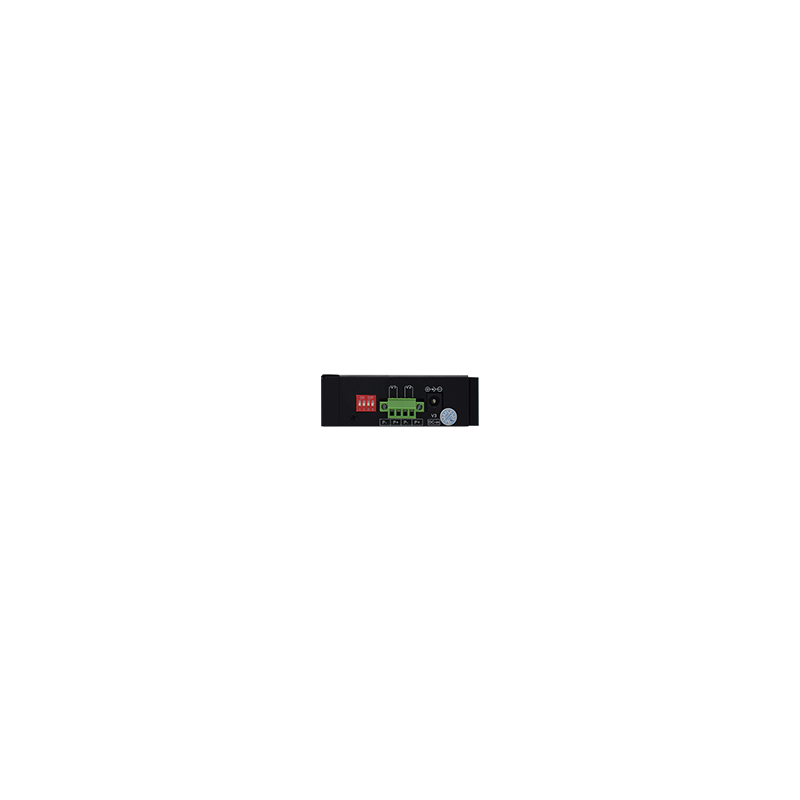

| DIP Switch | 1. Fiber Watchdog |
| 2. PoE Watchdog | |
| 3. Extend | |
| 4.60W PoE | |
| PoE | |
| PoE Standard | IEEE 802.3af/at/bt (PSE) |
| PoE Power Supply Type | Mid-span, End-span |
| PoE Pin Assignment | 1/2 (-)，3/6 (+), 4/5 (+), 7/8 (-) |
| PoE Power Output | 37~55V DC |
| PoE Power | 60W |
| Switch Property | |
| Standards | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3z Gigabit Ethernet over Fiber Optic | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| IEEE 802.3bt Power over Ethernet Plus Plus | |
| Power Supply | |
| Input Voltage | Power 1 (Main): 37~57V DC, |
| Power 2 (Backup): 37~57V DC, DC Jack: 37~57V DC | |
| Power Consumption | Full loading without PoE ≤ 6W |
| PoE power budget ≤ 66W | |
| Connector | Removable 4-pin terminal block, DC Jack |
| Environmental Reliability | |
| Surge Immunity | 6kV |
| ESD | 8kV Contact Discharge, 15kV Air Discharge |
| Operating Temperature | -40℃~80℃ |
| Storage Temperature | -40℃~85℃ |
| Operating Humidity | 5%~95% (Non-condensation) |
| LED Indicators | |
| PW (Power indicator) | Off: the device is power off or failed |
| On: the device power on is normal | |
| V1/V2/V3 | Off: No power supply |
| (Input power indicator) | On: Power is supplying via V1/V2/V3 DC connector |
| Link Indicator | Off: ports link down |
| On: ports link up | |
| Blinking: data on TX/RX | |
| EX Indicator | Off: Extend mode is disabled. |
| On: Extend mode is enabled. | |
| SFP Indicator | Off: ports link down |
| Green On: ports link up | |
| Blinking: data on TX/RX | |
| Dimensions (W*D*H) | 110*96*31mm |
| Net Weight | 295g |
| Gross Weight | 390g |
| Installation | Wall/DIN-rail mounting |
| Certifications | |
| Certifications | CE, FCC, RoHS |
