Wi-Tek - WI-PS309GFH - 8GE+1GE+1SFP PoE Switch with 8Port PoE
Part number:
WI-PS309GFH
Price:

Break the PoE distance limitation! Wi-Tek provides a robust and cost-effective PoE solution to power up your CCTV, Access point and other IP-based devices which up to 250m away. Most robust features like Extend Mode, PoE Watchdog Function, Port Isolation, provide a lot of value for basic networking needs, creating a versatile and reliable surveillance network to grow your business.



Features:

  • 8 Gigabit PoE ports, 1 Gigabit RJ45port and 1 Gigabit SFP Slot
  • Supports IEEE 802.3af/at 30W PoE
  • CCTV Mode supports 250m long distance and port isolation function
  • PoE watchdog detects, reboots unresponsive PoE-powered devices
  • PoE power budget can be up to 65W
  • Plug and play with no configuration required

HARDWARE FEATURES





Hardware Version



V1

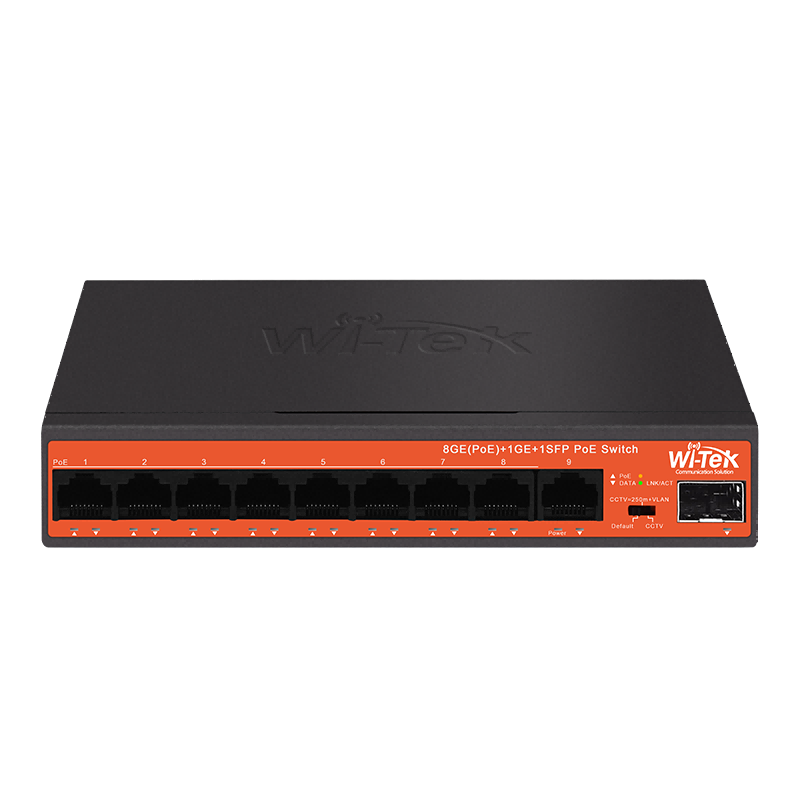

Interface



8 1000Mbps RJ45 PoE Ports

1 1000Mbps RJ45 Ports

1 1000Mbps SFP Port



Network Media



10Base-T: Pair 2 Category 3 (cat 3 ) and above UTP/ STP(≤100m)

100Base-TX: Pair 2 Category 5 (cat 5 ) and above UTP/ STP(≤100m)

1000BASE-TX: 6 Category and above UTP(≤150m)



Fan Quantity



Fanless

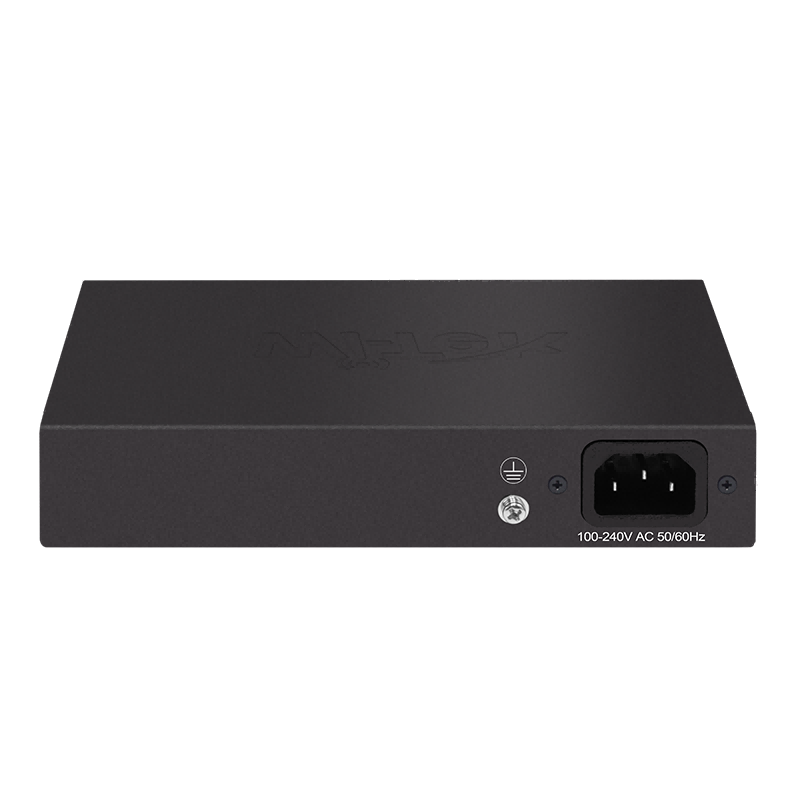

Power Supply



AC 100~240V 50/60HZ



PoE Standard



802.3 af/at compliant PoE



PoE Ports



Port 1-8



PoE Power Budget



65W



Mac Address Table



4k



Packet Forwarding Rate



14.88Mpps



Jumbo Frame



10kB



Protection Level



Lightning protection 6KV

6KV ESD Contact discharge



Package Dimension



195×165×60 mm



Switch Dimension



170×95×33 mm



Gross Weight



0.8kg



Net Weight



0.5kg

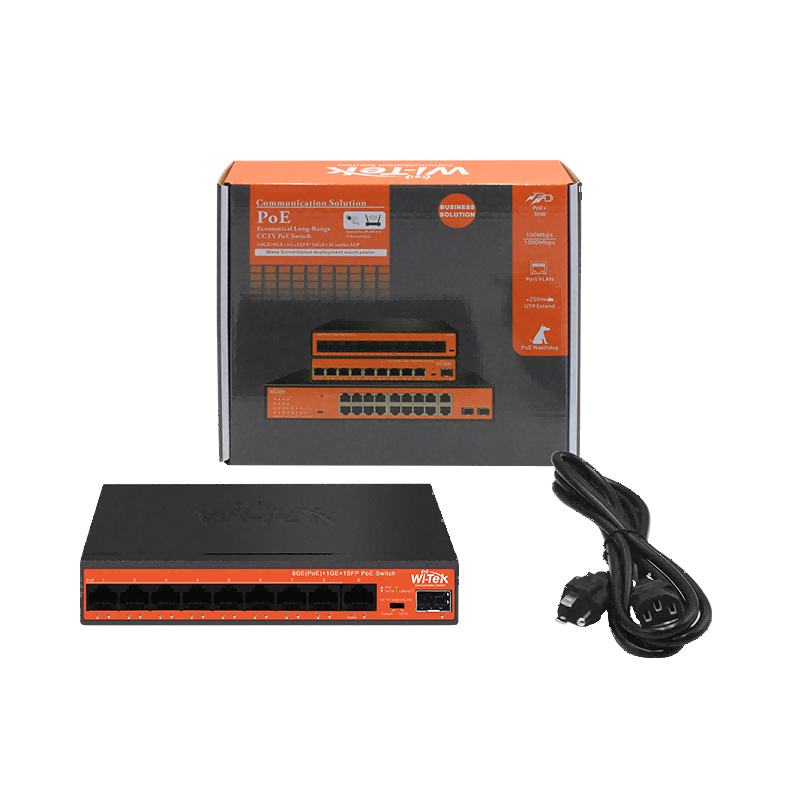

Package Content



1 × Power cord

1 × Quick Installation Guide

1 × Switch



SOFTWARE FEATURES



Transmission Method



Store - And - Forward



Advanced Functions



Watchdog Function

Mac Address Auto- Learning

Auto-Aging Store and forward

IEEE 802.3x flow control for Full-duplex Mode

Backpressure for Half-duplex Mode



OTHERS



Certification



CE , FCC , RoHS



Environment



Operating Temperature: -10℃–55℃ (14℉–131℉)

Storage Temperature: -40℃–70 ℃ (-40℉–158℉)

O perating H umidity: 10– 90% RH non-condensing

Storage H umidity: 5– 90% RH non-condensing
