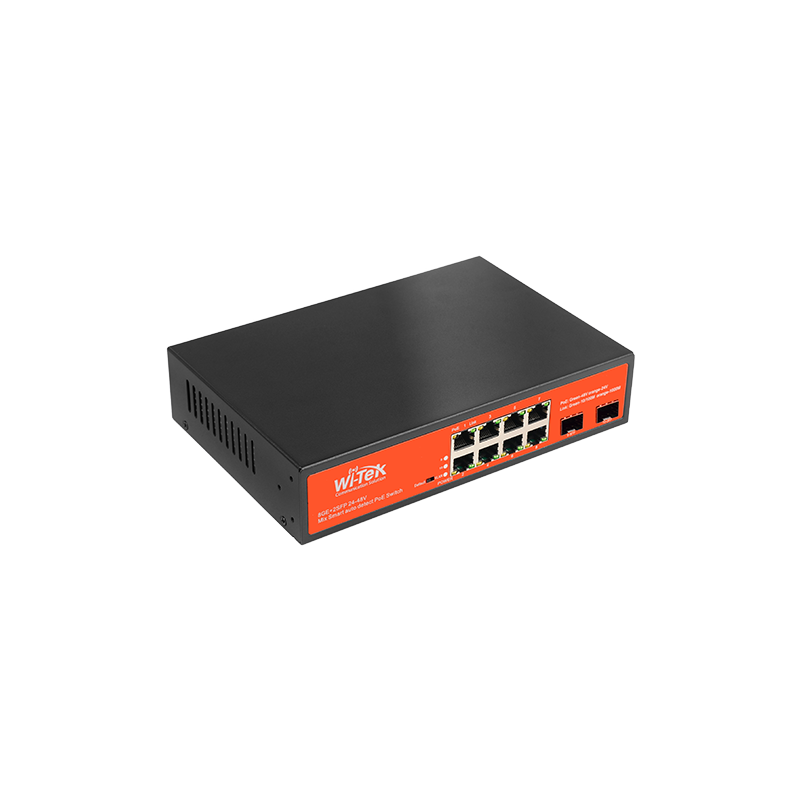

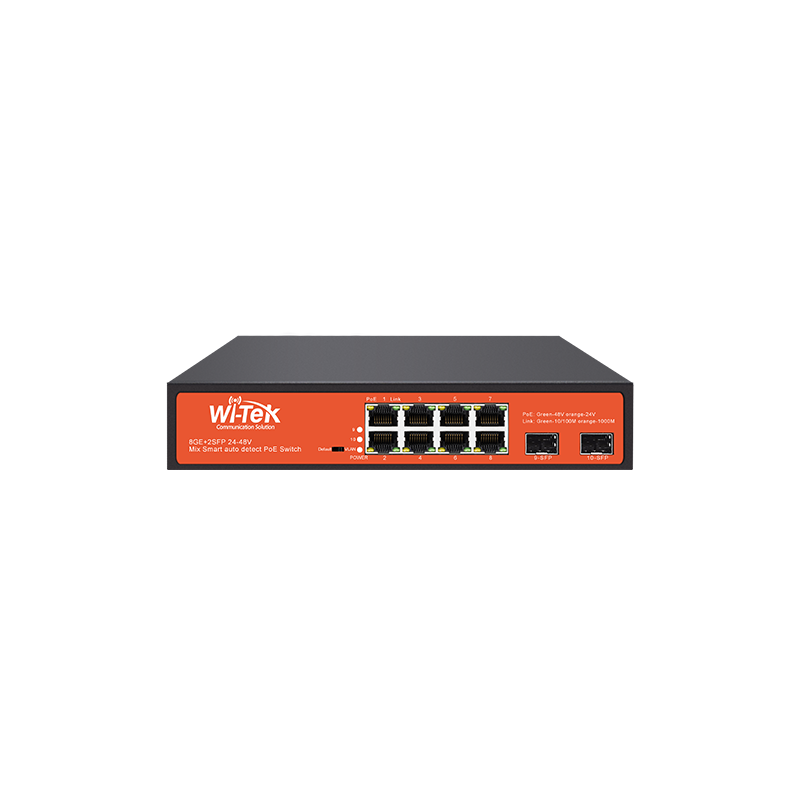

Wi-Tek - WI-PS310GF-Alien - 8GE+2SFP Unmanaged 24V-48V Auto-detect PoE Switch
Part number:
WI-PS310GF-Alien
Price:
The Alien PoE Switch Series was designed specifically for the WISP with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need a switch.
Features:
- 8GE+2SFP Unmanaged 24V-48V Auto-detect PoE Switch
- Wi-Tek Smart PoE Tech support 24-48v PoE output via auto-detect
- Support overcurrent protection/short-circuit protection
- 2SFP fiber port for fiber uplink port up 20KM
- Support 48v 802.3af/at and 24v Passive PoE both
- Internl 150W power,dual PoE voltage output design
- 8xPoE Port output
| HARDWARE FEATURES | WI-PS310GF-Alien |
| Hardware Version | V1 |
| L2 Managed | No |
| Interface | 8 10/100/1000Mbps RJ45 Ports |
| 2 1000Mbps SFP Slots | |
| PoE Port | Port 1- 8: 802.3af/at and 24V Passive |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
| 1000BASE-X: MMF, SMF 1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) | |
| Fan Quantity | Fanless |
| Power Consumption | 150W (max. with PoE device connected) |
| External Power Supply | AC 110~240V 50/60HZ |
| DC 48-55V 5A Max | |
| Exchange Capacity | 20Gbps |
| Packet Forwarding Rate | 14.9Mpps |
| Mac Address Table | 4K |
| Packet Buffer Memory | 1.5Mb |
| Jumbo Frame | 10240 Bytes |
| Protection Level | 6kV Lightning protection |
| 6kV ESD Contact discharge | |
| Transmission Method | Store and Forward |
| Advanced Functions | Mac Address Auto-Learning And Auto-Aging |
| Store and forward | |
| IEEE 802.3x flow control for | |
| Full-duplex Mode | |
| Backpressure for Half-duplex Mode | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Dimension | 270×256×65 mm |
| Switch Dimension | 205×140×45 mm |
| Gross Weight | 1.64kg |
| Net Weight | 1.05kg |
| Package Contents | 1× PoE Switch |
| 1× Power Cord | |
| 1× Installation Guide | |
| Working Environment | Working Temperature：-10℃～55℃ |
| Storage temperature ：-40℃～70℃ | |
| Working Humidity ：10%～90% RH non-condensing | |
| Storage Humidity：5%～90% RH non-condensing | |
Name
Description
Size
Downloads
File
Datasheet
1.3mb
